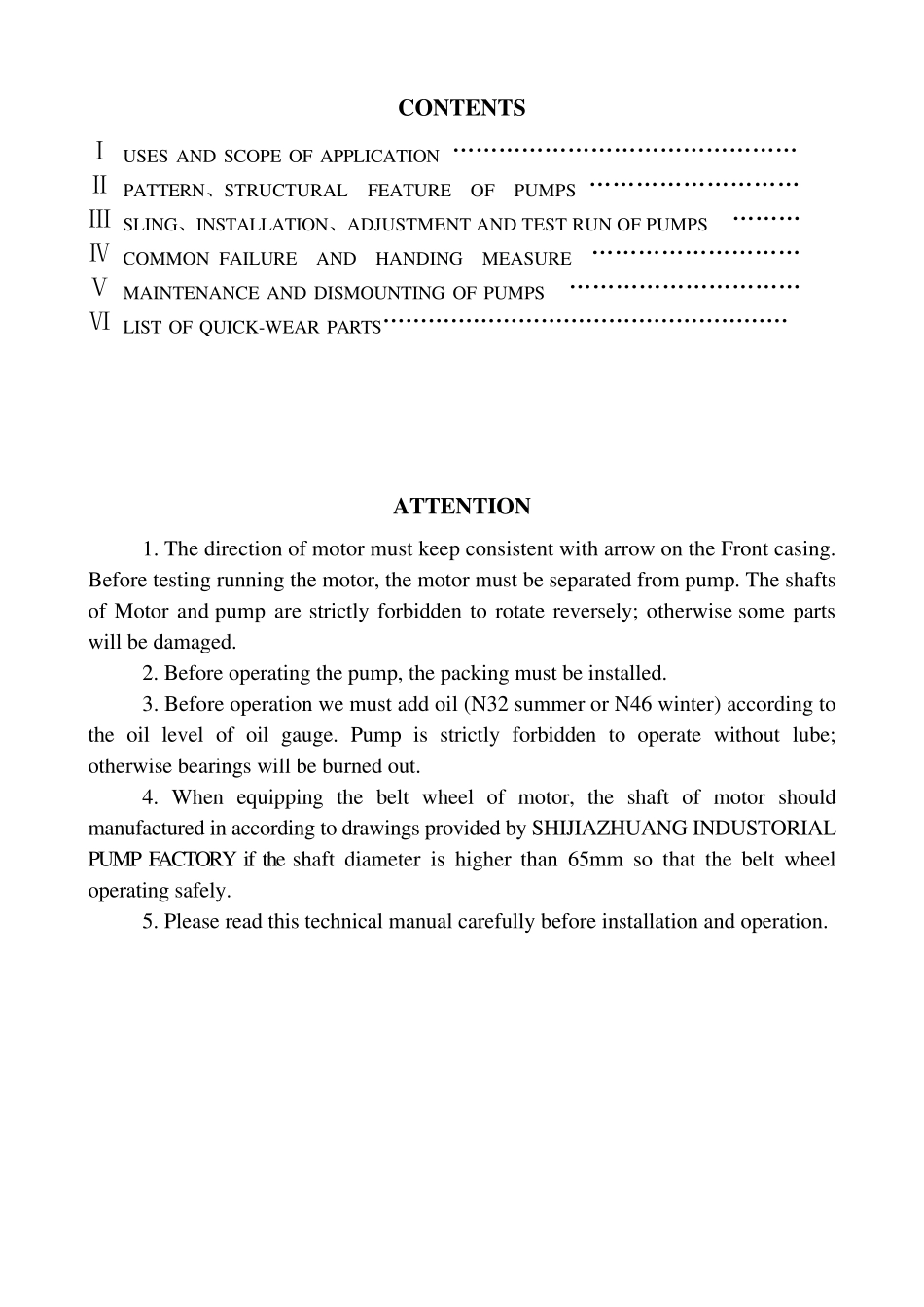

CONTENTS Ⅰ USES AND SCOPE OF APPLICATION ……………………………………… 1 Ⅱ PATTERN、STRUCTURAL FEATURE OF PUMPS ……………………… 1 Ⅲ SLING、INSTALLATION、ADJUSTMENT AND TEST RUN OF PUMPS ……… 4 Ⅳ COMMON FAILURE AND HANDING MEASURE ……………………… 11 Ⅴ MAINTENANCE AND DISMOUNTING OF PUMPS ………………………… 15 Ⅵ LIST OF QUICK-WEAR PARTS……………………………………………… 20 ATTENTION 1. The direction of motor must keep consistent with arrow on the Front casing. Before testing running the motor, the motor must be separated from pump. The shafts of Motor and pump are strictly forbidden to rotate reversely; otherwise some parts will be damaged. 2. Before operating the pump, the packing must be installed. 3. Before operation we must add oil (N32 summer or N46 winter) according to the oil level of oil gauge. Pump is strictly forbidden to operate without lube; otherwise bearings will be burned out. 4. When equipping the belt wheel of motor, the shaft of motor should manufactured in according to drawings provided by SHIJIAZHUANG INDUSTORIAL PUMP FACTORY if the shaft diameter is higher than 65mm so that the belt wheel operating safely. 5. Please read this technical manual carefully before installation and operation. SGB 1 Ⅰ USES AND SCOPE OF APPLICATION Type ZJ series Slurry Pump is a new energy-saving centrifugal pump. The products are designed and developed by The Pump Technology Corporation, Hydromining Research Institute Tangshan Branch and SHIJIAZHUANG INDUSTORIAL PUMP FACTORY. They are innovative in hydraulic designs, structural designs and materials of castings after integrating congeneric products throughout the world. They have many features: high efficiency, reasonable design, reliable operation...
