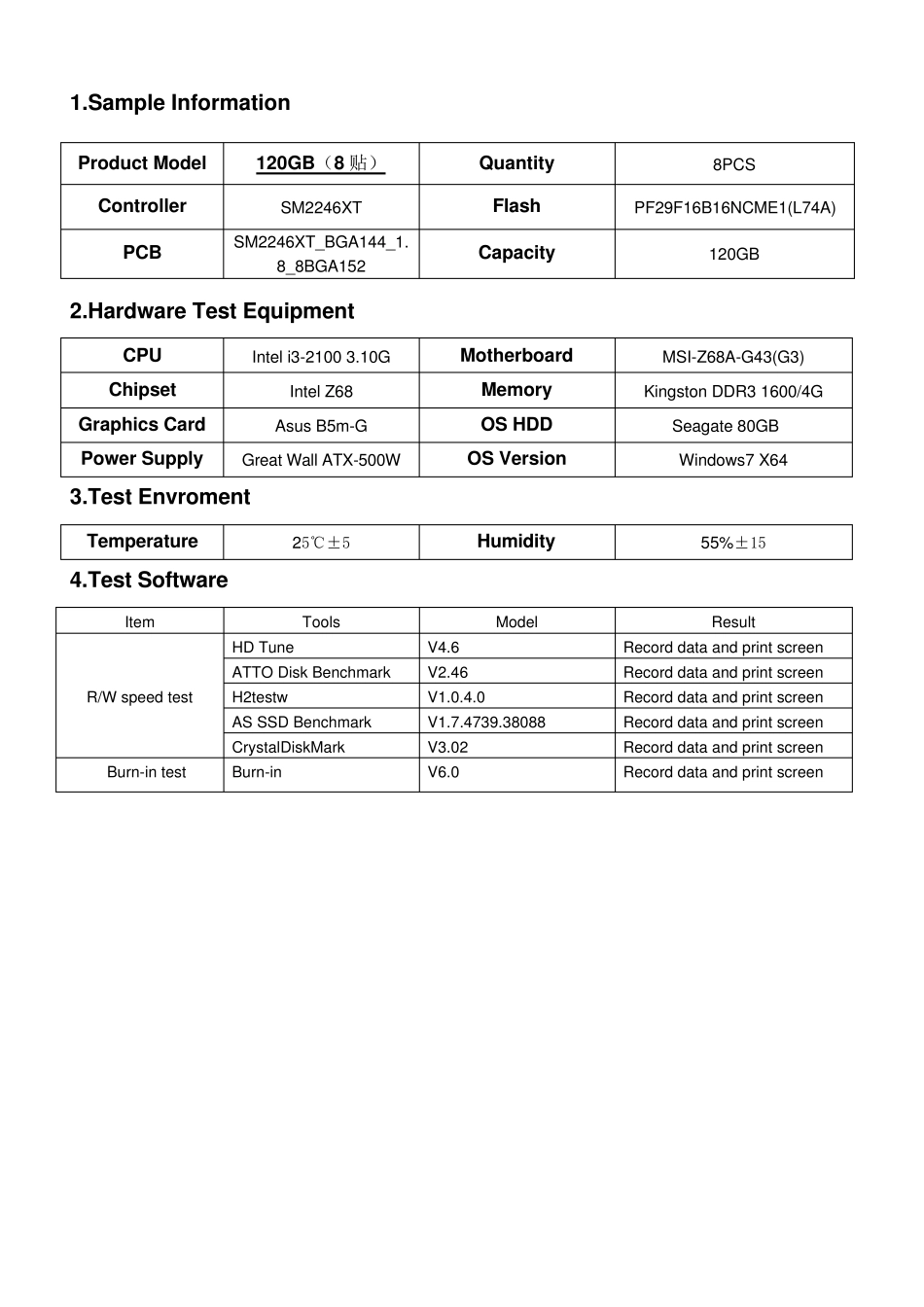

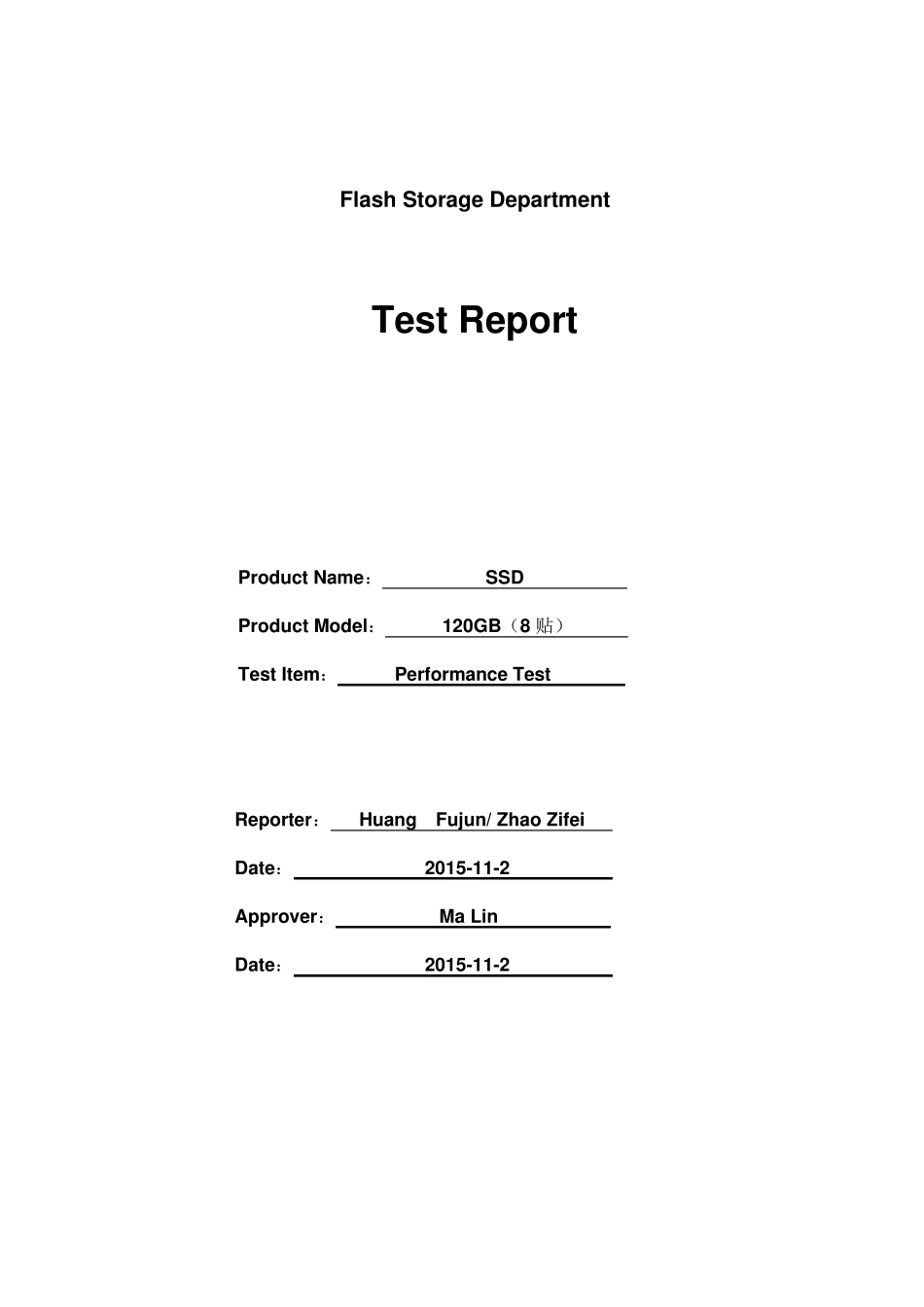

Flash Storage Department Test Report Product Name： SSD Product Model： 120GB（8 贴） Test Item： Performance Test Reporter： Huang Fujun/ Zhao Zifei Date： 2015-11-2 Approver： Ma Lin Date： 2015-11-2 1.Sample Information Product Model 120GB（8 贴） Quantity 8PCS Controller SM2246XT Flash PF29F16B16NCME1(L74A) PCB SM2246XT_BGA144_1.8_8BGA152 Capacity 120GB 2.Hardware Test Equipment CPU Intel i3-2100 3.10G Motherboard MSI-Z68A-G43(G3) Chipset Intel Z68 Memory Kingston DDR3 1600/4G Graphics Card Asus B5m-G OS HDD Seagate 80GB Power Supply Great Wall ATX-500W OS Version Windows7 X64 3.Test Envroment Temperature 25℃±5 Humidity 55%±15 4.Test Software Item Tools Model Result R/W speed test HD Tune V4.6 Record data and print screen ATTO Disk Benchmark V2.46 Record data and print screen H2testw V1.0.4.0 Record data and print screen AS SSD Benchmark V1.7.4739.38088 Record data and print screen CrystalDiskMark V3.02 Record data and print screen Burn-in test Burn-in V6.0 Record data and print screen 4.1 HD Tu ne Test（V4.6） 4.1.1 Read： Test Step Test Process Test Result 1 Run HD Tune and test the performance of read，Record data and print screen Minimum（MB/s） 88.8 2 Maximum（MB/s） 420.7 3 Average（MB/s） 377.5 4 Access（ms） 0.130 5 Burst（MB/s） 131.3 6 CPU Usage 3.9% Print screen of test result： 4.1.2 Write： Test Step Test Process Test Result 1 Run HD Tune and test the performance of write，Record data and print screen Minimum（MB/s） 144.4 2 Maximum（MB/s） 162.1 3 Average（MB/s） 159.2 4 Access(ms) 0.133 5 Burst（MB/s） 120.6 6 CPU Usage 3.5% Print screen of test result： 4.2.H2testw Test(V1.0.4.0) Test Step Test Process Test Result 1 Run H2testw and test the performance of write，Record data and print scree...
