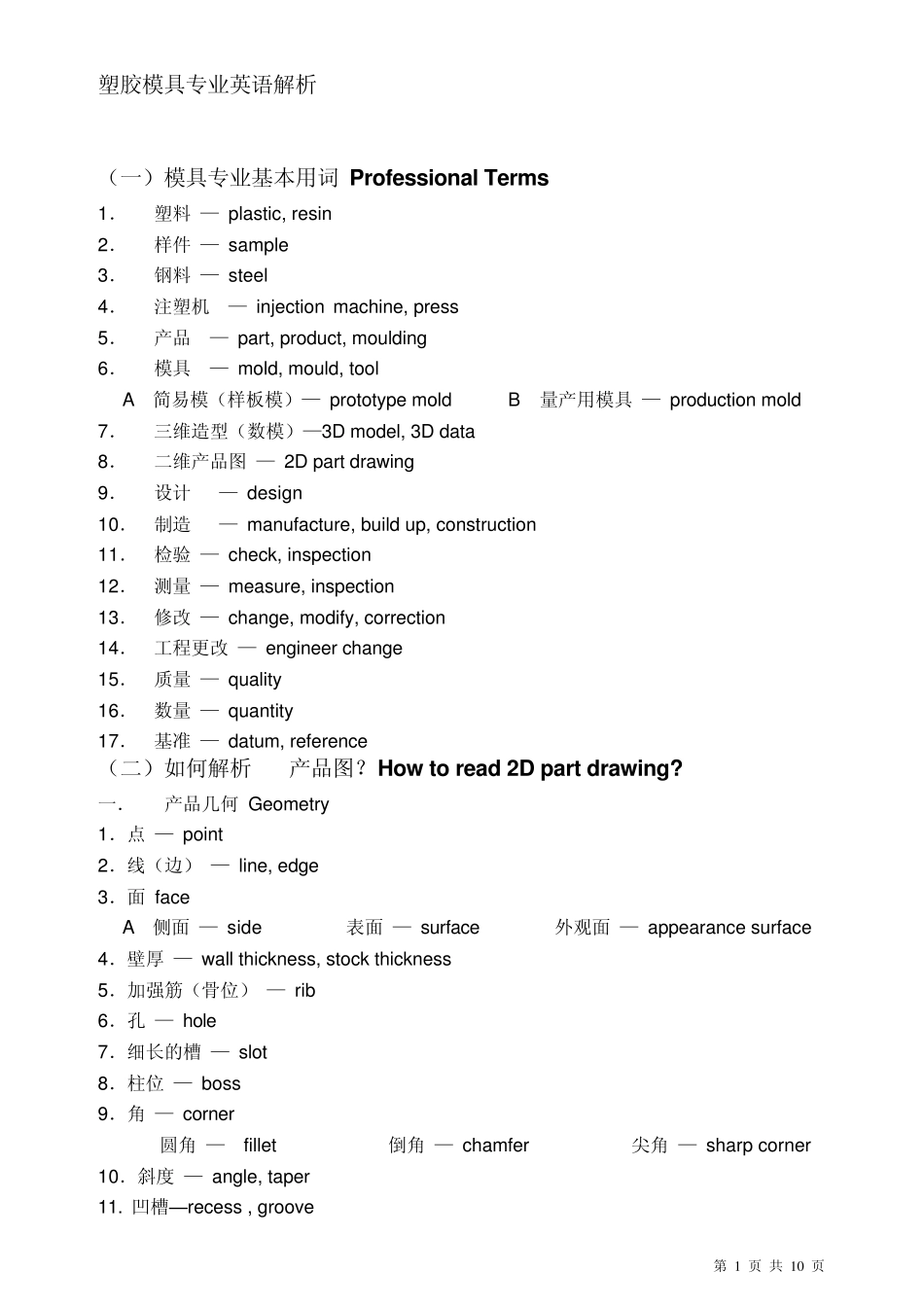

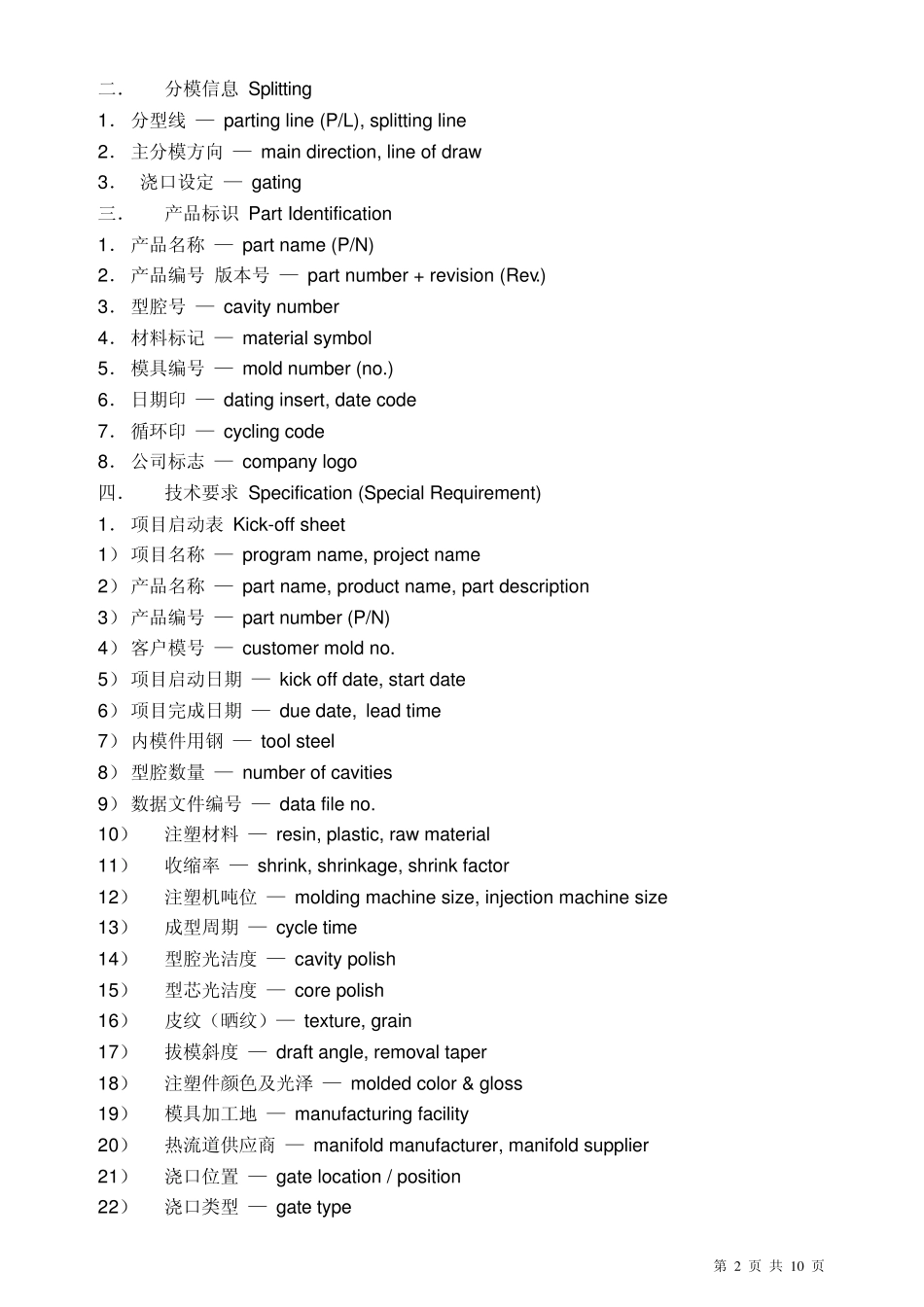

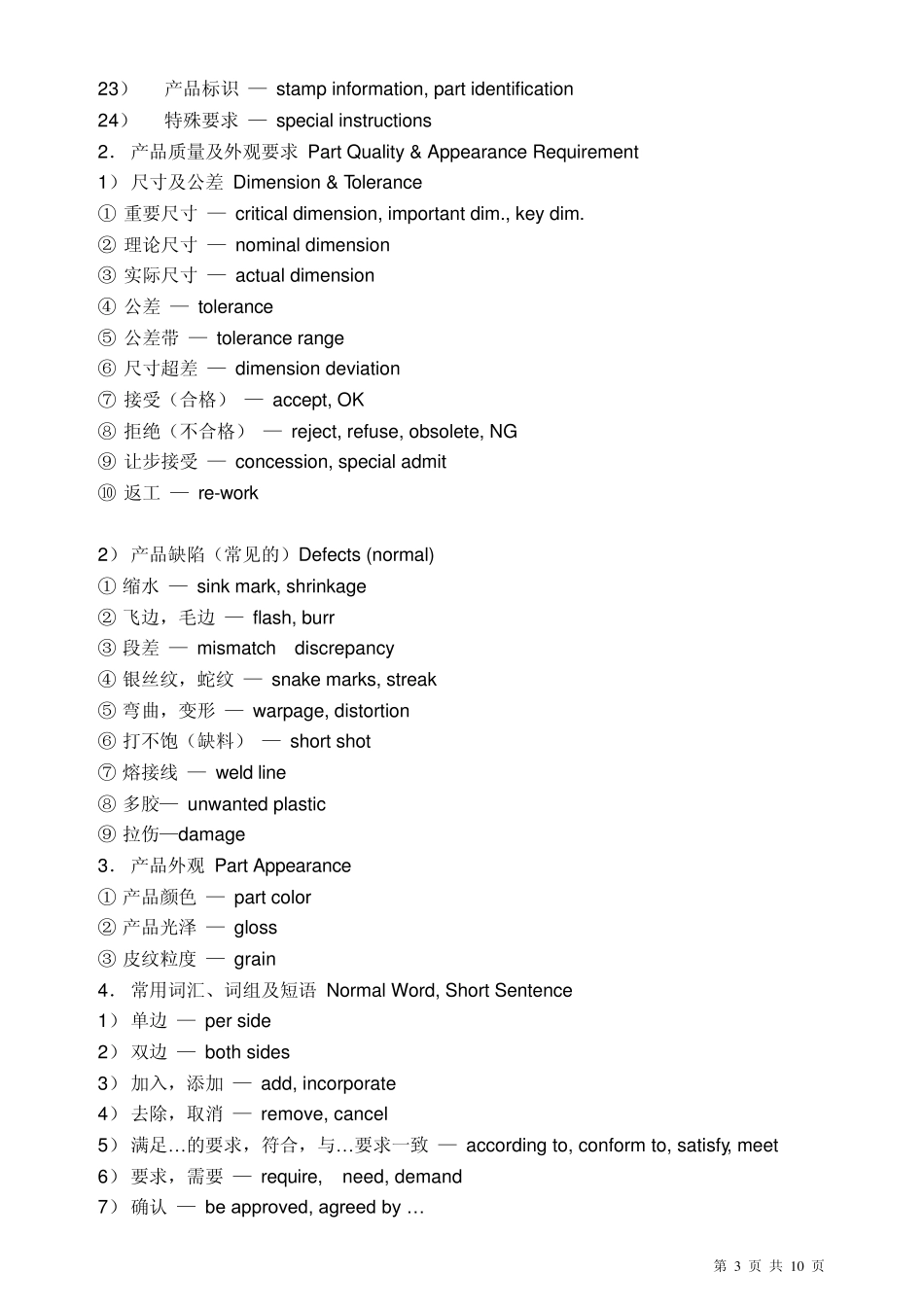

第 1 页 共 1 0 页 塑胶模具专业英语解析 (一)模具专业基本用词 Professional Terms 1. 塑料 — plastic, resin 2. 样件 — sample 3. 钢料 — steel 4. 注塑机 — injection machine, press 5. 产品 — part, product, moulding 6. 模具 — mold, mould, tool A 简易模(样板模)— prototype mold B 量产用模具 — production mold 7. 三维造型(数模)—3D model, 3D data 8. 二维产品图 — 2D part drawing 9. 设计 — design 10. 制造 — manufacture, build up, construction 11. 检验 — check, inspection 12. 测量 — measure, inspection 13. 修改 — change, modify, correction 14. 工程更改 — engineer change 15. 质量 — quality 16. 数量 — quantity 17. 基准 — datum, reference (二)如何解析2D 产品图?How to read 2D part draw ing? 一. 产品几何 Geometry 1.点 — point 2.线(边) — line, edge 3.面 face A 侧面 — side B 表面 — surface C 外观面 — appearance surface 4.壁厚 — wall thickness, stock thickness 5.加强筋(骨位) — rib 6.孔 — hole 7.细长的槽 — slot 8.柱位 — boss 9.角 — corner A 圆角 — fillet B 倒角 — chamfer C 尖角 — sharp corner 10.斜度 — angle, taper 11. 凹槽—recess , groove 第 2 页 共 1 0 页 二. 分模信息 Splitting 1. 分型线 — parting line (P/L), splitting line 2. 主分模方向 — main direction, line of draw 3. 浇口设定 — gating 三. 产品标识 Part Identification 1. 产品名称 — part name (P/N) 2. 产品编号+版本号 — part number + revision (Rev.) 3. 型腔号 — cavity number 4. 材料标记 — material symbol 5. 模具编号 — mold number (no.) 6. 日期印 — dating insert, date code 7. 循环印 — cycling code 8. 公司标志 — company logo 四. 技术要求 Specification (Special Requirement) 1. 项目启动表 Kick-off sheet 1) 项目名称 — program name, project name 2) 产品名称 — ...
