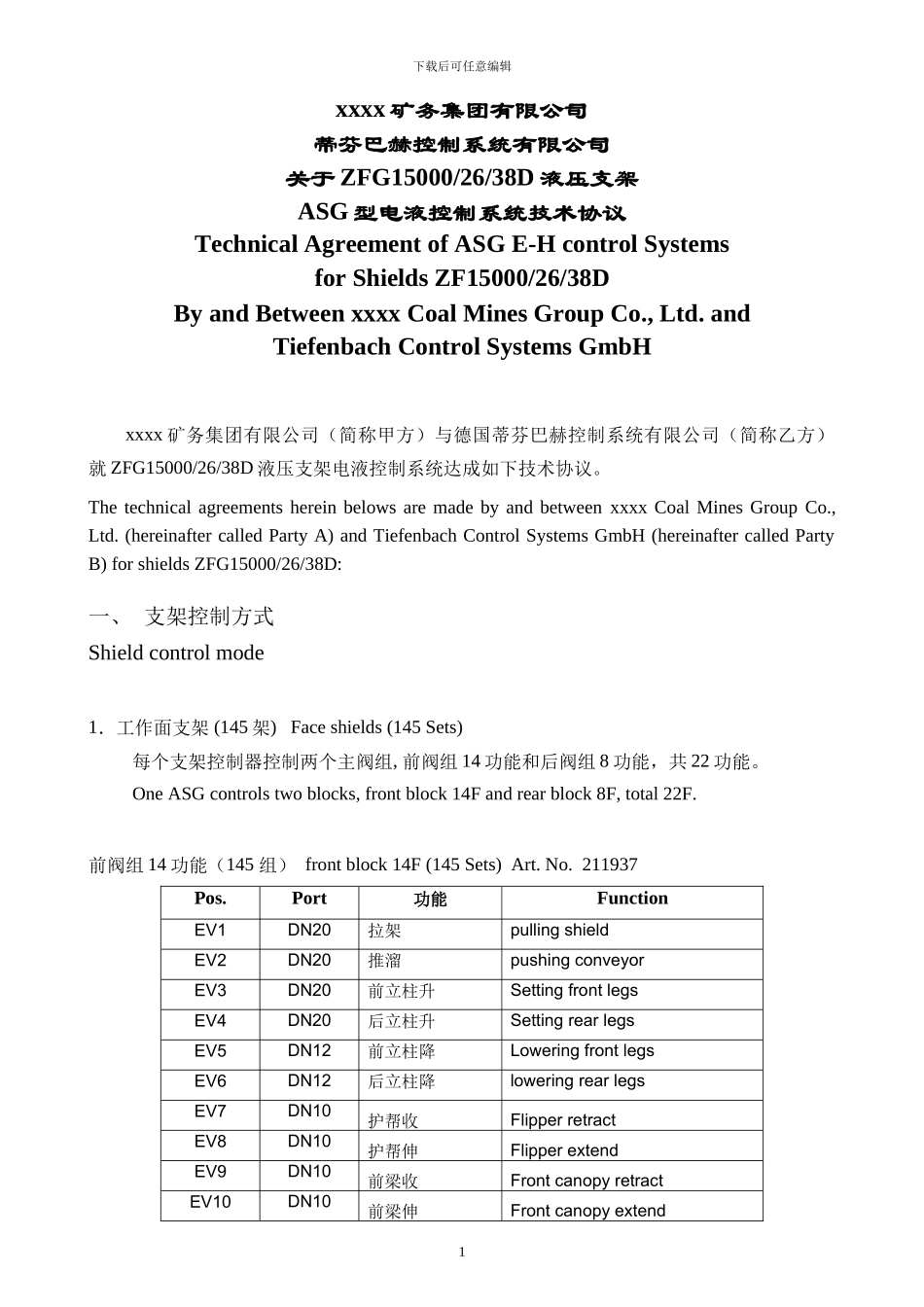

下载后可任意编辑xxxx 矿务集团有限公司蒂芬巴赫控制系统有限公司关于 ZFG15000/26/38D 液压支架ASG 型电液控制系统技术协议Technical Agreement of ASG E-H control Systems for Shields ZF15000/26/38D By and Between xxxx Coal Mines Group Co., Ltd. andTiefenbach Control Systems GmbHxxxx 矿务集团有限公司（简称甲方）与德国蒂芬巴赫控制系统有限公司（简称乙方）就 ZFG15000/26/38D 液压支架电液控制系统达成如下技术协议。The technical agreements herein belows are made by and between xxxx Coal Mines Group Co., Ltd. (hereinafter called Party A) and Tiefenbach Control Systems GmbH (hereinafter called Party B) for shields ZFG15000/26/38D: 一、 支架控制方式Shield control mode1．工作面支架 (145 架) Face shields (145 Sets)每个支架控制器控制两个主阀组, 前阀组 14 功能和后阀组 8 功能，共 22 功能。One ASG controls two blocks, front block 14F and rear block 8F, total 22F. 前阀组 14 功能（145 组） front block 14F (145 Sets) Art. No. 211937Pos.Port功能FunctionEV1DN20拉架pulling shieldEV2DN20推溜pushing conveyorEV3DN20前立柱升Setting front legsEV4DN20后立柱升Setting rear legsEV5DN12前立柱降Lowering front legsEV6DN12后立柱降lowering rear legsEV7DN10护帮收Flipper retractEV8DN10护帮伸Flipper extendEV9DN10前梁收Front canopy retractEV10DN10前梁伸Front canopy extend1EV11DN10伸缩梁收extension bar ram retractEV12DN10伸缩梁伸extension bar ram extendEV13DN10侧推收Side push retractEV14DN10侧推伸Side push extendPDN25主进液Main inlet portRDN32主回液Main return port后阀组 8 功能（145 组） Rear block 8F (145 Sets) Art. No.209306Pos.Port功能FunctionEV15DN10掩梁立柱降Lower caving schieldEV16DN10掩梁立柱升Set caving schieldEV17DN10尾梁收Rear canopy retractEV18DN10尾梁伸Rear canopy extendEV19DN10插板收Jack board retractEV20DN10插板伸Jack board extendEV21DN10拉后溜收Rear conveyor retractEV22DN10拉后溜伸Rear conveyor extendPDN12主进液Main inlet portRDN12主回液Mai...
