基于MSP430G2553单片机的简易水情检测系统设计VIP免费

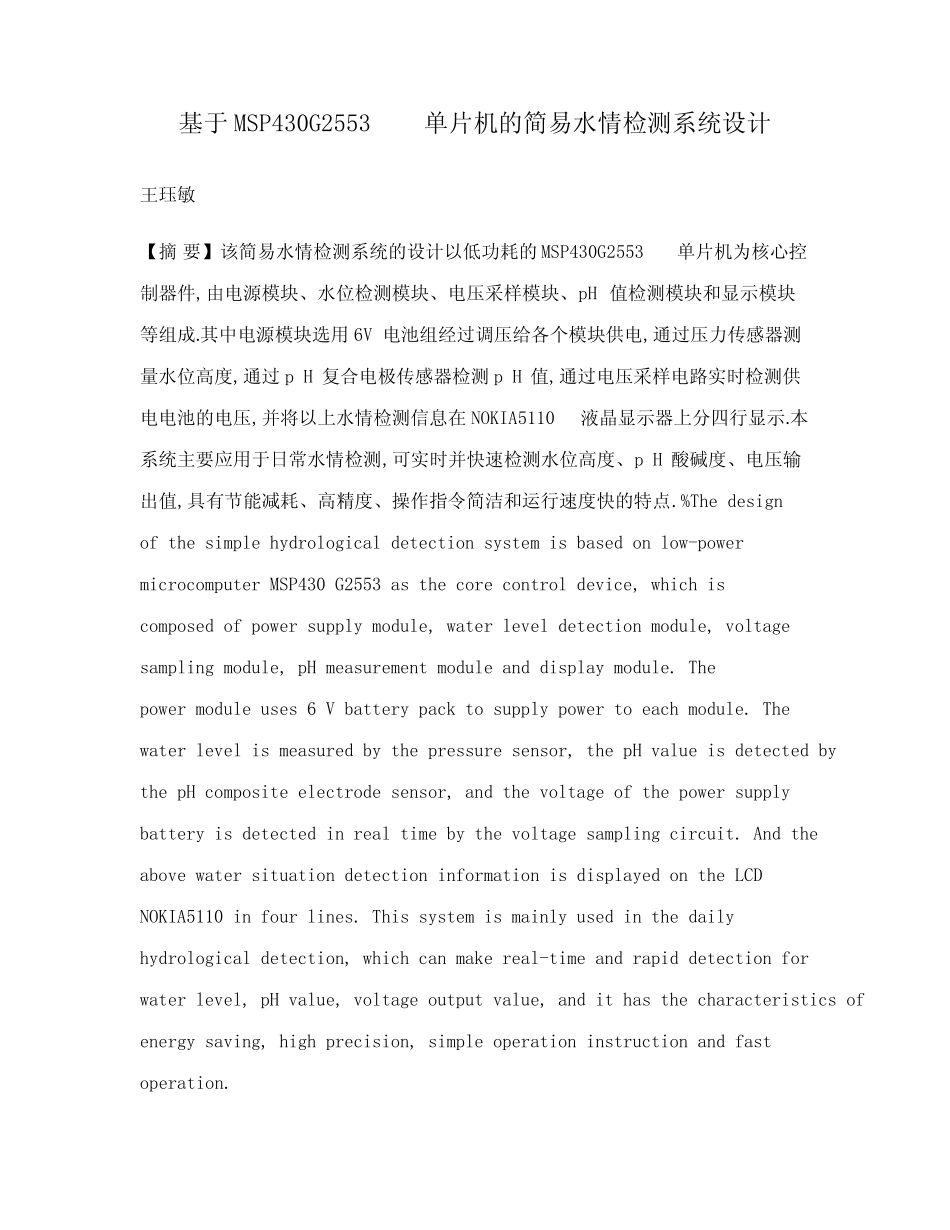

基于MSP430G2553单片机的简易水情检测系统设计_第1页
1/6

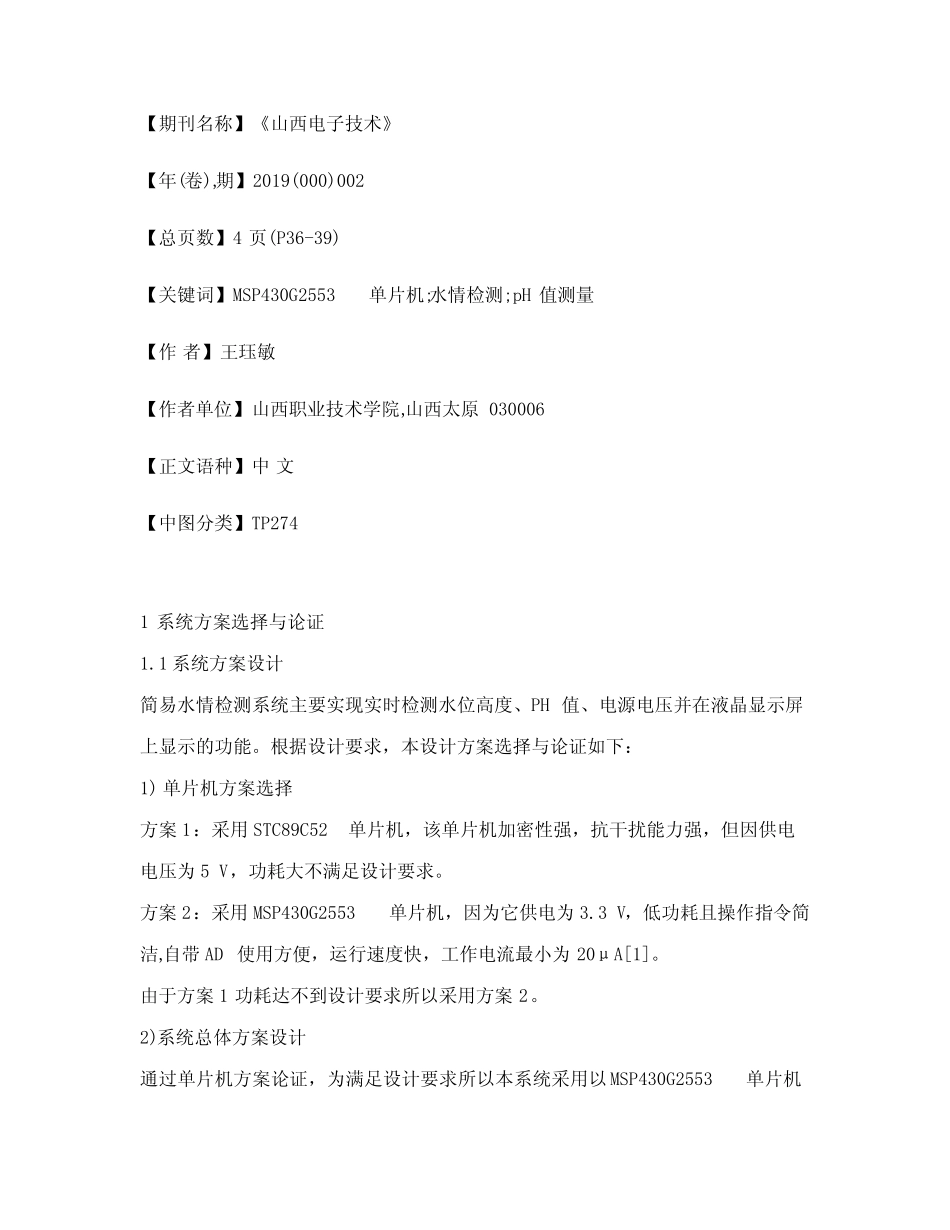

基于MSP430G2553单片机的简易水情检测系统设计_第2页
2/6
基 于 MSP430G2553单 片 机 的 简 易 水 情 检 测 系 统 设 计 王 珏 敏 【 摘 要 】 该 简 易 水 情 检 测 系 统 的 设 计 以 低 功 耗 的 MSP430G2553单 片 机 为 核 心 控制 器 件 , 由 电 源 模 块 、 水 位 检 测 模 块 、 电 压 采 样 模 块 、 pH 值 检 测 模 块 和 显 示 模 块等 组 成 .其 中 电 源 模 块 选 用 6V 电 池 组 经 过 调 压 给 各 个 模 块 供 电 , 通 过 压 力 传 感 器 测量 水 位 高 度 , 通 过 p H 复 合 电 极 传 感 器 检 测 p H 值 , 通 过 电 压 采 样 电 路 实 时 检 测 供电 电 池 的 电 压 , 并 将 以 上 水 情 检 测 信 息 在 NOKIA5110液 晶 显 示 器 上 分 四 行 显 示 .本系 统 主 要 应 用 于 日 常 水 情 检 测 , 可 实 时 并 快 速 检 测 水 位 高 度 、 p H 酸 碱 度 、 电 压 输出 值 , 具 有 节 能 减 耗 、 高 精 度 、 操 作 指 令 简 洁 和 运 行 速 度 快 的 特 点 .%The design of the simple hydrological detection system is based on low-power microcomputer MSP430 G2553 as the core control device, which is composed of power supply module, water level detection module, voltage sampling module, pH measurement module and display module. The power module uses 6 V battery pack to supply power to each module. The water level is measured by the pressure sensor, the pH value is detected by the pH composite electrode sensor, and the voltage of the power supply battery is detected in real time by the voltage sampling circuit. And the above water situation detection information is displayed on the LCD NOKIA5110 in four lines. This system is mainly used in the daily hydrological detection, which can make real-time and rapid detection for water level, pH value, voltage output value, and it has the characteristics of ener...
