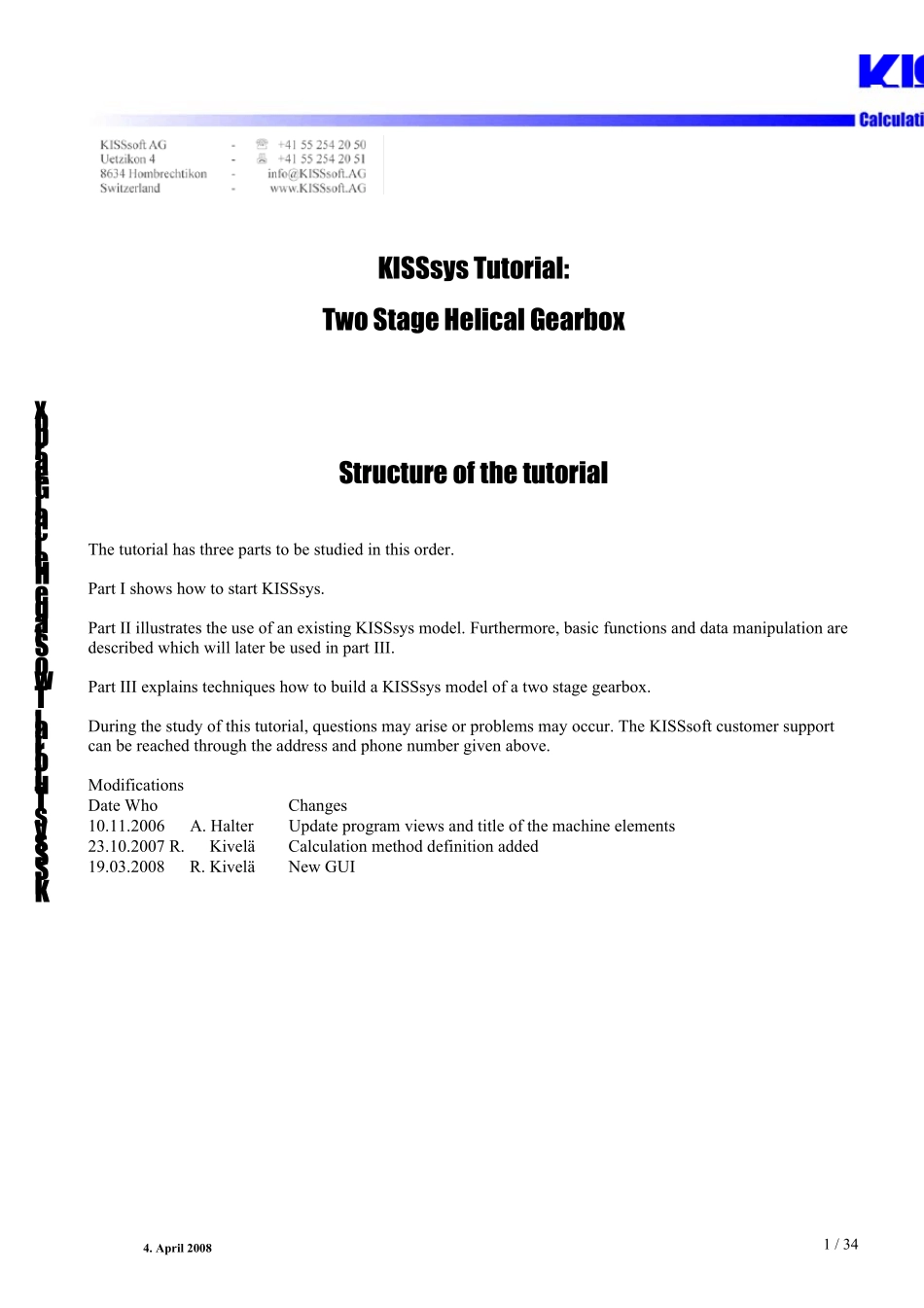

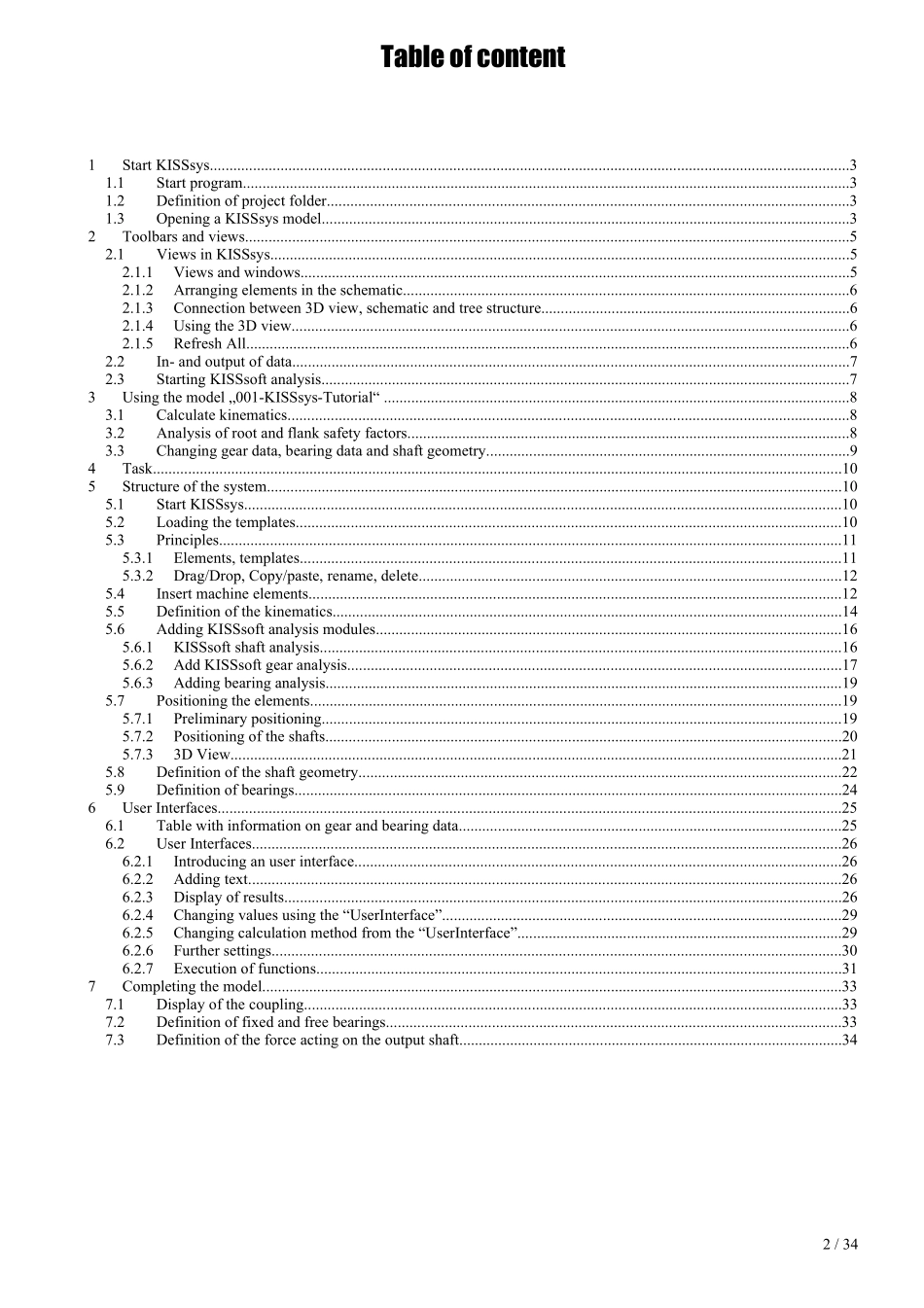

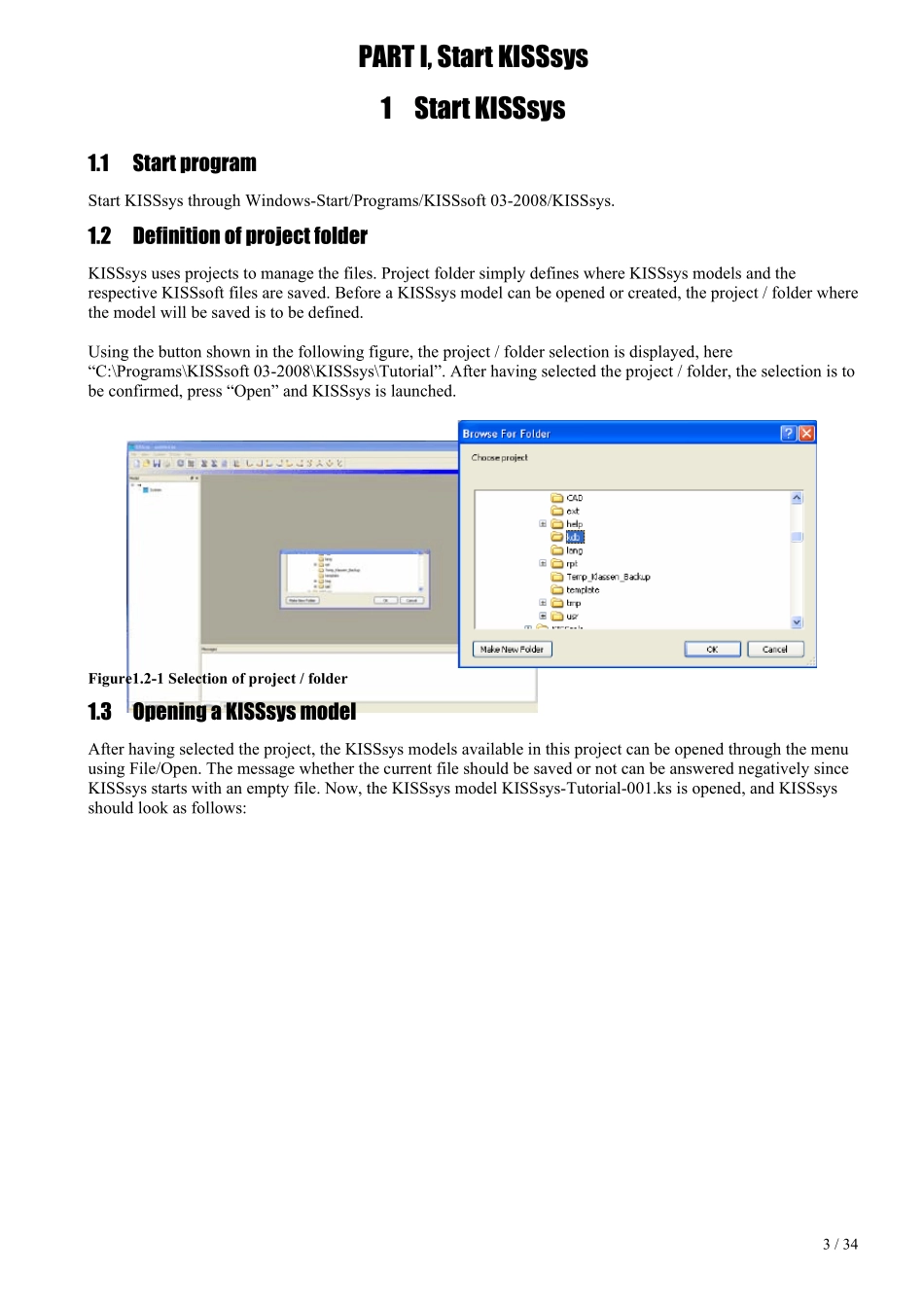

4. April 2008 1 / 34 KISSsys Tutorial: Two Stage Helical Gearbox Structure of the tutorial The tutorial has three parts to be studied in this order. Part I shows how to start KISSsys. Part II illustrates the use of an existing KISSsys model. Furthermore, basic functions and data manipulation are described which will later be used in part III. Part III explains techniques how to build a KISSsys model of a two stage gearbox. During the study of this tutorial, questions may arise or problems may occur. The KISSsoft customer support can be reached through the address and phone number given above. Modifications Date Who Changes 10.11.2006 A. Halter Update program views and title of the machine elements 23.10.2007 R. Kivelä Calculation method definition added 19.03.2008 R. Kivelä New GUI KISSsys Tutorial: Two Stage Helical Gearbox 2 / 34 Table of content 1 Start KISSsys...................................................................................................................................................................3 1.1 Start program...........................................................................................................................................................3 1.2 Definition of project folder.....................................................................................................................................3 1.3 Opening a KISSsys model.......................................................................................................................................3 2 Toolbars and views..........................................................................................................................................................5 2.1 Views in KISSsys..........................................................................................
