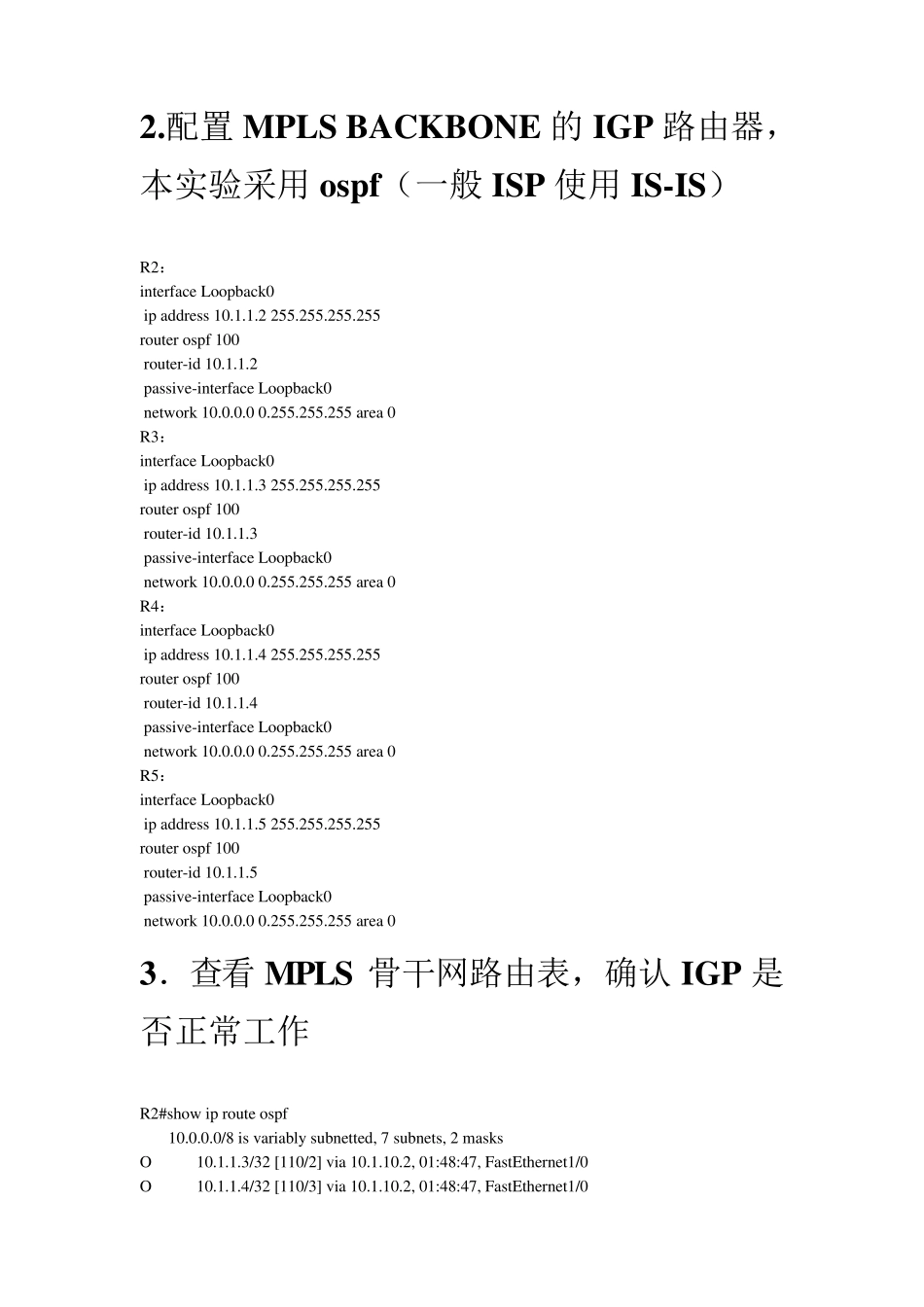

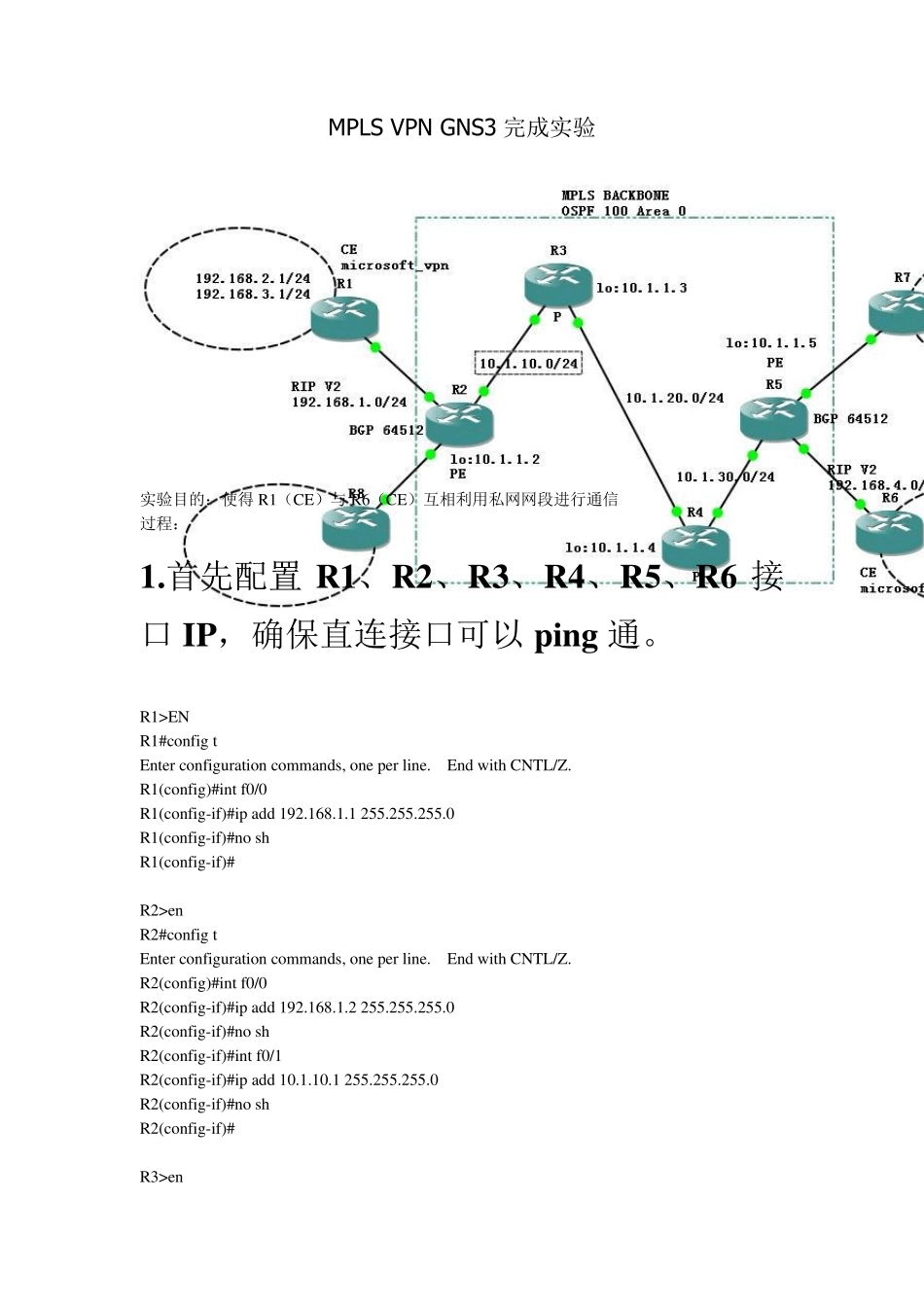

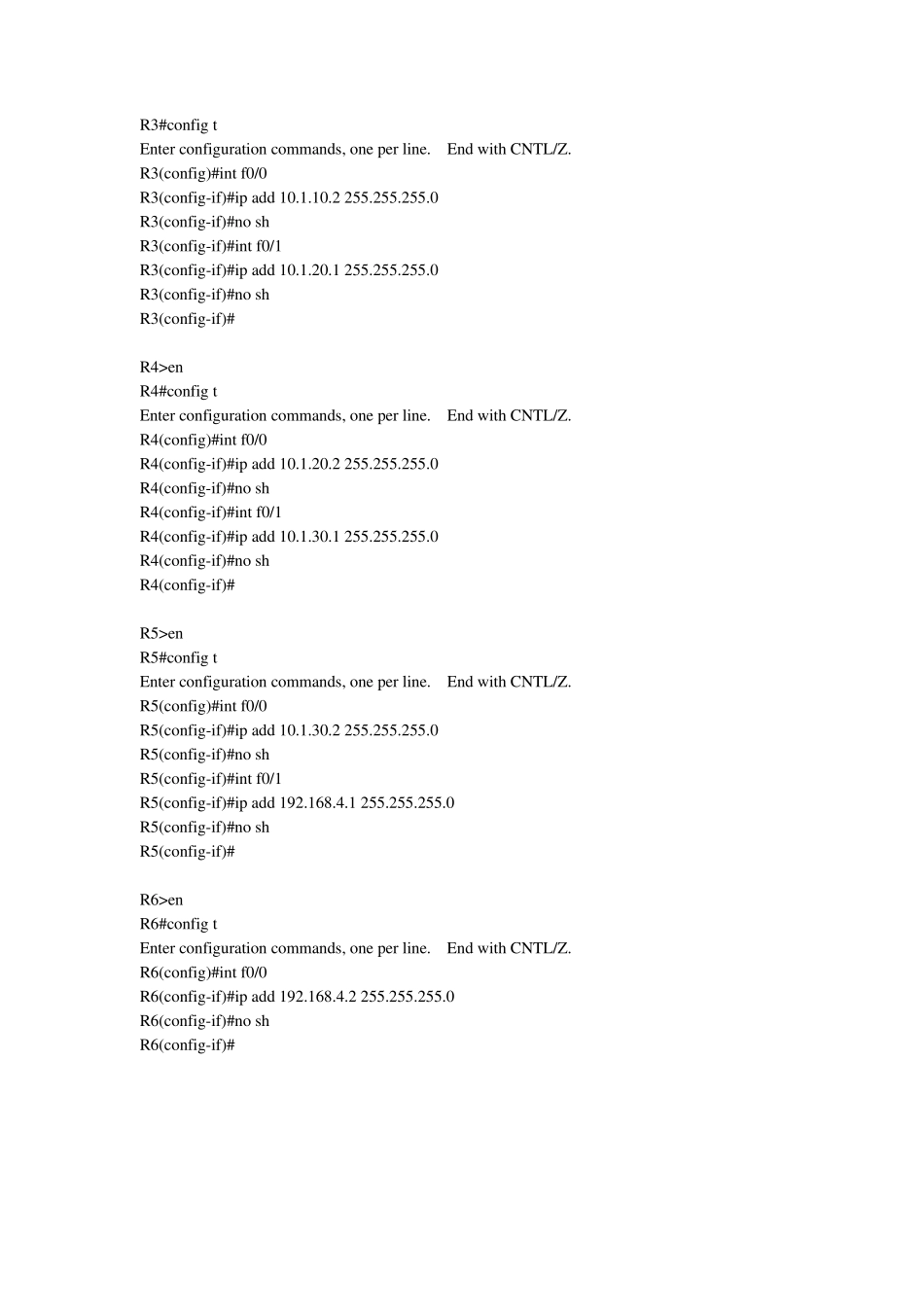

MPLS VPN GNS3 完成实验 实验目的:使得R1(CE)与R6(CE)互相利用私网网段进行通信 过程: 1.首先配置R1、R2、R3、R4、R5、R6 接口 IP,确保直连接口可以 p in g 通。 R1>EN R1#config t Enter configuration commands, one per line. End w ith CNTL/Z. R1(config)#int f0/0 R1(config-if)#ip add 192.168.1.1 255.255.255.0 R1(config-if)#no sh R1(config-if)# R2>en R2#config t Enter configuration commands, one per line. End w ith CNTL/Z. R2(config)#int f0/0 R2(config-if)#ip add 192.168.1.2 255.255.255.0 R2(config-if)#no sh R2(config-if)#int f0/1 R2(config-if)#ip add 10.1.10.1 255.255.255.0 R2(config-if)#no sh R2(config-if)# R3>en R3#config t Enter configuration commands, one per line. End w ith CNTL/Z. R3(config)#int f0/0 R3(config-if)#ip add 10.1.10.2 255.255.255.0 R3(config-if)#no sh R3(config-if)#int f0/1 R3(config-if)#ip add 10.1.20.1 255.255.255.0 R3(config-if)#no sh R3(config-if)# R4>en R4#config t Enter configuration commands, one per line. End w ith CNTL/Z. R4(config)#int f0/0 R4(config-if)#ip add 10.1.20.2 255.255.255.0 R4(config-if)#no sh R4(config-if)#int f0/1 R4(config-if)#ip add 10.1.30.1 255.255.255.0 R4(config-if)#no sh R4(config-if)# R5>en R5#config t Enter configuration commands, one per line. End w ith CNTL/Z. R5(config)#int f0/0 R5(config-if)#ip add 10.1.30.2 255.255.255.0 R5(config-if)#no sh R5(config-if)#int f0/1 R5(config-if)#ip add 192.168.4.1 255.255.255.0 R5(config-if)#no sh R5(config-if)# R6>en R6#config t Enter configuration commands, one per line. End w ith CNTL/Z. R6(config)#int f0/0 R6(config-if)#ip add 192.168.4.2 255.255.255.0 R6(config-if)#no sh R6(config-if)# 2.配置MPLS BACKBONE 的IGP 路由器,本实验采用ospf(一般 ISP 使用IS-IS) R2: interface Loopback0 ip address 10.1.1.2 255.255.255.255 router ospf 100 router-id 10.1.1.2 passive-interface Loopback0 network...
