美标法兰配螺栓规格大全

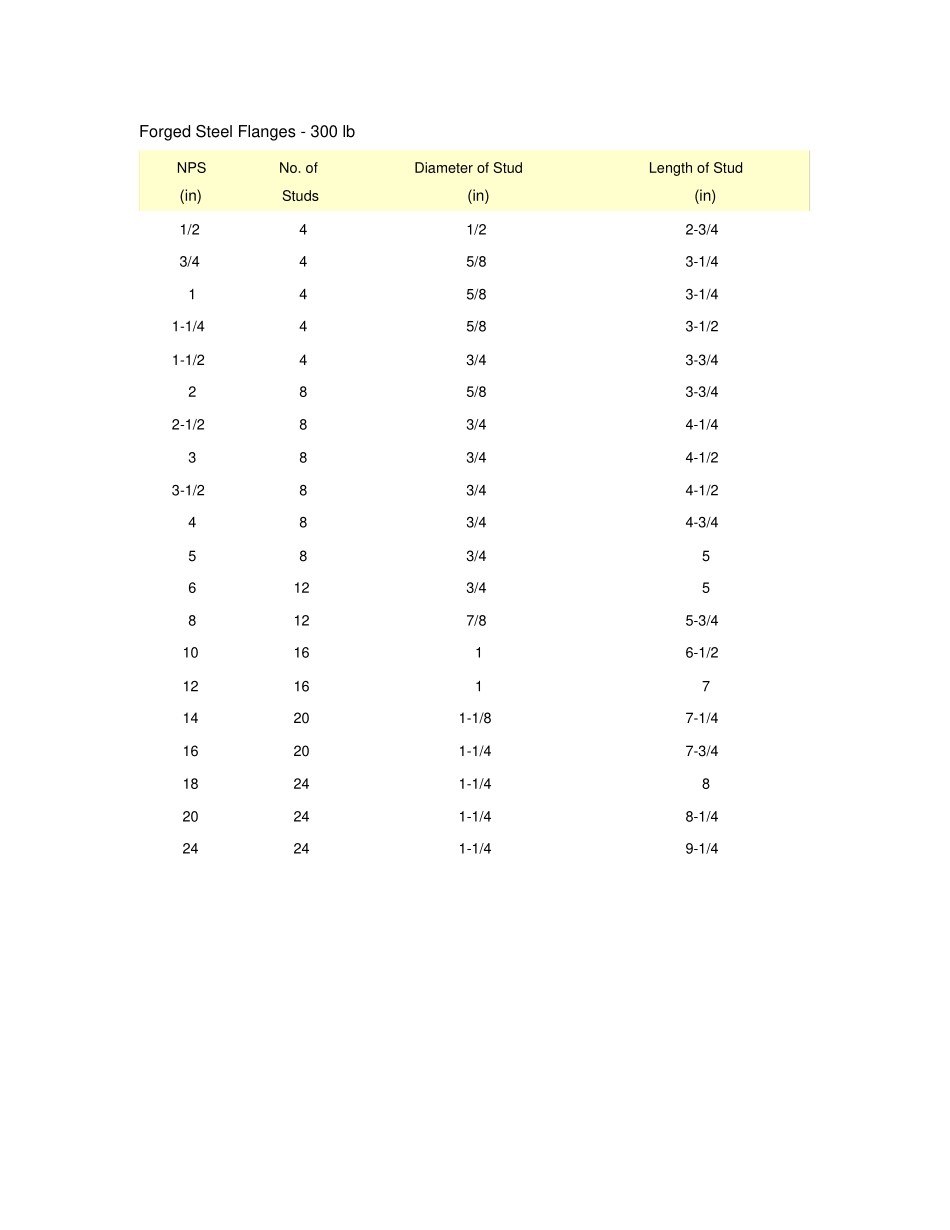

Pressure vs. Flow controlForged Steel Flanges - 150 lb NPS (in)No. of Studs Diameter of Stud (in)Length of Stud (in)1/2 4 1/2 2-1/2 3/4 4 1/2 2-1/2 1 4 1/2 2-3/4 1-1/4 4 1/2 2-3/4 1-1/2 4 1/2 3 2 4 5/8 3-1/2 2-1/2 4 5/8 3-3/4 3 4 5/8 3-3/4 3-1/2 8 5/8 3-3/4 4 8 5/8 3-3/4 5 8 3/4 4 6 8 3/4 4-1/4 8 8 3/4 4-1/2 10 12 7/8 4-3/4 12 12 7/8 5 14 12 1 5-1/2 16 16 1 5-1/2 18 16 1-1/8 6 20 20 1-1/8 6-1/2 24 20 1-1/4 7 Forged Steel Flanges - 300 lb NPS (in)No. of Studs Diameter of Stud (in)Length of Stud (in)1/2 4 1/2 2-3/4 3/4 4 5/8 3-1/4 1 4 5/8 3-1/4 1-1/4 4 5/8 3-1/2 1-1/2 4 3/4 3-3/4 2 8 5/8 3-3/4 2-1/2 8 3/4 4-1/4 3 8 3/4 4-1/2 3-1/2 8 3/4 4-1/2 4 8 3/4 4-3/4 5 8 3/4 5 6 12 3/4 5 8 12 7/8 5-3/4 10 16 1 6-1/2 12 16 1 7 14 20 1-1/8 7-1/4 16 20 1-1/4 7-3/4 18 24 1-1/4 8 20 24 1-1/4 8-1/4 24 24 1-1/4 9-1/4 Forged Steel Flanges - 400 lb NPS (in)No. of Studs Diameter of Stud (in)Length of Stud (in)1/2 4 1/2 3-1/4 3/4 4 5/8 3-3/4 1 4 5/8 3-3/4 1-1/4 4 5/8 4 1-1/2 4 3/4 4-1/2 2 8 5/8 4-1/2 2-1/2 8 3/4 5 3 8 3/4 5-1/4 3-1/2 8 7/8 5-3/4 4 8 7/8 5-3/4 5 8 7/8 6 6 12 7/8 6-1/4 8 12 1 7 10 16 1-1/8 7-3/4 12 16 1-1/4 8-1/4 14 20 1-1/4 8-1/2 16 20 1-3/8 9 18 24 1-3/8 9-1/4 20 24 1-1/2 9-3/4 24 24 1-3/4 10-3/4 Forged Steel Flanges - 600 lb NPS (in)No. of Studs Diameter of Stud (in)Length of Stud (in)1/2 4 1/2 3-1/4 3/4 4 5/8 3-3/4 1 4 5/8 3-3/4 1-1/4 4 5/8 4 1-1/2 4 3/4 4-1/2 2 8 5/8 4-1/2 2-1/2 8 3/4 5 3 8 3/4 5-1/4 3-1/2 8 7/8 5-3/4 4 8 7/8 6 5 8 1 6-3/4 6 12 1 7 8 12 1-1/8 7-3/4 10 16 1-1/4 8-3/4 12 20 1-1/4 9 14 20 1-3/8 9-1/2 16 20 1-1/2 10-1/4 18 20 1-5/8 11 20 24 1-5/8 11-1/2 24 24 1-7/8 13 Forged Steel Flanges - 900 lb NPS (in)No. of Studs Diameter of Stud (in)Length of Stud (in)1/2 4 3/4 4-1/2 3/4 4 3/4 4-3/4 1 4 7/8 5-1/4 1-1/4 4 7/8 5-1/4 1-1/2 4 1 5-3/4 2 8 7/8 6 2-1/2 8 1 6-1/2 3 8 7/8 6 4 8 1-1/8 7 5 8 1-1/4 7-3/4 6 12 1-1/8 7-3/4 8 12 1-3/8 9 10 16 1-3/8 9-1/2 12 20 1-3/8 10-1/4 14 20 1-1/2 11 16 20 1-5/8 11-1/2 18 20 1-7/8 13 20 20 2 14 24 20 2-1/2 17-1/2 Forged Steel Flanges - 1500 lb NPS (in)No. of Studs Diameter of Stud (in)Length of Stud (in)1/2 4 3/4 4-1/2 3/4 4 3/4 4-3/4 1 4 7/8 5-1/4 1-1/4 4 7/8 5-1/4 1-1/2 4 1 5-3/4 2 8 7/8 6 2-1/2 8 1 6-1/2 3 8 1-1/8 7-1/4 4 8 1-1/4 8 5 8 1-1/2 10 6 12 1-3/8 10-1/2 8 12 1-5/8 11-3/4 10 12 1-7/8 13-1/2 12 16 2 15 14 16 2-1/4 16-1/2 16 16 2-1/2 18 18 16 2-3/4 19-1/2 20 16 3 21-1/2 24 16 3-1/2 24-1/2 Sponsored Links
