开放式最短路径优先路由协议OSPF配置实验报告

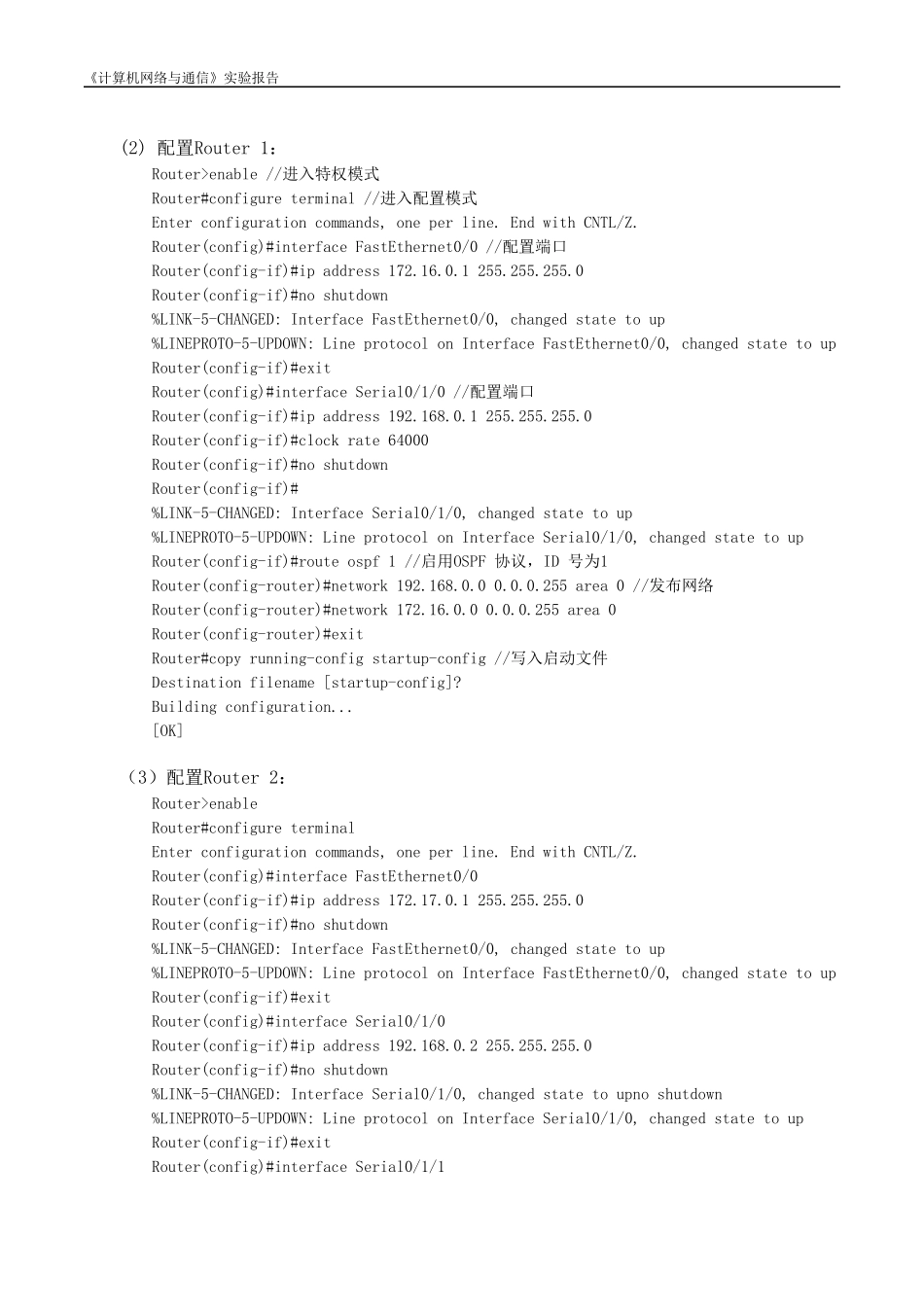

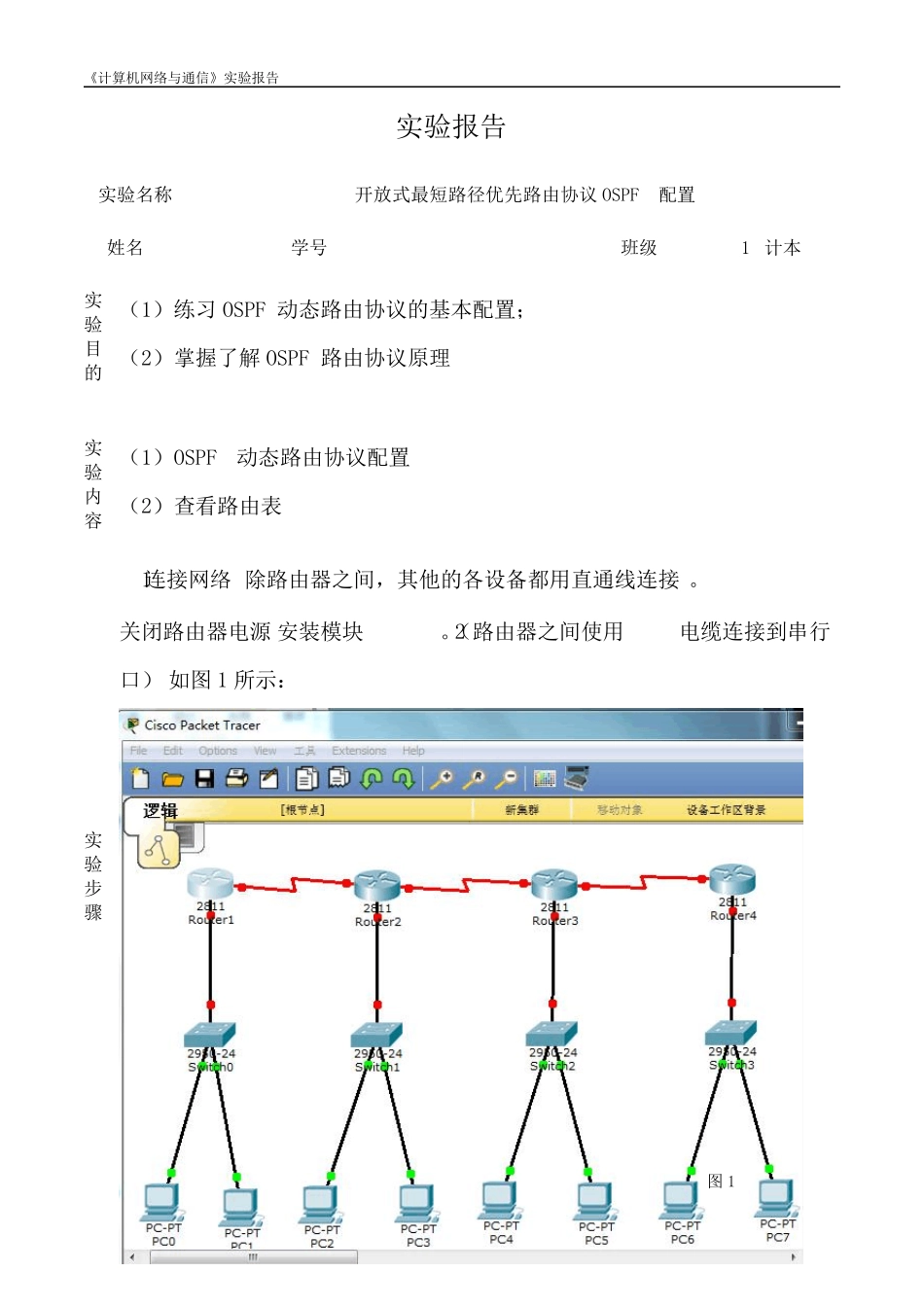

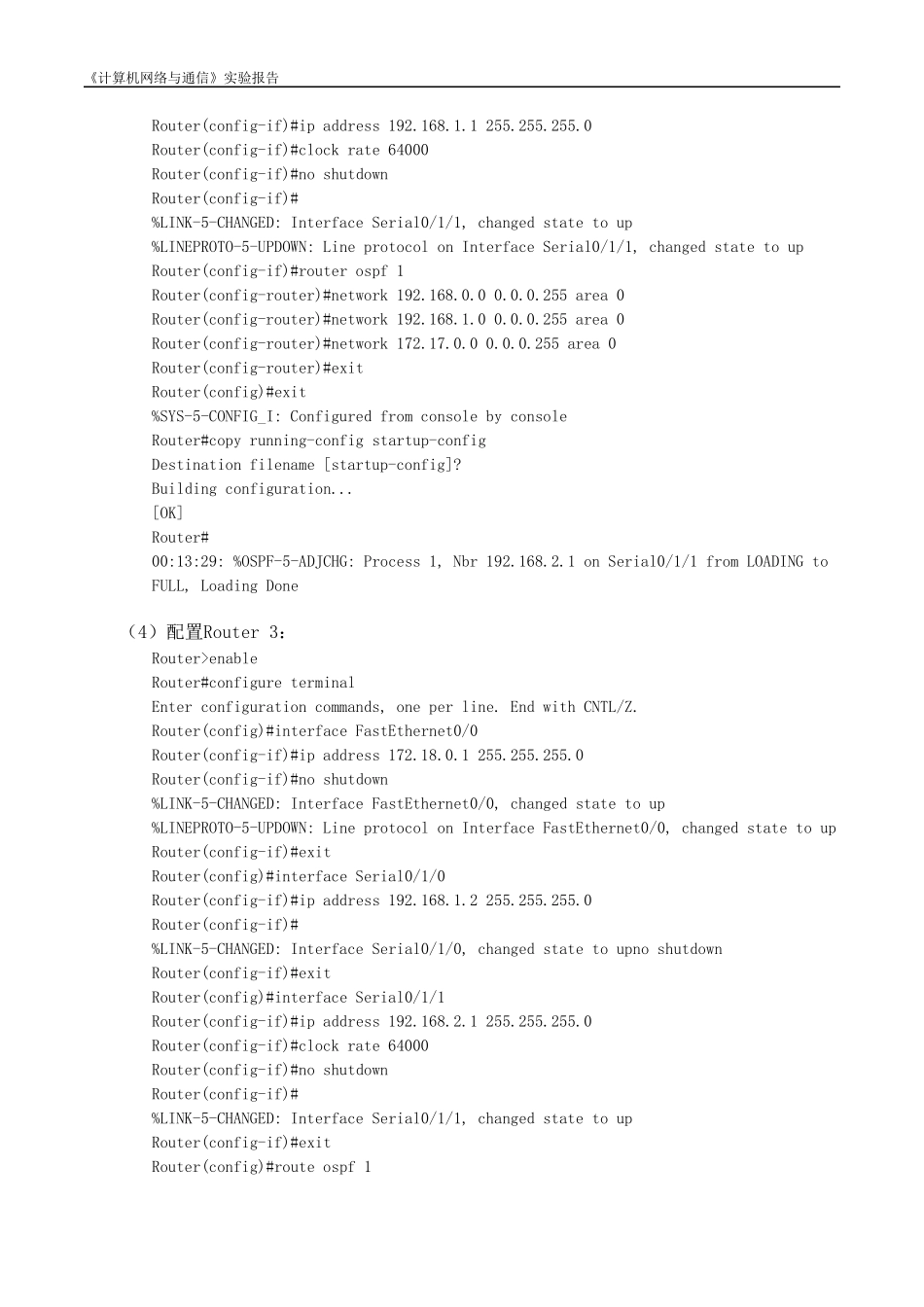

《计算机网络与通信》实验报告实验报告7实验名称开放式最短路径优先路由协议OSPF配置姓名学号班级13计本实验目的（1）练习OSPF 动态路由协议的基本配置；（2）掌握了解OSPF 路由协议原理实验内容（1）OSPF动态路由协议配置（2）查看路由表实验步骤(1)连接网络,(除路由器之间，其他的各设备都用直通线连接)。关闭路由器电源,安装模块 WIT-2T。（路由器之间使用DCE电缆连接到串行口）,如图 1 所示：图 1《计算机网络与通信》实验报告(2) 配置Router 1：Router>enable //进入特权模式Router#configure terminal //进入配置模式Enter configuration commands, one per line. End with CNTL/Z.Router(config)#interface FastEthernet0/0 //配置端口Router(config-if)#ip address 172.16.0.1 255.255.255.0Router(config-if)#no shutdown%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to upRouter(config-if)#exitRouter(config)#interface Serial0/1/0 //配置端口Router(config-if)#ip address 192.168.0.1 255.255.255.0Router(config-if)#clock rate 64000Router(config-if)#no shutdownRouter(config-if)#%LINK-5-CHANGED: Interface Serial0/1/0, changed state to up%LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/1/0, changed state to upRouter(config-if)#route ospf 1 //启用OSPF 协议，ID 号为1Router(config-router)#network 192.168.0.0 0.0.0.255 area 0 //发布网络Router(config-router)#network 172.16.0.0 0.0.0.255 area 0Router(config-router)#exitRouter#copy running-config startup-config //写入启动文件Destination filename [startup-config]?Building configuration...[OK]（3）配置Router 2：Router>enableRouter#configure terminalEnter configuration commands, one per line. End with CNTL/Z.Router(config)#interface FastEthernet0/0Router(config-if)#ip address 172.17.0.1 255.255.255.0Router(config-if)#no shutdown%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to ...
