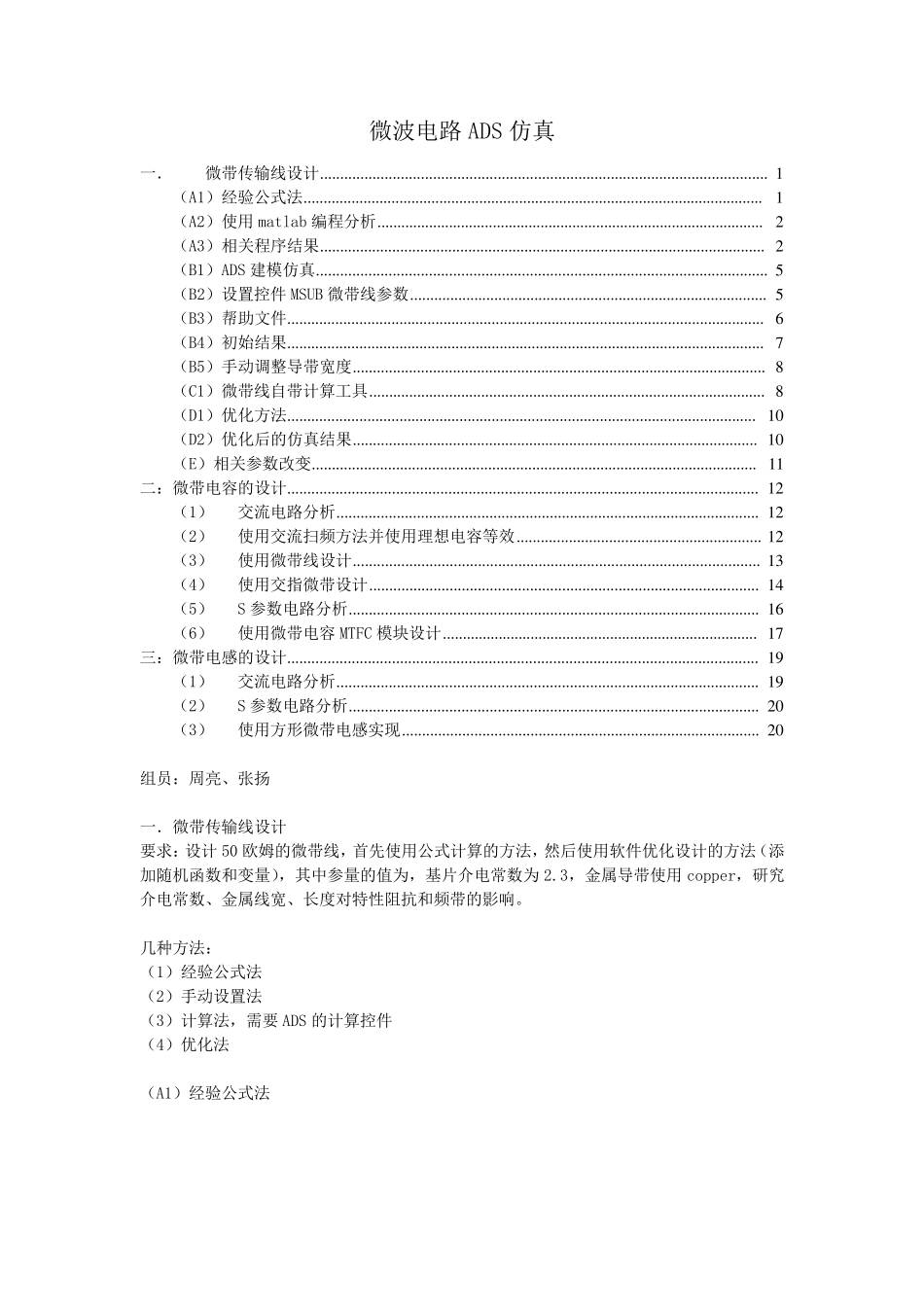

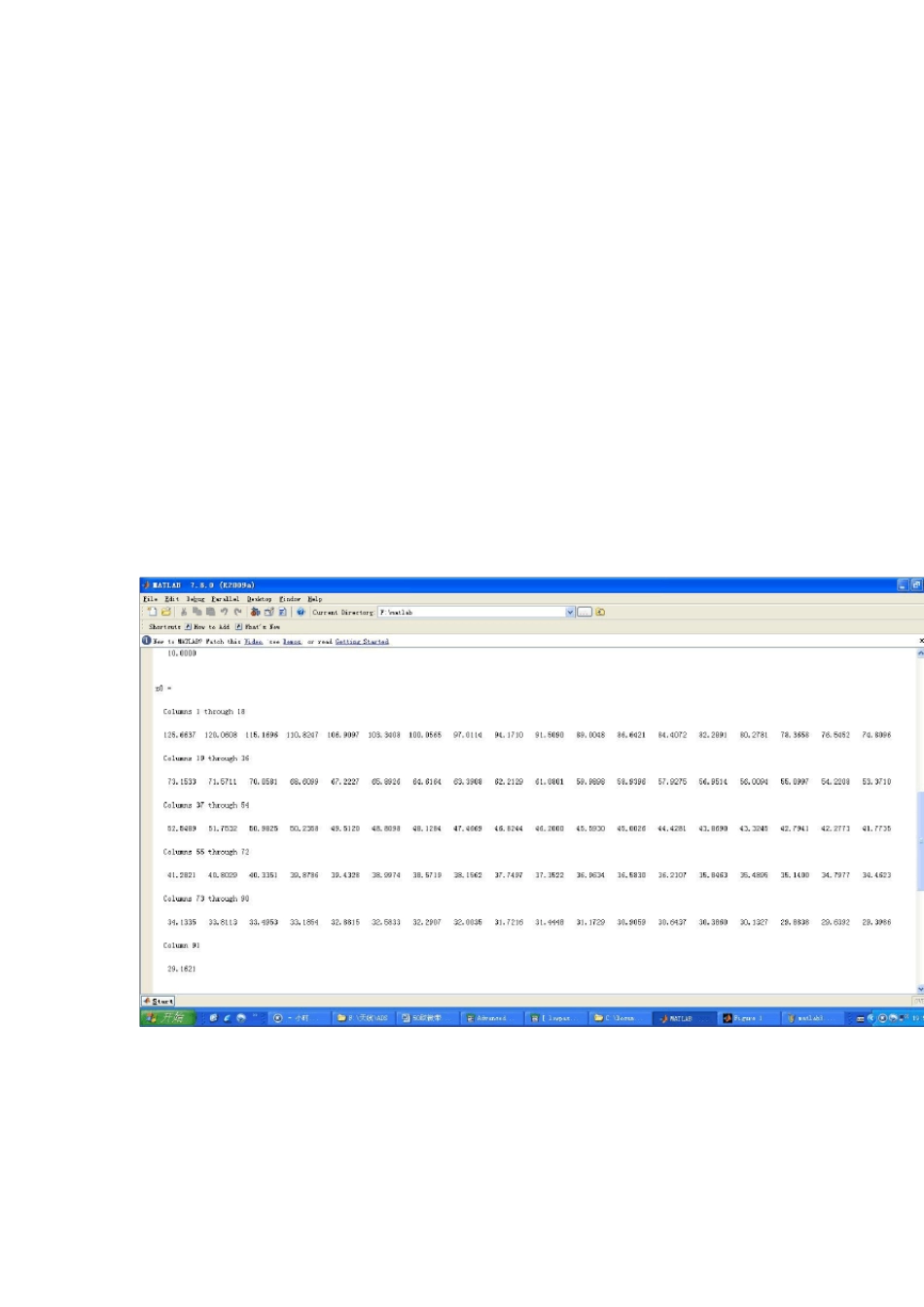

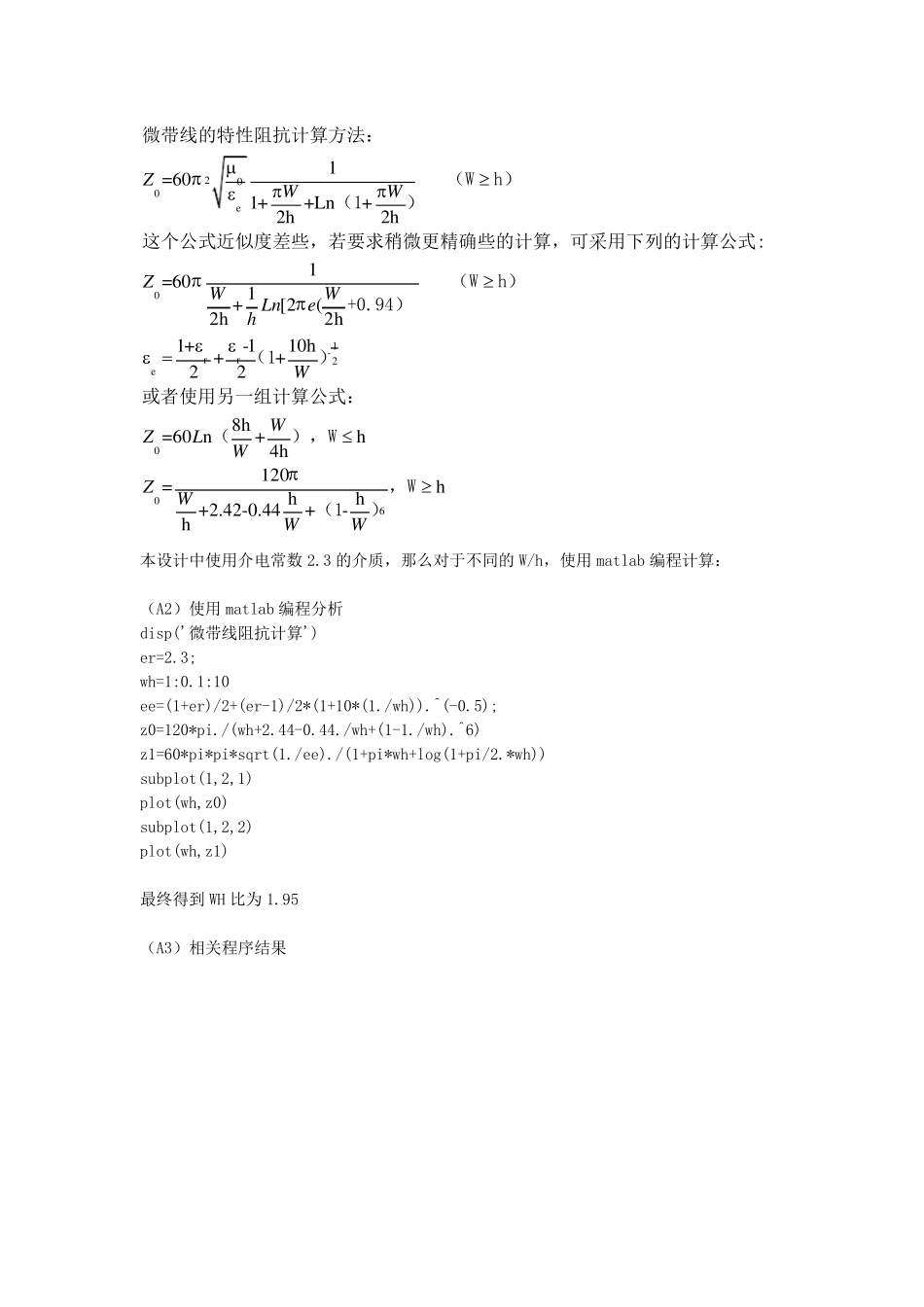

微波电路ADS 仿真 一． 微带传输线设计 ............................................................................................................... 1 （A1）经验公式法 ................................................................................................................... 1 （A2）使用matlab 编程分析 ................................................................................................. 2 （A3）相关程序结果 ............................................................................................................... 2 （B1）ADS 建模仿真 ................................................................................................................ 5 （B2）设置控件MSUB 微带线参数 ......................................................................................... 5 （B3）帮助文件 ....................................................................................................................... 6 （B4）初始结果 ....................................................................................................................... 7 （B5）手动调整导带宽度 ....................................................................................................... 8 （C1）微带线自带计算工具 ................................................................................................... 8 （D1）优化方法 ..................................................................................................................... 1 0 （D2）优化后的仿真结果 ..................................................................................................... 1 0 （E）相关参数改变 ............................................................................................................... 1 1 二：微带电容的设计 ..................................................................................................................... 1 2 （1） 交流电路分析 .......................................................
