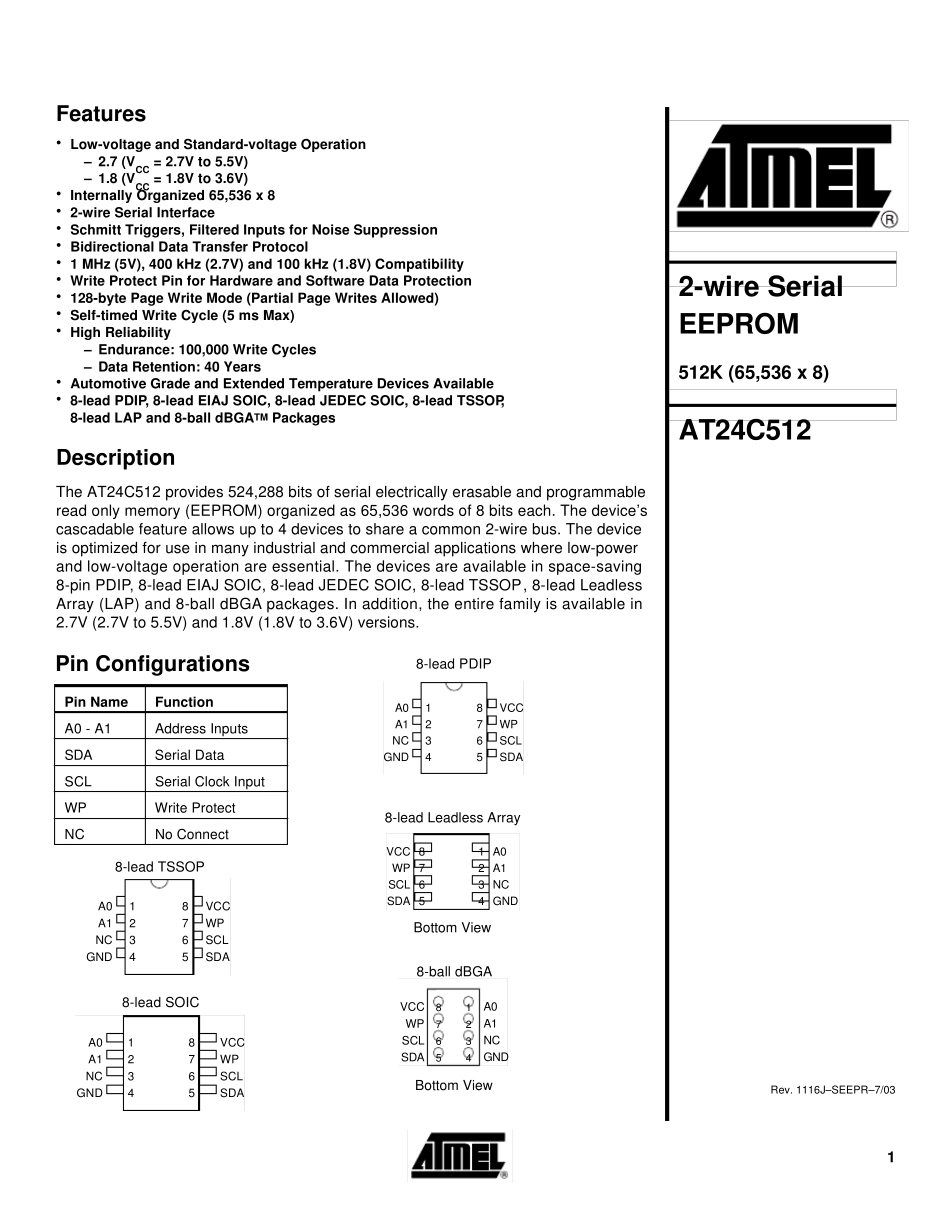

1Features• Low-voltage and Standard-voltage Operation– 2.7 (VCC = 2.7V to 5.5V)– 1.8 (VCC = 1.8V to 3.6V)• Internally Organized 65,536 x 8• 2-wire Serial Interface• Schmitt Triggers, Filtered Inputs for Noise Suppression• Bidirectional Data Transfer Protocol• 1 MHz (5V), 400 kHz (2.7V) and 100 kHz (1.8V) Compatibility• Write Protect Pin for Hardware and Software Data Protection• 128-byte Page Write Mode (Partial Page Writes Allowed)• Self-timed Write Cycle (5 ms Max)• High Reliability– Endurance: 100,000 Write Cycles – Data Retention: 40 Years• Automotive Grade and Extended Temperature Devices Available• 8-lead PDIP, 8-lead EIAJ SOIC, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-lead LAP and 8-ball dBGATM PackagesDescriptionThe AT24C512 provides 524,288 bits of serial electrically erasable and programmableread only memory (EEPROM) organized as 65,536 words of 8 bits each. The device’scascadable feature allows up to 4 devices to share a common 2-wire bus. The deviceis optimized for use in many industrial and commercial applications where low-powerand low-voltage operation are essential. The devices are available in space-saving8-pin PDIP, 8-lead EIAJ SOIC, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-lead LeadlessArray (LAP) and 8-ball dBGA packages. In addition, the entire family is available in2.7V (2.7V to 5.5V) and 1.8V (1.8V to 3.6V) versions.Rev. 1116J– SEEPR– 7/032-wire Serial EEPROM512K (65,536 x 8)AT24C512 Pin ConfigurationsPin NameFunctionA0 - A1Address InputsSDASerial DataSCLSerial Clock InputWPWrite ProtectNCNo Connect8-lead PDIP 12348765A0A1NCGNDVCCWPSCLSDA8-lead Leadless Array Bottom View12348765VCCWPSCLSDAA0A1NCGND8-lead TSSOP 12348765A0A1NCGNDVCCWPSCLSDA8-ball dBGA Bottom ViewVCCWPSCLSDAA0A1NCGND123487658-lead SOIC 12348765A0A1...
