BEAM188单元中文说明VIP专享

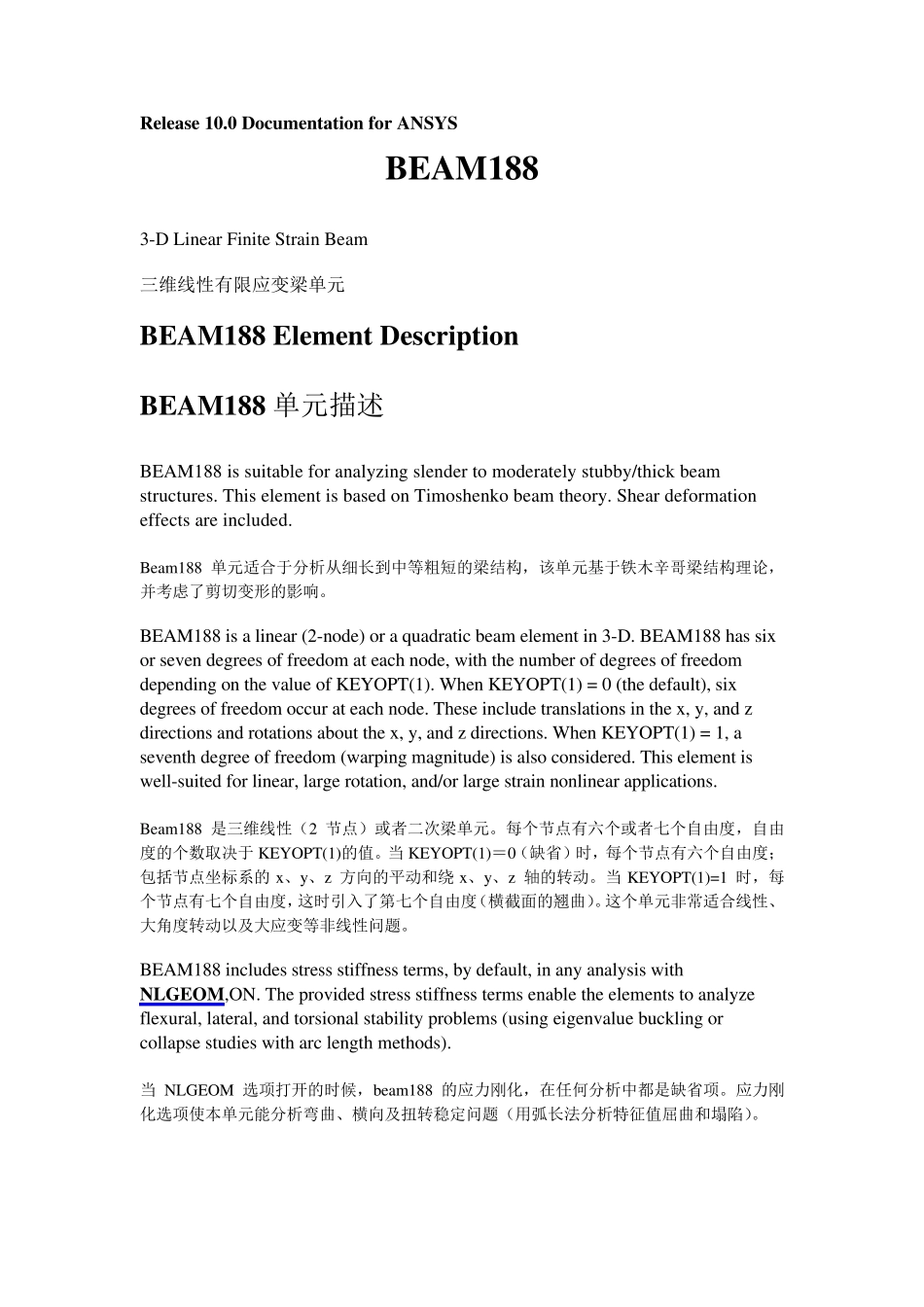

Release 10.0 Docu mentation for ANSYS BEAM188 3-D Linear Finite Strain Beam 三维线性有限应变梁单元 BEAM188 Element Description BEAM188 单元描述 BEAM188 is suitable for analyzing slender to moderately stubby/thick beam structures. This element is based on Timoshenko beam theory. Shear deformation effects are included. Beam188 单元适合于分析从细长到中等粗短的梁结构，该单元基于铁木辛哥梁结构理论，并考虑了剪切变形的影响。 BEAM188 is a linear (2-node) or a quadratic beam element in 3-D. BEAM188 has six or seven degrees of freedom at each node, with the number of degrees of freedom depending on the value of KEYOPT(1). When KEYOPT(1) = 0 (the default), six degrees of freedom occur at each node. These include translations in the x, y, and z directions and rotations about the x, y, and z directions. When KEYOPT(1) = 1, a seventh degree of freedom (warping magnitude) is also considered. This element is well-suited for linear, large rotation, and/or large strain nonlinear applications. Beam188 是三维线性（2 节点）或者二次梁单元。每个节点有六个或者七个自由度，自由度的个数取决于KEYOPT(1)的值。当KEYOPT(1)＝0（缺省）时，每个节点有六个自由度；包括节点坐标系的x、y、z 方向的平动和绕 x、y、z 轴的转动。当KEYOPT(1)=1 时，每个节点有七个自由度，这时引入了第七个自由度（横截面的翘曲）。这个单元非常适合线性、大角度转动以及大应变等非线性问题。 BEAM188 includes stress stiffness terms, by default, in any analysis with NLGEOM,ON. The provided stress stiffness terms enable the elements to analyze flexural, lateral, and torsional stability problems (using eigenvalue buckling or collapse studies with arc length methods). 当NLGEOM 选项打开的时候，beam188 的应力刚化，在任何分析中都是缺省项。应力刚化选项使本单元能分析弯曲、横向及扭转稳定问题（用弧长法分析特征值屈曲和塌陷）。 BEAM188 can be used with any beam...
