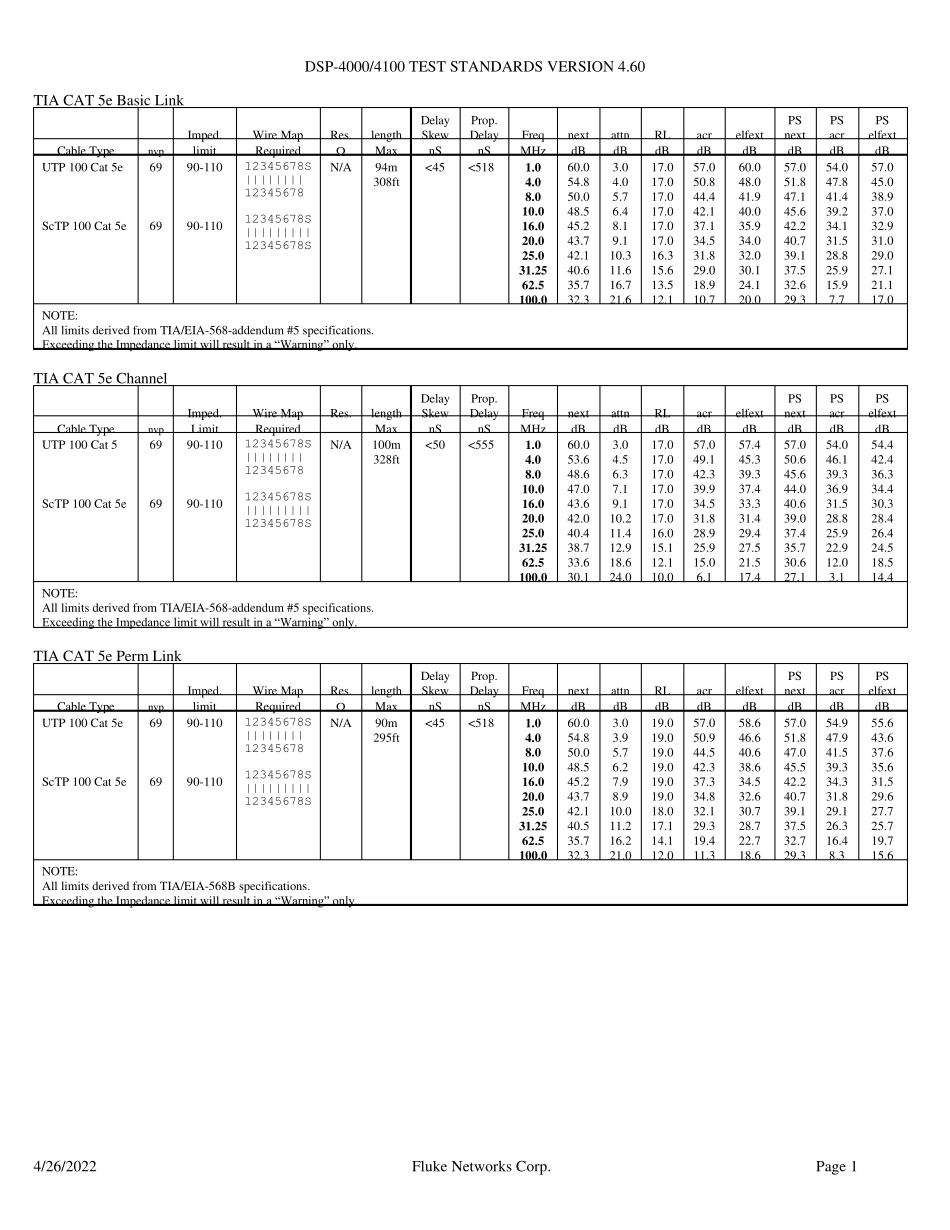

DSP-4000/4100 TEST STANDARDS VERSION 4.60 4/26/2022 Fluke Networks Corp. Page 1 TIA CAT 5e Basic Link Imped. Wire Map Res. length Delay Skew Prop. Delay Freq next attn RL acr elfext PS next PS acr PS elfext Cable Type nvp limit Required  Max nS nS MHz dB dB dB dB dB dB dB dB UTP 100 Cat 5e ScTP 100 Cat 5e 69 69 90-110 90-110 12345678S |||||||| 12345678 12345678S ||||||||| 12345678S N/A 94m 308ft <45 <518 1 .0 4 .0 8 .0 1 0 .0 1 6 .0 2 0 .0 2 5 .0 3 1 .2 5 6 2 .5 1 0 0 .0 60.0 54.8 50.0 48.5 45.2 43.7 42.1 40.6 35.7 32.3 3.0 4.0 5.7 6.4 8.1 9.1 10.3 11.6 16.7 21.6 17.0 17.0 17.0 17.0 17.0 17.0 16.3 15.6 13.5 12.1 57.0 50.8 44.4 42.1 37.1 34.5 31.8 29.0 18.9 10.7 60.0 48.0 41.9 40.0 35.9 34.0 32.0 30.1 24.1 20.0 57.0 51.8 47.1 45.6 42.2 40.7 39.1 37.5 32.6 29.3 54.0 47.8 41.4 39.2 34.1 31.5 28.8 25.9 15.9 7.7 57.0 45.0 38.9 37.0 32.9 31.0 29.0 27.1 21.1 17.0 NOTE: All limits derived from TIA/EIA-568-addendum #5 specifications. Exceeding the Impedance limit will result in a “Warning” only. TIA CAT 5e Channel Imped. Wire Map Res. length Delay Skew Prop. Delay Freq next attn RL acr elfext PS next PS acr PS elfext Cable Type nvp Limit Required Max nS nS MHz dB dB dB dB dB dB dB dB UTP 100 Cat 5 ScTP 100 Cat 5e 69 69 90-110 90-110 12345678S |||||||| 12345678 12345678S ||||||||| 12345678S N/A 100m 328ft <50 <555 1 .0 4 .0 8 .0 1 0 .0 1 6 .0 2 0 .0 2 5 .0 3 1 .2 5 6 2 .5 1 0 0 .0 60.0 53.6 48.6 47.0 43.6 42.0 40.4 38.7 33.6 30.1 3.0 4.5 6.3 7.1 9.1 10.2 11.4 12.9 18.6 24.0 17.0 17.0 17.0 17.0 17.0 17.0 16.0 15.1 12.1 10.0 57.0 49.1 42.3 39.9 34.5 31.8 28.9 25.9 15.0 6.1 57.4 45.3 39.3 37.4 33.3 31.4 29.4 27.5 21.5 17.4 57.0 ...
