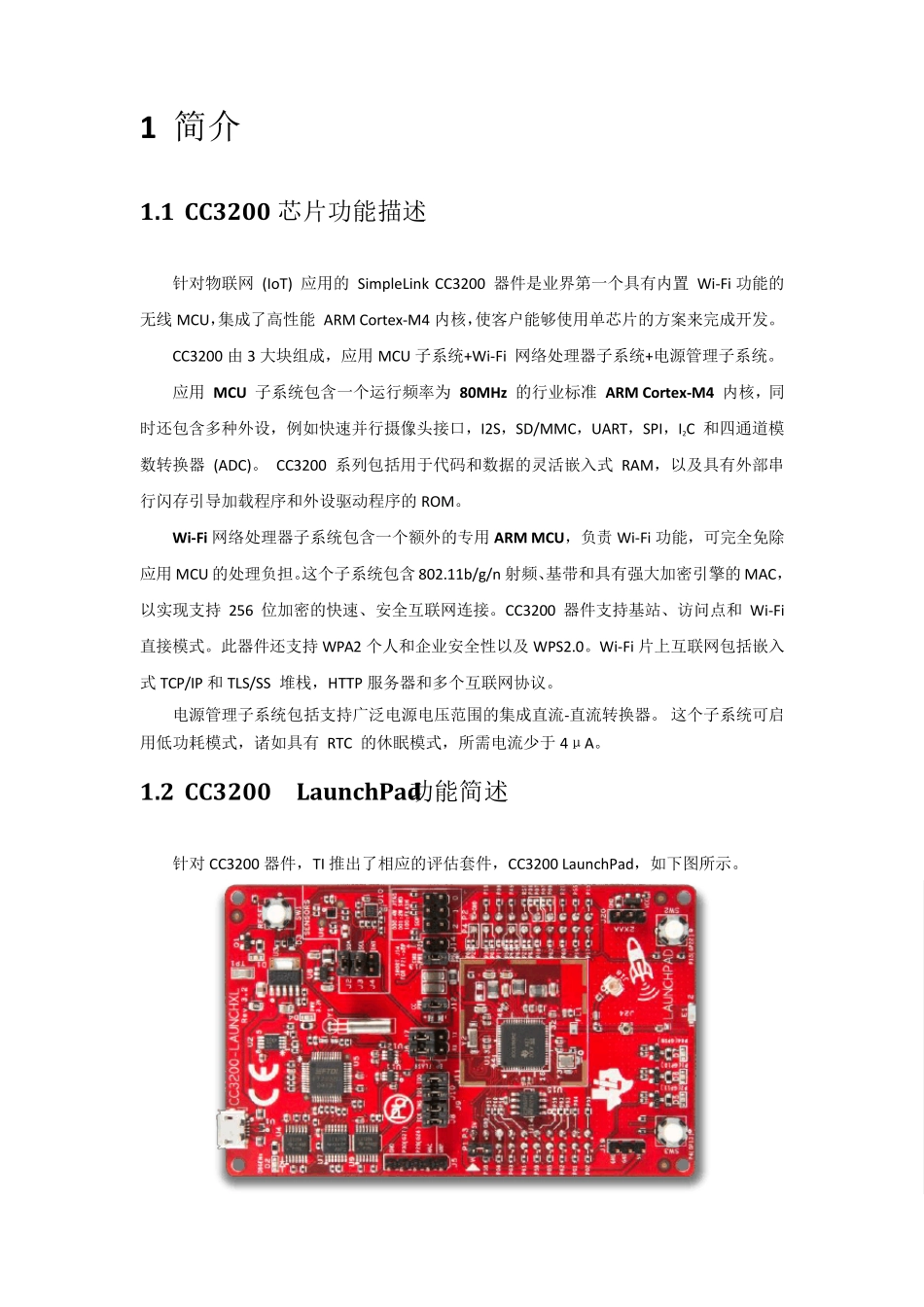

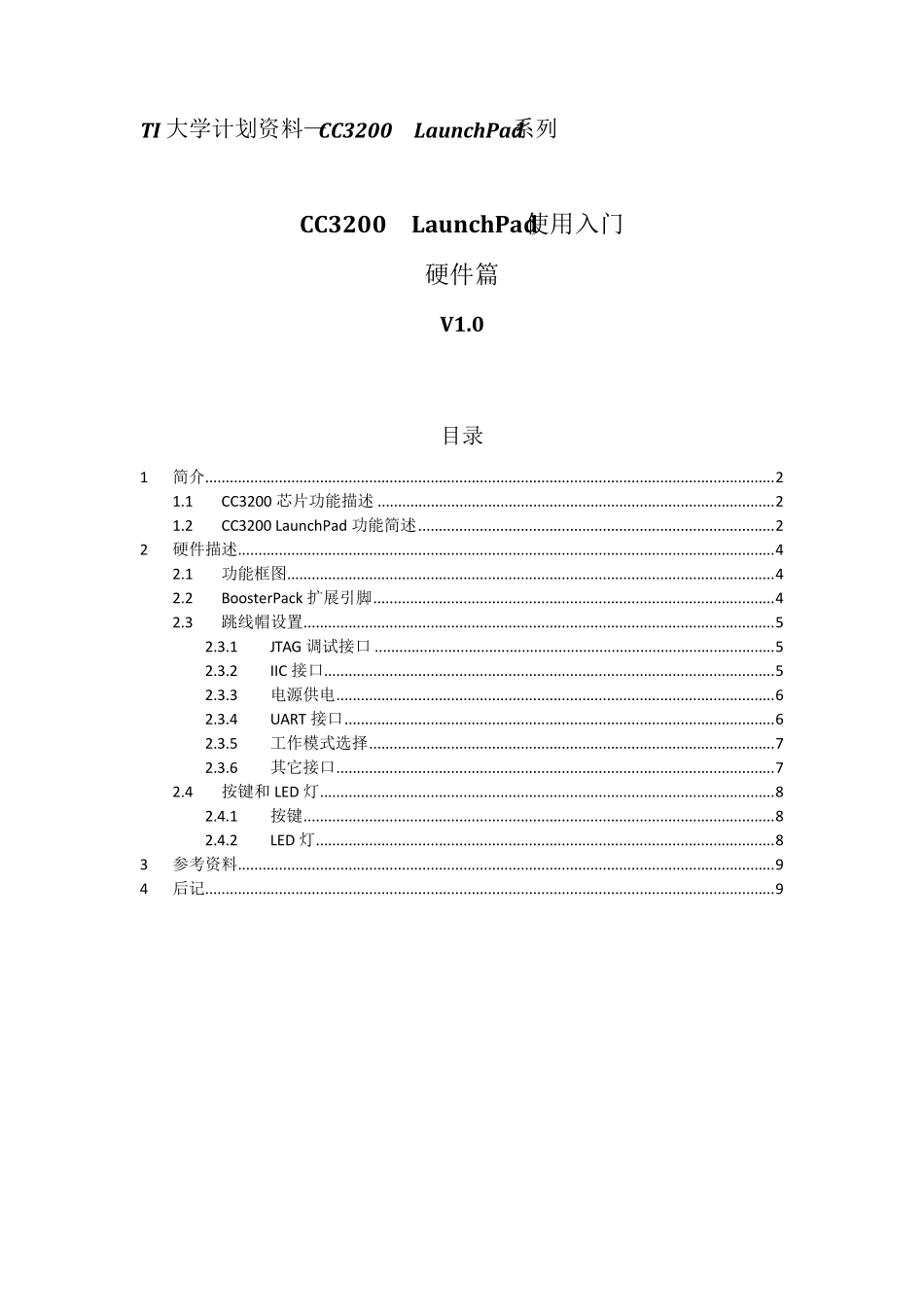

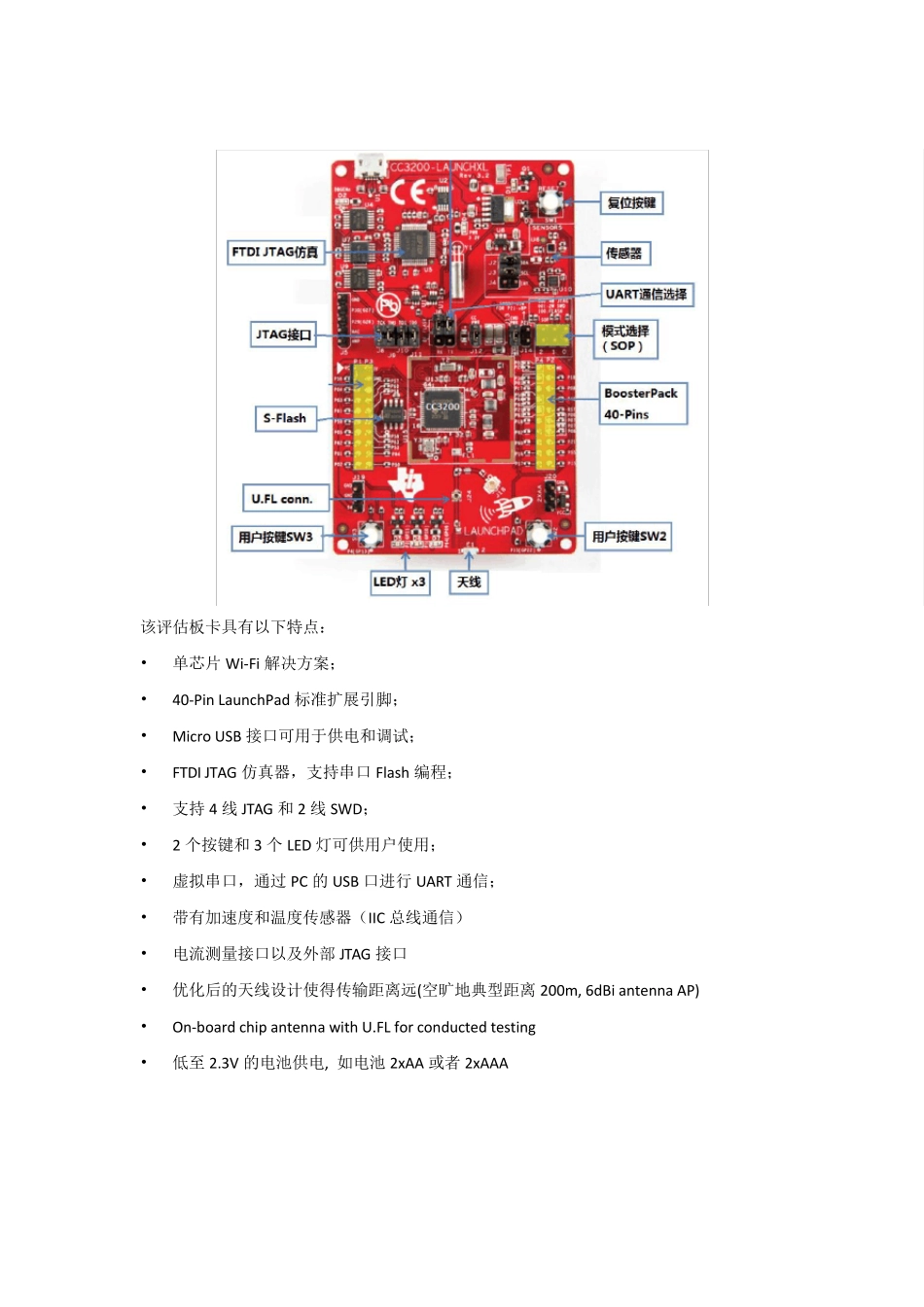

TI 大学计划资料—CC3200 LaunchPad系列 CC3200 LaunchPad使用入门 硬件篇 V1.0 目录 1 简介........................................................................................................................................... 2 1.1 CC3200 芯片功能描述 ................................................................................................. 2 1.2 CC3200 Lau nchPad 功能简述 ....................................................................................... 2 2 硬件描述 ................................................................................................................................... 4 2.1 功能框图 ....................................................................................................................... 4 2.2 BoosterPack 扩展引脚 .................................................................................................. 4 2.3 跳线帽设置 ................................................................................................................... 5 2.3.1 JTAG 调试接口 .................................................................................................. 5 2.3.2 IIC 接口.............................................................................................................. 5 2.3.3 电源供电 ........................................................................................................... 6 2.3.4 UART 接口 ......................................................................................................... 6 2.3.5 工作模式选择 ................................................................................................... 7 2.3.6 其它接口 ........................................................................................................... 7 2.4 按键和 LED 灯 ............................................................................................................... 8 2.4.1 按键 ............................
