CCLink核心部件MFP3

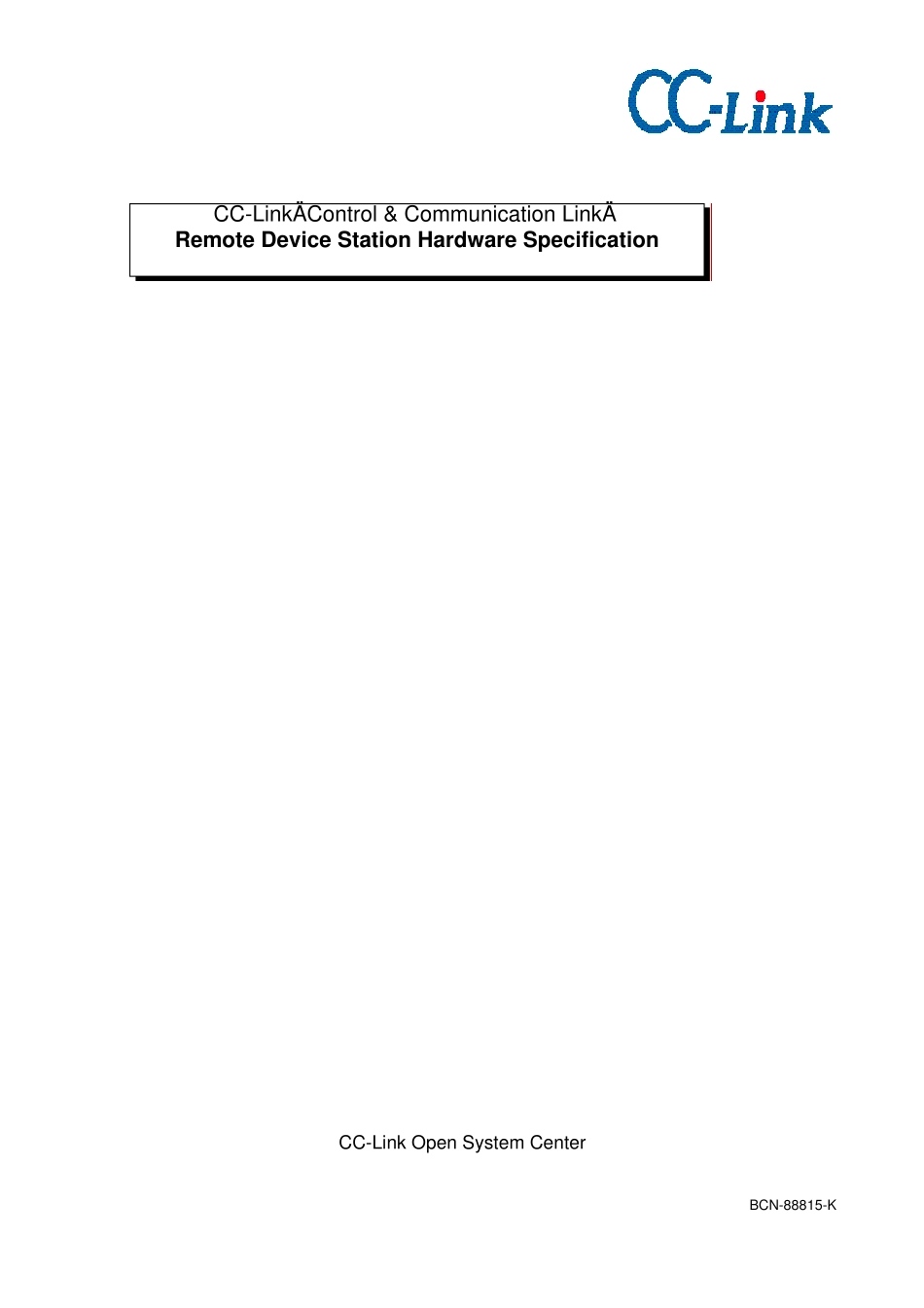

CCLink核心部件MFP3_第1页
1/42

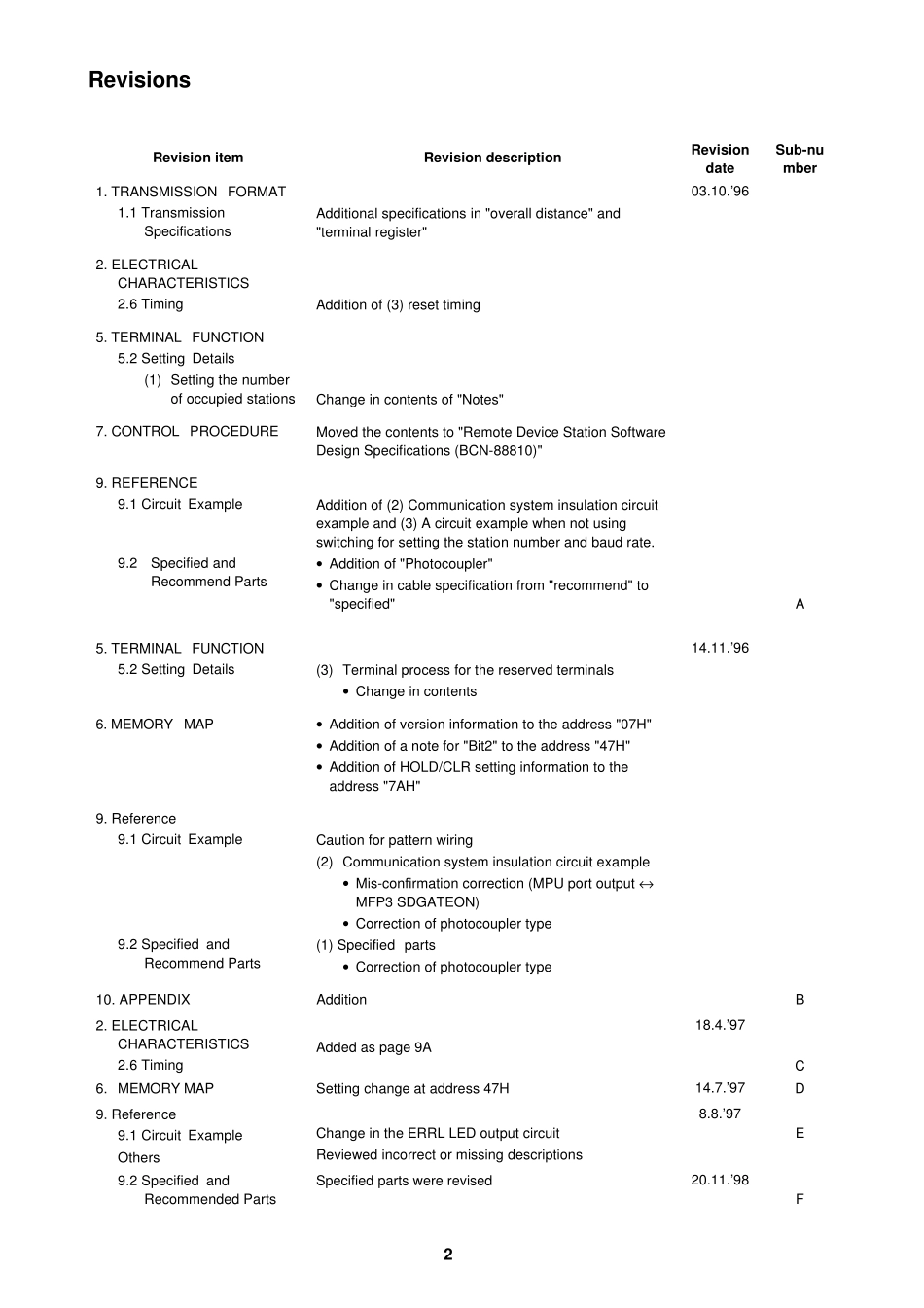

CCLink核心部件MFP3_第2页
2/42

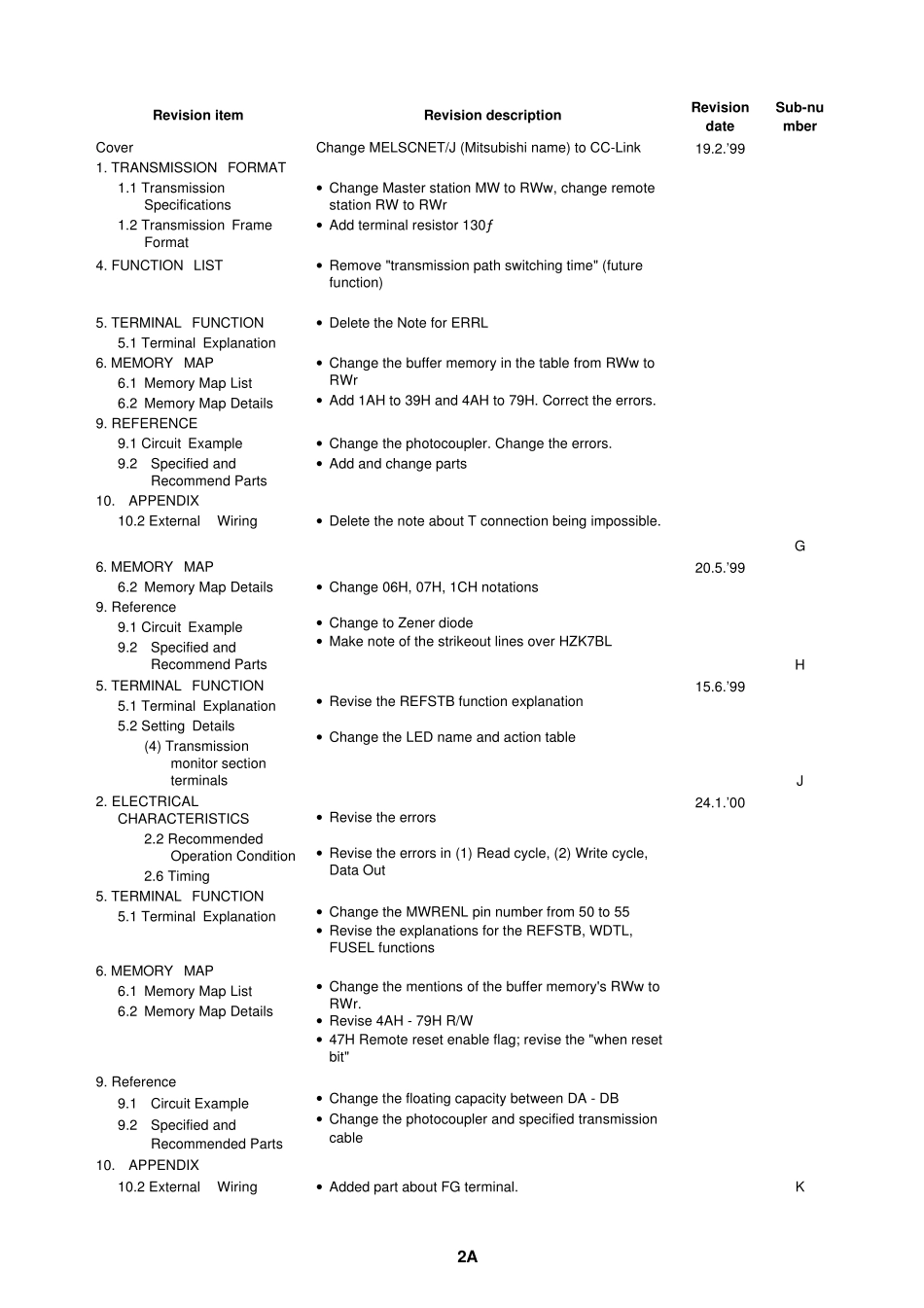

CCLink核心部件MFP3_第3页
3/42
CC-Link Open System Center BCN-88815-K CC-Link Control & Communication Link Remote Device Station Hardw are Specification 2 Revisions Revision item Revision description Revision date Sub-number 1. TRANSMISSION FORMAT 1.1 Transmission Specifications Additional specifications in "overall distance" and "terminal register" 2. ELECTRICAL CHARACTERISTICS 2.6 Timing Addition of (3) reset timing 5. TERMINAL FUNCTION 5.2 Setting Details (1) Setting the number of occupied stations Change in contents of "Notes" 7. CONTROL PROCEDURE Moved the contents to "Remote Device Station Software Design Specifications (BCN-88810)" 9. REFERENCE 9.1 Circuit Example 9.2 Specified and Recommend Parts Addition of (2) Communication system insulation circuit example and (3) A circuit example when not using switching for setting the station number and baud rate. • Addition of "Photocoupler" • Change in cable specification from "recommend" to "specified" 03.10.’96 A 5. TERMINAL FUNCTION 5.2 Setting Details (3) Terminal process for the reserved terminals • Change in contents 6. MEMORY MAP • Addition of version information to the address "07H" • Addition of a note for "Bit2" to the address "47H" • Addition of HOLD/CLR setting information to the address "7AH" 9. Reference 9.1 Circuit Example 9.2 Specified and Recommend Parts Caution for pattern wiring (2) Communication system insulation circuit example • Mis-confirmation correction (MPU port output ↔ MFP3 SDGATEON) • Correction of photocoupler type (1) Specified parts • Correction of photocoupler type 10. APPENDIX Addition 14.11.’96 B 2. ELECTRICAL CHARACTERISTICS 2.6 Timing Added as page 9A 18.4.’97 C 6. MEMORY MAP Setting change at address 47H 14.7.’97 D 9. Reference 9.1 Circuit ...
