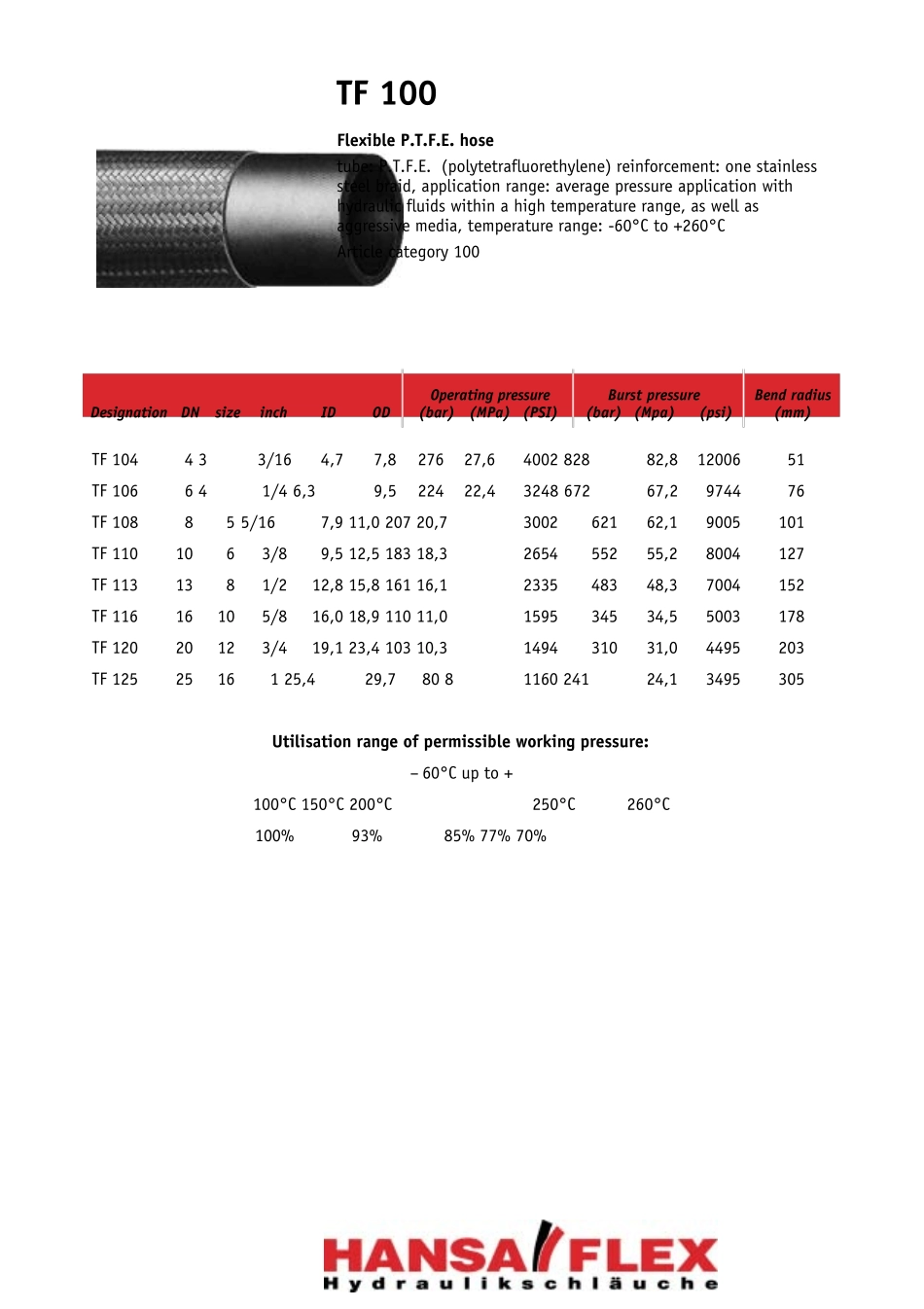

Product range 0 – Hydraulic hosesTF 104 4 3 3/16 4,7 7,8 276 27,6 4002 828 82,8 12006 51TF 106 6 4 1/4 6,3 9,5 224 22,4 3248 672 67,2 9744 76TF 108 8 5 5/16 7,9 11,0 207 20,7 3002 621 62,1 9005 101TF 110 10 6 3/8 9,5 12,5 183 18,3 2654 552 55,2 8004 127TF 113 13 8 1/2 12,8 15,8 161 16,1 2335 483 48,3 7004 152TF 116 16 10 5/8 16,0 18,9 110 11,0 1595 345 34,5 5003 178TF 120 20 12 3/4 19,1 23,4 103 10,3 1494 310 31,0 4495 203TF 125 25 16 1 25,4 29,7 80 8 1160 241 24,1 3495 305Utilisation range of permissible working pressure:– 60°C up to + 100°C 150°C 200°C 250°C 260°C 100% 93% 85% 77% 70%TF 100Flexible P.T.F.E. hosetube: P.T.F.E. (polytetrafluorethylene) reinforcement: one stainless steel braid, application range: average pressure application with hydraulic fluids within a high temperature range, as well as aggressive media, temperature range: -60°C to +260°C Article category 100 Operating pressure Burst pressure Bend radiusDesignation DN size inch ID OD (bar) (MPa) (PSI) (bar) (Mpa) (psi) (mm)TF 206 6 4 1/4 6,3 11,0 298 29,8 4321 841 84,1 12195 83TF 208 8 5 5/16 8,2 13,2 282 28,2 4089 813 81,3 11789 114TF 210 10 6 3/8 9,7 15,0 252 25,2 3654 724 72,4 10498 121TF 213 13 8 1/2 12,8 18,8 234 23,4 3393 689 68,9 9990 150TF 216 16 10 5/8 16,0 21,5 172 17,2 2494 496 49,6 7192 165TF 220 20 12 3/4 19,4 25,5 151 15,1 2190 448 44,8 6496 228TF 225 25 16 1 25,0 31,0 103 10,3 1494 344 34,4 4988 300Utilisation range of permissible working pressure:– 60°C up to + 100°C 150°C 200°C 250°C 260°C 100% 93% 85% 77% 70%TF 200Flexible P.T.F.E. hosetube: P.T.F.E. (polytetrafluorethylene) reinforcement: two stainless steel braids scope: average pressure application with h...
