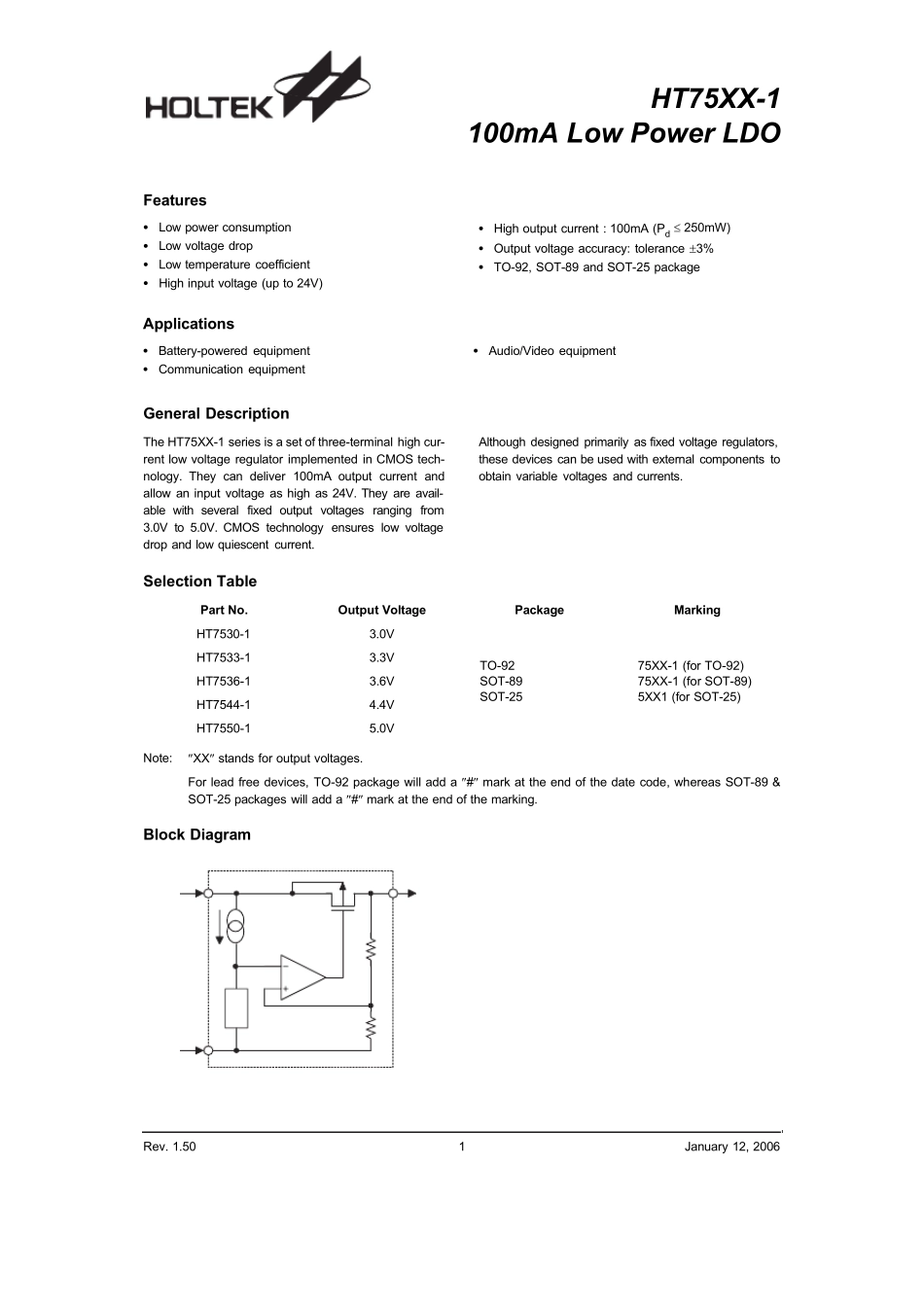

HT75XX-1100mA Low Pow er LDOSelection TablePart No.Ou tpu t VoltagePackageMarkingHT7530-13.0VTO-92SOT-89SOT-2575XX-1 (for TO-92)75XX-1 (for SOT-89)5XX1 (for SOT-25)HT7533-13.3VHT7536-13.6VHT7544-14.4VHT7550-15.0VNote:²XX² stands for output voltages.For lead free devices, TO-92 package will add a ²#² mark at the end of the date code, whereas SOT-89 &SOT-25 packages will add a ²#² mark at the end of the marking.Block DiagramRev. 1.501January12, 2006Featu res·Low power consumption·Low voltage drop·Low temperature coefficient·High input voltage (up to 24V)·High output current : 100mA (Pd £ 250mW)·Output voltage accuracy: tolerance ±3%·TO-92, SOT-89 and SOT-25 packageApplications·Battery-powered equipment·Communication equipment·Audio/Video equipmentGeneral DescriptionThe HT75XX-1 series is a set of three-terminal high cur-rent low voltage regulator implemented in CMOS tech-nology. They can deliver 100mA output current andallow an input voltage as high as 24V. They are avail-able with several fixed output voltages ranging from3.0V to 5.0V. CMOS technology ensures low voltagedrop and low quiescent current.Although designed primarily as fixed voltage regulators,these devices can be used with external components toobtain variable voltages and currents.Pin AssignmentAbsolute Maximum RatingsSupplyVoltage..........................................-0.3V to 26VStorage Temperature............................-50°C to 125°CPower Consumption (*1).................................. 250mWOperating Temperature...........................-40°C to 85°CPower Consumption (*2).................................. 150mWNote: These are stress ratings only. Stresses exceeding the range specified under ²Absolute Maximum Ratings² maycause substantial damage to the device. Functional op...
