DSP实现液晶显示电子日历画册

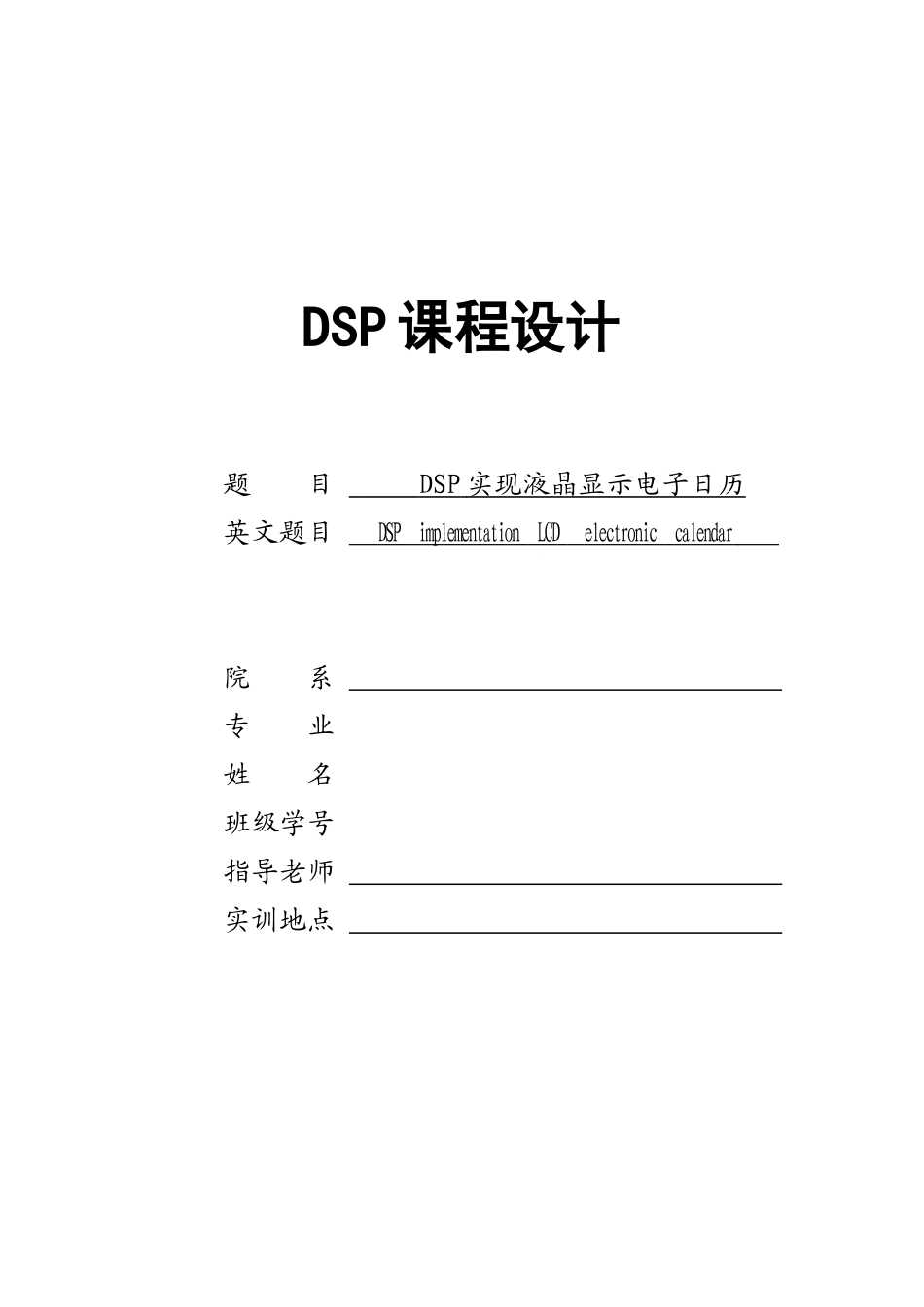

DSP实现液晶显示电子日历画册_第1页
1/41

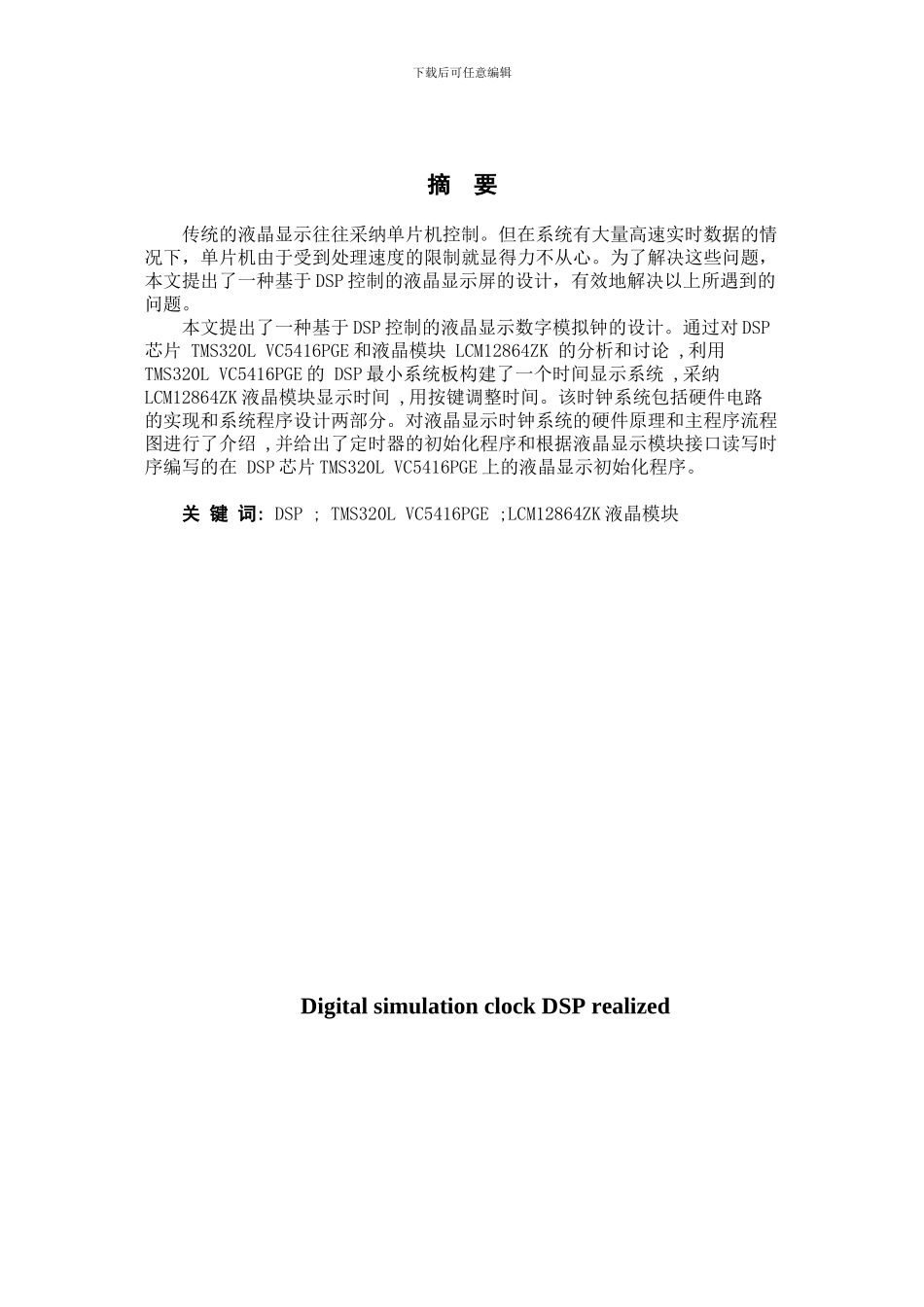

DSP实现液晶显示电子日历画册_第2页
2/41
DSP实现液晶显示电子日历画册_第3页
3/41
DSP 课程设计题 目 DSP 实现液晶显示电子日历 英文题目 DSP implementation LCD electronic calendar 院 系 专 业 姓 名 班级学号 指导老师 实训地点 下载后可任意编辑摘 要传统的液晶显示往往采纳单片机控制。但在系统有大量高速实时数据的情况下,单片机由于受到处理速度的限制就显得力不从心。为了解决这些问题,本文提出了一种基于 DSP 控制的液晶显示屏的设计,有效地解决以上所遇到的问题。本文提出了一种基于 DSP 控制的液晶显示数字模拟钟的设计。通过对 DSP芯片 TMS320L VC5416PGE 和液晶模块 LCM12864ZK 的分析和讨论 ,利用TMS320L VC5416PGE 的 DSP 最小系统板构建了一个时间显示系统 ,采纳 LCM12864ZK 液晶模块显示时间 ,用按键调整时间。该时钟系统包括硬件电路的实现和系统程序设计两部分。对液晶显示时钟系统的硬件原理和主程序流程图进行了介绍 ,并给出了定时器的初始化程序和根据液晶显示模块接口读写时序编写的在 DSP 芯片 TMS320L VC5416PGE 上的液晶显示初始化程序。关 键 词: DSP ; TMS320L VC5416PGE ;LCM12864ZK 液晶模块Digital simulation clock DSP realizedAbstractThe traditional liquid crystal display (LCD) often USES the monolithic control. But in the system with a lot of high-speed real-time data, due to a single chip processing speed limit is ragged. In order to solve these problems, this paper puts forward a DSP control based on the design of the LCD screen, effective to solve the above problems.This paper put forward based on DSP control liquid crystal display (LCD) digital simulation clock design. Through to the digital signal processor (DSP) TMS320L VC5416PGE and LCD module LCM12864ZK analysis and research, using the least TMS320L VC5416PGE DSP system board has constructed a time display system, adopting LCM12864ZK LCD module show time, with buttons settling time. This clock system including the realization of hardware circuit and system programming design two parts. On liquid crystal display clock system hardware prin...
