低温漂压力传感器US9111XXX

低温漂压力传感器US9111XXX_第1页
1/6
低温漂压力传感器US9111XXX_第2页
2/6
低温漂压力传感器US9111XXX_第3页
3/6

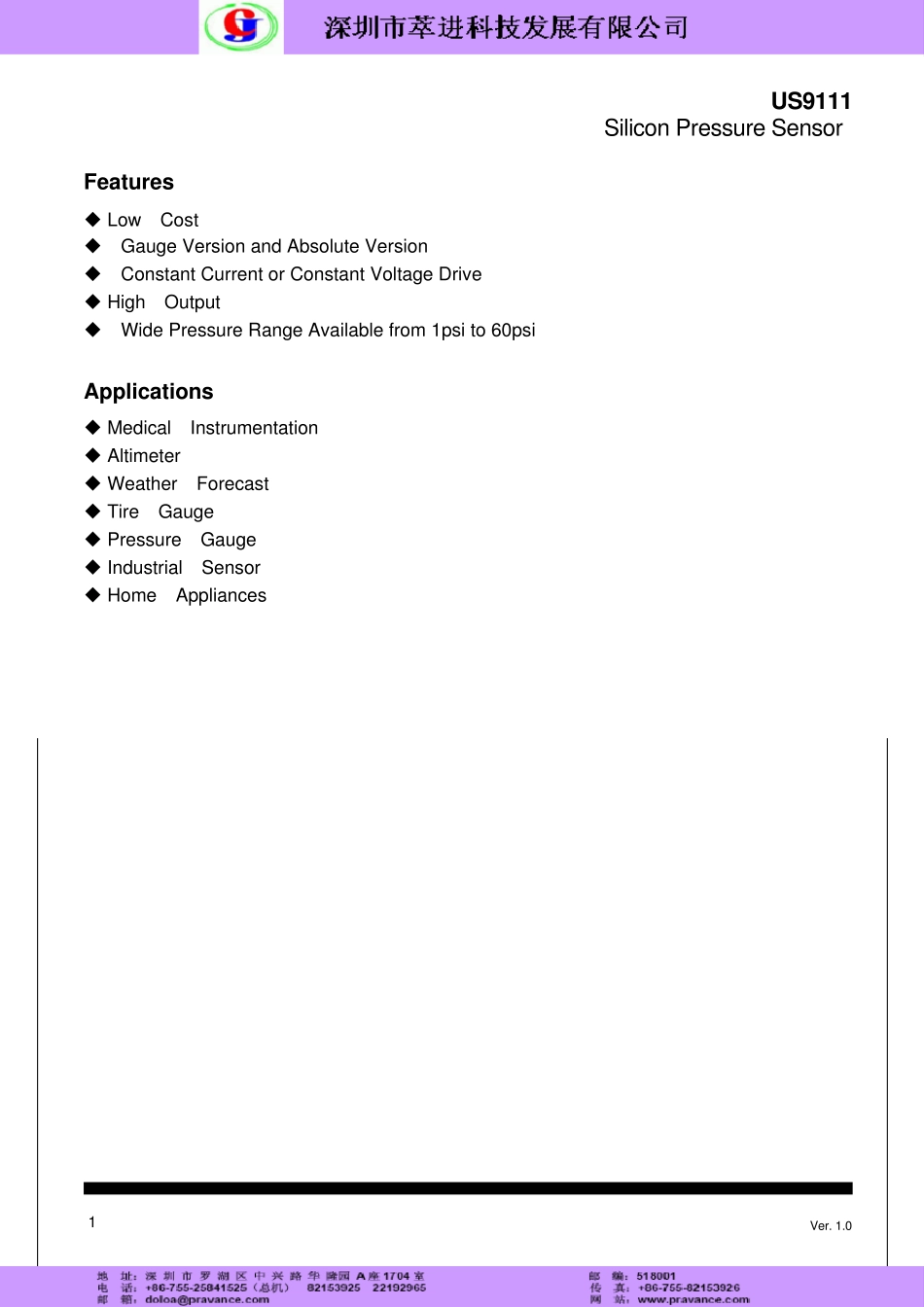

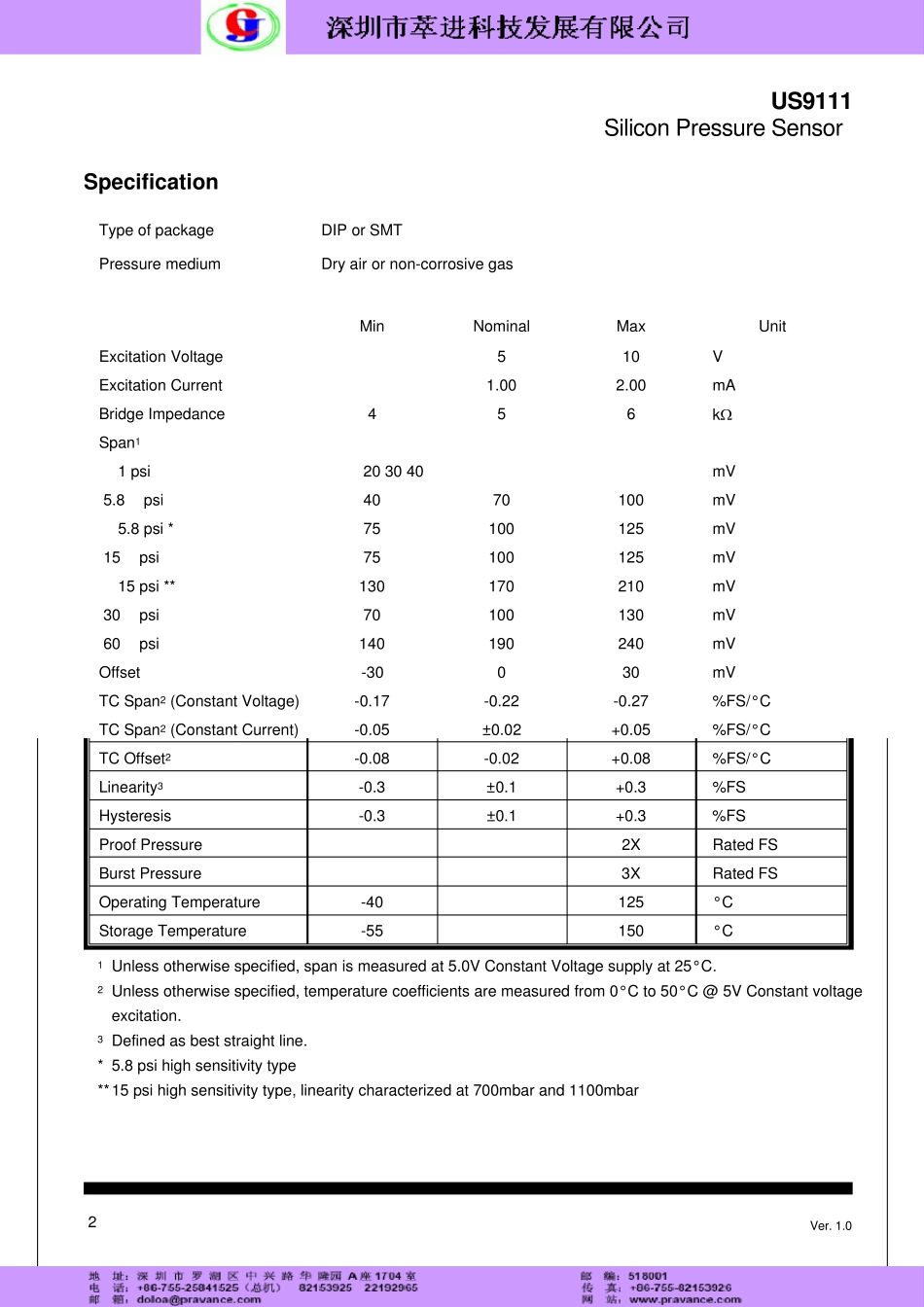

US9111 Silicon Pressure Sensor 1 Ver. 1.0 Featu res  Low Cost  Gauge Version and Absolute Version  Constant Current or Constant Voltage Drive  High Output  Wide Pressure Range Available from 1psi to 60psi Applications  Medical Instrumentation  Altimeter  Weather Forecast  Tire Gauge  Pressure Gauge  Industrial Sensor  Home Appliances US9111 Silicon Pressure Sensor 2 Ver. 1.0 Specification Type of package DIP or SMT Pressure medium Dry air or non-corrosive gas Min Nominal Max Unit Excitation Voltage 5 10 V Excitation Current 1.00 2.00 mA Bridge Impedance 4 5 6 kΩ Span1 1 psi 20 30 40 mV 5.8 psi 40 70 100 mV 5.8 psi * 75 100 125 mV 15 psi 75 100 125 mV 15 psi ** 130 170 210 mV 30 psi 70 100 130 mV 60 psi 140 190 240 mV Offset -30 0 30 mV TC Span2 (Constant Voltage) -0.17 -0.22 -0.27 %FS/°C TC Span2 (Constant Current) -0.05 ±0.02 +0.05 %FS/°C TC Offset2 -0.08 -0.02 +0.08 %FS/°C Linearity3 -0.3 ±0.1 +0.3 %FS Hysteresis -0.3 ±0.1 +0.3 %FS Proof Pressure 2X Rated FS Burst Pressure 3X Rated FS Operating Temperature -40 125 °C Storage Temperature -55 150 °C 1 Unless otherwise specified, span is measured at 5.0V Constant Voltage supply at 25°C. 2 Unless otherwise specified, temperature coefficients are measured from 0°C to 50°C @ 5V Constant voltage excitation. 3 Defined as best straight line. * 5.8 psi high sensitivity type ** 15 psi high sensitivity type, linearity characterized at 700mbar and 1100mbar US9111 Silicon Pressure Sensor 3 Ver. 1.0 Pads Layout and Definition Tube type Ø3.010.168.58.53.72.542.54Pressure InletØ1.0R 0.5Ø1.0Pressure inlet2.542.54R 0.53.78.512356410.16Ø3.05-10°2.542.54Ø3.06.06.07.05-10°10.30.8Pressure inlet3.56.01235640.250.25Ø1.1123564DIP Top TubeDIP Bottom TubeSMTDetail A Unit: mm Pin Definition 1 Gnd 2 S+ 3 Ext 4 N/C 5 S- 6 Gnd US9111 Silicon Pressure Sensor 4 Ver. 1.0 Hole type 4.06 [0.160]5.08 [0.200]6.10 [0.240]0.51 [0.020]x45°0.71 [0.028]2.54 [0.100]2.79 [0.110]1.78 [0.070]1.27 [0.050]432156780.41 [0.016]1.27 [0.050]0.50 [0.020]4.35 [0.171]3.36 [0.132]1.76 [0.069]2.43 [0.095]3215641.38 [0.054]Ø1.00 [Ø0.039]Pressure InletØ0.76 [Ø0.030]Pressure Inlet7.80 [0.307]0.30 [0.012]0.10 [0.004]SO8SO6DETAIL A Unit: mm[in] SO6 Pin SO8 Gnd 1 N/C S- 2 S+ Ext 3 N/C N/C 4 Gnd S+ 5 Gnd Gnd 6 S- 7 N/C 8 Ext US9111 Silicon Pressure Sensor 5 Ver. 1.0 Hole type 2.542.547.010.30.83.51235640.250.250.50.8Pressure InletDetail ASMT SQUARE Unit: mm Pin Definition 1 Gnd 2 S- 3 Ext 4 N/C 5 S+ 6 Gnd Ordering Information US9111 Silicon Pressure Sensor 6 Ver. 1.0 US – 9111 - □ □ □ - □ 001 1 psi D DIP Top tube 006 5.8 psi U DIP Bottom tube H06 5.8 psi High sensitivity type S SMT Top tube 005 15 psi R SMT Hole H15 15 psi High sensitivity type 6 SO6 Hole 030 30 psi 8 SO8 Hole 060 60 psi
