华中数控车床编程举例说明

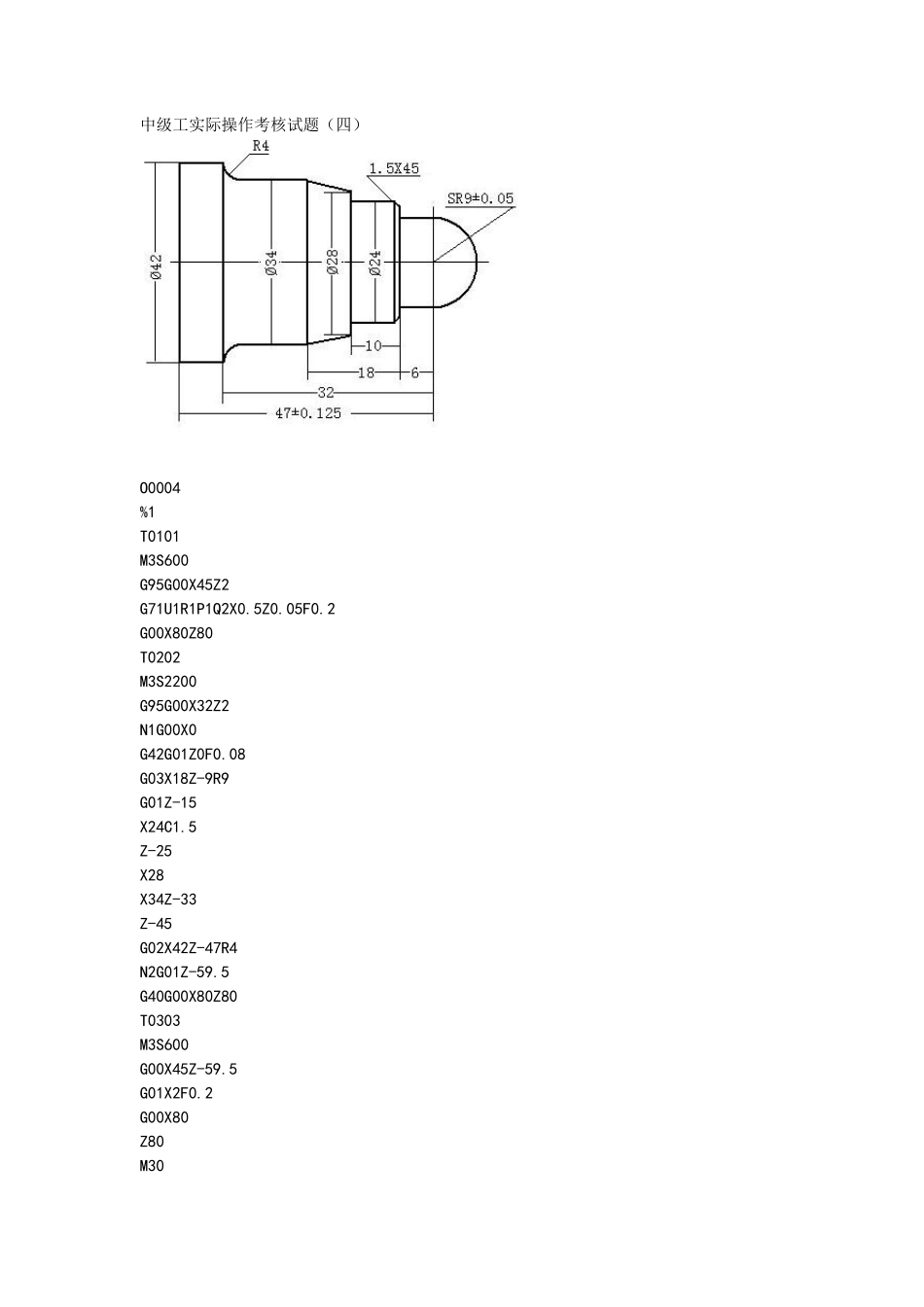

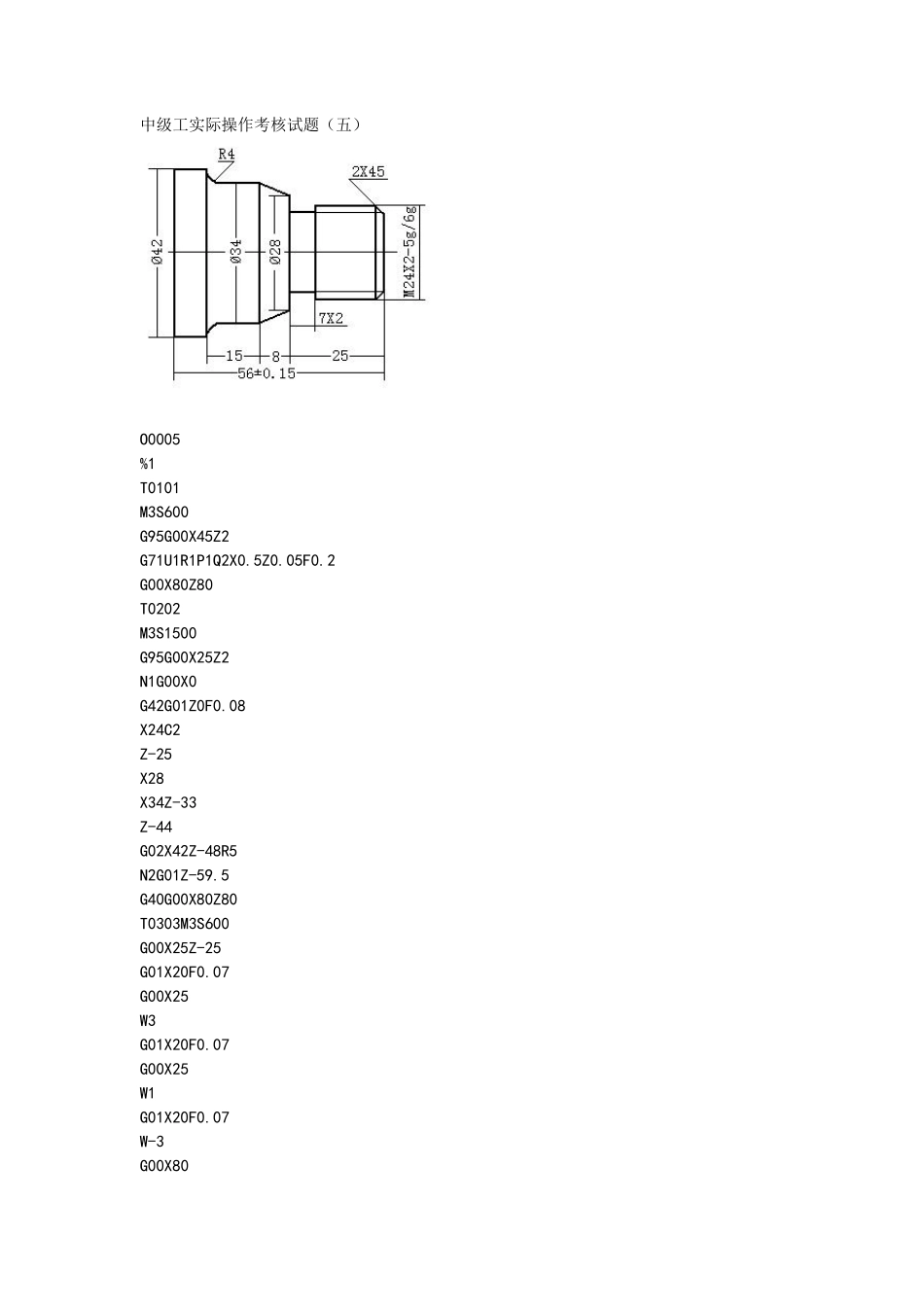

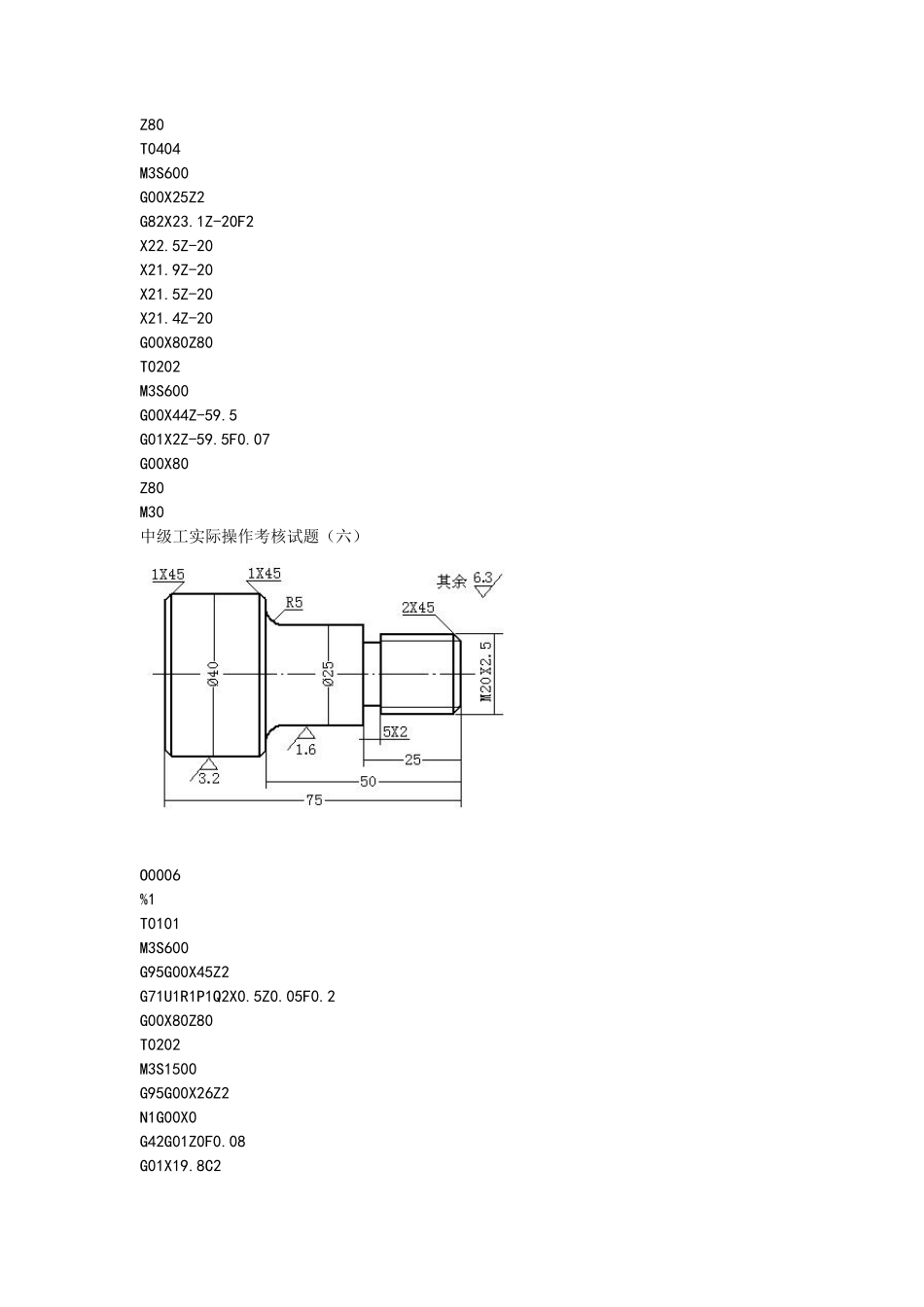

中级工实际操作考核试题（四） O0004 %1 T0101 M3S600 G95G00X45Z2 G71U1R1P1Q2X0.5Z0.05F0.2 G00X80Z80 T0202 M3S2200 G95G00X32Z2 N1G00X0 G42G01Z0F0.08 G03X18Z-9R9 G01Z-15 X24C1.5 Z-25 X28 X34Z-33 Z-45 G02X42Z-47R4 N2G01Z-59.5 G40G00X80Z80 T0303 M3S600 G00X45Z-59.5 G01X2F0.2 G00X80 Z80 M30 中级工实际操作考核试题（五） O0005 %1 T0101 M3S600 G95G00X45Z2 G71U1R1P1Q2X0.5Z0.05F0.2 G00X80Z80 T0202 M3S1500 G95G00X25Z2 N1G00X0 G42G01Z0F0.08 X24C2 Z-25 X28 X34Z-33 Z-44 G02X42Z-48R5 N2G01Z-59.5 G40G00X80Z80 T0303M3S600 G00X25Z-25 G01X20F0.07 G00X25 W3 G01X20F0.07 G00X25 W1 G01X20F0.07 W-3 G00X80 Z80 T0404 M3S600 G00X25Z2 G82X23.1Z-20F2 X22.5Z-20 X21.9Z-20 X21.5Z-20 X21.4Z-20 G00X80Z80 T0202 M3S600 G00X44Z-59.5 G01X2Z-59.5F0.07 G00X80 Z80 M30 中级工实际操作考核试题（六） O0006 %1 T0101 M3S600 G95G00X45Z2 G71U1R1P1Q2X0.5Z0.05F0.2 G00X80Z80 T0202 M3S1500 G95G00X26Z2 N1G00X0 G42G01Z0F0.08 G01X19.8C2 Z-25 X25 Z-45 G02X35Z-50R5 G01X40RL=1 N2Z-78.5 G40G00X80Z80 T0303 M3S600 G00X26Z-25 G01X16F0.07 G00X26 W2 G01X16F0.07 W-2 G00X44 Z-77 G01X40F0.07 X38Z-78 G00X80 Z80 T0404 M3S600 G00X24Z2 G82X19Z-21F2 X18.3Z-21 X17.7Z-21 X17.3Z-21 X16.9Z-21 X16.75Z-21 G00X80Z80 T0303 M3SS600 G00X44Z-78.5 G01X2Z-78.5F0.07 G00X80 Z80 M30 中级工实际操作考核试题（三） O0003 %1 T0101 M3S600 G95G00X45Z2 G71U1R1P1Q2X0.5Z0.05F0.2 G00X80Z80 T0202 M3S1500 G95G00X26Z2 N1G00X0 G42G01Z0F0.08 G03X20Z-1.716R30 G03X24Z-4.544R3 G01Z-16 G03X30Z-19R3 G01Z-31 X34C0.5 X42Z-46 N2Z-59.5 G40G00X80Z80 T0303 M3S600 G00X44Z-59.5 G01X2Z-59.5F0.07 G00X80 Z80 M30 中级工实际操作考核试题（二） O0002 %1 T0101 M3S600 G95G00X45Z2 G71U1R1P1Q2X0.5Z0.05F0.2 G00X80Z80 T0202 M3S1500 G95G00X20Z2 N1G00X0 G42G01Z0F0.08 X8 G03X18Z-5R5 Z-5.75 G02X24Z-12R8 Z-23 X26 X32Z-33 Z-37 G02X42Z-42R5 N2Z-55.5 G00X80Z80 T0303 M3S600 G00X44Z-54 G01X42Z-54F0.07 X40Z-55 G00X44Z-55.5 G01X44Z-55.5F0.07 G00X80 Z80 M30
