变压器规格尺寸表VIP专享

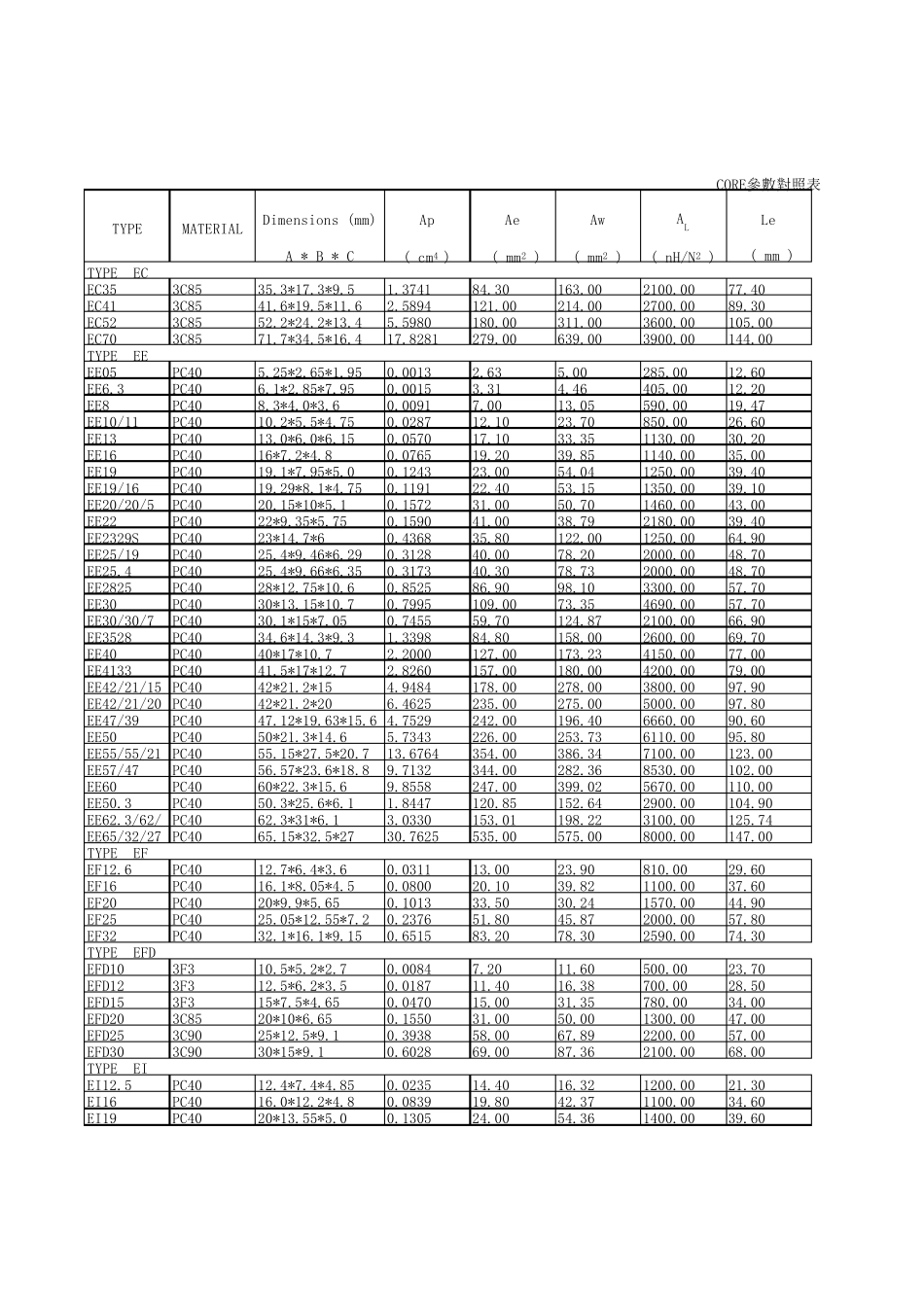

CORE參數對照表Dimensions (mm)ApAeAwALLeA * B * C( cm4 ) ( mm2 )( mm2 )( nH/N2 ) ( mm )TYPE ECEC353C8535.3*17.3*9.51.374184.30163.002100.0077.40EC413C8541.6*19.5*11.62.5894121.00214.002700.0089.30EC523C8552.2*24.2*13.45.5980180.00311.003600.00105.00EC703C8571.7*34.5*16.417.8281279.00639.003900.00144.00TYPE EEEE05PC405.25*2.65*1.950.00132.635.00285.0012.60EE6.3PC406.1*2.85*7.950.00153.314.46405.0012.20EE8PC408.3*4.0*3.60.00917.0013.05590.0019.47EE10/11PC4010.2*5.5*4.750.028712.1023.70850.0026.60EE13PC4013.0*6.0*6.150.057017.1033.351130.0030.20EE16PC4016*7.2*4.80.076519.2039.851140.0035.00EE19PC4019.1*7.95*5.00.124323.0054.041250.0039.40EE19/16PC4019.29*8.1*4.750.119122.4053.151350.0039.10EE20/20/5PC4020.15*10*5.10.157231.0050.701460.0043.00EE22PC4022*9.35*5.750.159041.0038.792180.0039.40EE2329SPC4023*14.7*60.436835.80122.001250.0064.90EE25/19PC4025.4*9.46*6.290.312840.0078.202000.0048.70EE25.4PC4025.4*9.66*6.350.317340.3078.732000.0048.70EE2825PC4028*12.75*10.60.852586.9098.103300.0057.70EE30PC4030*13.15*10.70.7995109.0073.354690.0057.70EE30/30/7PC4030.1*15*7.050.745559.70124.872100.0066.90EE3528PC4034.6*14.3*9.31.339884.80158.002600.0069.70EE40PC4040*17*10.72.2000127.00173.234150.0077.00EE4133PC4041.5*17*12.72.8260157.00180.004200.0079.00EE42/21/15 PC4042*21.2*154.9484178.00278.003800.0097.90EE42/21/20 PC4042*21.2*206.4625235.00275.005000.0097.80EE47/39PC4047.12*19.63*15.6 4.7529242.00196.406660.0090.60EE50PC4050*21.3*14.65.7343226.00253.736110.0095.80EE55/55/21 PC4055.15*27.5*20.713.6764354.00386.347100.00123.00EE57/47PC4056.57*23.6*18.89.7132344.00282.368530.00102.00EE60PC4060*22.3*15.69.8558247.00399.025670.00110.00EE50.3PC4050.3*25.6*6.11.8447120.85152.642900.00104.90EE62.3/62/ PC4062.3*31*6.13.0330153.01198.223100.00125.74EE65/32/27 PC4065.15*32.5*2730.7625535.00575.008000.00147.00TYPE EFEF12.6PC4012.7*6.4*3.60.031113.0023.90810.0029.60EF16PC4016.1*8.05*4.50.080020.1039.821100.0037.60EF20PC4020*9.9*5.650.101333.5030.241570.0044.90EF2...
