咬花面拔模标准

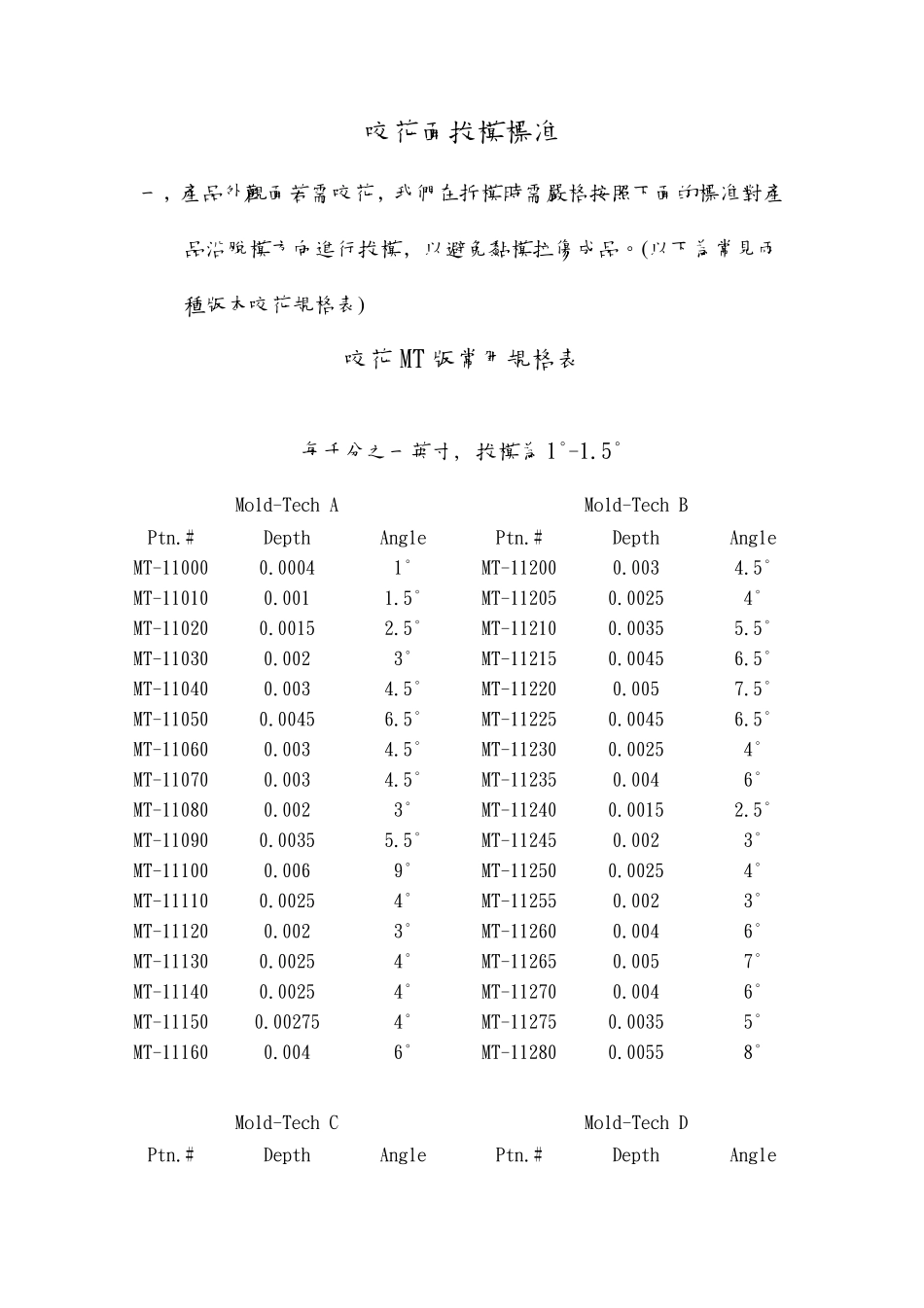

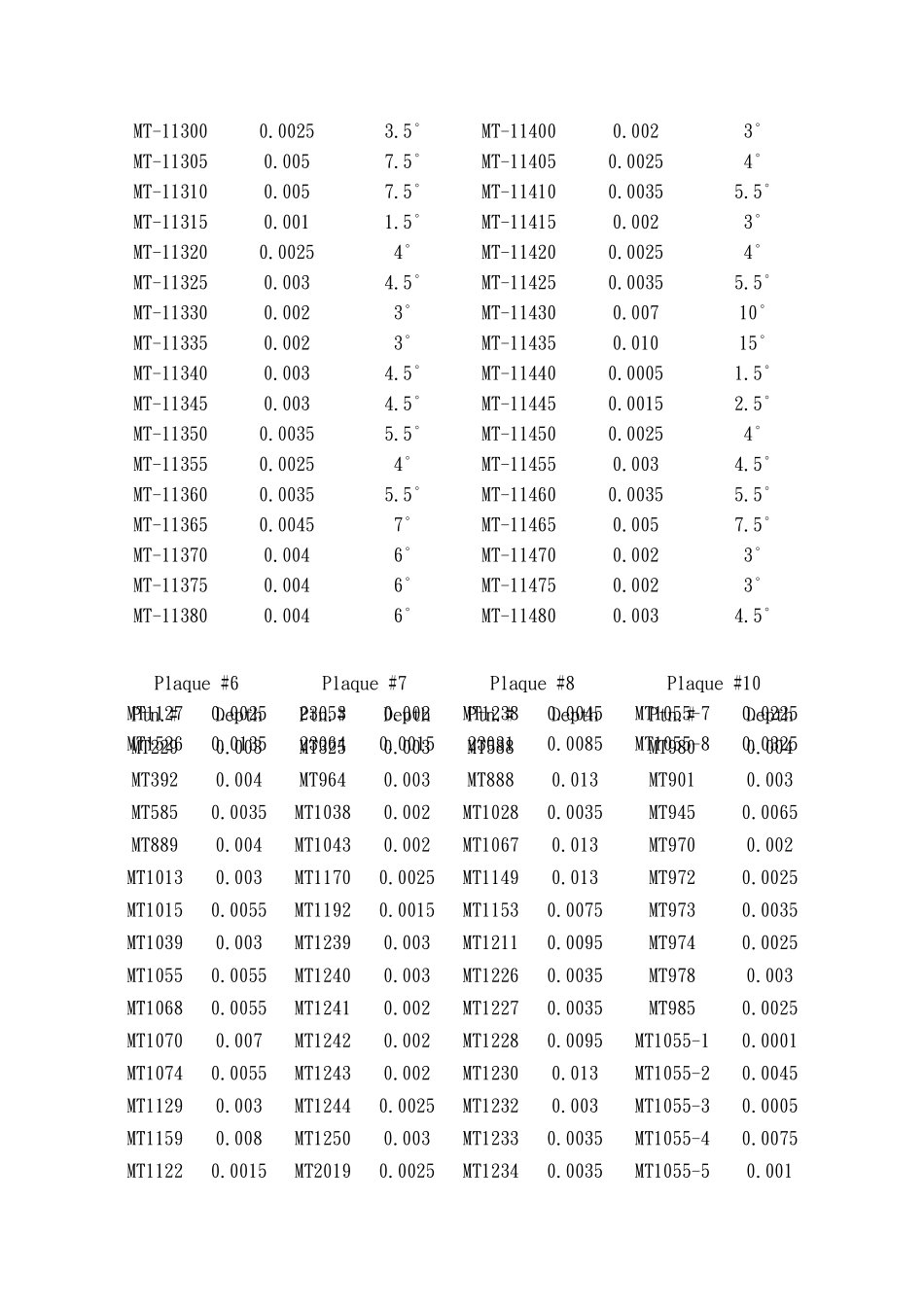

咬花面拔模標准 一﹐產品外觀面若需咬花﹐我們在拆模時需嚴格按照下面的標准對產品沿脫模方向進行拔模﹐以避免黏模拉傷成品。(以下為常見兩種版本咬花規格表) 咬花 MT 版常用規格表 每千分之一英寸, 拔模為 1°-1.5° Mold-Tech A Mold-Tech B Ptn.# Depth Angle Ptn.# Depth Angle MT-11000 0.0004 1° MT-11200 0.003 4.5° MT-11010 0.001 1.5° MT-11205 0.0025 4° MT-11020 0.0015 2.5° MT-11210 0.0035 5.5° MT-11030 0.002 3° MT-11215 0.0045 6.5° MT-11040 0.003 4.5° MT-11220 0.005 7.5° MT-11050 0.0045 6.5° MT-11225 0.0045 6.5° MT-11060 0.003 4.5° MT-11230 0.0025 4° MT-11070 0.003 4.5° MT-11235 0.004 6° MT-11080 0.002 3° MT-11240 0.0015 2.5° MT-11090 0.0035 5.5° MT-11245 0.002 3° MT-11100 0.006 9° MT-11250 0.0025 4° MT-11110 0.0025 4° MT-11255 0.002 3° MT-11120 0.002 3° MT-11260 0.004 6° MT-11130 0.0025 4° MT-11265 0.005 7° MT-11140 0.0025 4° MT-11270 0.004 6° MT-11150 0.00275 4° MT-11275 0.0035 5° MT-11160 0.004 6° MT-11280 0.0055 8° Mold-Tech C Mold-Tech D Ptn.# Depth Angle Ptn.# Depth Angle MT-11300 0.0025 3.5° MT-11400 0.002 3° MT-11305 0.005 7.5° MT-11405 0.0025 4° MT-11310 0.005 7.5° MT-11410 0.0035 5.5° MT-11315 0.001 1.5° MT-11415 0.002 3° MT-11320 0.0025 4° MT-11420 0.0025 4° MT-11325 0.003 4.5° MT-11425 0.0035 5.5° MT-11330 0.002 3° MT-11430 0.007 10° MT-11335 0.002 3° MT-11435 0.010 15° MT-11340 0.003 4.5° MT-11440 0.0005 1.5° MT-11345 0.003 4.5° MT-11445 0.0015 2.5° MT-11350 0.0035 5.5° MT-11450 0.0025 4° MT-11355 0.0025 4° MT-11455 0.003 4.5° MT-11360 0.0035 5.5° MT-11460 0.0035 5.5° MT-11365 0.0045 7° MT-11465 0.005 7.5° MT-11370 0.004 6° MT-11470 0.002 3° MT-11375 0.004 6° MT-11475 0.002 3° MT-11380 0.004 6° MT-11480 0.003 4.5° Plaque #6 Plaque #7 Plaque #8 Plaque #10 Ptn.# D...
