不同VLAN之间互访

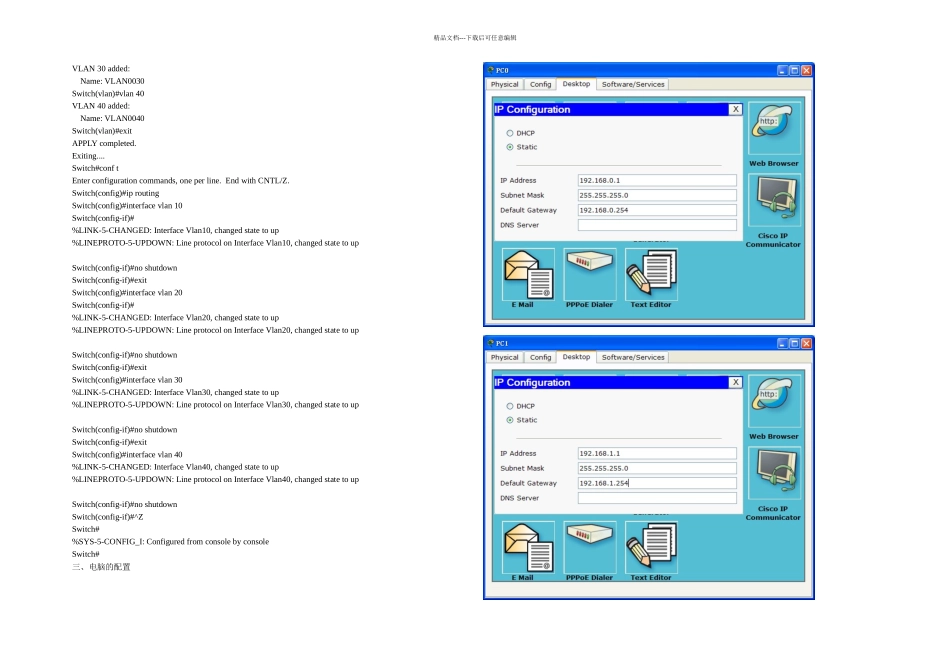

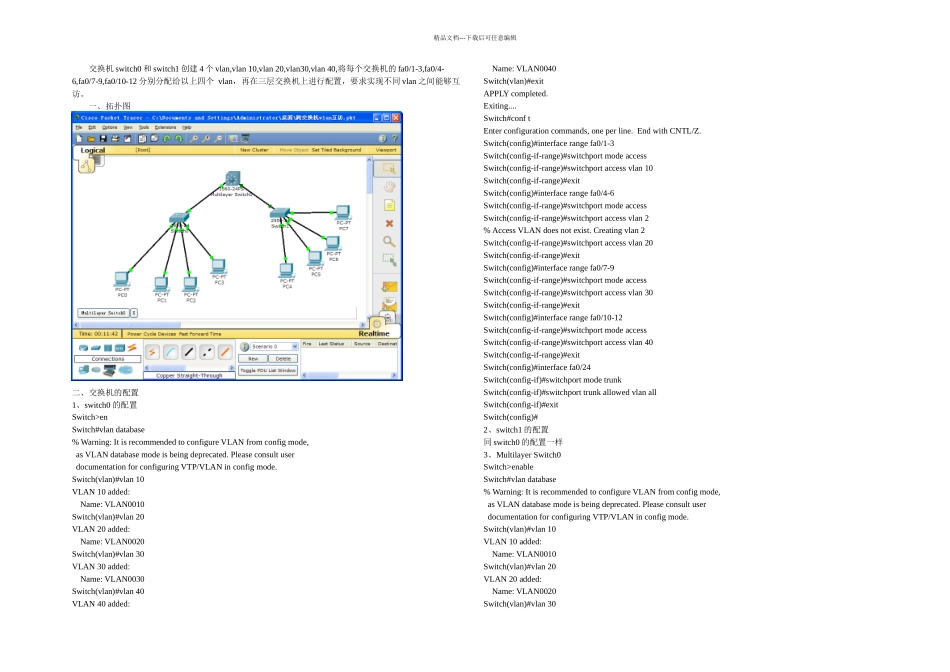

精品文档---下载后可任意编辑交换机 switch0 和 switch1 创建 4 个 vlan,vlan 10,vlan 20,vlan30,vlan 40,将每个交换机的 fa0/1-3,fa0/4-6,fa0/7-9,fa0/10-12 分别分配给以上四个 vlan，再在三层交换机上进行配置，要求实现不同 vlan 之间能够互访。一、拓扑图二、交换机的配置1、switch0 的配置Switch>enSwitch#vlan database% Warning: It is recommended to configure VLAN from config mode, as VLAN database mode is being deprecated. Please consult user documentation for configuring VTP/VLAN in config mode.Switch(vlan)#vlan 10VLAN 10 added: Name: VLAN0010Switch(vlan)#vlan 20VLAN 20 added: Name: VLAN0020Switch(vlan)#vlan 30VLAN 30 added: Name: VLAN0030Switch(vlan)#vlan 40VLAN 40 added: Name: VLAN0040Switch(vlan)#exitAPPLY completed.Exiting....Switch#conf tEnter configuration commands, one per line. End with CNTL/Z.Switch(config)#interface range fa0/1-3Switch(config-if-range)#switchport mode accessSwitch(config-if-range)#switchport access vlan 10Switch(config-if-range)#exitSwitch(config)#interface range fa0/4-6Switch(config-if-range)#switchport mode accessSwitch(config-if-range)#switchport access vlan 2% Access VLAN does not exist. Creating vlan 2Switch(config-if-range)#switchport access vlan 20Switch(config-if-range)#exitSwitch(config)#interface range fa0/7-9Switch(config-if-range)#switchport mode accessSwitch(config-if-range)#switchport access vlan 30Switch(config-if-range)#exitSwitch(config)#interface range fa0/10-12Switch(config-if-range)#switchport mode accessSwitch(config-if-range)#switchport access vlan 40Switch(config-if-range)#exitSwitch(config)#interface fa0/24Switch(config-if)#switchport mode trunkSwitch(config-if)#switchport trunk allowed vlan allSwitch(config-if)#exitSwitch(config)#2、switch1 的配置同 switch0 的配置一样3、Multilayer Switch0Switch>enableSwitch#vlan database% Warning: It is recommended to configure VLAN from config mode, as VLAN...
