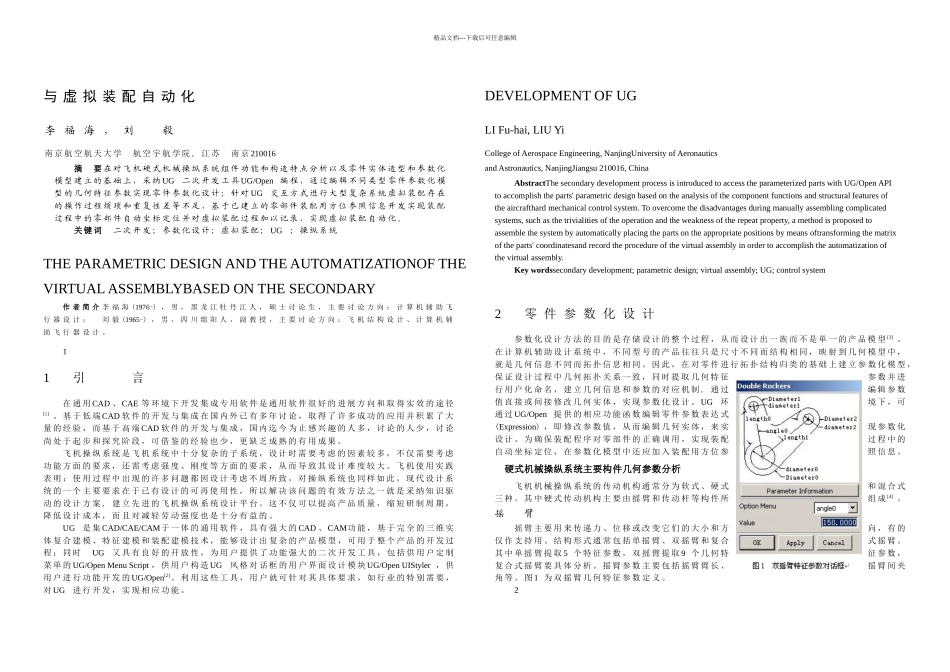

精品文档---下载后可任意编辑与 虚 拟 装 配 自 动 化李 福 海 , 刘 毅南 京 航 空 航 天 大 学 航 空 宇 航 学 院 , 江 苏 南 京 210016摘 要 在 对 飞 机 硬 式 机 械 操 纵 系 统 组 件 功 能 和 构 造 特 点 分 析 以 及 零 件 实 体 造 型 和 参 数 化模 型 建 立 的 基 础 上 , 采 纳 UG二 次 开 发 工 具 UG/Open 编 程 , 通 过 编 辑 不 同 类 型 零 件 参 数 化 模型 的 几 何 特 征 参 数 实 现 零 件 参 数 化 设 计 ; 针 对 UG交 互 方 式 进 行 大 型 复 杂 系 统 虚 拟 装 配 存 在的 操 作 过 程 烦 琐 和 重 复 性 差 等 不 足 , 基 于 已 建 立 的 零 部 件 装 配 用 方 位 参 照 信 息 开 发 实 现 装 配过 程 中 的 零 部 件 自 动 坐 标 定 位 并 对 虚 拟 装 配 过 程 加 以 记 录 , 实 现 虚 拟 装 配 自 动 化 。关 键 词 二 次 开 发 ; 参 数 化 设 计 ; 虚 拟 装 配 ; UG; 操 纵 系 统THE PARAMETRIC DESIGN AND THE AUTOMATIZATIONOF THE VIRTUAL ASSEMBLYBASED ON THE SECONDARY DEVELOPMENT OF UGLI Fu-hai, LIU YiCollege of Aerospace Engineering, NanjingUniversity of Aeronauticsand Astronautics, NanjingJiangsu 210016, ChinaAbstractThe secondary development process is introduced to access the parameterized parts with UG/Open API to accomplish the parts' parametric design based on the analysis of the component functions and structural features of the aircrafthard mechanical control system. To overcome the disadvantages during manually assembling complicated systems, such as the trivialities of the operation and the weakness of the repeat property, a method is proposed to assemble the system by automatically placing the parts on the appropriate positions by means oftransforming the matrix of the parts' coordinatesand record the procedure of the virtual asse...
