2025年齿轮油泵泵体加工工艺及钻φ14φ18阶梯孔夹具设计全套图纸

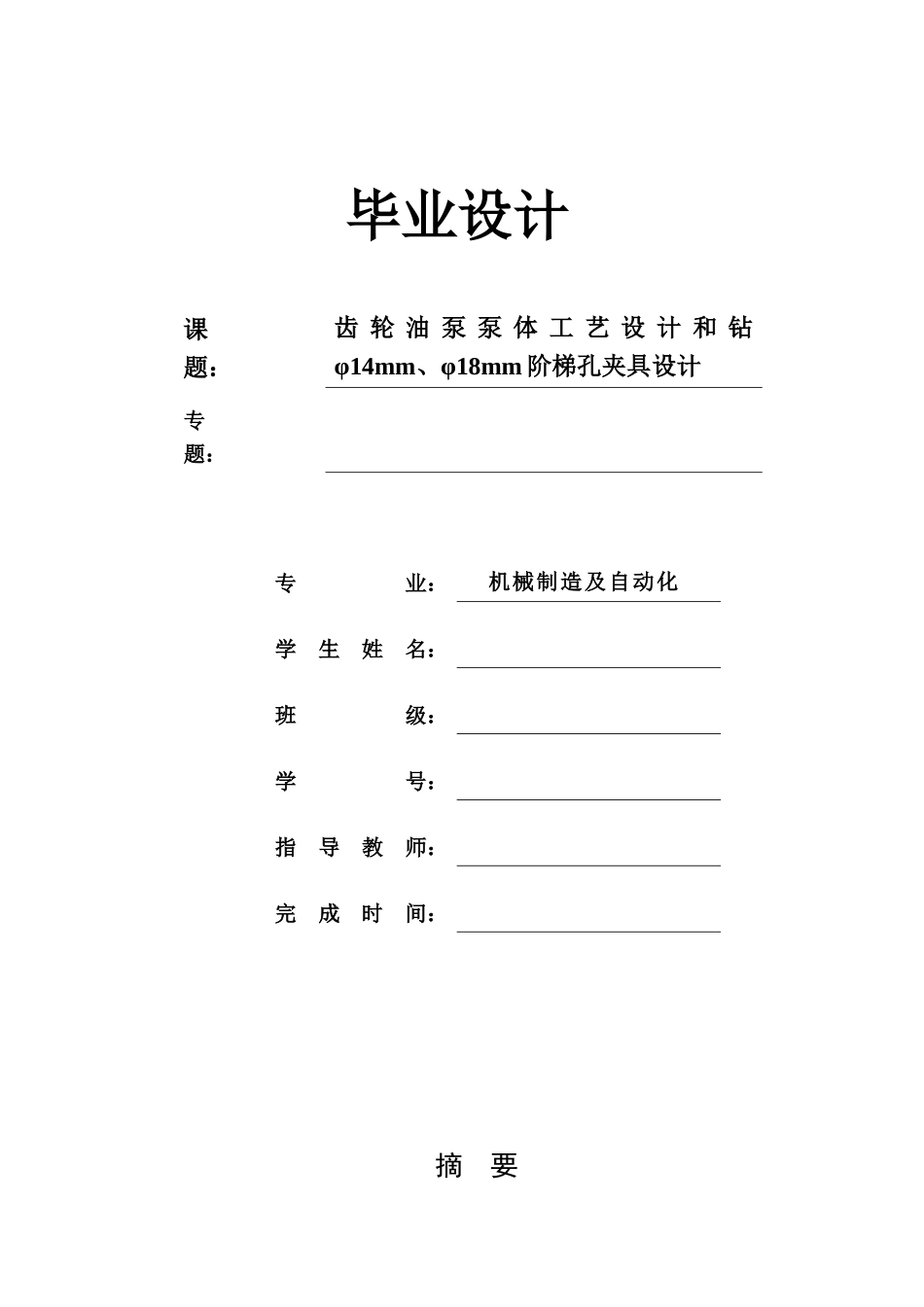

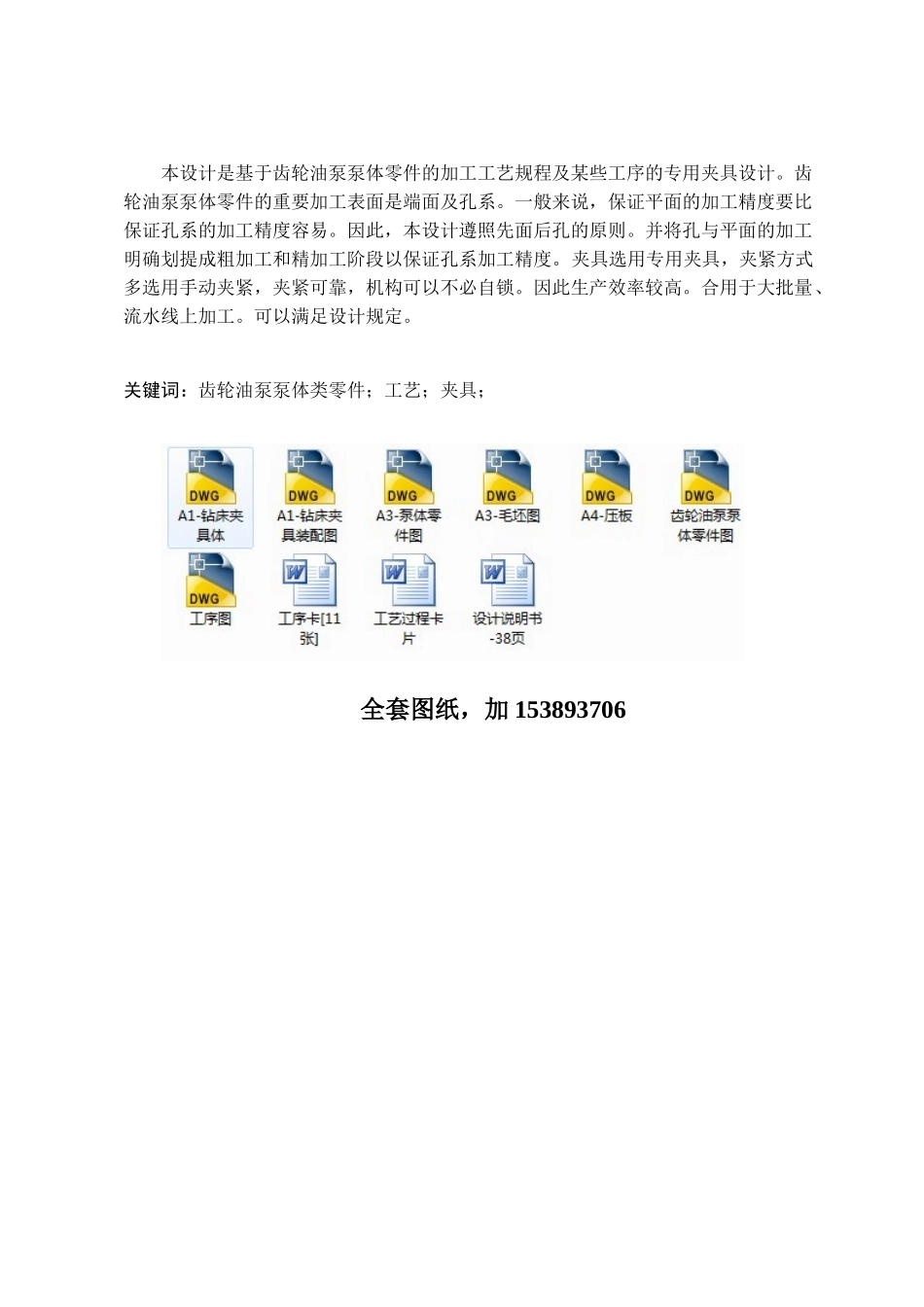

毕业设计课 题：齿 轮 油 泵 泵 体 工 艺 设 计 和 钻φ14mm、φ18mm 阶梯孔夹具设计专 题：专 业： 机械制造及自动化学 生 姓 名： 班 级： 学 号：指 导 教 师：完 成 时 间： 摘 要本设计是基于齿轮油泵泵体零件的加工工艺规程及某些工序的专用夹具设计。齿轮油泵泵体零件的重要加工表面是端面及孔系。一般来说，保证平面的加工精度要比保证孔系的加工精度容易。因此，本设计遵照先面后孔的原则。并将孔与平面的加工明确划提成粗加工和精加工阶段以保证孔系加工精度。夹具选用专用夹具，夹紧方式多选用手动夹紧，夹紧可靠，机构可以不必自锁。因此生产效率较高。合用于大批量、流水线上加工。可以满足设计规定。关键词：齿轮油泵泵体类零件；工艺；夹具；全套图纸，加 153893706ABSTRACTThe design is based on the body parts of the processing order of the processes and some special fixture design. Body parts of the main plane of the surface and pore system. In general, the plane guarantee processing precision than that of holes machining precision easy. Therefore, this design follows the surface after the first hole principle. Plane with holes and the processing clearly divided into roughing and finishing stages of holes to ensure machining accuracy. Datum selection box input shaft and the output shaft of the supporting hole as a rough benchmark, with top with two holes as a precision technology reference. Main processes arrangements to support holes for positioning and processing the top plane, and then the top plane and the supporting hole location hole processing technology. In addition to the follow-up processes individual processes are made of the top plane and technological hole location hole and plane processing. Supported hole processing using the method of coordinate boring. The whole process of processing machine combinations were selected. Selection of special fixture fixture, clamping means more choic...
