CSC-300G数字式发变组保护定值清单 精品

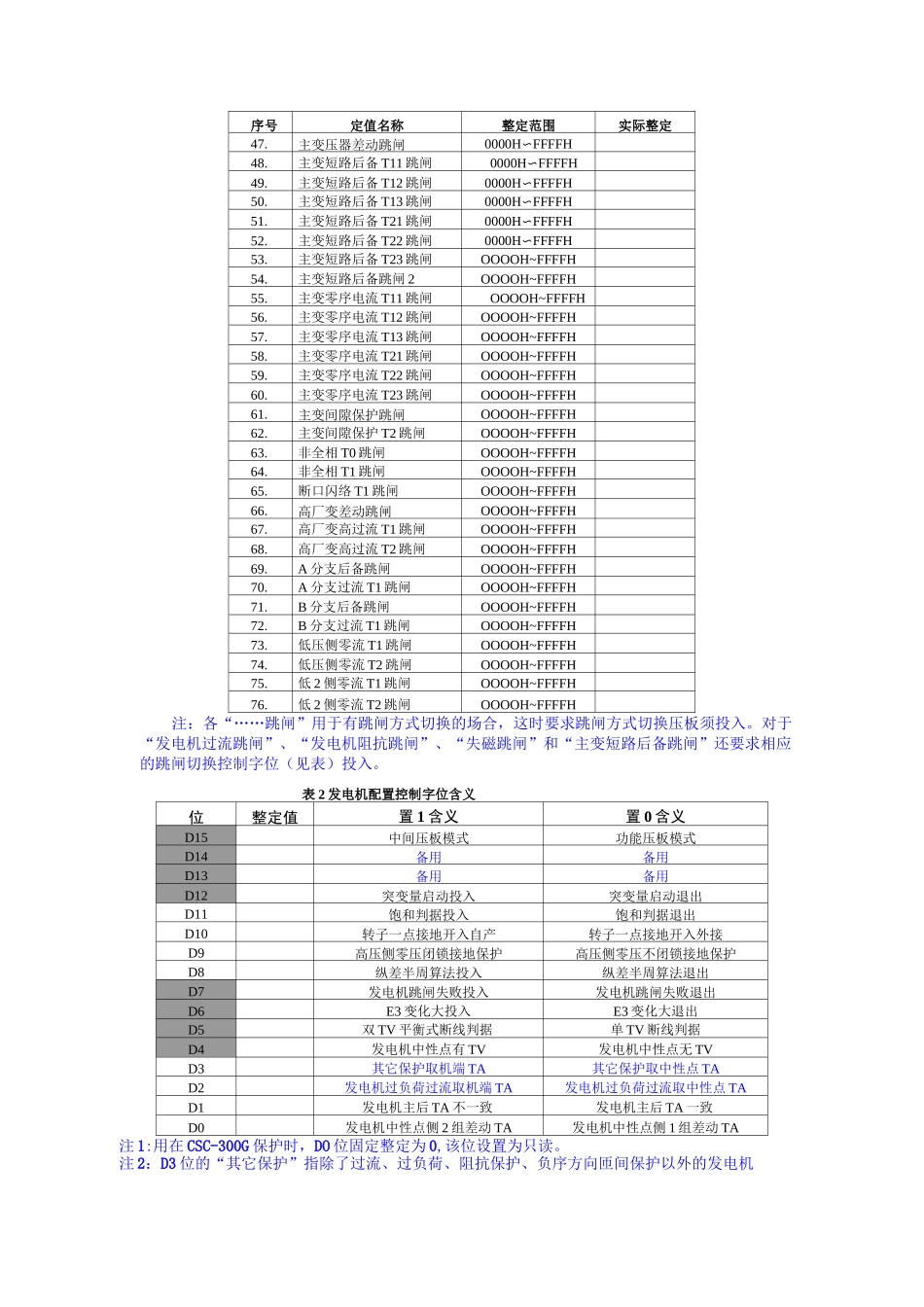

CSC-300G 数字式发变组保护装置定值清单一）装置参数部分表 1 装置参数定值单序号定值名称整定范围实际整定1.发电机配置控制字0000H〜FFFFH2.变压器配置控制字0000H〜FFFFH3.跳闸方式切换控制字0000H〜FFFFH4.发电机/励磁差动跳闸0000H〜FFFFH5.匝间跳闸0000H〜FFFFH6.发电机过流 T1 跳闸0000H〜FFFFH7.发电机过流 T2 跳闸0000H~FFFFH8.发电机过流跳闸 20000H~FFFFH9.发电机阻抗 T11 跳闸0000H~FFFFH10.发电机阻抗 T12 跳闸0000H~FFFFH11.发电机阻抗 T21 跳闸0000H~FFFFH12.发电机阻抗 T22 跳闸0000H~FFFFH13.发电机阻抗跳闸 20000H~FFFFH14.基波零压定子接地跳闸0000H~FFFFH15.三次谐波定子接地跳闸0000H~FFFFH16.转子一点接地跳闸0000H~FFFFH17.转子两点接地跳闸0000H~FFFFH18.失磁机端低压 T5 跳闸0000H~FFFFH19.失磁机端低压 T6 跳闸0000H~FFFFH20.失磁母线低压 T7 跳闸0000H~FFFFH21.失磁阻抗判据跳闸0000H~FFFFH22.失磁跳闸 20000H~FFFFH23.定子过负荷跳闸0000H~FFFFH24.定子过负荷跳闸 20000H~FFFFH25.负序过负荷跳闸0000H~FFFFH26.负序过负荷跳闸 20000H~FFFFH27.转子过负荷跳闸0000H~FFFFH28.转子过负荷跳闸 20000H~FFFFH29.过电压跳闸0000H~FFFFH30.过电压跳闸 20000H~FFFFH31.过激磁跳闸0000H~FFFFH32.过激磁跳闸 20000H~FFFFH33.逆功率跳闸0000H~FFFFH34.程跳逆功率跳闸0000H~FFFFH35.程跳逆功率跳闸 20000H~FFFFH36.失步跳闸0000H~FFFFH37.失步跳闸 20000H~FFFFH38.起停机跳闸0000H~FFFFH39.误上电跳闸0000H~FFFFH40.励磁速断过流跳闸0000H~FFFFH41.励磁过流跳闸0000H~FFFFH42.频率异常跳闸0000H~FFFFH43.开关量 1 跳闸0000H~FFFFH44.开关量 2 跳闸0000H~FFFFH45.开关量 3 跳闸0000H~FFFFH46.开关量 4 跳闸0000H~FFFFH序号定值名称整定范围实际整定47.主变压器差动跳闸0000H〜FFFFH48.主变短路后备 T11 跳闸0000H〜FFFFH49.主变短路后备 T12 跳闸0000H〜FFFFH50.主变短路后备 T13 跳闸0000H〜FFFFH51.主变短路后备 T21 跳闸0000H〜FFFFH52.主变短路后备 T22 跳闸0000H〜FFFFH53.主变短路后备 T23 跳闸OOOOH~FFFFH54.主变短路后备跳闸 2OOOOH~FFFFH55.主变零序电流 T11 跳闸OOOOH~FFFFH56.主变零序电流 T12 跳闸OOOOH~FFFFH57.主变零序电流 T13 跳闸OOOOH~FFFFH58.主变零序电流 T21 跳闸OOOOH~FFFFH59.主变零序电流 T22 跳闸OOOOH~FFFFH60.主变零序电流 T23 跳闸OOOO...
