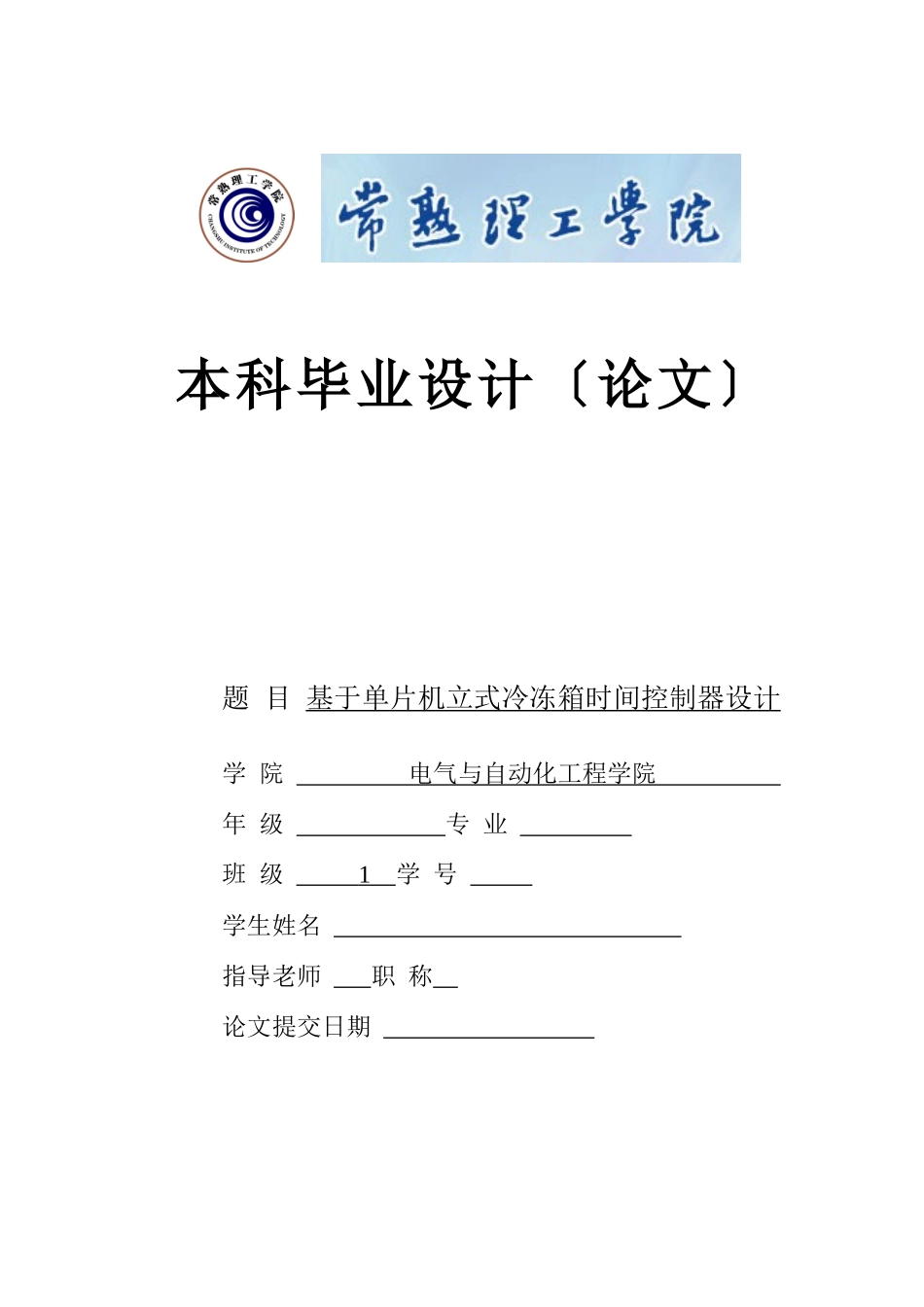

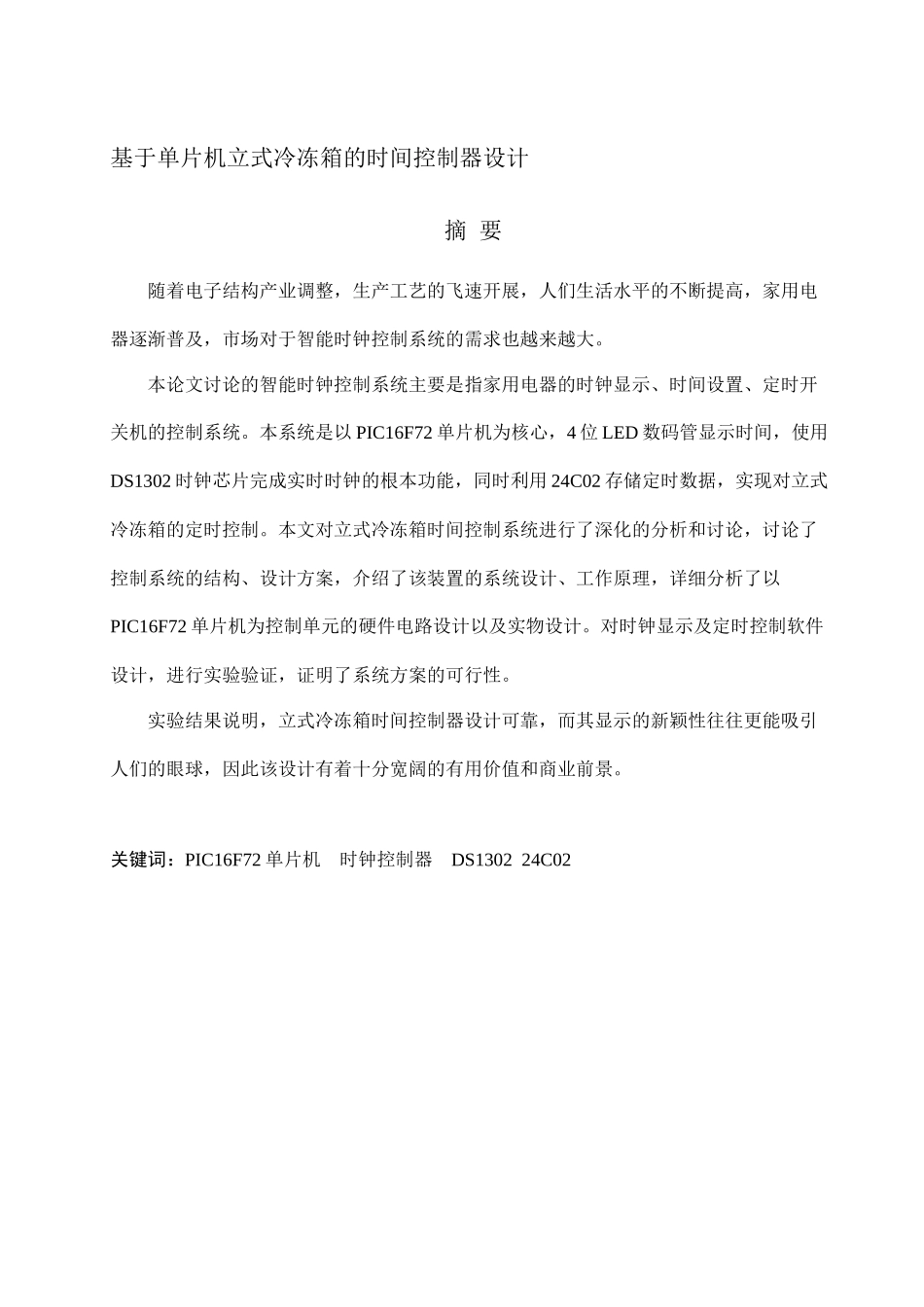

本科毕业设计〔论文〕题 目 基于单片机立式冷冻箱时间控制器设计学 院 电气与自动化工程学院 年 级 专 业 班 级 1 学 号 学生姓名 指导老师 职 称 论文提交日期 基于单片机立式冷冻箱的时间控制器设计摘 要随着电子结构产业调整,生产工艺的飞速开展,人们生活水平的不断提高,家用电器逐渐普及,市场对于智能时钟控制系统的需求也越来越大。本论文讨论的智能时钟控制系统主要是指家用电器的时钟显示、时间设置、定时开关机的控制系统。本系统是以 PIC16F72 单片机为核心,4 位 LED 数码管显示时间,使用DS1302 时钟芯片完成实时时钟的根本功能,同时利用 24C02 存储定时数据,实现对立式冷冻箱的定时控制。本文对立式冷冻箱时间控制系统进行了深化的分析和讨论,讨论了控制系统的结构、设计方案,介绍了该装置的系统设计、工作原理,详细分析了以PIC16F72 单片机为控制单元的硬件电路设计以及实物设计。对时钟显示及定时控制软件设计,进行实验验证,证明了系统方案的可行性。实验结果说明,立式冷冻箱时间控制器设计可靠,而其显示的新颖性往往更能吸引人们的眼球,因此该设计有着十分宽阔的有用价值和商业前景。关键词:PIC16F72 单片机 时钟控制器 DS1302 24C02 Design of Time Control for Vertical Freezers Based on PIC MCUAbstractWith the electronic structure of industrial restructuring, the rapid development of the production process, the continuous improvement of people's living standard and the household appliances gradually popular, market is also growing demand for intelligent clock control system. The intelligent clock control system of this thesis mainly refers to the household appliances of the clock display, timing setting and timer switch. This system is based on PIC16F72 microcontroller core, 4 LED digital display time, and used the DS1302 clock chip to complete the basic functions of the real-time clock. Also used the 24C02 to store timing data,to achieve the timing control of vertical freezers. This paper does in-depth analysis and research on time control for vertical freezers, ...
