车流量检测系统设计

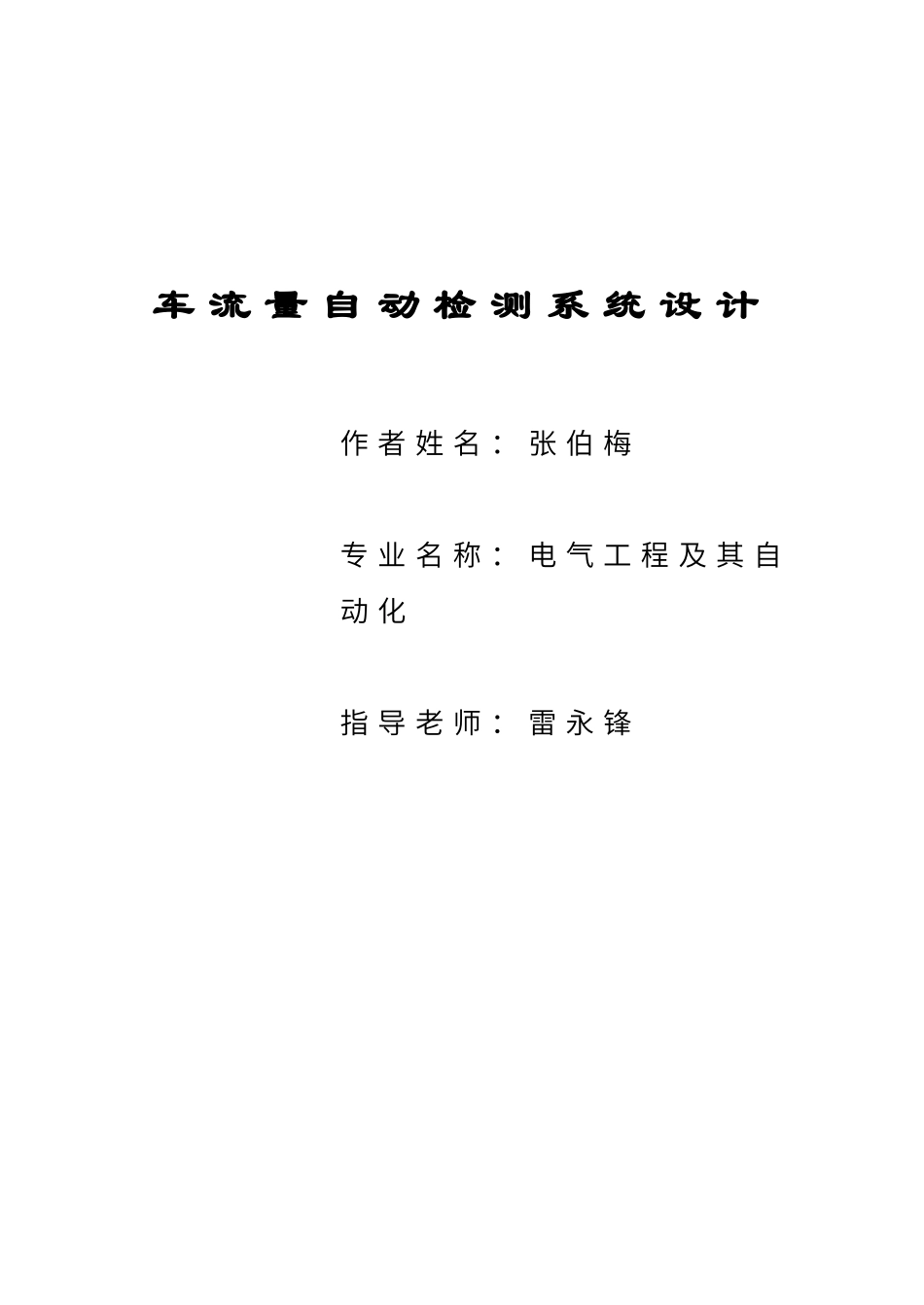

车流量检测系统设计_第1页
1/36

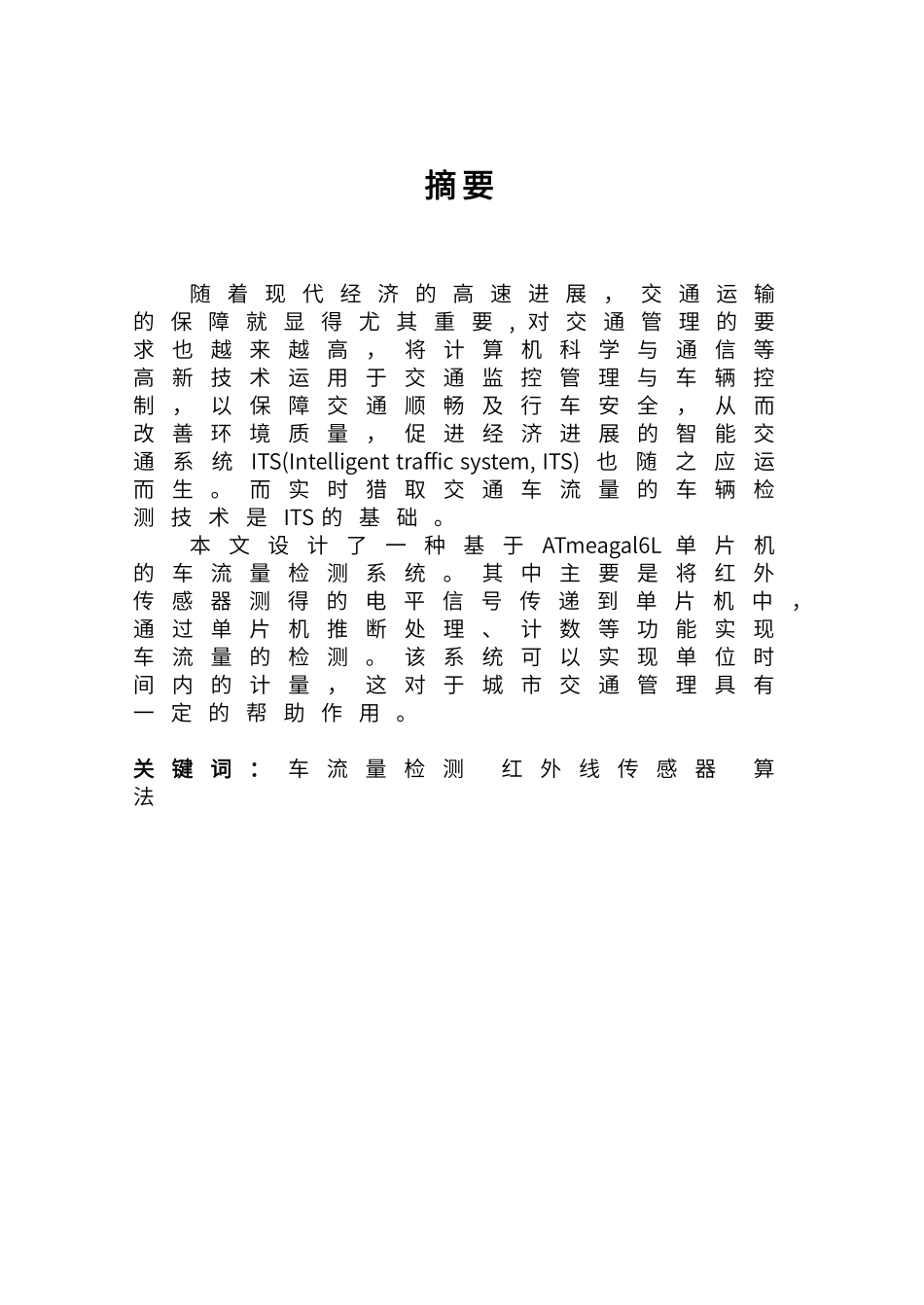

车流量检测系统设计_第2页
2/36

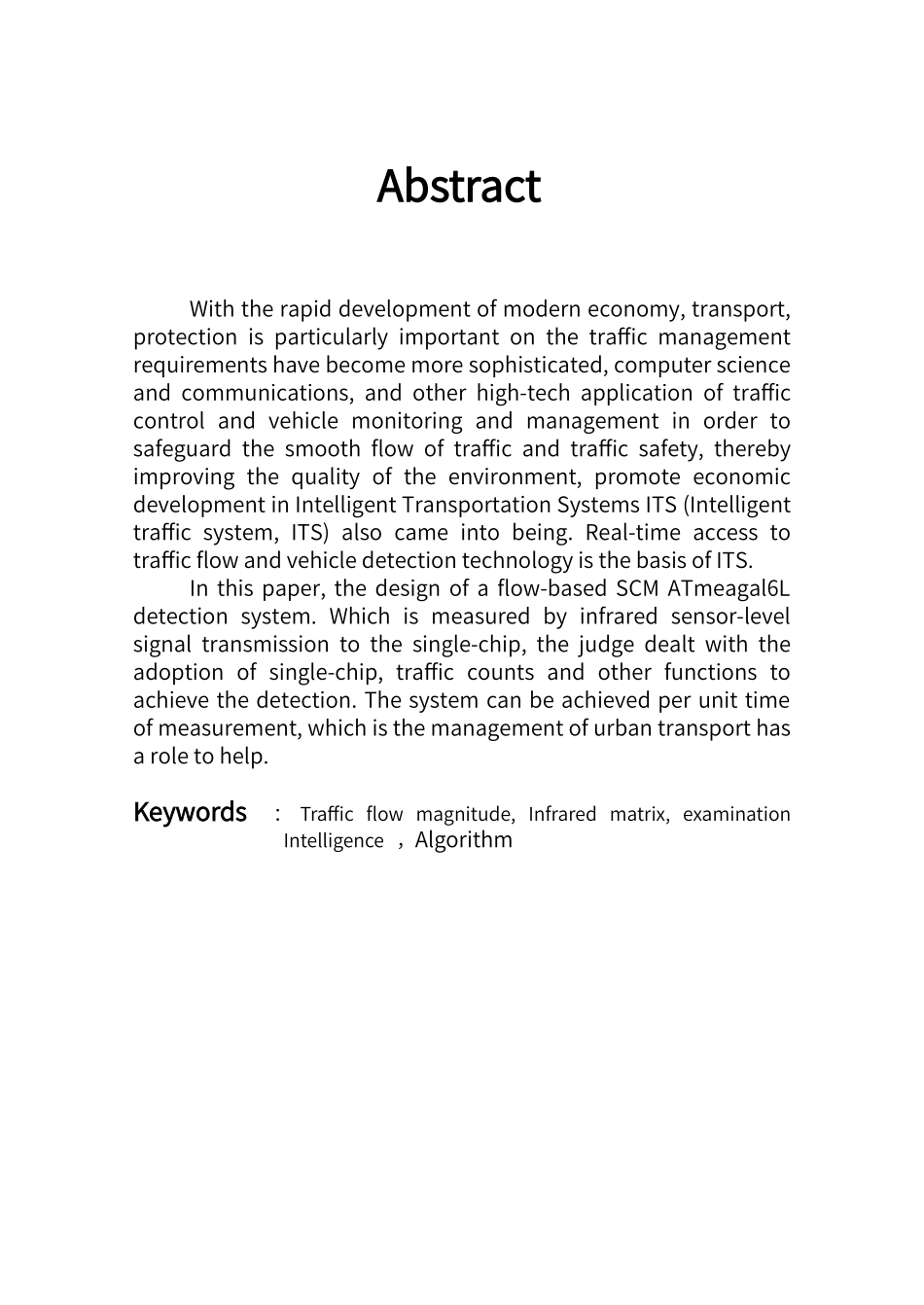

车流量检测系统设计_第3页
3/36
车 流 量 自 动 检 测 系 统 设 计作 者 姓 名 : 张 伯 梅专 业 名 称 : 电 气 工 程 及 其 自动 化指 导 老 师 : 雷 永 锋 摘 要随 着 现 代 经 济 的 高 速 进 展 , 交 通 运 输的 保 障 就 显 得 尤 其 重 要 , 对 交 通 管 理 的 要求也越来越高,将计算机科学与通信等高新技术运用于交通监控管理与车辆控制,以保障交通顺畅及行车安全,从而改善环境质量,促进经济进展的智能交通系统ITS(Intelligent traffic system, ITS) 也随之应运而生。而实时猎取交通车流量的车辆检测 技 术 是 ITS 的 基 础 。本文设计了一种基于ATmeagal6L 单片机的车流量检测系统。其中主要是将红外传 感 器 测 得 的 电 平 信 号 传 递 到 单 片 机 中,通过单片机推断处理、计数等功能实现车流量的检测。该系统可以实现单位时间内的计量,这对于城市交通管理具有一 定 的 帮 助 作 用 。关 键 词 :车 流 量 检 测 红 外 线 传 感 器 算法AbstractWith the rapid development of modern economy, transport, protection is particularly important on the traffic management requirements have become more sophisticated, computer science and communications, and other high-tech application of traffic control and vehicle monitoring and management in order to safeguard the smooth flow of traffic and traffic safety, thereby improving the quality of the environment, promote economic development in Intelligent Transportation Systems ITS (Intelligent traffic system, ITS) also came into being. Real-time access to traffic flow and vehicle detection technology is the basis of ITS.In this paper, the design of a flow-based SCM ATmeagal6L detection system. Which is measured by infrared sensor-level signal transmission to the single-chip, the judge dealt with the adoption of single-chip, traffic counts and other functions to achieve the detection. The system can be achieved per unit time of measurement, which is the ma...
