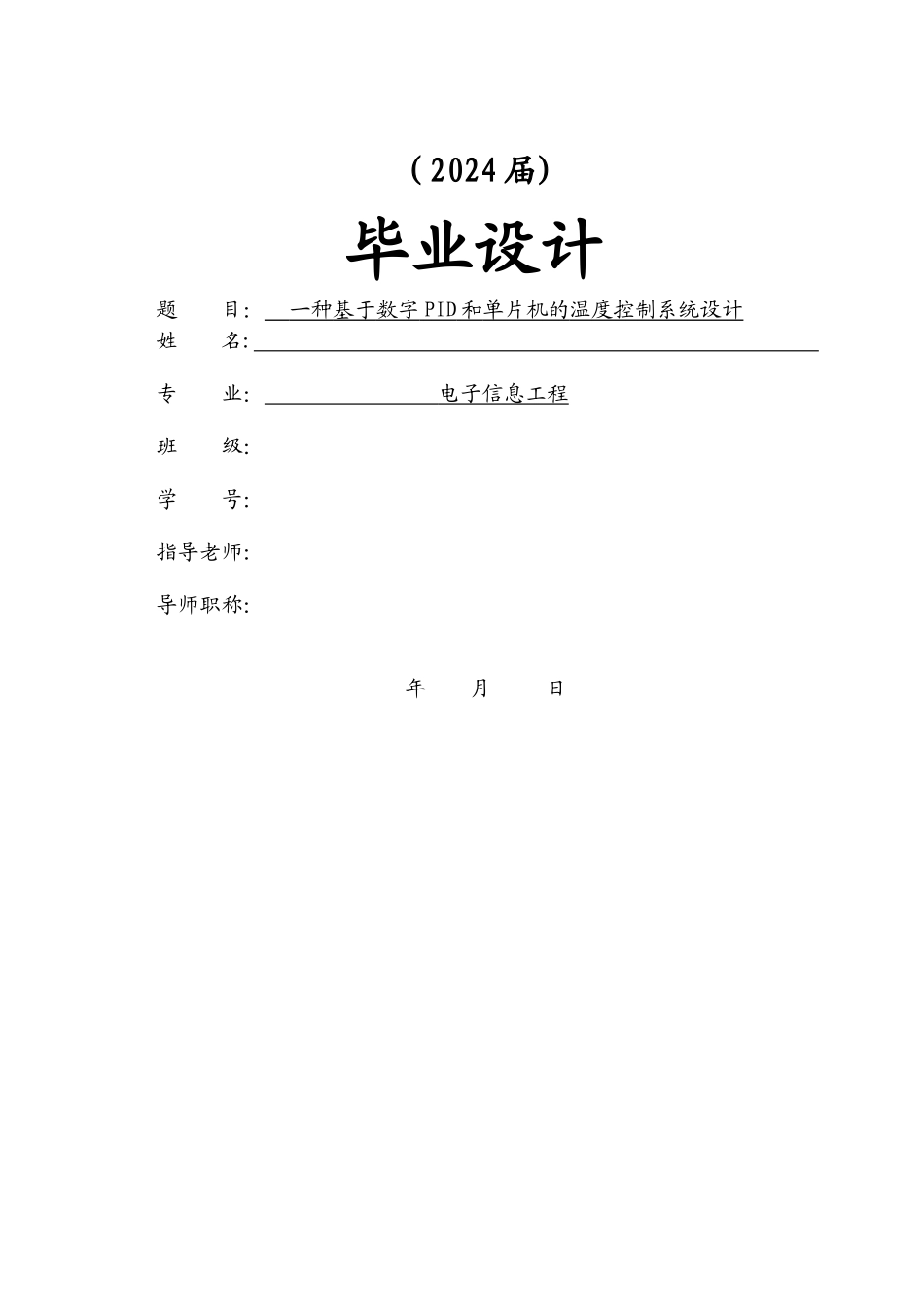

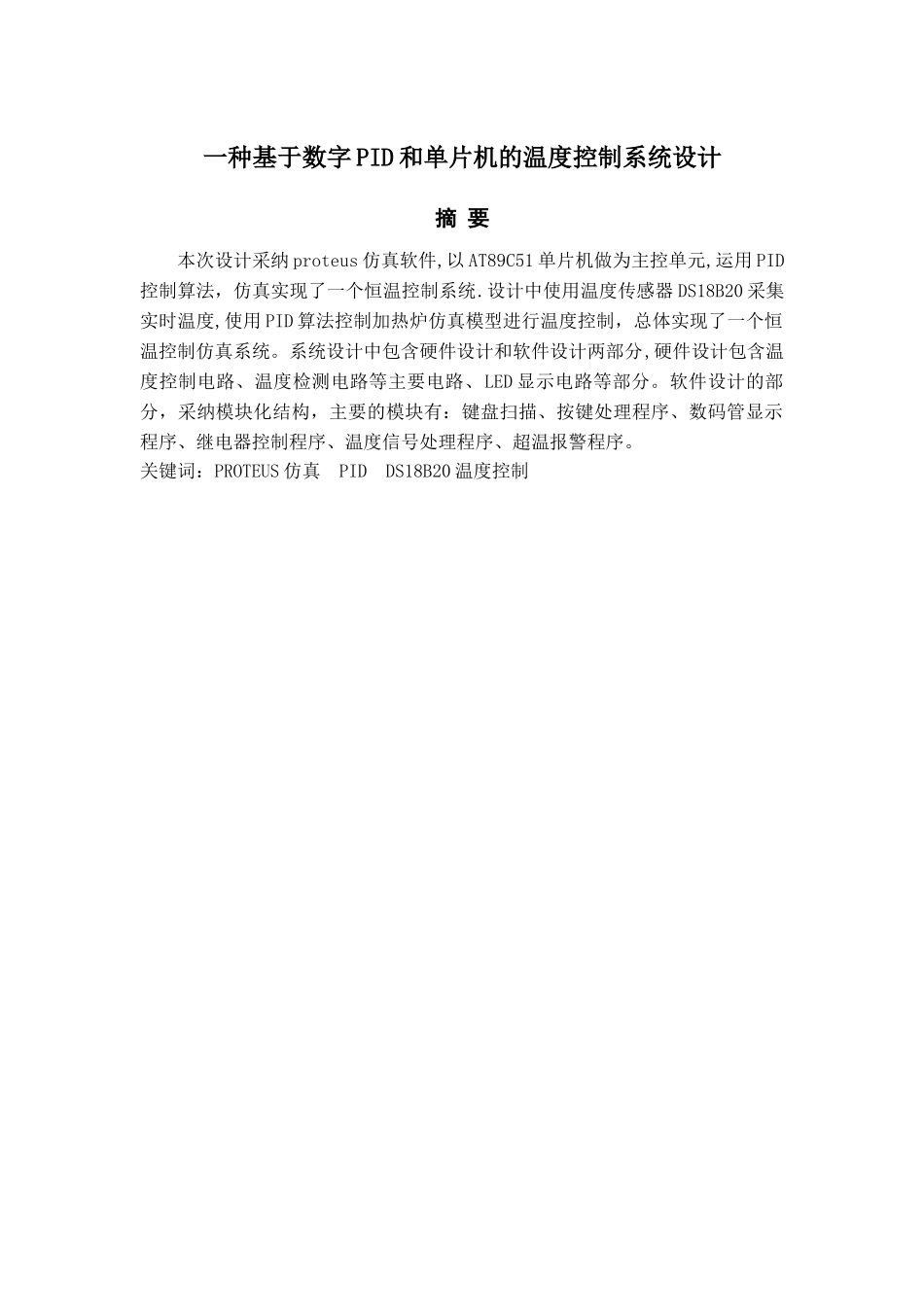

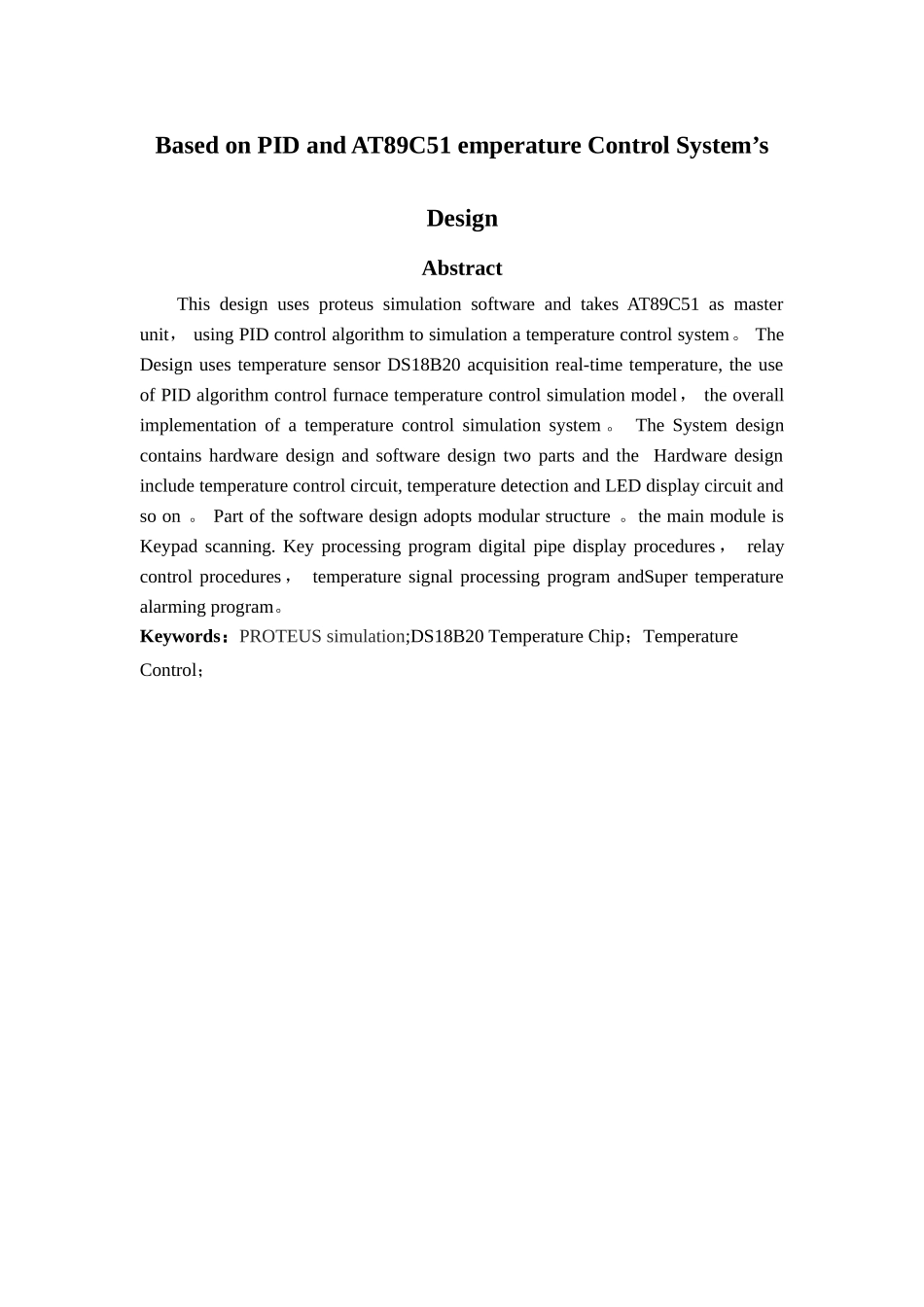

(2024 届)毕业设计题 目: 一种 基于 数字 PID 和 单片机的 温度控制系统设计 姓 名: 专 业: 电子信息工程 班 级: 学 号: 指导老师: 导师职称: 年 月 日一种基于数字 PID 和单片机的温度控制系统设计摘 要本次设计采纳 proteus 仿真软件,以 AT89C51 单片机做为主控单元,运用 PID控制算法,仿真实现了一个恒温控制系统.设计中使用温度传感器 DS18B20 采集实时温度,使用 PID 算法控制加热炉仿真模型进行温度控制,总体实现了一个恒温控制仿真系统。系统设计中包含硬件设计和软件设计两部分,硬件设计包含温度控制电路、温度检测电路等主要电路、LED 显示电路等部分。软件设计的部分,采纳模块化结构,主要的模块有:键盘扫描、按键处理程序、数码管显示程序、继电器控制程序、温度信号处理程序、超温报警程序。关键词:PROTEUS 仿真 PID DS18B20 温度控制Based on PID and AT89C51 emperature Control System’s DesignAbstractThis design uses proteus simulation software and takes AT89C51 as master unit, using PID control algorithm to simulation a temperature control system。 The Design uses temperature sensor DS18B20 acquisition real-time temperature, the use of PID algorithm control furnace temperature control simulation model, the overall implementation of a temperature control simulation system 。 The System design contains hardware design and software design two parts and the Hardware design include temperature control circuit, temperature detection and LED display circuit and so on 。 Part of the software design adopts modular structure 。the main module is Keypad scanning. Key processing program digital pipe display procedures , relay control procedures, temperature signal processing program andSuper temperature alarming program。Keywords:PROTEUS simulation;DS18B20 Temperature Chip;Temperature Control;目录摘 要..............................................................................................................................1Abstract............
