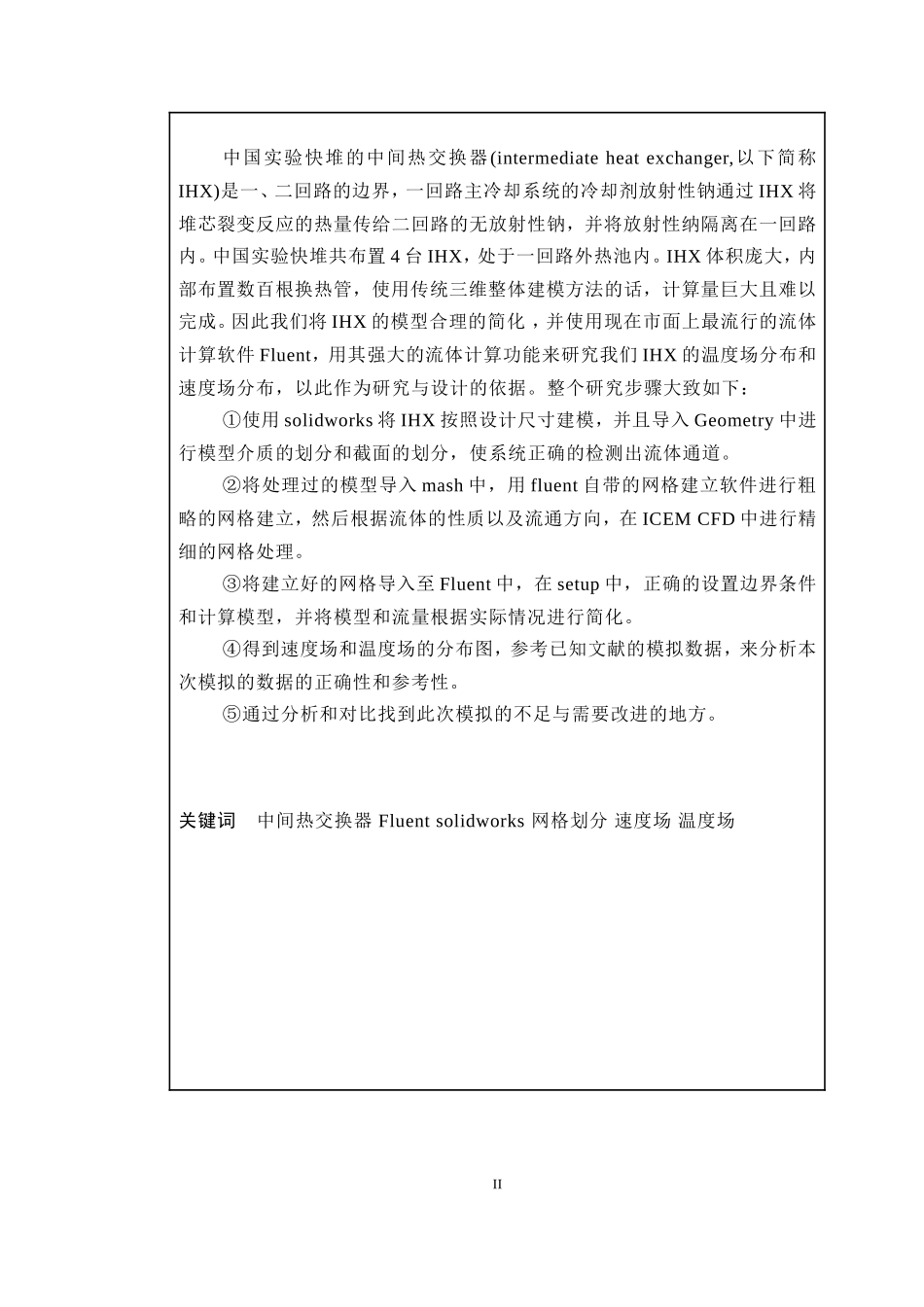

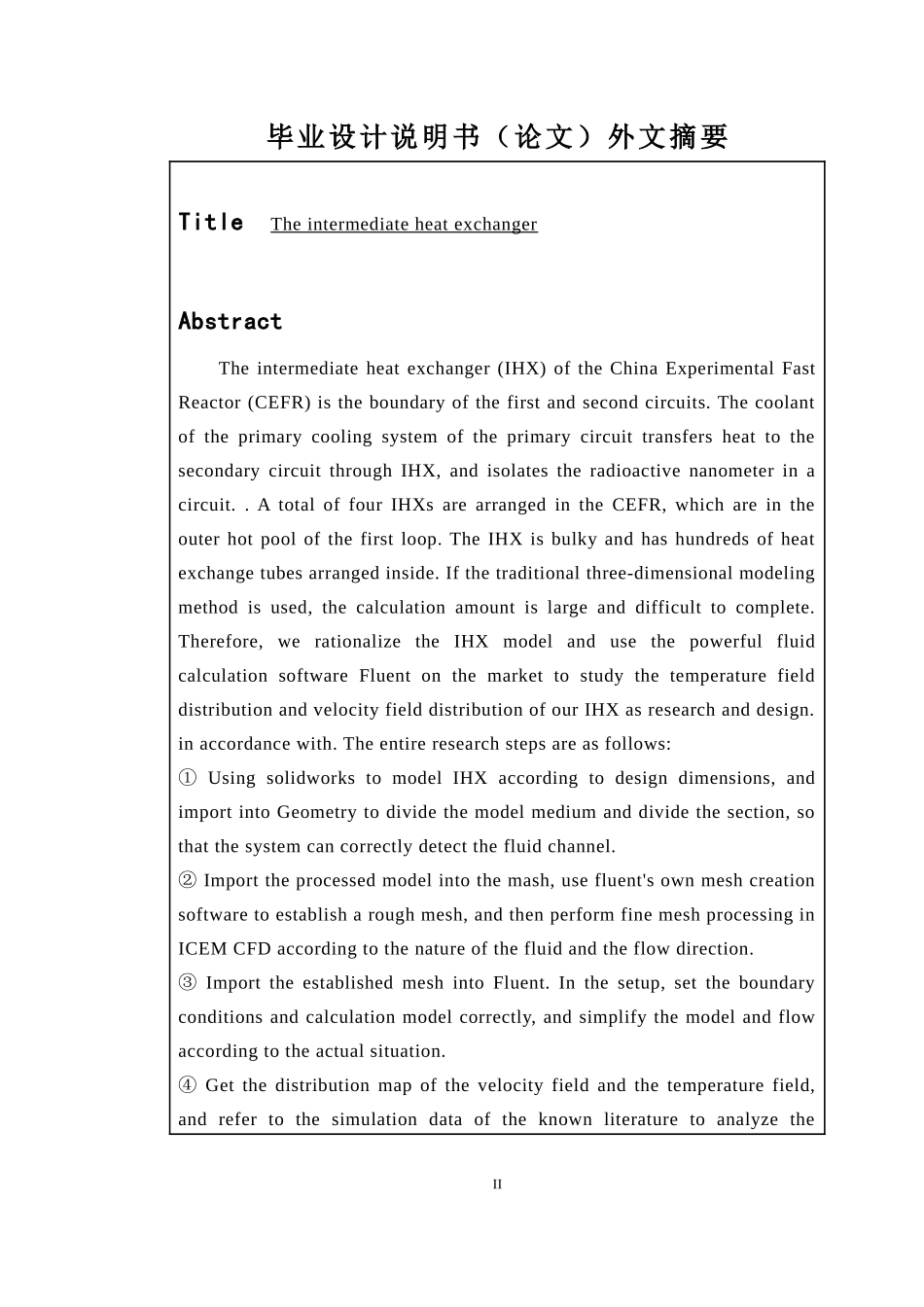

某钠冷快堆中间热交换 器 热工水力初步研究 中文摘要I中国实验快堆的中间热交换器(intermediate heat exchanger,以下简称IHX)是一、二回路的边界,一回路主冷却系统的冷却剂放射性钠通过 IHX 将堆芯裂变反应的热量传给二回路的无放射性钠,并将放射性纳隔离在一回路内。中国实验快堆共布置 4 台 IHX,处于一回路外热池内。IHX 体积庞大,内部布置数百根换热管,使用传统三维整体建模方法的话,计算量巨大且难以完成。因此我们将 IHX 的模型合理的简化 ,并使用现在市面上最流行的流体计算软件 Fluent,用其强大的流体计算功能来研究我们 IHX 的温度场分布和速度场分布,以此作为研究与设计的依据。整个研究步骤大致如下:①使用 solidworks 将 IHX 按照设计尺寸建模,并且导入 Geometry 中进行模型介质的划分和截面的划分,使系统正确的检测出流体通道。②将处理过的模型导入 mash 中,用 fluent 自带的网格建立软件进行粗略的网格建立,然后根据流体的性质以及流通方向,在 ICEM CFD 中进行精细的网格处理。③将建立好的网格导入至 Fluent 中,在 setup 中,正确的设置边界条件和计算模型,并将模型和流量根据实际情况进行简化。④得到速度场和温度场的分布图,参考已知文献的模拟数据,来分析本次模拟的数据的正确性和参考性。⑤通过分析和对比找到此次模拟的不足与需要改进的地方。关键词 中间热交换器 Fluent solidworks 网格划分 速度场 温度场II毕业设计说明书(论文)外文摘要Title The intermediate heat exchanger AbstractThe intermediate heat exchanger (IHX) of the China Experimental Fast Reactor (CEFR) is the boundary of the first and second circuits. The coolant of the primary cooling system of the primary circuit transfers heat to the secondary circuit through IHX, and isolates the radioactive nanometer in a circuit. . A total of four IHXs are arranged in the CEFR, which are in the outer hot pool of the first loop. The IHX is bulky and has hundreds of heat exchange tubes arranged inside. If the traditional three-dimensional modeling method is used, the calculation amount is large and difficult to complete. Therefore, w...
