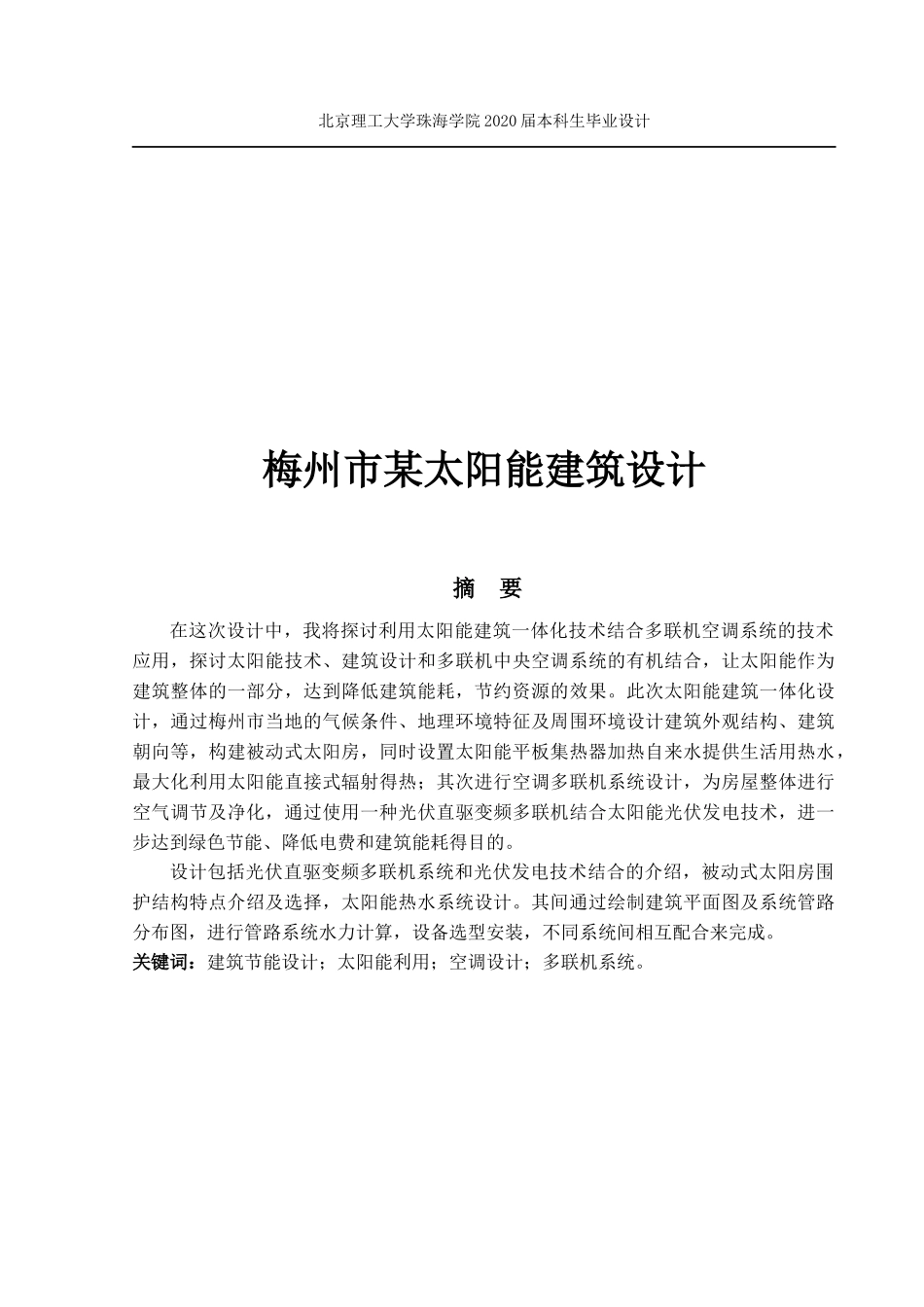

北京理工大学珠海学院 2020 届本科生毕业设计梅州市某太阳能建筑设计摘 要在这次设计中，我将探讨利用太阳能建筑一体化技术结合多联机空调系统的技术应用，探讨太阳能技术、建筑设计和多联机中央空调系统的有机结合，让太阳能作为建筑整体的一部分，达到降低建筑能耗，节约资源的效果。此次太阳能建筑一体化设计，通过梅州市当地的气候条件、地理环境特征及周围环境设计建筑外观结构、建筑朝向等，构建被动式太阳房，同时设置太阳能平板集热器加热自来水提供生活用热水，最大化利用太阳能直接式辐射得热；其次进行空调多联机系统设计，为房屋整体进行空气调节及净化，通过使用一种光伏直驱变频多联机结合太阳能光伏发电技术，进一步达到绿色节能、降低电费和建筑能耗得目的。设计包括光伏直驱变频多联机系统和光伏发电技术结合的介绍，被动式太阳房围护结构特点介绍及选择，太阳能热水系统设计。其间通过绘制建筑平面图及系统管路分布图，进行管路系统水力计算，设备选型安装，不同系统间相互配合来完成。关键词：建筑节能设计；太阳能利用；空调设计；多联机系统。北京理工大学珠海学院 2020 届本科生毕业设计AbstractIn this design, I will explore the application of solar energy building integration technology combined with multi split air conditioning system technology, and discuss the organic combination of solar energy technology, architectural design and multi split central air conditioning system, so that solar energy as a part of the building as a whole can reduce building energy consumption and save resources. In this integrated design of solar energy buildings, through the local climate conditions, geographical environment characteristics and the surrounding environment of Meizhou City, the building appearance structure and building orientation are designed to build a passive solar house, and at the same time, a solar panel collector is set to heat the tap water to provide domestic hot water, so as to maximize the use of solar energy direct radiation heat; secondly, the air conditioning multi online...
