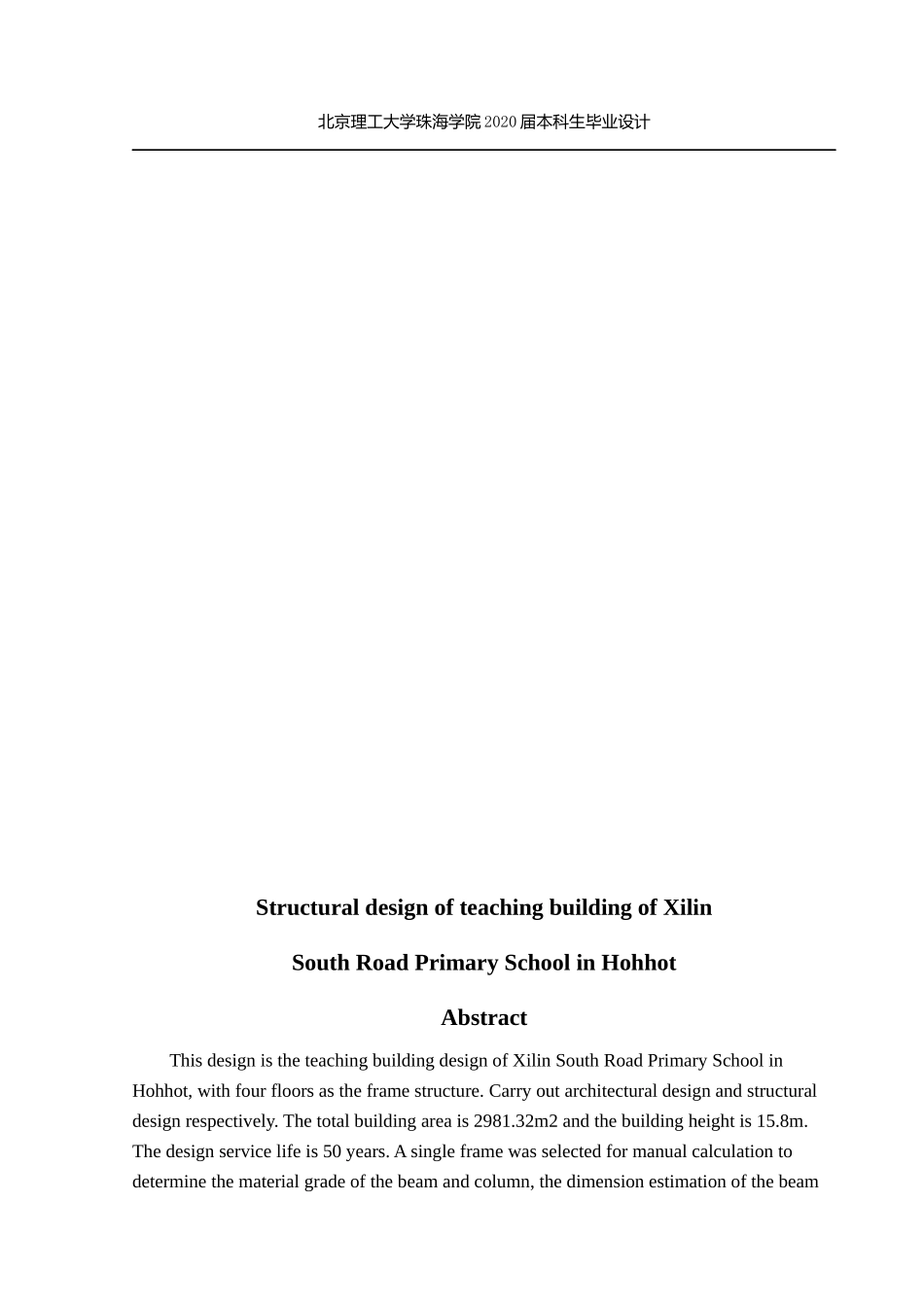

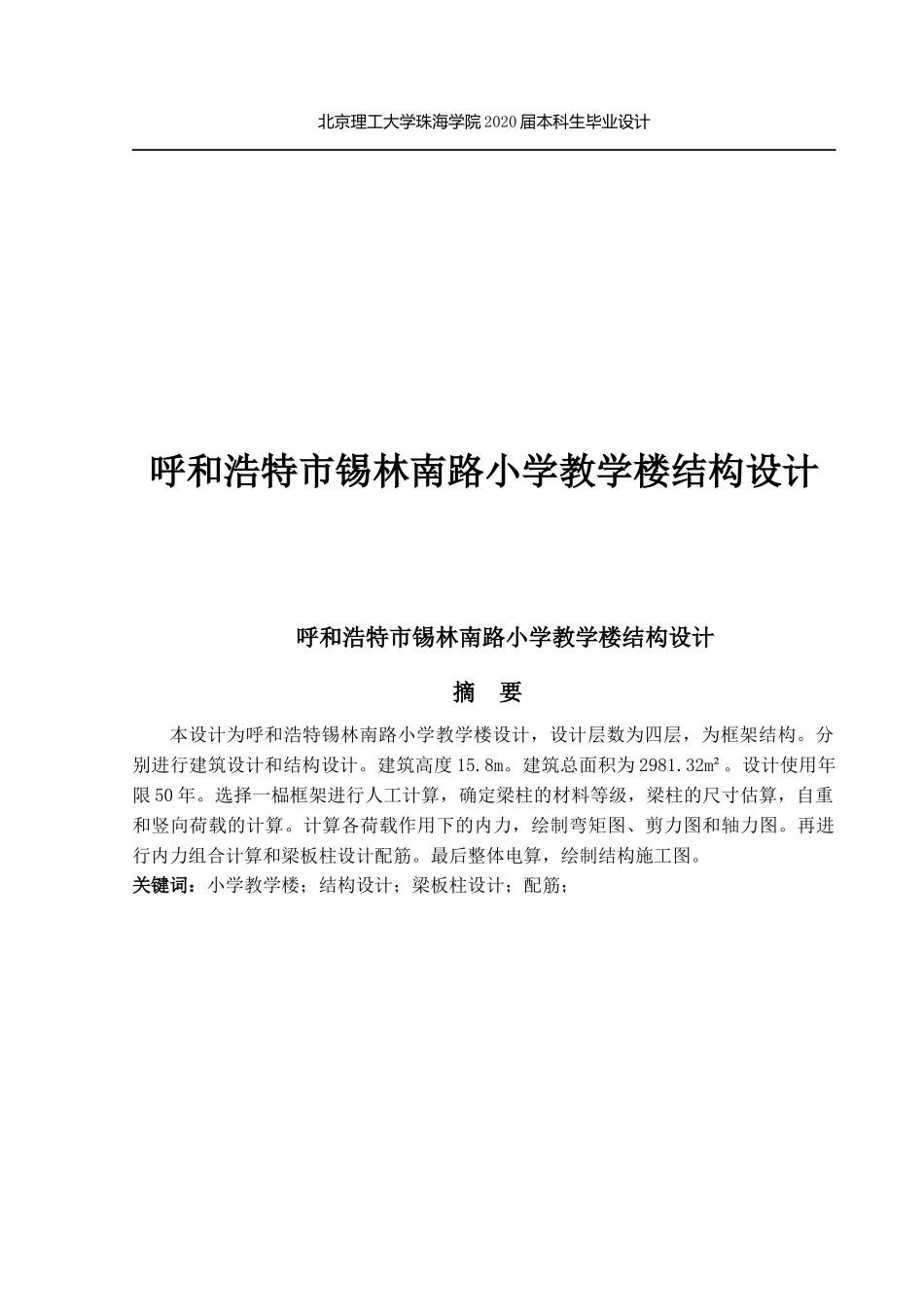

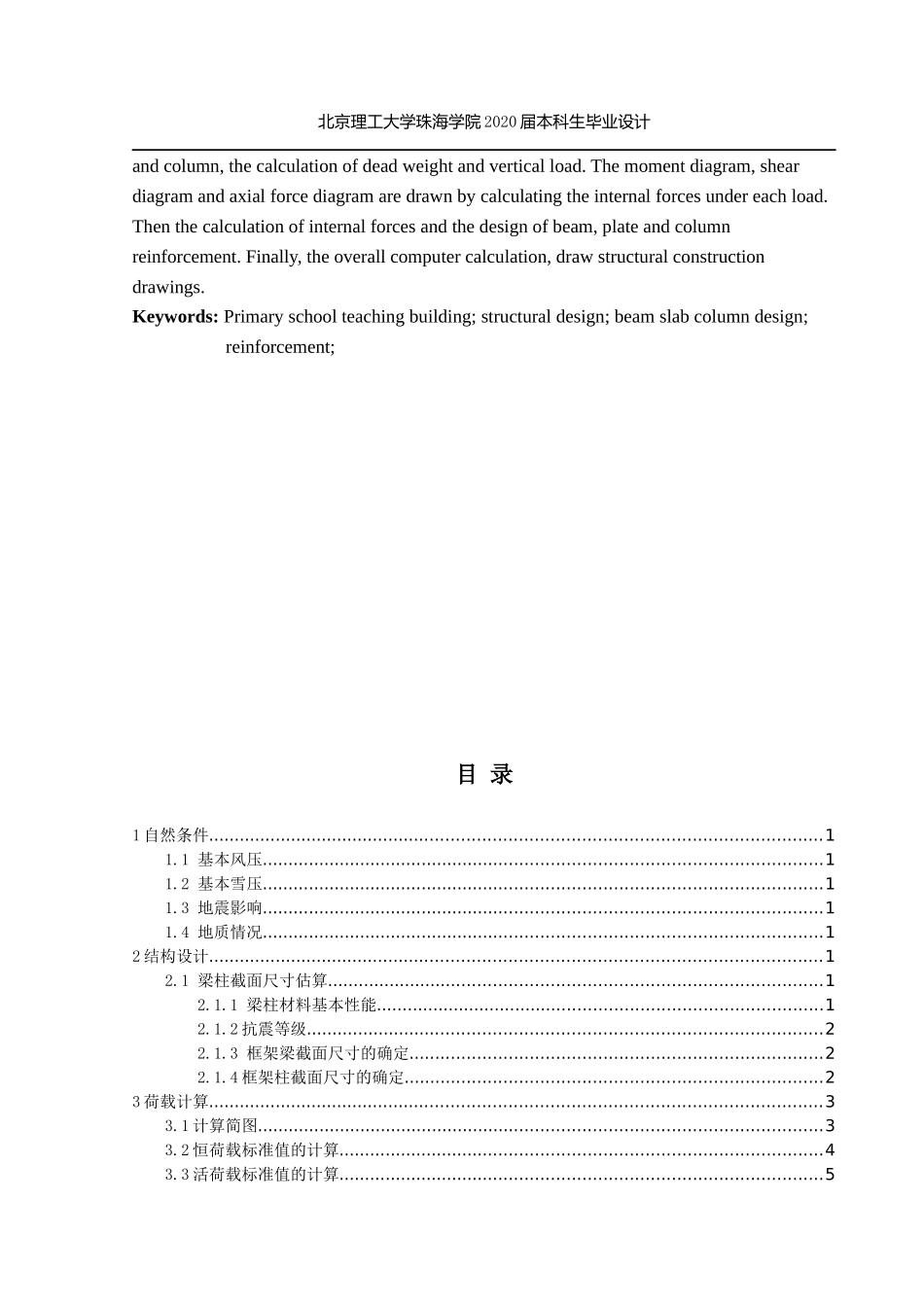

北京理工大学珠海学院 2020 届本科生毕业设计呼和浩特市锡林南路小学教学楼结构设计呼和浩特市锡林南路小学教学楼结构设计摘 要本设计为呼和浩特锡林南路小学教学楼设计,设计层数为四层,为框架结构。分别进行建筑设计和结构设计。建筑高度 15.8m。建筑总面积为 2981.32m²。设计使用年限 50 年。选择一榀框架进行人工计算,确定梁柱的材料等级,梁柱的尺寸估算,自重和竖向荷载的计算。计算各荷载作用下的内力,绘制弯矩图、剪力图和轴力图。再进行内力组合计算和梁板柱设计配筋。最后整体电算,绘制结构施工图。关键词:小学教学楼;结构设计;梁板柱设计;配筋; 北京理工大学珠海学院 2020 届本科生毕业设计Structural design of teaching building of XilinSouth Road Primary School in HohhotAbstractThis design is the teaching building design of Xilin South Road Primary School in Hohhot, with four floors as the frame structure. Carry out architectural design and structural design respectively. The total building area is 2981.32m2 and the building height is 15.8m. The design service life is 50 years. A single frame was selected for manual calculation to determine the material grade of the beam and column, the dimension estimation of the beam 北京理工大学珠海学院 2020 届本科生毕业设计and column, the calculation of dead weight and vertical load. The moment diagram, shear diagram and axial force diagram are drawn by calculating the internal forces under each load. Then the calculation of internal forces and the design of beam, plate and column reinforcement. Finally, the overall computer calculation, draw structural construction drawings.Keywords: Primary school teaching building; structural design; beam slab column design; reinforcement;目 录1 自然条件......................................................................................................................11.1 基本风压................................................................................
