太阳能智能控制仪充放电控制自动跟踪毕业论文

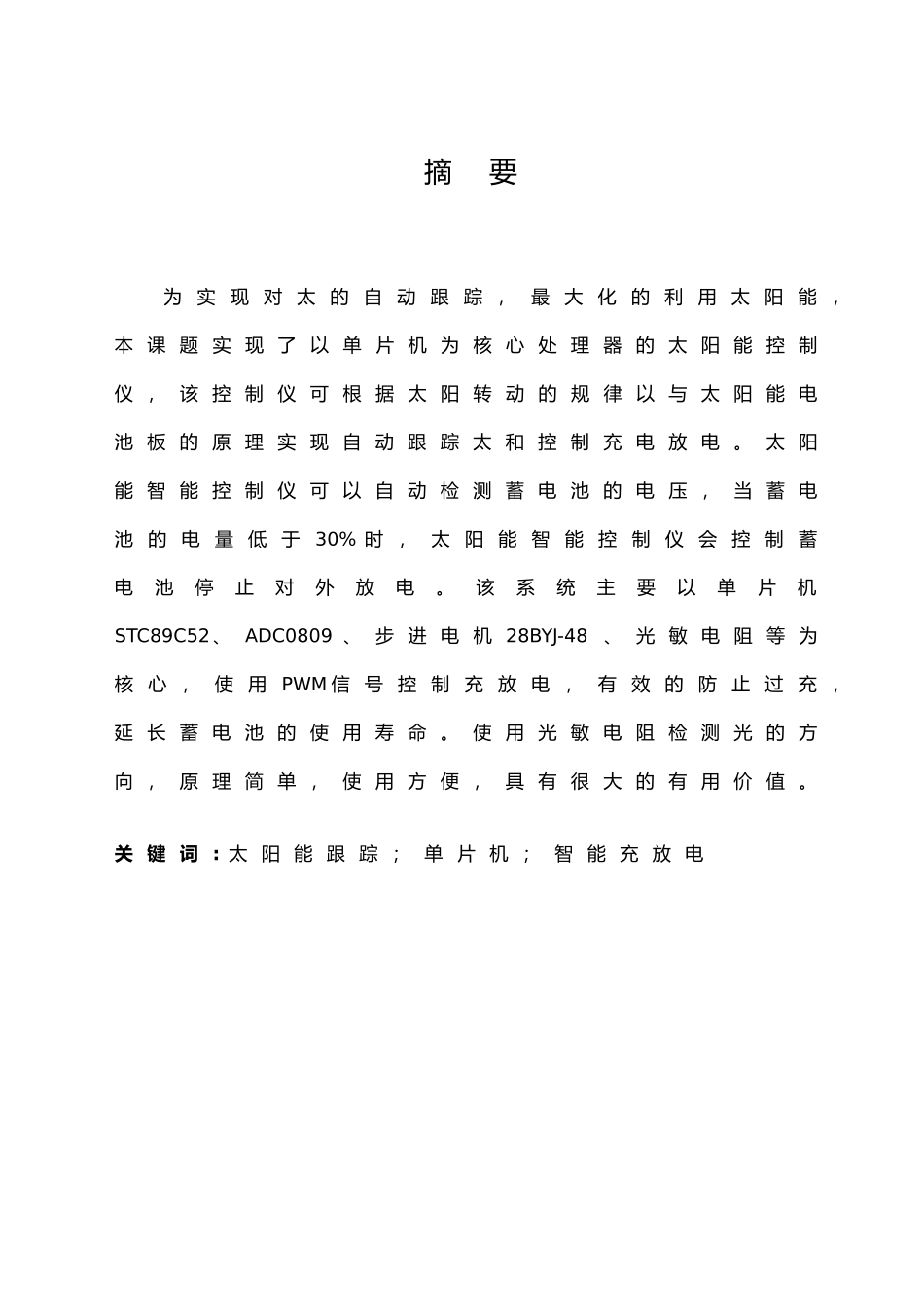

太阳能智能控制仪充放电控制自动跟踪毕业论文_第1页
1/59
太阳能智能控制仪充放电控制自动跟踪毕业论文_第2页
2/59
太阳能智能控制仪充放电控制自动跟踪毕业论文_第3页
3/59
摘 要为 实 现 对 太 的 自 动 跟 踪 ,最 大 化 的 利 用 太 阳 能,本 课 题 实 现 了 以 单 片 机 为 核 心 处 理 器 的 太 阳 能 控 制仪 , 该 控 制 仪 可 根 据 太 阳 转 动 的 规 律 以 与 太 阳 能 电池 板 的 原 理 实 现 自 动 跟 踪 太 和 控 制 充 电 放 电 。 太 阳能 智 能 控 制 仪 可 以 自 动 检 测 蓄 电 池 的 电 压 , 当 蓄 电池 的 电 量 低 于30% 时 , 太 阳 能 智 能 控 制 仪 会 控 制 蓄电池停止对外放电。该系统主要以单片机STC89C52、 ADC0809 、 步 进 电 机 28BYJ-48、 光 敏 电 阻 等 为核 心 , 使 用 PWM 信 号 控 制 充 放 电 , 有 效 的 防 止 过 充,延 长 蓄 电 池 的 使 用 寿 命 。 使 用 光 敏 电 阻 检 测 光 的 方向 , 原 理 简 单 , 使 用 方 便 , 具 有 很 大 的 有 用 价 值 。关 键 词 : 太 阳 能 跟 踪 ; 单 片 机 ; 智 能 充 放 电AbstractIn order to realize the automatic tracking of the sun light, solar maximum, the subject realizes the solar controller with single-chip microcomputer as the core processor, this controller according to the principle of the Sun rules as well as the solar panel to realize the automatic tracking solar light and control the charging and discharge. Solar intelligent control device can automatically detect the battery voltage, when the battery is less than 30%, solar intelligent control device can control the battery to stop foreign discharge. The system is mainly based on STC89C52, ADC0809, 28BYJ-48 stepper motor, photosensitive resistance as the core, the use of PWM signal to control the charging and discharging, effectively prevent overcharge, prolong the service life of the battery. The use of optical detection of photosensitive resistance direction, simple principle, easy to use, and has gre...
