数字温度计论文

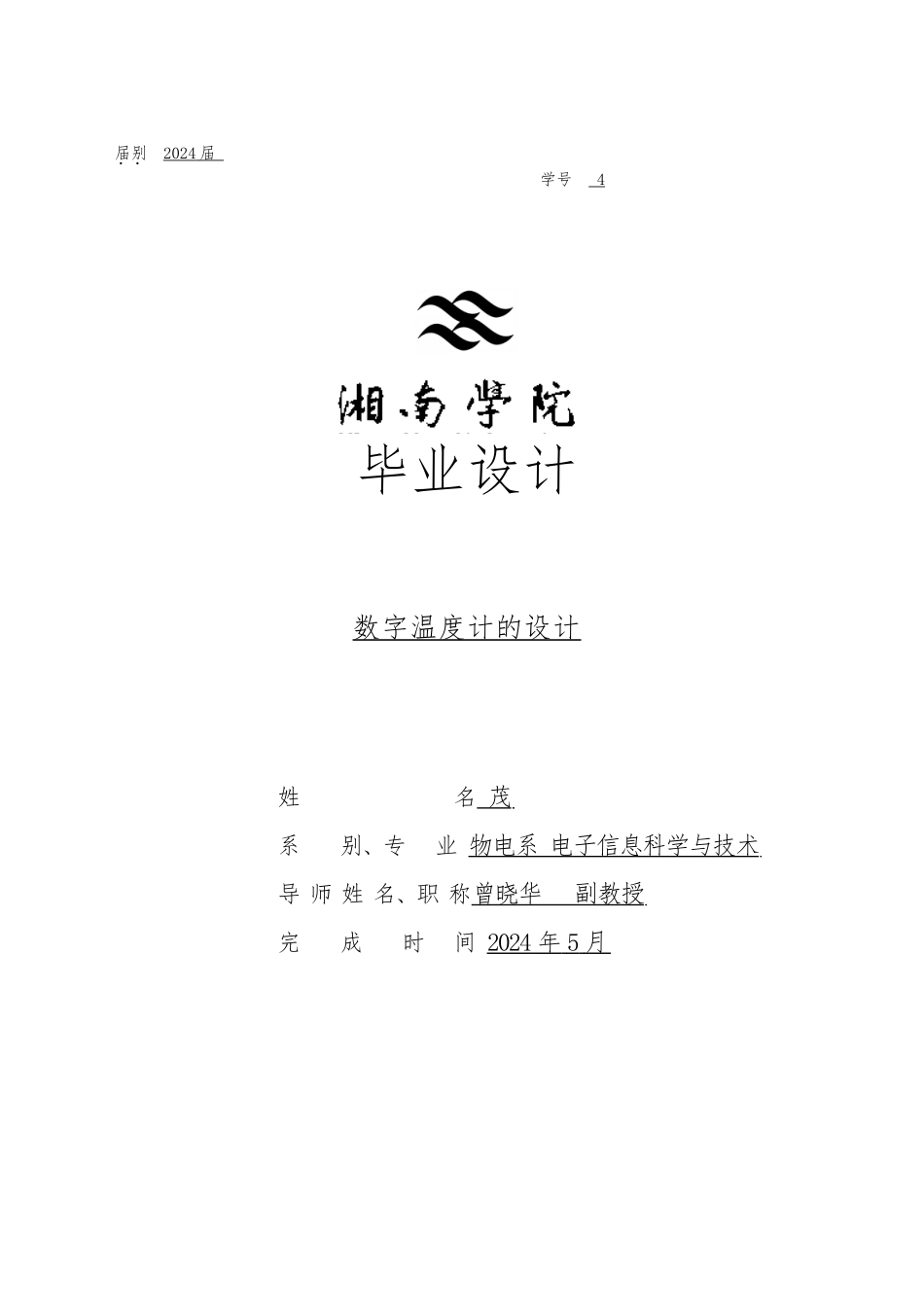

数字温度计论文_第1页
1/28

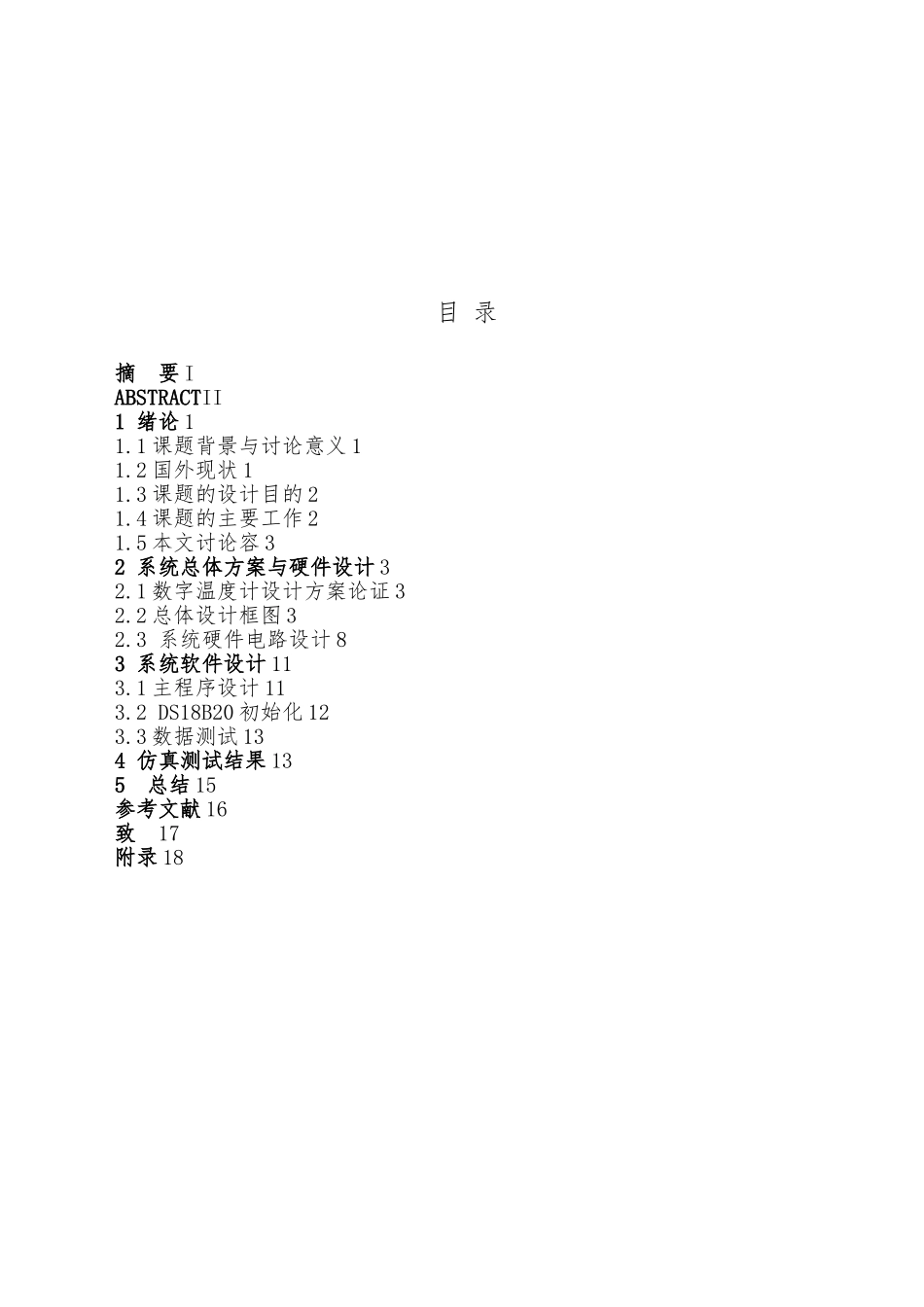

数字温度计论文_第2页
2/28
数字温度计论文_第3页
3/28
届别 2024 届 学号 4 毕业设计数字温度计的设计姓 名 茂 系 别、专 业 物电系 电子信息科学与技术 导 师 姓 名、职 称曾晓华 副教授 完 成 时 间 2024 年 5 月 目 录摘 要 IABSTRACTII1 绪论 11.1 课题背景与讨论意义 11.2 国外现状 11.3 课题的设计目的 21.4 课题的主要工作 21.5 本文讨论容 32 系统总体方案与硬件设计 32.1 数字温度计设计方案论证 32.2 总体设计框图 32.3 系统硬件电路设计 83 系统软件设计 113.1 主程序设计 113.2 DS18B20 初始化 123.3 数据测试 134 仿真测试结果 135 总结 15参考文献 16致 17附录 18摘 要随着科技的不断进步,在工业生产中温度是常用的被控参数,而采纳单片机来对这些被控参数进行控制已成为当今的主流。本文分析了数字温度测量与自动控制系统的设计。本文采纳单片机来实现对温度的控制。它的主要组成部分有:AT89C52单片机、温度传感器、键盘与显示电路、温度控制电路。它可以实时的显示和设定温度,实现对温度的自动控制。通过测试表明,本设计对温度的控制有方便、简单的特点,从而大幅提高了被控温度的技术指标。关键词: 单片机;温度传感器;键盘和显示ABSTRACTWith the development of science and technology, the temperature is the common controlled parameters during the process of industrial production; and the use of Single Chip Micyoco (SCM) to control these parameters has become the main trend. This thesis will introduce the design of a digital temperature measurement and an automatic controlling system. In this thesis, it achieves the control of the temperature by employing the SCM. The main components are as follows: AT89C52 SCM, Temperature Sensor, Keyboard and Display Circuit, Temperature Controlling Circuit. It can display and set the temperature at any time to realize the control of the temperature. The test results show that this design for controlling the temperature is convenient and simple, so it improves the technical indicators greatly of the controlled temperature.Key words: Single Chip Micro...
