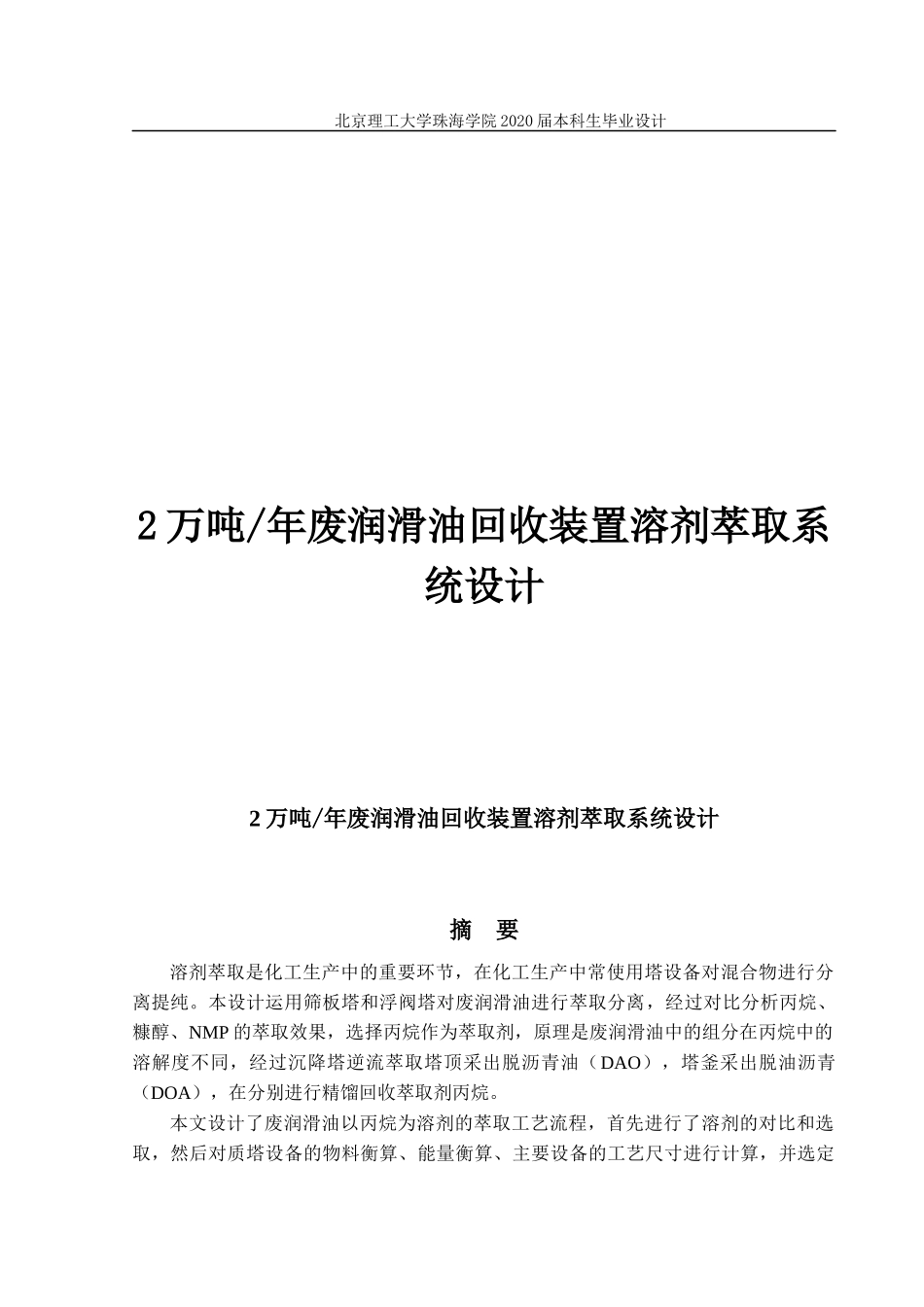

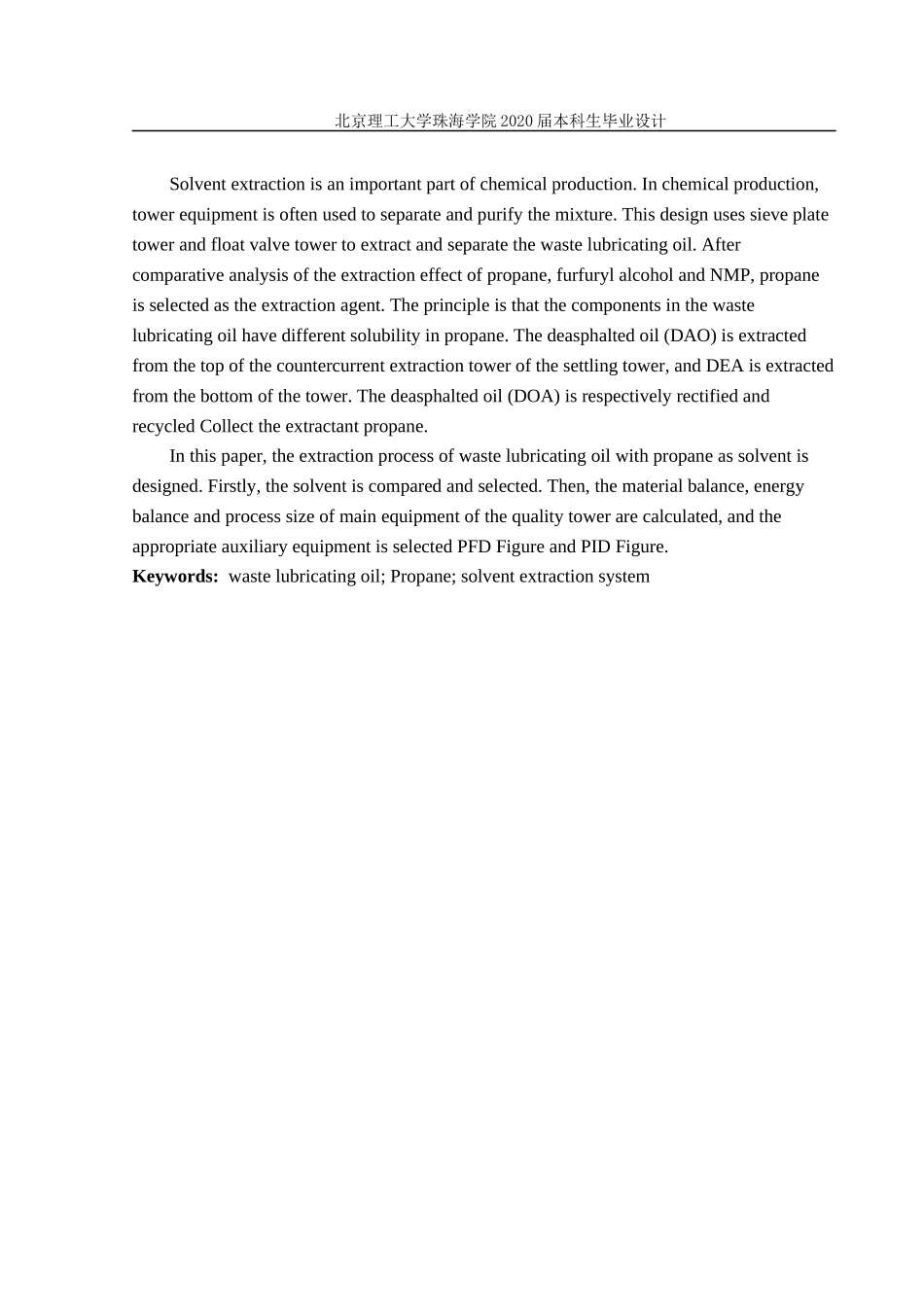

北京理工大学珠海学院 2020 届本科生毕业设计2 万吨/年废润滑油回收装置溶剂萃取系统设计2 万吨/年废润滑油回收装置溶剂萃取系统设计摘 要溶剂萃取是化工生产中的重要环节，在化工生产中常使用塔设备对混合物进行分离提纯。本设计运用筛板塔和浮阀塔对废润滑油进行萃取分离，经过对比分析丙烷、糠醇、NMP 的萃取效果，选择丙烷作为萃取剂，原理是废润滑油中的组分在丙烷中的溶解度不同，经过沉降塔逆流萃取塔顶采出脱沥青油（DAO），塔釜采出脱油沥青（DOA），在分别进行精馏回收萃取剂丙烷。本文设计了废润滑油以丙烷为溶剂的萃取工艺流程，首先进行了溶剂的对比和选取，然后对质塔设备的物料衡算、能量衡算、主要设备的工艺尺寸进行计算，并选定北京理工大学珠海学院 2020 届本科生毕业设计了适合的附属设备，绘制出 PFD 图和 PID 图。关键词：废润滑油；丙烷；溶剂萃取系统Design of solvent extraction system for 20000 t / a waste lubricating oil recovery unitAbstract北京理工大学珠海学院 2020 届本科生毕业设计Solvent extraction is an important part of chemical production. In chemical production, tower equipment is often used to separate and purify the mixture. This design uses sieve plate tower and float valve tower to extract and separate the waste lubricating oil. After comparative analysis of the extraction effect of propane, furfuryl alcohol and NMP, propane is selected as the extraction agent. The principle is that the components in the waste lubricating oil have different solubility in propane. The deasphalted oil (DAO) is extracted from the top of the countercurrent extraction tower of the settling tower, and DEA is extracted from the bottom of the tower. The deasphalted oil (DOA) is respectively rectified and recycled Collect the extractant propane.In this paper, the extraction process of waste lubricating oil with propane as solvent is designed. Firstly, the solvent is compared and selected. Then, the material balance, energy balance and process...
