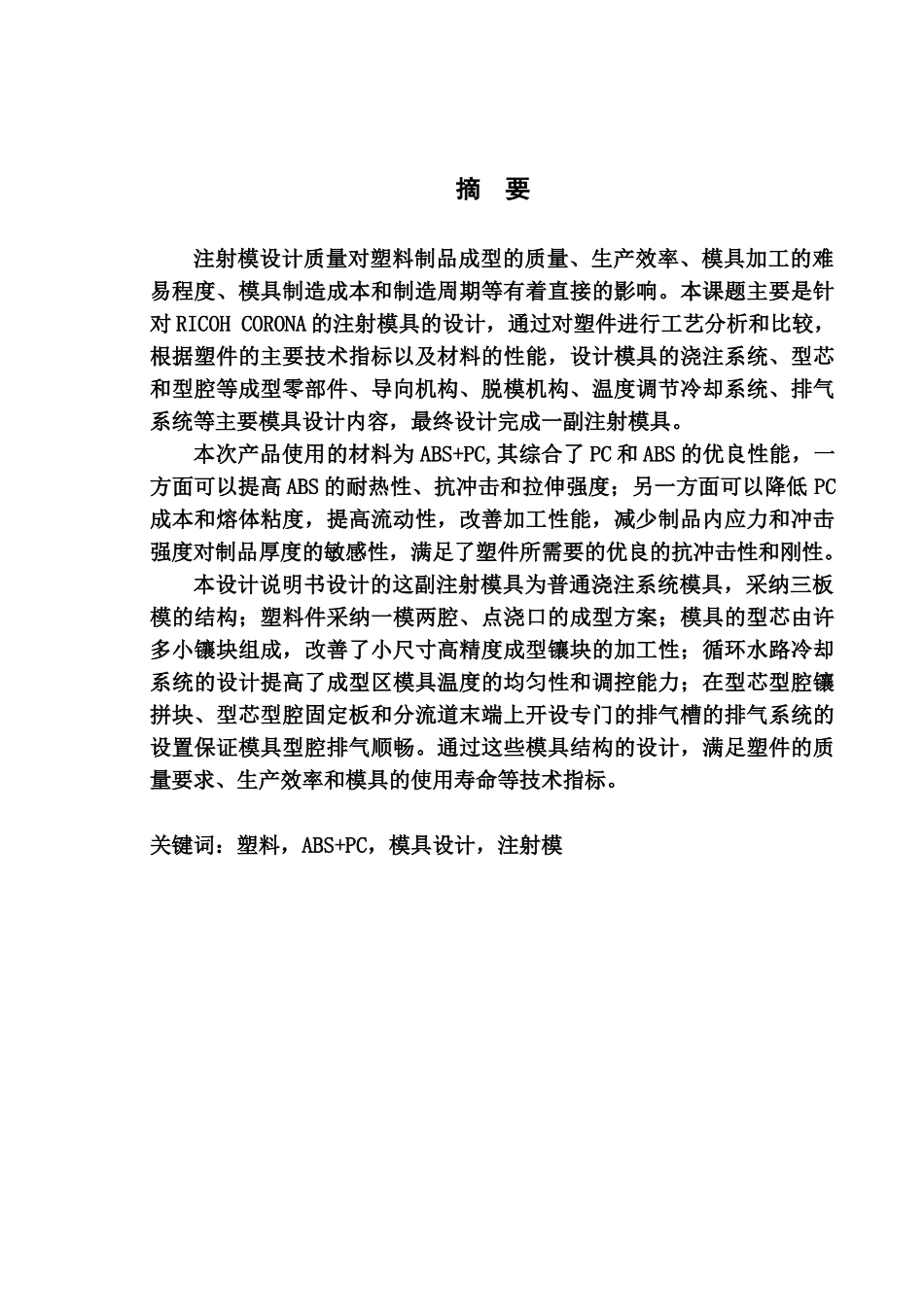

注塑模具设计毕业答辩论文摘 要注射模设计质量对塑料制品成型的质量、生产效率、模具加工的难易程度、模具制造成本和制造周期等有着直接的影响。本课题主要是针对 RICOH CORONA 的注射模具的设计,通过对塑件进行工艺分析和比较,根据塑件的主要技术指标以及材料的性能,设计模具的浇注系统、型芯和型腔等成型零部件、导向机构、脱模机构、温度调节冷却系统、排气系统等主要模具设计内容,最终设计完成一副注射模具。本次产品使用的材料为 ABS+PC,其综合了 PC 和 ABS 的优良性能,一方面可以提高 ABS 的耐热性、抗冲击和拉伸强度;另一方面可以降低 PC成本和熔体粘度,提高流动性,改善加工性能,减少制品内应力和冲击强度对制品厚度的敏感性,满足了塑件所需要的优良的抗冲击性和刚性。本设计说明书设计的这副注射模具为普通浇注系统模具,采纳三板模的结构;塑料件采纳一模两腔、点浇口的成型方案;模具的型芯由许多小镶块组成,改善了小尺寸高精度成型镶块的加工性;循环水路冷却系统的设计提高了成型区模具温度的均匀性和调控能力;在型芯型腔镶拼块、型芯型腔固定板和分流道末端上开设专门的排气槽的排气系统的设置保证模具型腔排气顺畅。通过这些模具结构的设计,满足塑件的质量要求、生产效率和模具的使用寿命等技术指标。关键词:塑料,ABS+PC,模具设计,注射模 RICOH CORONA Injection Mold DesignABSTRACTInjection mold design-quality has a directly impact on quality of plastic molding,productivity, ease of mold processing , die manufacturing cost and manufacturing cycle. The topic is mainly for the RICOH CORONA injection mold process analysis and comparison of the plastic parts, and according to the major technical indicators and material properties, mold gating system design, core and cavity molding parts, guide mechanism, stripping mechanism, temperature adjust cooling system ,which finally complete a part of Injection mold.The product material is ABS + PC, which combines the excellent properties of PC and ABS. on the one hand it can improve the heat resistance of ABS, impact resistance and tensile the other hand it can reduc...
