单片机数字万用表毕业论文

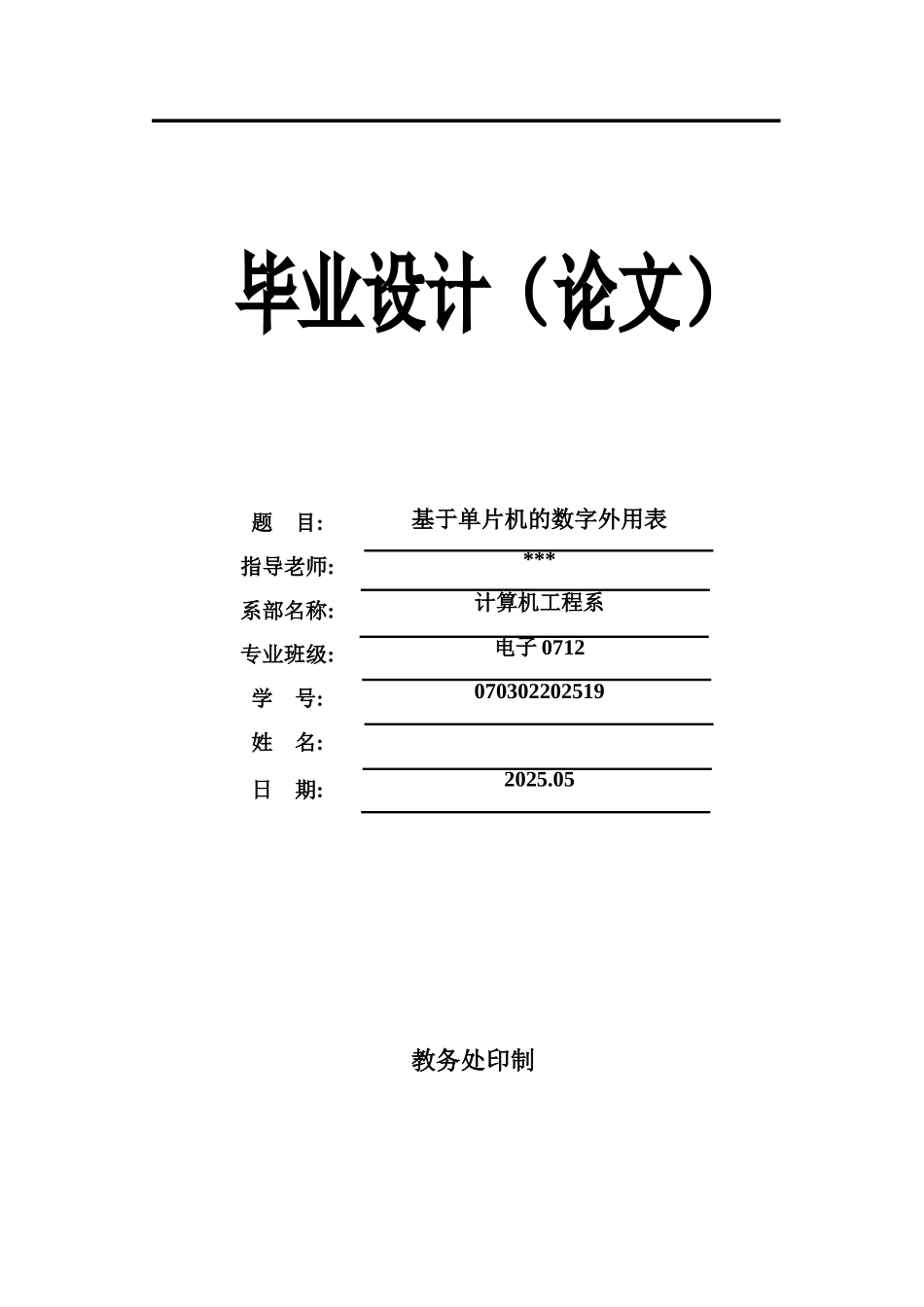

单片机数字万用表毕业论文_第1页
1/40
单片机数字万用表毕业论文_第2页
2/40

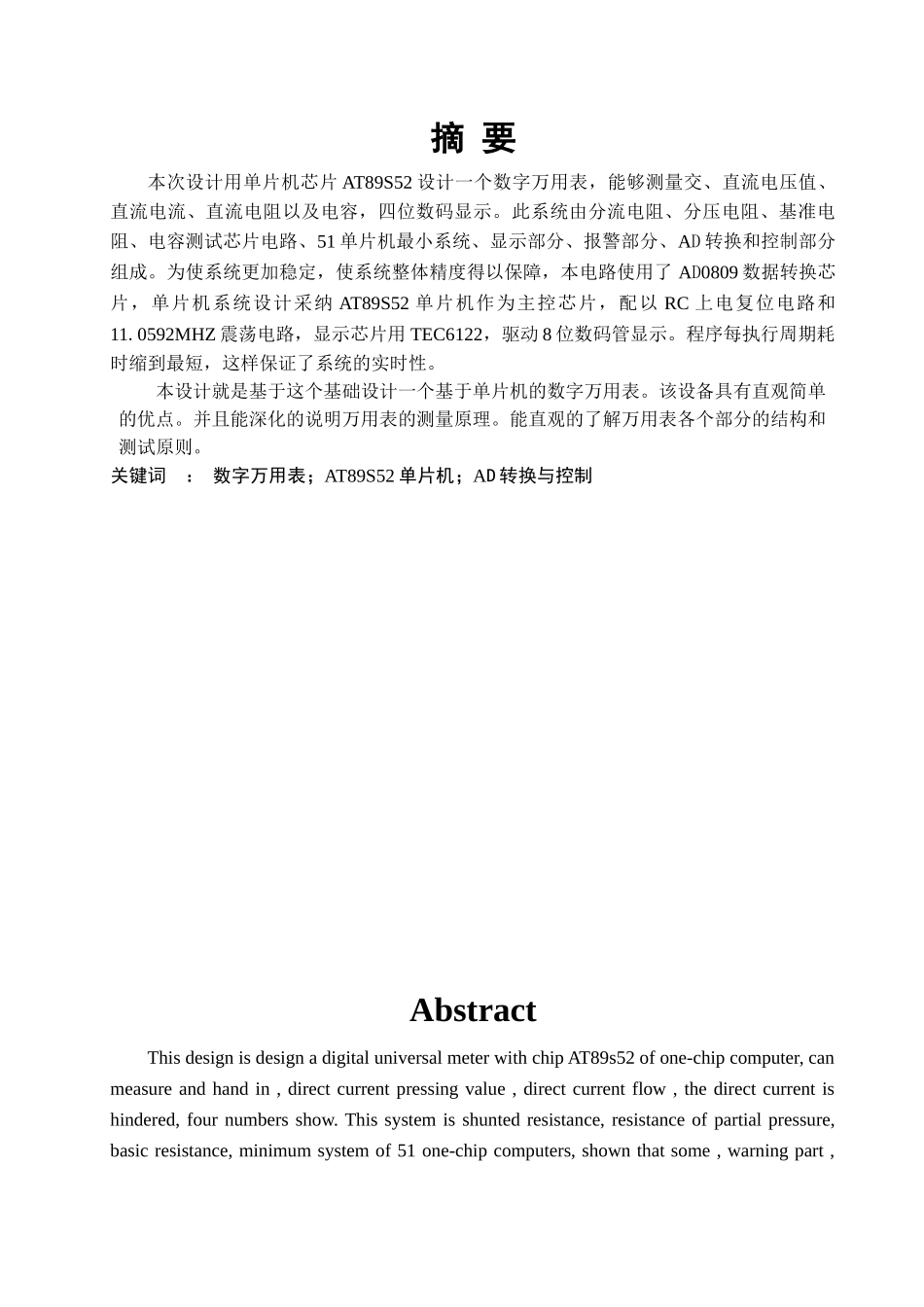

单片机数字万用表毕业论文_第3页
3/40
题 目:基于单片机的数字外用表指导老师:***系部名称:计算机工程系专业班级:电子 0712学 号:070302202519姓 名:日 期:2025.05教务处印制基于单片机的数字万用表设计摘 要本次设计用单片机芯片 AT89S52 设计一个数字万用表,能够测量交、直流电压值、直流电流、直流电阻以及电容,四位数码显示。此系统由分流电阻、分压电阻、基准电阻、电容测试芯片电路、51 单片机最小系统、显示部分、报警部分、AD 转换和控制部分组成。为使系统更加稳定,使系统整体精度得以保障,本电路使用了 AD0809 数据转换芯片,单片机系统设计采纳 AT89S52 单片机作为主控芯片,配以 RC 上电复位电路和11.0592MHZ 震荡电路,显示芯片用 TEC6122,驱动 8 位数码管显示。程序每执行周期耗时缩到最短,这样保证了系统的实时性。本设计就是基于这个基础设计一个基于单片机的数字万用表。该设备具有直观简单的优点。并且能深化的说明万用表的测量原理。能直观的了解万用表各个部分的结构和测试原则。关键词 : 数字万用表;AT89S52 单片机;AD 转换与控制AbstractThis design is design a digital universal meter with chip AT89s52 of one-chip computer, can measure and hand in , direct current pressing value , direct current flow , the direct current is hindered, four numbers show. This system is shunted resistance, resistance of partial pressure, basic resistance, minimum system of 51 one-chip computers, shown that some , warning part , AD change and control making up partly. In order to make the system more steady, make the whole precision of the system be ensured, this circuit has used AD0809 data to change the chip, the one-chip computer system is designed to adopt AT89S52 one-chip computer as the top management chip, the electricity is restored to the throne the circuit and 11.0592MHZ and shaken the circuit to match on RC, show that the chip uses TEC6122, urge 8 numbers to be in charge of showing. The every execution cycle consuming time of procedure contracts to get shortest, in this way th...
