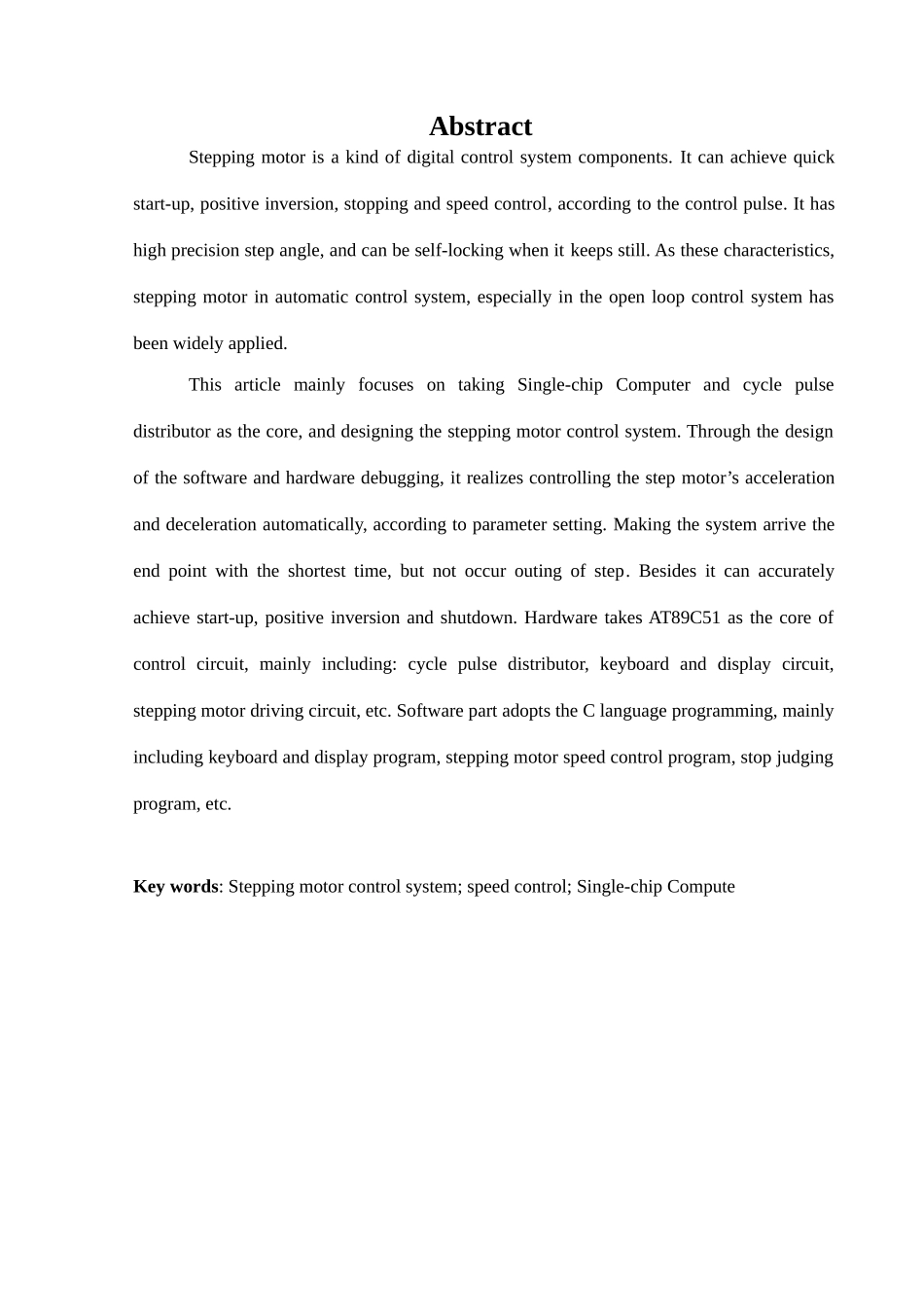

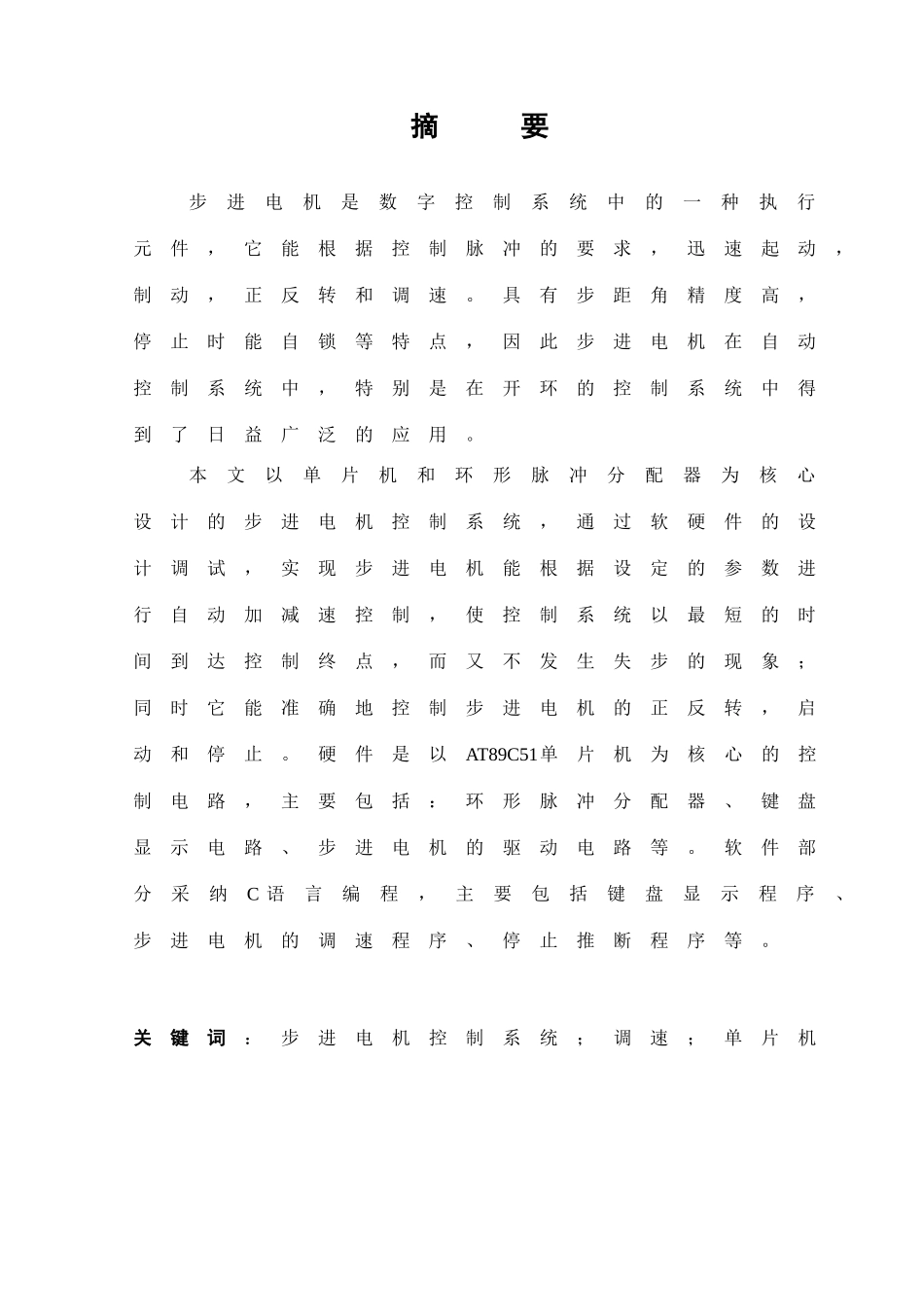

毕 业 设 计摘 要步进电机是数字控制系统中的一种执行元件，它能根据控制脉冲的要求，迅速起动，制动，正反转和调速。具有步距角精度高，停止时能自锁等特点，因此步进电机在自动控制系统中，特别是在开环的控制系统中得到了日益广泛的应用。本文以单片机和环形脉冲分配器为核心设计的步进电机控制系统，通过软硬件的设计调试，实现步进电机能根据设定的参数进行自动加减速控制，使控制系统以最短的时间到达控制终点，而又不发生失步的现象；同时它能准确地控制步进电机的正反转，启动和停止。硬件是以AT89C51单片机为核心的控制电路，主要包括：环形脉冲分配器、键盘显示电路、步进电机的驱动电路等。软件部分采纳C 语言编程，主要包括键盘显示程序、步进电机的调速程序、停止推断程序等。关键词：步进电机控制系统；调速；单片机AbstractStepping motor is a kind of digital control system components. It can achieve quick start-up, positive inversion, stopping and speed control, according to the control pulse. It has high precision step angle, and can be self-locking when it keeps still. As these characteristics, stepping motor in automatic control system, especially in the open loop control system has been widely applied.This article mainly focuses on taking Single-chip Computer and cycle pulse distributor as the core, and designing the stepping motor control system. Through the design of the software and hardware debugging, it realizes controlling the step motor’s acceleration and deceleration automatically, according to parameter setting. Making the system arrive the end point with the shortest time, but not occur outing of step. Besides it can accurately achieve start-up, positive inversion and shutdown. Hardware takes AT89C51 as the core of control circuit, mainly including: cycle pulse distributor, keyboard and display circuit, stepping motor driving circuit, etc. Software part adopts the C language programming, mainly including keyboard and display ...
