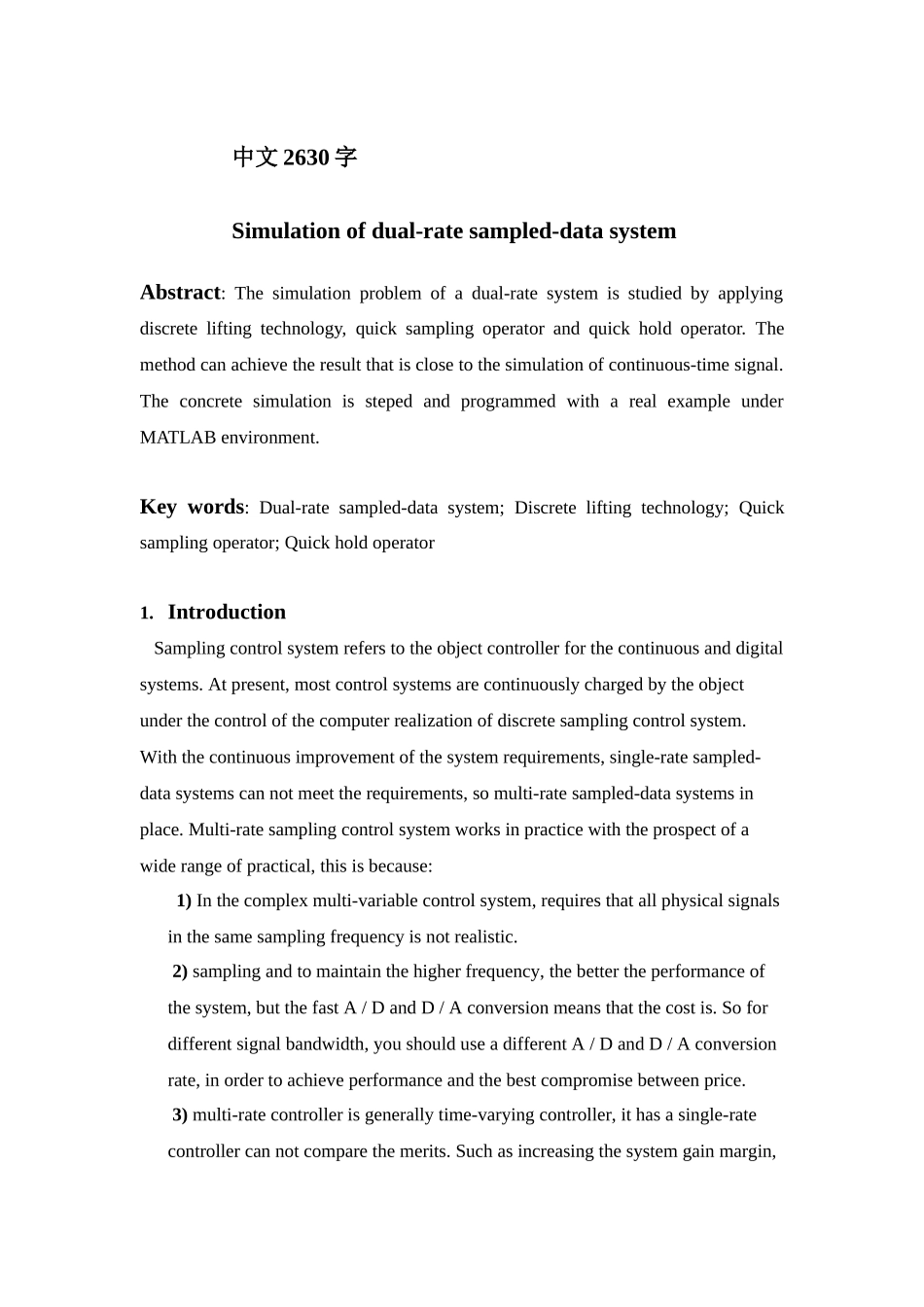

中文 2630 字Simulation of dual-rate sampled-data systemAbstract: The simulation problem of a dual-rate system is studied by applying discrete lifting technology, quick sampling operator and quick hold operator. The method can achieve the result that is close to the simulation of continuous-time signal. The concrete simulation is steped and programmed with a real example under MATLAB environment.Key words: Dual-rate sampled-data system; Discrete lifting technology; Quick sampling operator; Quick hold operator1. Introduction Sampling control system refers to the object controller for the continuous and digital systems. At present, most control systems are continuously charged by the object under the control of the computer realization of discrete sampling control system. With the continuous improvement of the system requirements, single-rate sampled-data systems can not meet the requirements, so multi-rate sampled-data systems in place. Multi-rate sampling control system works in practice with the prospect of a wide range of practical, this is because: 1) In the complex multi-variable control system, requires that all physical signals in the same sampling frequency is not realistic. 2) sampling and to maintain the higher frequency, the better the performance of the system, but the fast A / D and D / A conversion means that the cost is. So for different signal bandwidth, you should use a different A / D and D / A conversion rate, in order to achieve performance and the best compromise between price. 3) multi-rate controller is generally time-varying controller, it has a single-rate controller can not compare the merits. Such as increasing the system gain margin, consistent with the stability of the system to ...
