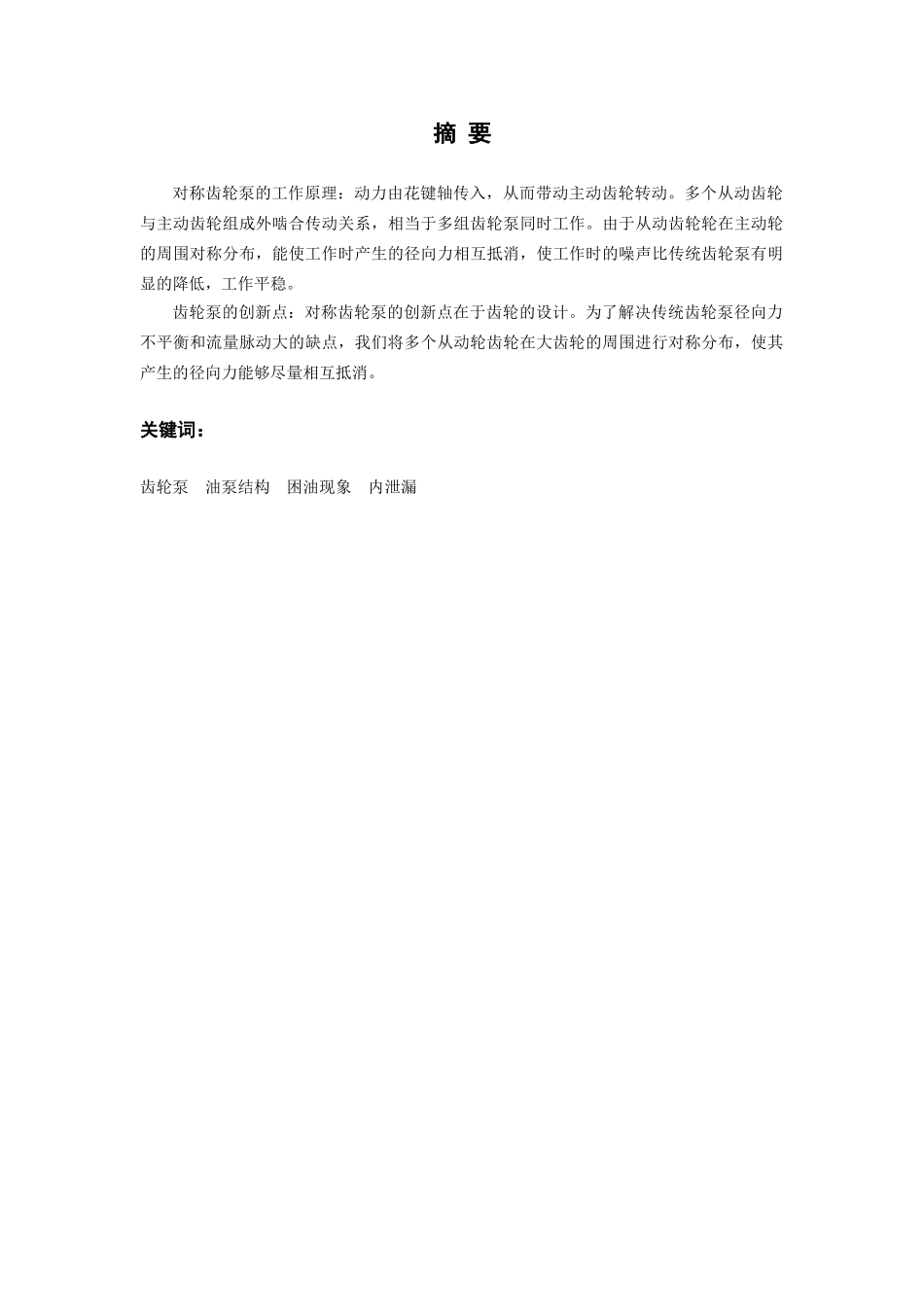

摘 要对称齿轮泵的工作原理：动力由花键轴传入，从而带动主动齿轮转动。多个从动齿轮与主动齿轮组成外啮合传动关系，相当于多组齿轮泵同时工作。由于从动齿轮轮在主动轮的周围对称分布，能使工作时产生的径向力相互抵消，使工作时的噪声比传统齿轮泵有明显的降低，工作平稳。齿轮泵的创新点：对称齿轮泵的创新点在于齿轮的设计。为了解决传统齿轮泵径向力不平衡和流量脉动大的缺点，我们将多个从动轮齿轮在大齿轮的周围进行对称分布，使其产生的径向力能够尽量相互抵消。关键词： 齿轮泵 油泵结构 困油现象 内泄漏ABSTRACTProfiled gear pump working principle : power by the spline shaft imported, thus driving gear rotation. Many follower gear and active gear meshing formed drive, the equivalent of many groups gear pump work simultaneously. As the rounds of the driven gear in the round of initiatives around the symmetric distribution, enabling the work of the radial force to offset each other, make noise at work than the traditional gear pump significantly reduced, smooth. Gear pump innovation : Profiled gear pump of innovation lies in the design of gear. To solve the traditional gear pump radial force imbalance and pulsatile flow defects We will launch a number of driven gear in the gear around symmetric distribution, produce radial strength to try to offset each other. Key words： Gear Pump ;Pump Structure ;Storm oil ;Internal Leakage 绪论齿轮泵是在工业应用中运用极其广泛的重要装置之一，尤其是在液压传动与控制技术中占有很大的比重，它具有结构简单、体积小、重量轻、自吸性能好、耐污染、使用可靠、寿命较长、制造容易、维修方便、价格便宜等特点。但同时齿轮泵也还存在一些不足，如困油现象比较严重、流量和压力脉动较大、径向力不平衡、泄漏大、噪声高及易产生气穴等缺点，这些特性和缺点都直接影响着齿轮泵的质量。随着齿轮泵在高温、高压、大排量、低流量脉动、低噪音等方面进展及应用，对齿轮泵的特性讨论及提高齿轮泵的安全和效率已成为国内外深化讨论的课题。外啮合齿轮泵是应用最广泛的一种齿轮泵(称为普...
