栅极腐蚀在线测量技术项目建议书

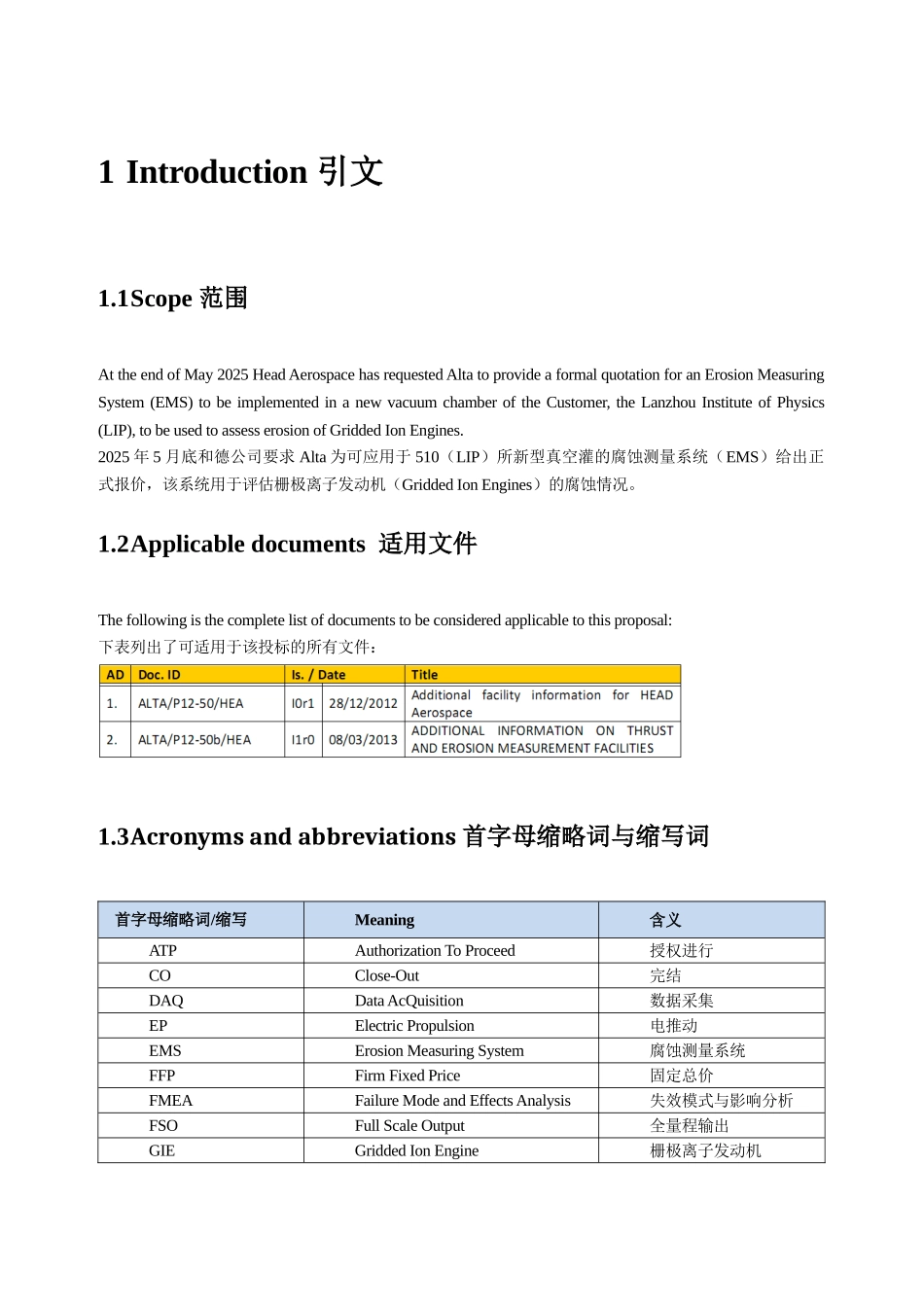

ALTA 公司栅极腐蚀在线测量系统技术建议书1 Introduction 引文1.1Scope 范围At the end of May 2025 Head Aerospace has requested Alta to provide a formal quotation for an Erosion Measuring System (EMS) to be implemented in a new vacuum chamber of the Customer, the Lanzhou Institute of Physics (LIP), to be used to assess erosion of Gridded Ion Engines.2025 年 5 月底和德公司要求 Alta 为可应用于 510（LIP）所新型真空灌的腐蚀测量系统（EMS）给出正式报价，该系统用于评估栅极离子发动机（Gridded Ion Engines）的腐蚀情况。1.2Applicable documents 适用文件The following is the complete list of documents to be considered applicable to this proposal:下表列出了可适用于该投标的所有文件：1.3Acronyms and abbreviations 首字母缩略词与缩写词首字母缩略词/缩写Meaning含义ATPAuthorization To Proceed授权进行COClose-Out完结DAQData AcQuisition数据采集EPElectric Propulsion电推动EMSErosion Measuring System腐蚀测量系统FFP Firm Fixed Price固定总价FMEAFailure Mode and Effects Analysis失效模式与影响分析FSOFull Scale Output全量程输出GIEGridded Ion Engine栅极离子发动机HETHall Effect Thruster霍尔效应推动器HWHardware硬件I/F,IFInterFace接口IRInfra Red红外线LIPLanzhou Institute of Physics510 所MAIManufacturing,Assembly, Integration制造，部装，集成NDANon-Disclosure Agreement保密协议QMQualification Model鉴定样机RPARetarding Potential Analyzer减速电势分析仪SWSoftware软件TBCTo Be Confirmed/To be Clarified留待确定TBDTo be Determined/Defined留待决定TCThermoCouple热电偶VDCVolt Direct Current直流电压2 Introduction 简介The present section describes the tele-microscopy and erosion facility implemented in Alta IV-4 facility.本章将介绍 Alta IV-4 设备所采纳的远程显微镜和腐蚀测量设备。2.1Tele-microscopy System for Gridded Ion Engines 栅极离子发动机远程显微镜系统Alta provides an innovative diagnostics to measure the erosion of the grid holes in Gridded Ion Engines (GIE).A...
