毕业论文-VLAN虚拟局域网技术解析

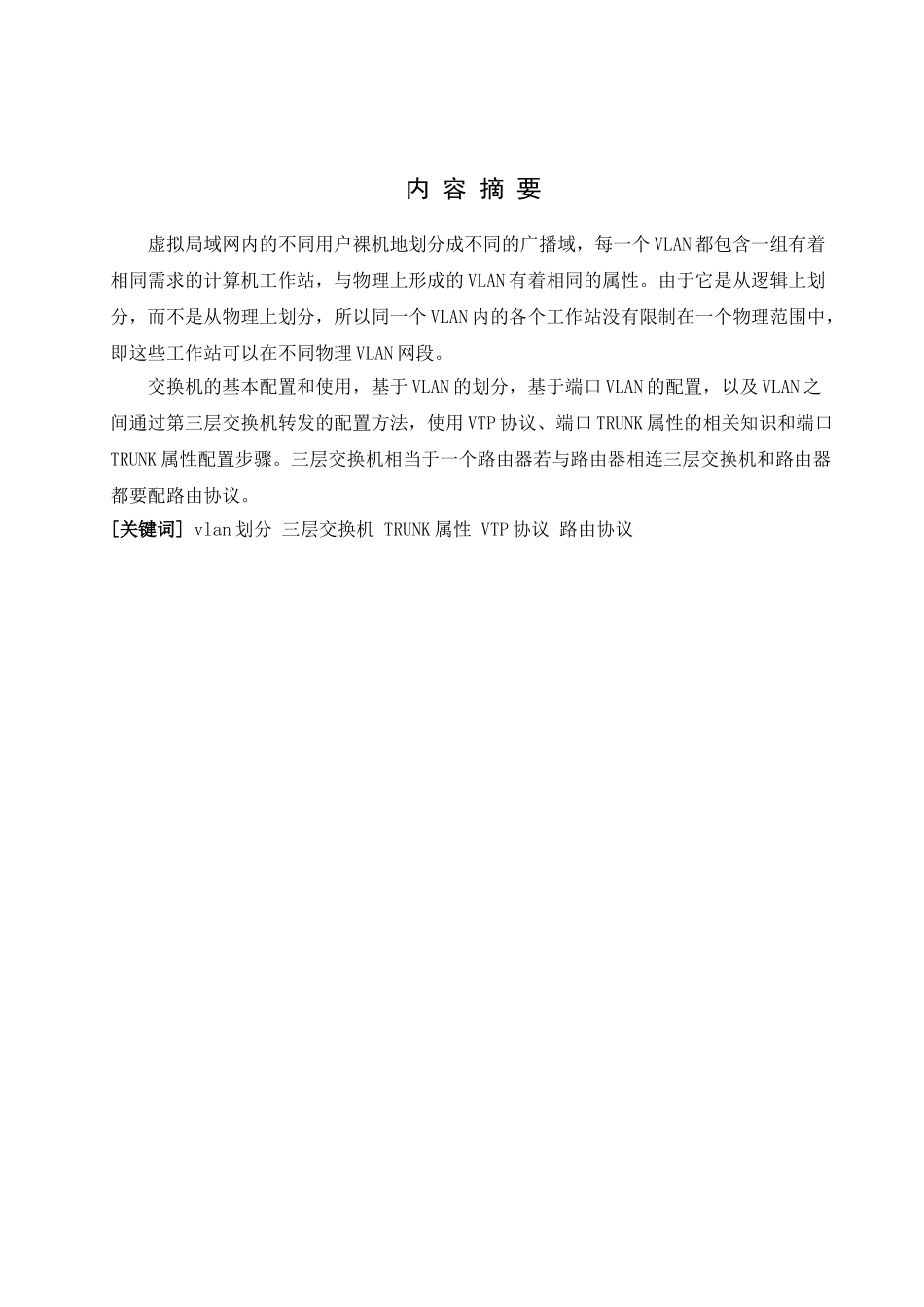

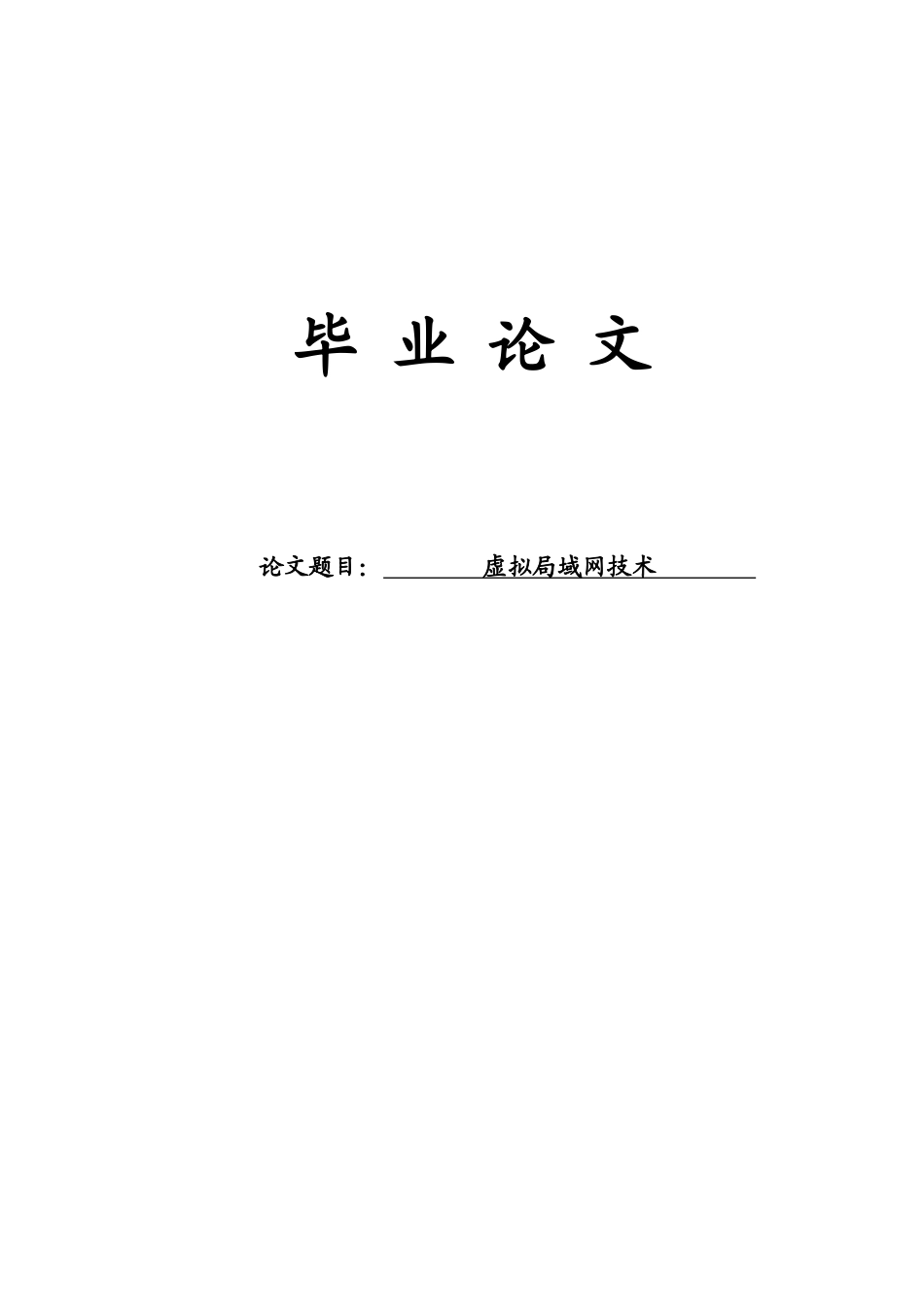

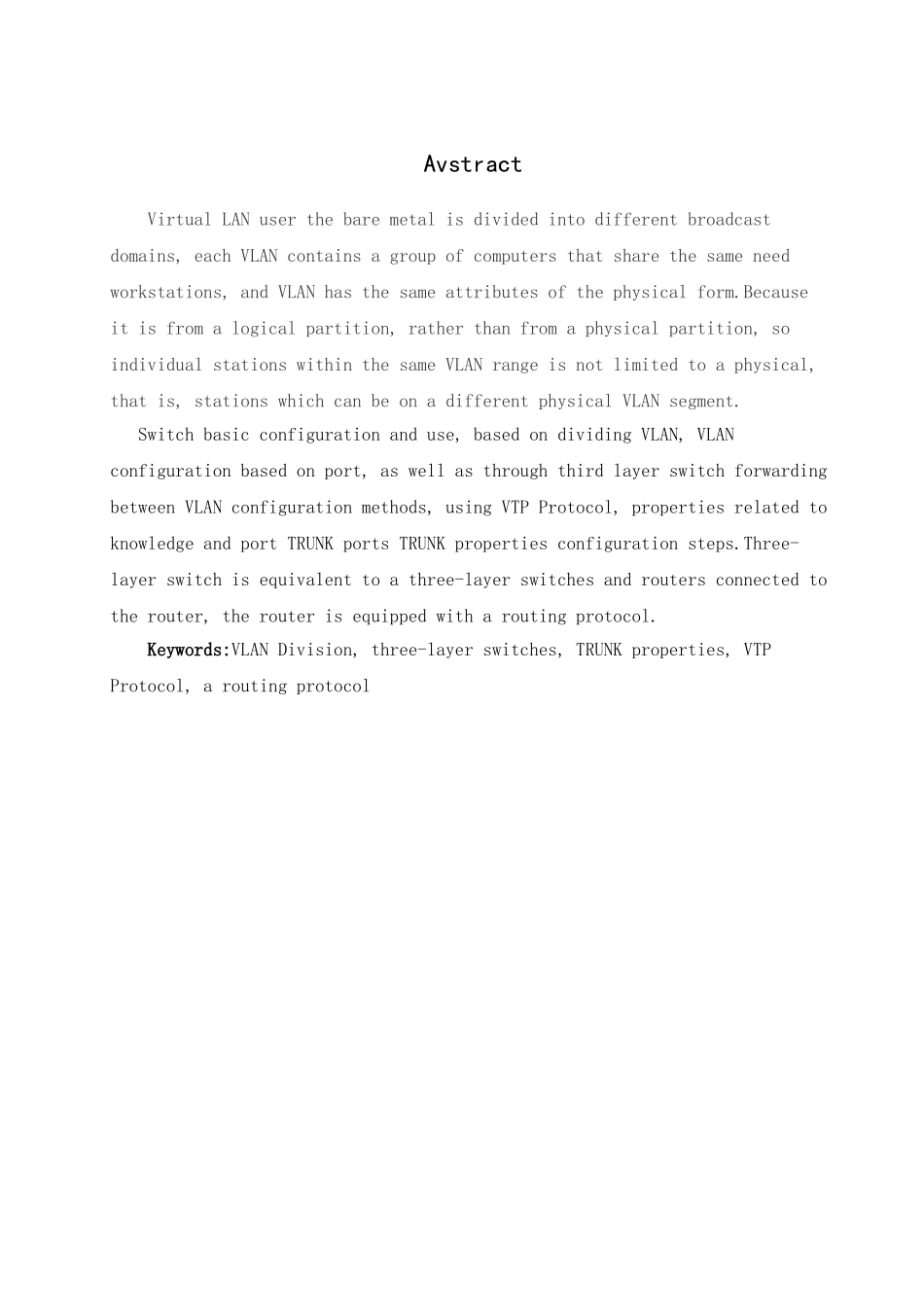

毕 业 论 文论文题目： 虚拟局域网技术 内 容 摘 要虚拟局域网内的不同用户裸机地划分成不同的广播域，每一个 VLAN 都包含一组有着相同需求的计算机工作站，与物理上形成的 VLAN 有着相同的属性。由于它是从逻辑上划分，而不是从物理上划分，所以同一个 VLAN 内的各个工作站没有限制在一个物理范围中，即这些工作站可以在不同物理 VLAN 网段。交换机的基本配置和使用，基于 VLAN 的划分，基于端口 VLAN 的配置，以及 VLAN 之间通过第三层交换机转发的配置方法，使用 VTP 协议、端口 TRUNK 属性的相关知识和端口TRUNK 属性配置步骤。三层交换机相当于一个路由器若与路由器相连三层交换机和路由器都要配路由协议。[关键词] vlan 划分 三层交换机 TRUNK 属性 VTP 协议 路由协议AvstractVirtual LAN user the bare metal is divided into different broadcast domains, each VLAN contains a group of computers that share the same need workstations, and VLAN has the same attributes of the physical form.Because it is from a logical partition, rather than from a physical partition, so individual stations within the same VLAN range is not limited to a physical, that is, stations which can be on a different physical VLAN segment.Switch basic configuration and use, based on dividing VLAN, VLAN configuration based on port, as well as through third layer switch forwarding between VLAN configuration methods, using VTP Protocol, properties related to knowledge and port TRUNK ports TRUNK properties configuration steps.Three-layer switch is equivalent to a three-layer switches and routers connected to the router, the router is equipped with a routing protocol.Keywords:VLAN Division, three-layer switches, TRUNK properties, VTP Protocol, a routing protocol目 录1、VLAN 的产生...............................................................11.1、VLAN 的定义.........................................................11.2、VLAN 的优点..............................................
