RGB1放大器说明书VIP专享

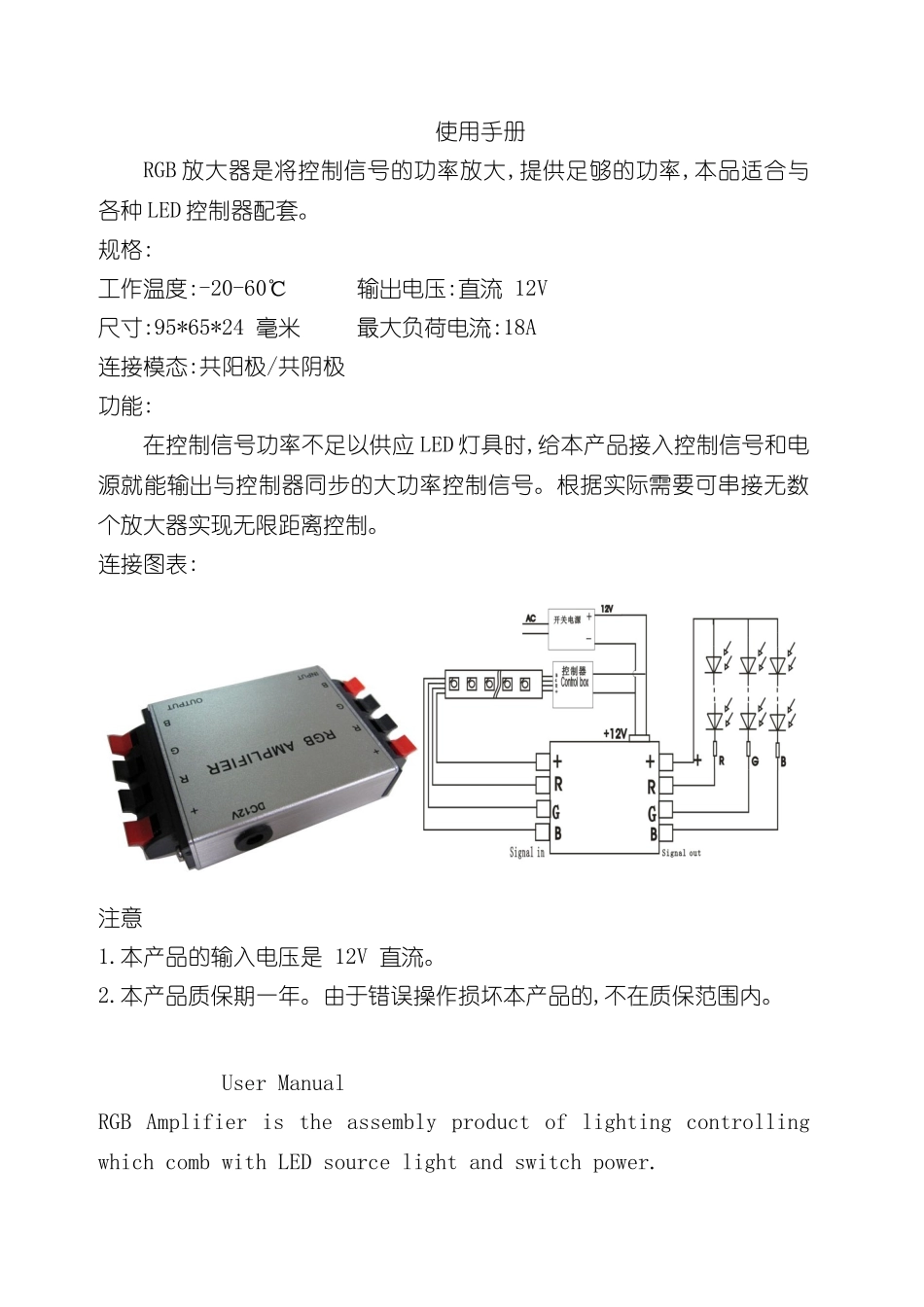

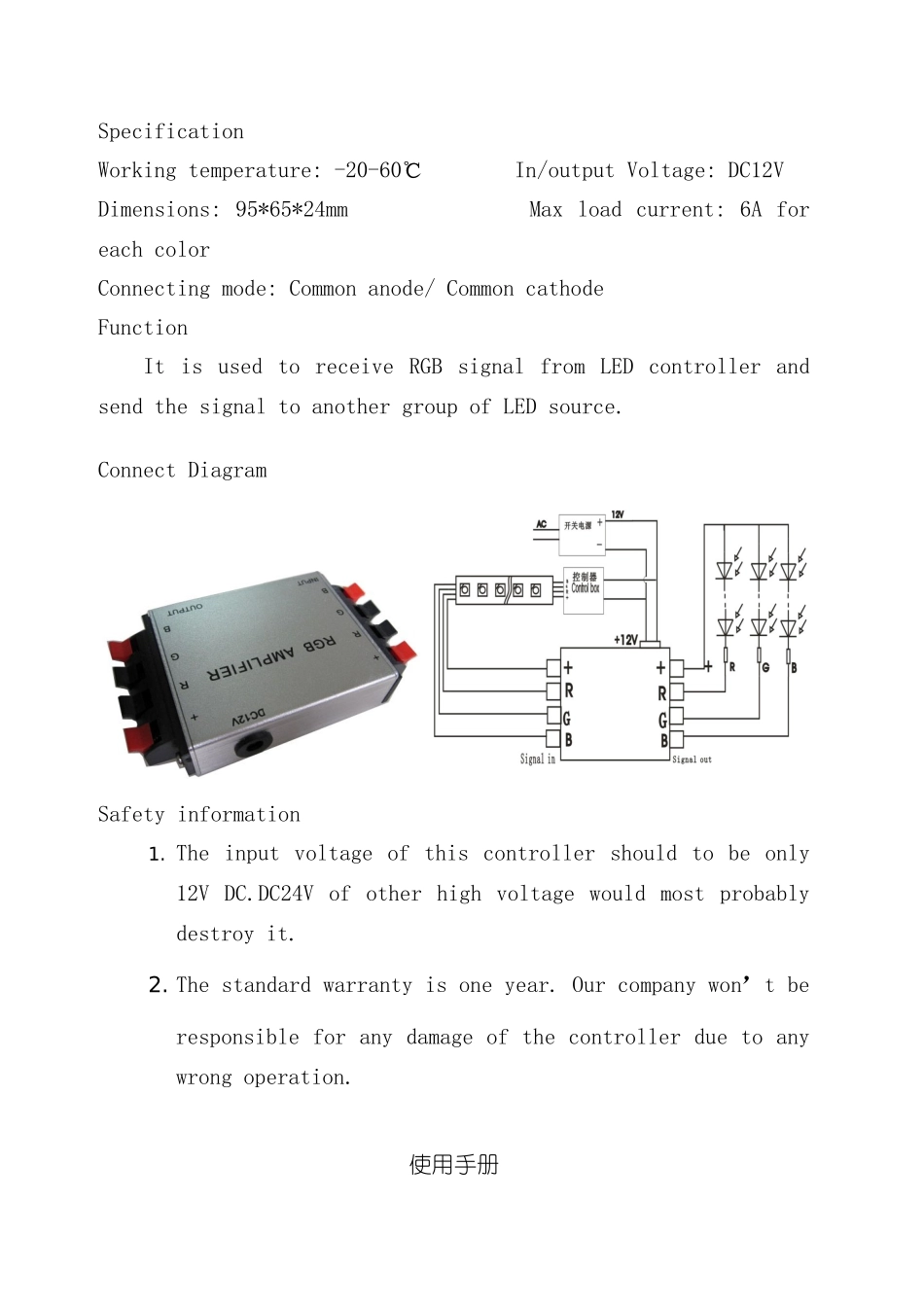

RGB1 放大器说明书 使用手册RGB 放大器是将控制信号的功率放大,提供足够的功率,本品适合与各种 LED 控制器配套。规格:工作温度:-20-60℃ 输出电压:直流 12V尺寸:95*65*24 毫米 最大负荷电流:18A连接模态:共阳极/共阴极功能:在控制信号功率不足以供应 LED 灯具时,给本产品接入控制信号和电源就能输出与控制器同步的大功率控制信号。根据实际需要可串接无数个放大器实现无限距离控制。连接图表:注意1.本产品的输入电压是 12V 直流。2.本产品质保期一年。由于错误操作损坏本产品的,不在质保范围内。User ManualRGB Amplifier is the assembly product of lighting controlling which comb with LED source light and switch power.SpecificationWorking temperature: -20-60℃ In/output Voltage: DC12VDimensions: 95*65*24mm Max load current: 6A for each colorConnecting mode: Common anode/ Common cathodeFunction It is used to receive RGB signal from LED controller and send the signal to another group of LED source.Connect Diagram Safety information 1. The input voltage of this controller should to be only 12V DC.DC24V of other high voltage would most probably destroy it.2. The standard warranty is one year. Our company won’t be responsible for any damage of the controller due to any wrong operation. 使用手册RGB 放大器是将控制信号的功率放大,提供足够的功率,本品适合与各种 LED 控制器配套。规格:工作温度:-20-60℃ 输出电压:直流 12V尺寸:95*65*24 毫米 最大负荷电流:18A连接模态:共阳极/共阴极功能:在控制信号功率不足以供应 LED 灯具时,给本产品接入控制信号和电源就能输出与控制器同步的大功率控制信号。根据实际需要可串接无数个放大器实现无限距离控制。连接图表:注意1.本产品的输入电压是 12V 直流。2.本产品质保期一年。由于错误操作损坏本产品的,不在质保范围内。User ManualRGB Amplifier is the assembly product of lighting controlling which comb with LED source light and switch power.SpecificationWorking temperature: -20-60℃ In/output Voltage: DC12VDimensions: 95*65*24mm Max load current: 18AConnect...
