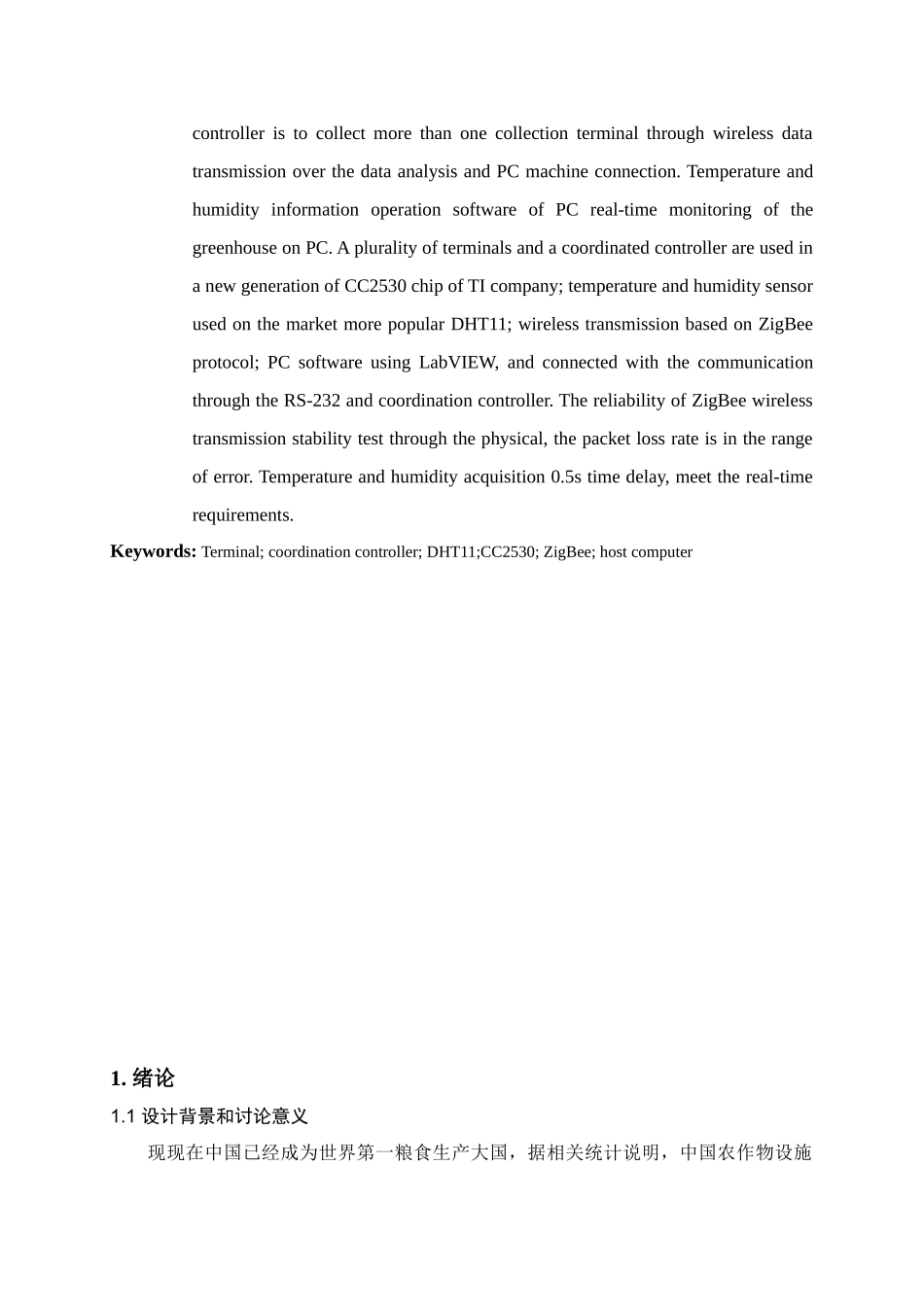

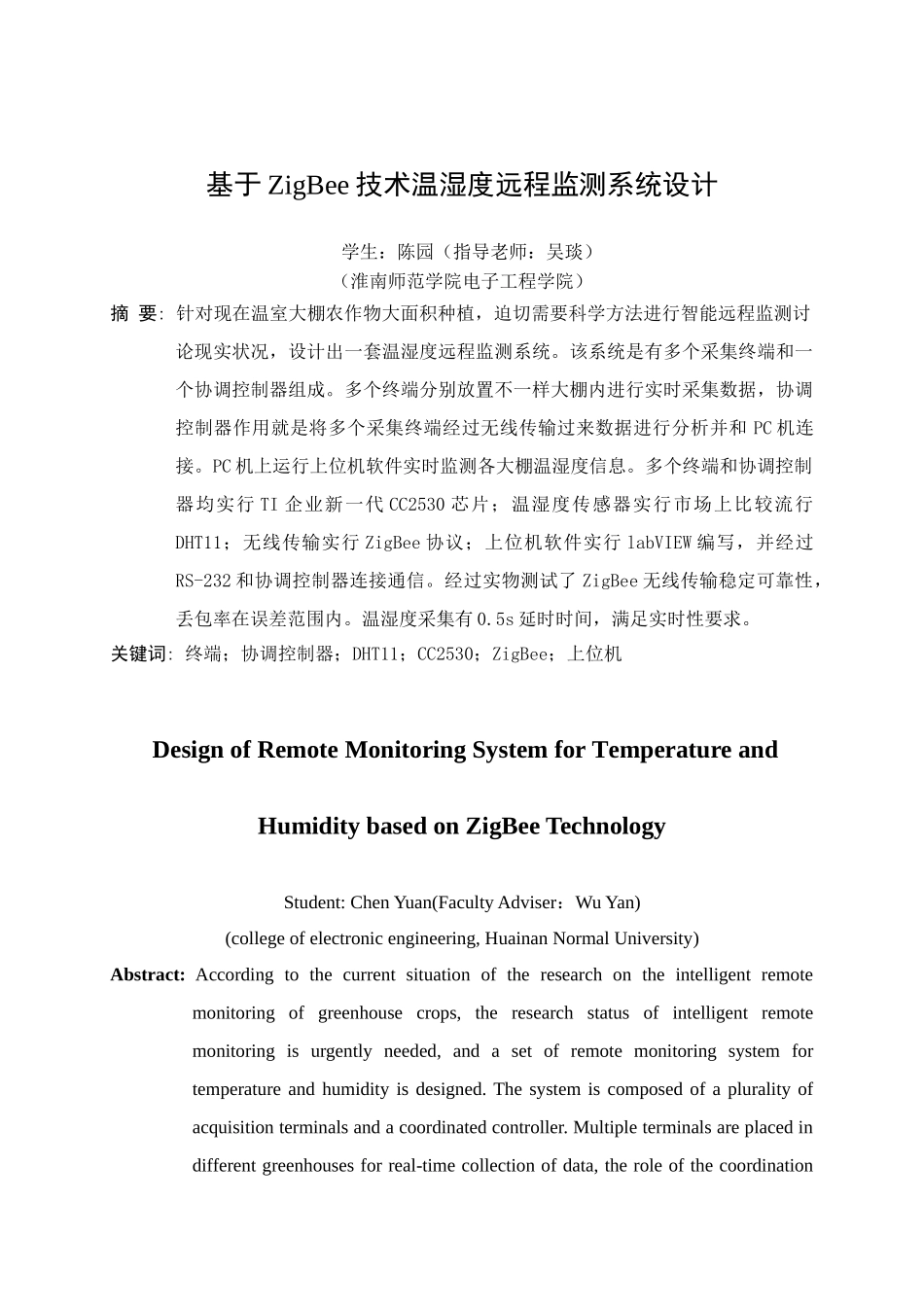

基于 ZigBee 技术温湿度远程监测系统设计 学生：陈园（指导老师：吴琰）（淮南师范学院电子工程学院）摘 要: 针对现在温室大棚农作物大面积种植，迫切需要科学方法进行智能远程监测讨论现实状况，设计出一套温湿度远程监测系统。该系统是有多个采集终端和一个协调控制器组成。多个终端分别放置不一样大棚内进行实时采集数据，协调控制器作用就是将多个采集终端经过无线传输过来数据进行分析并和 PC 机连接。PC 机上运行上位机软件实时监测各大棚温湿度信息。多个终端和协调控制器均实行 TI 企业新一代 CC2530 芯片；温湿度传感器实行市场上比较流行DHT11；无线传输实行 ZigBee 协议；上位机软件实行 labVIEW 编写，并经过RS-232 和协调控制器连接通信。经过实物测试了 ZigBee 无线传输稳定可靠性，丢包率在误差范围内。温湿度采集有 0.5s 延时时间，满足实时性要求。关键词: 终端；协调控制器；DHT11；CC2530；ZigBee；上位机 Design of Remote Monitoring System for Temperature and Humidity based on ZigBee TechnologyStudent: Chen Yuan(Faculty Adviser：Wu Yan)(college of electronic engineering, Huainan Normal University)Abstract: According to the current situation of the research on the intelligent remote monitoring of greenhouse crops, the research status of intelligent remote monitoring is urgently needed, and a set of remote monitoring system for temperature and humidity is designed. The system is composed of a plurality of acquisition terminals and a coordinated controller. Multiple terminals are placed in different greenhouses for real-time collection of data, the role of the coordination controller is to collect more than one collection terminal through wireless data transmission over the data analysis and PC machine connection. Temperature and humidity information operation software of PC real-time monitoring of the greenhouse on PC. A plurality of terminals and a coordinated controller are used in a new generation of CC2530 chip of TI company; temperature a...
