夏普GP2Y1010AU0F-粉尘传感器参考程序

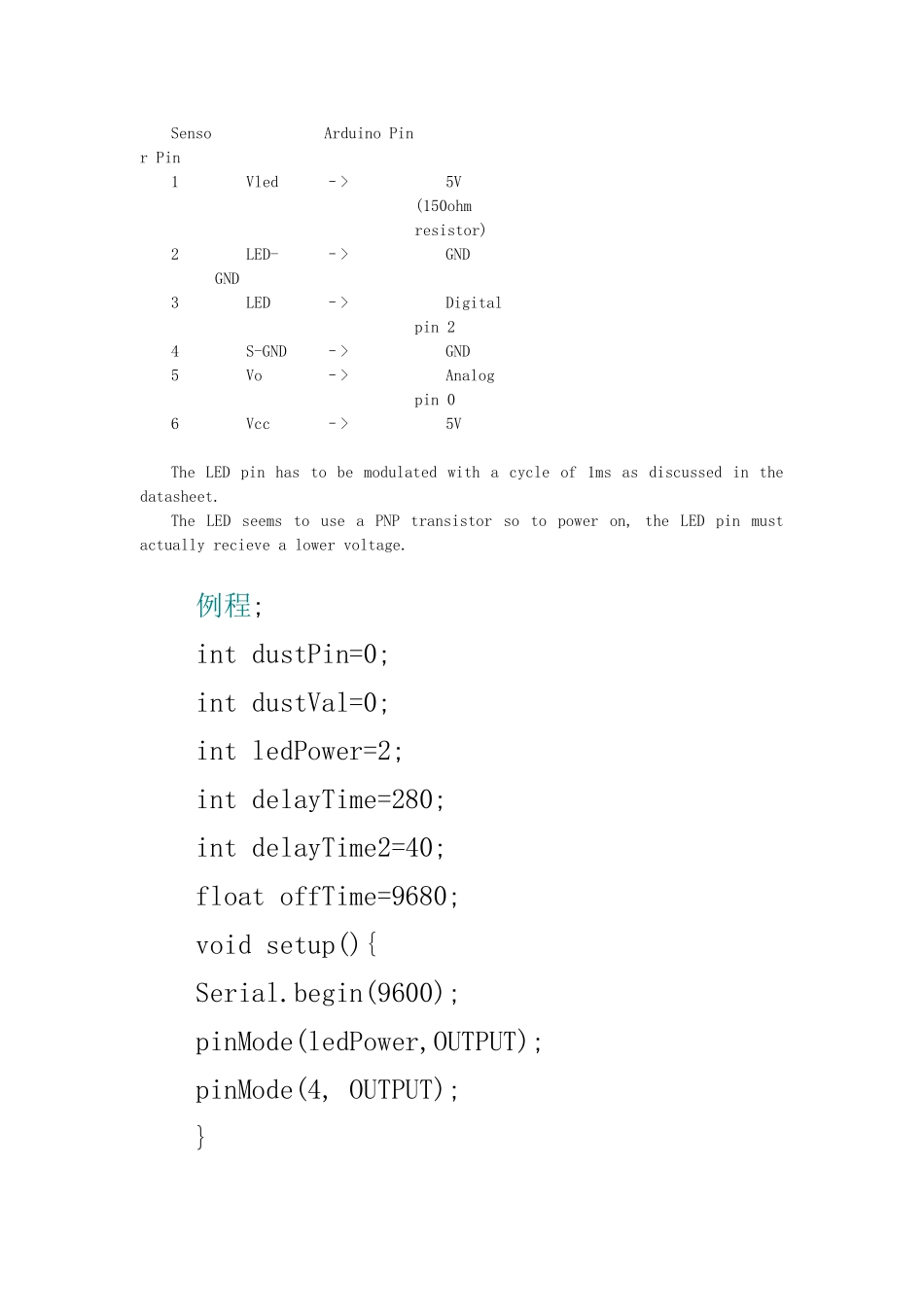

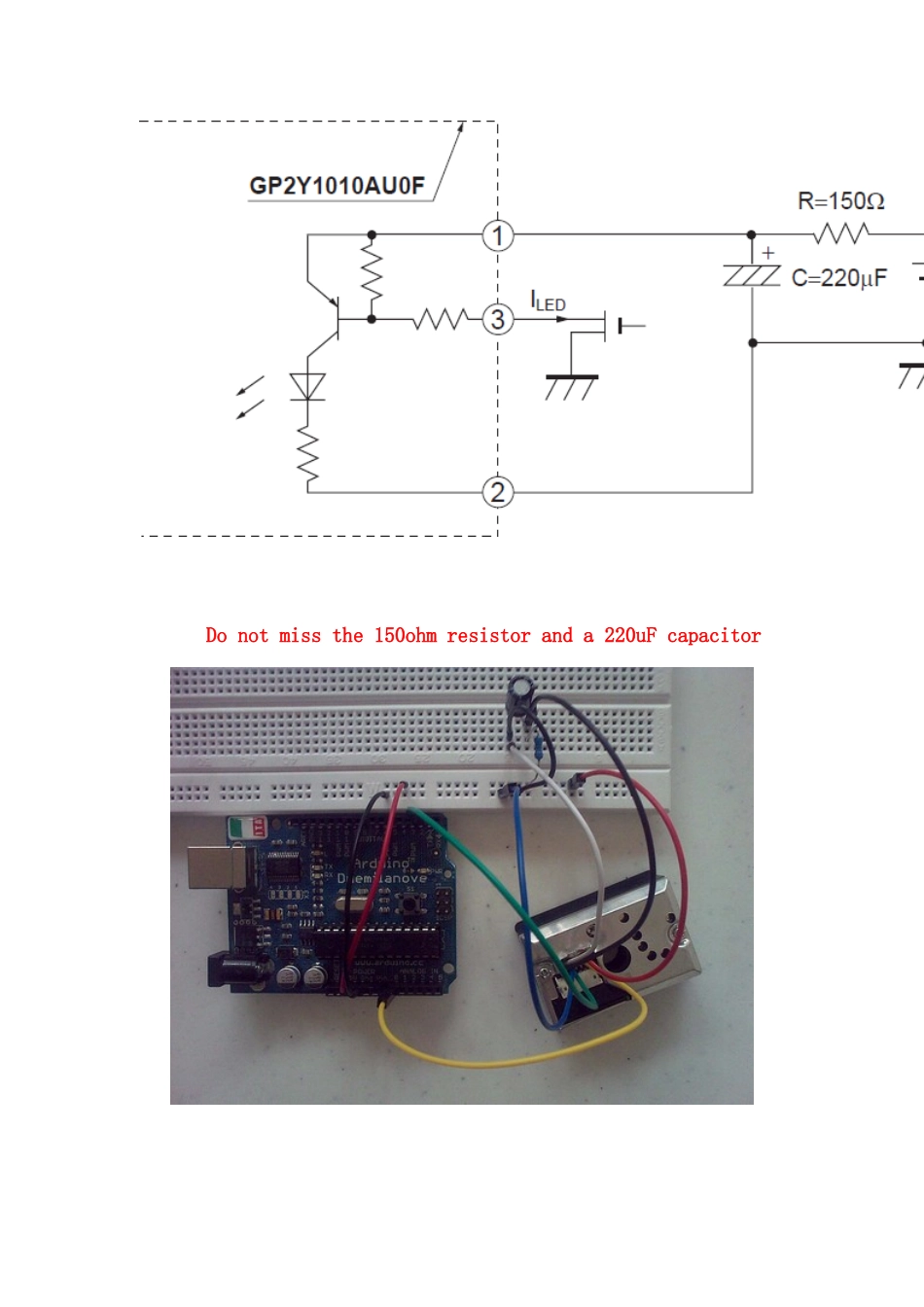

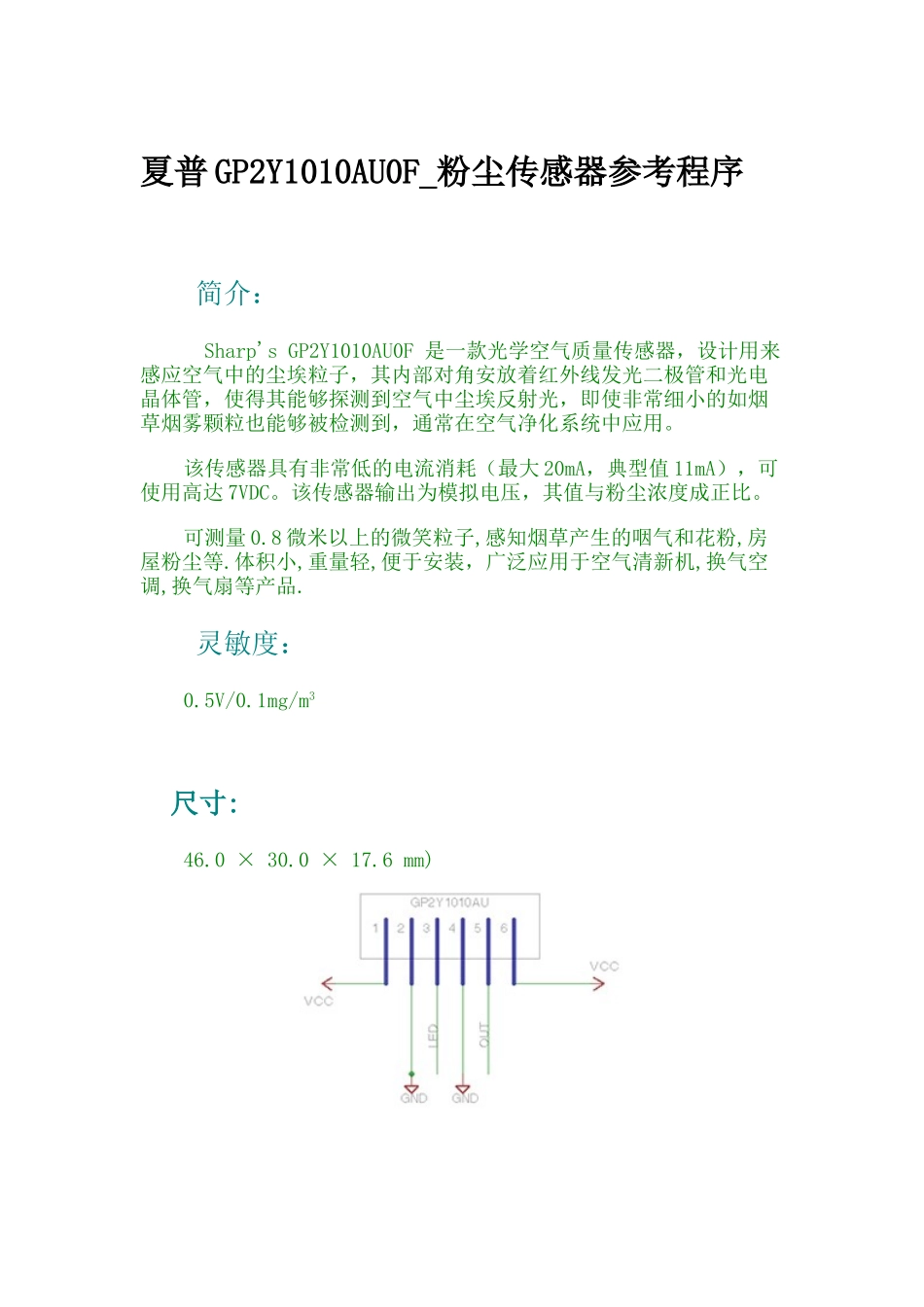

夏普 GP2Y1010AU0F_粉尘传感器参考程序简介： Sharp's GP2Y1010AU0F 是一款光学空气质量传感器，设计用来感应空气中的尘埃粒子，其内部对角安放着红外线发光二极管和光电晶体管，使得其能够探测到空气中尘埃反射光，即使非常细小的如烟草烟雾颗粒也能够被检测到，通常在空气净化系统中应用。该传感器具有非常低的电流消耗（最大 20mA，典型值 11mA），可使用高达 7VDC。该传感器输出为模拟电压，其值与粉尘浓度成正比。可测量 0.8 微米以上的微笑粒子,感知烟草产生的咽气和花粉,房屋粉尘等.体积小,重量轻,便于安装，广泛应用于空气清新机,换气空调,换气扇等产品.灵敏度：0.5V/0.1mg/m3尺寸:46.0 × 30.0 × 17.6 mm) Do not miss the 150ohm resistor and a 220uF capacitor Sensor PinArduino Pin1Vled–>5V (150ohm resistor)2LED-GND–>GND3LED–>Digital pin 24S-GND–>GND5Vo–>Analog pin 06Vcc–>5V The LED pin has to be modulated with a cycle of 1ms as discussed in the datasheet.The LED seems to use a PNP transistor so to power on, the LED pin must actually recieve a lower voltage. 例程;int dustPin=0;int dustVal=0;int ledPower=2;int delayTime=280;int delayTime2=40;float offTime=9680;void setup(){Serial.begin(9600);pinMode(ledPower,OUTPUT);pinMode(4, OUTPUT);}void loop(){// ledPower is any digital pin on the arduino connected to Pin 3 on the sensordigitalWrite(ledPower,LOW); // power on the LEDdelayMicroseconds(delayTime);dustVal=analogRead(dustPin); // read the dust value via pin 5 on the sensordelayMicroseconds(delayTime2);digitalWrite(ledPower,HIGH); // turn the LED offdelayMicroseconds(offTime); delay(3000);Serial.println(dustVal);}
