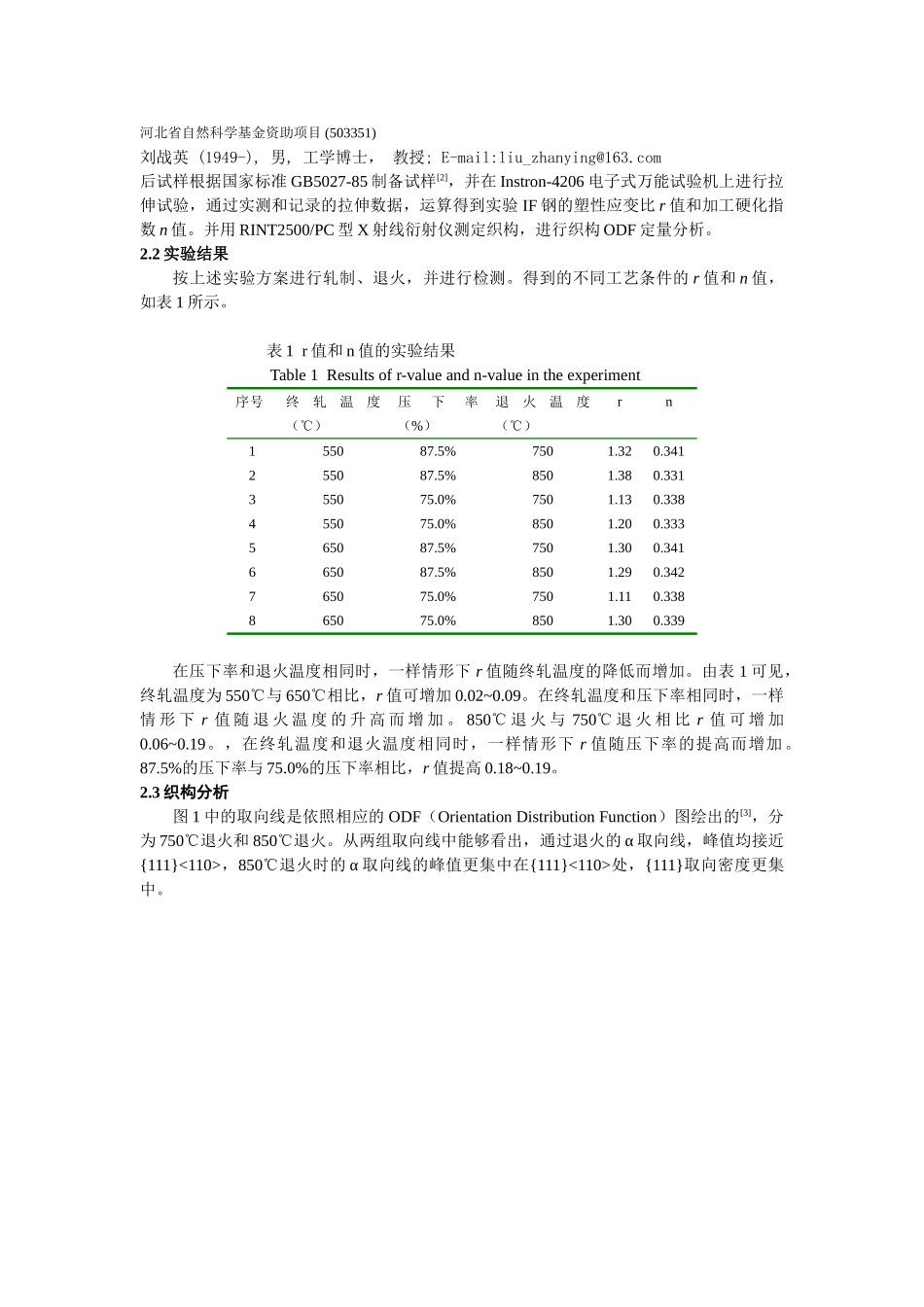

107paperIF钢轧工艺参数对深冲性能的影响中文_第2页
2/6

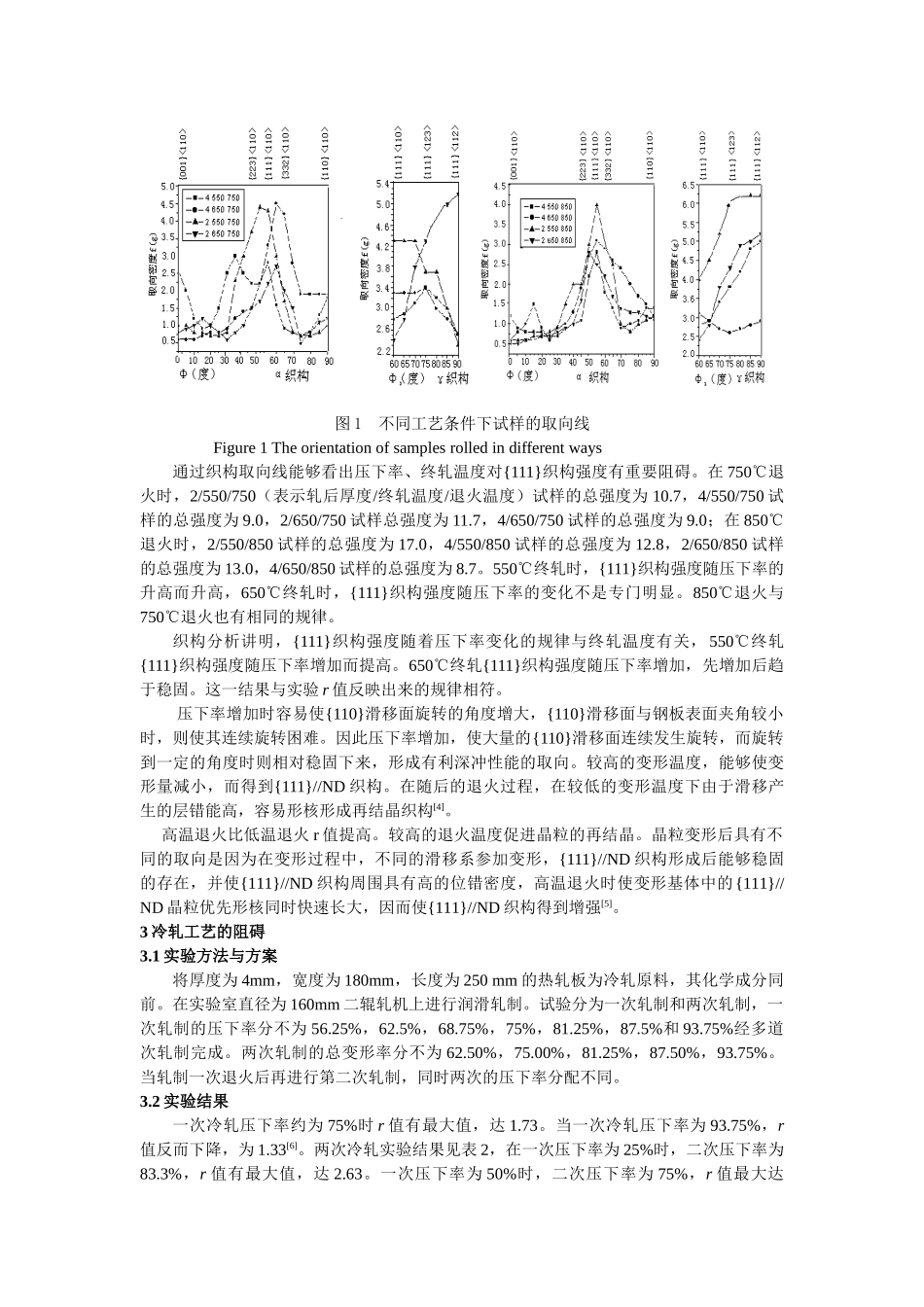

107paperIF钢轧工艺参数对深冲性能的影响中文_第3页
3/6
107paperIF 钢轧工艺参数对深冲性能的影响中文刘战英 1 周满春 2 王涛 1 刘相华 2 王国栋 2(1.河北理工大学冶金与能源学院;2.东北大学轧制技术及连轧自动化国家重点实验室)摘要: IF 钢的轧制工艺参数具有优良的深冲性能,是由于其具有纯洁的钢质和强的 {111}∥ND 织构。而在铁素体区热轧时,能够通过操纵轧制及退火工艺参数得到强的{111}织构。本文的 IF 钢铁素体区热轧试验采纳润滑轧制,实行了不同的压下制度、温度制度、退火制度,同时对深冲性能进行了检测,比较了不同工艺参数对深冲性能的阻碍规律。通过冷轧实验,得出在总压下率一定时,两次冷轧比一次冷轧的塑性应变比 r 值要高。一次冷轧压下率较小,二次冷轧压下率较大时,可使 r 值提高。通过 ODF 织构分析,与检测结果一致。关键词: IF 钢 热轧 压下率 深冲性能 r 值Effect of rolling data in technology of IF steel for drawabilityAbstract: IF steel has good drawability because of its high purity and intensive {111}∥ND texture, the intensive {111}∥ND texture can be acquired by controlling the parameters of α-region hot rolling and annealing. The experiment discussed in this paper was carried out at different reduction, different rolling temperature and annealing temperature with lubrication, after that deep drawability was measured, and the influence of the parameters of α-region hot rolling and annea- ling was analysed also. It is proved by the test that r is higher in two- time cold rolling than in one-time cold rolling at the same total reduction ratio. If total reduction ratio is fixed, r- values is higher when the second reduction ratio of cold rolling is larger than first. ODF was used in the analysis of textures, which is compatible with test.Key word:IF steel hot rolling reduction drawability r value1 前言IF 钢的轧制工艺参数对深冲性能的阻碍,是制定轧制工艺制度的重要依据。塑性应变比 r 值是反映深冲性能的指标,r 值越高其深冲性能越好。热轧采纳铁素体区轧制、冷轧合理确定...
