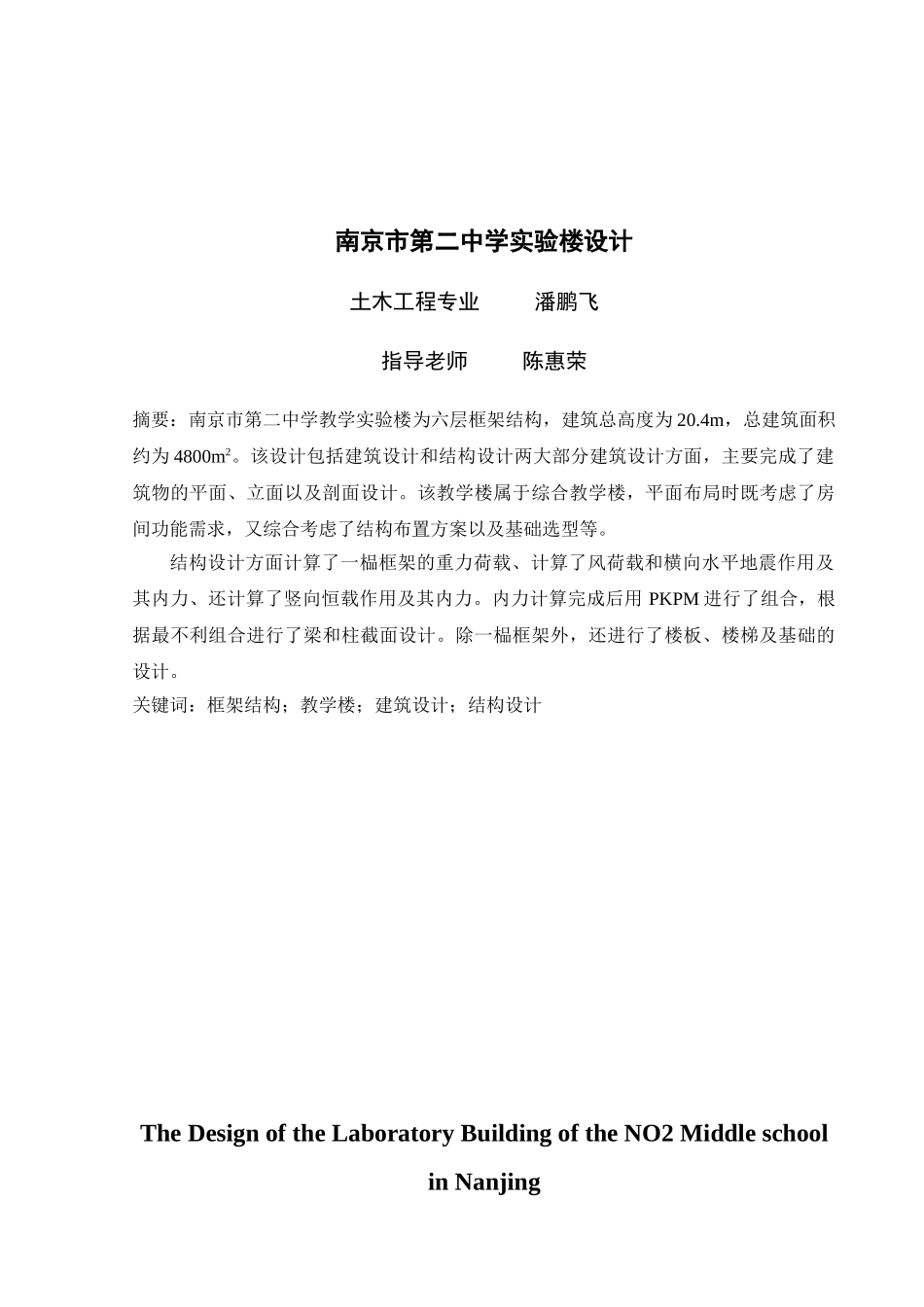

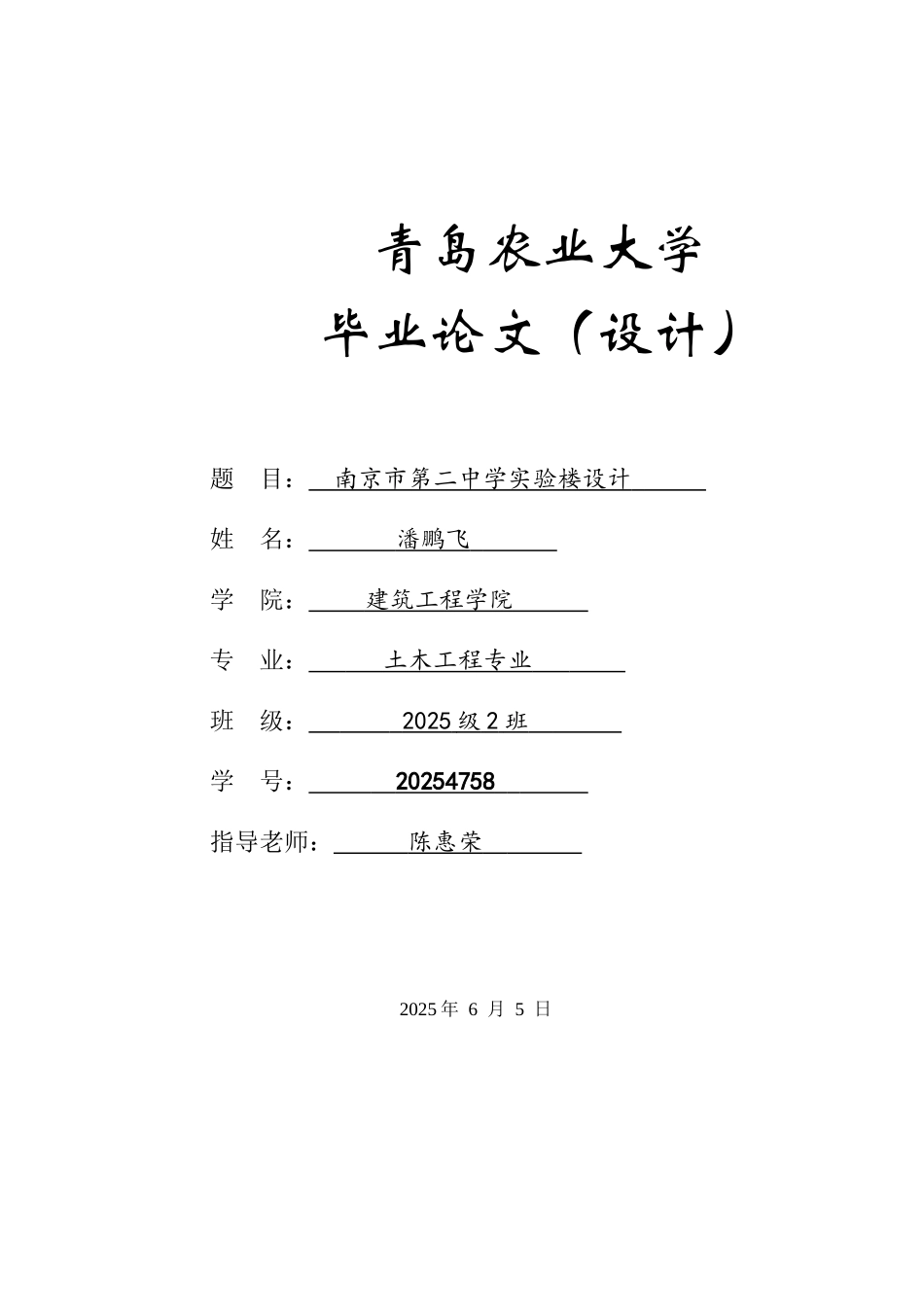

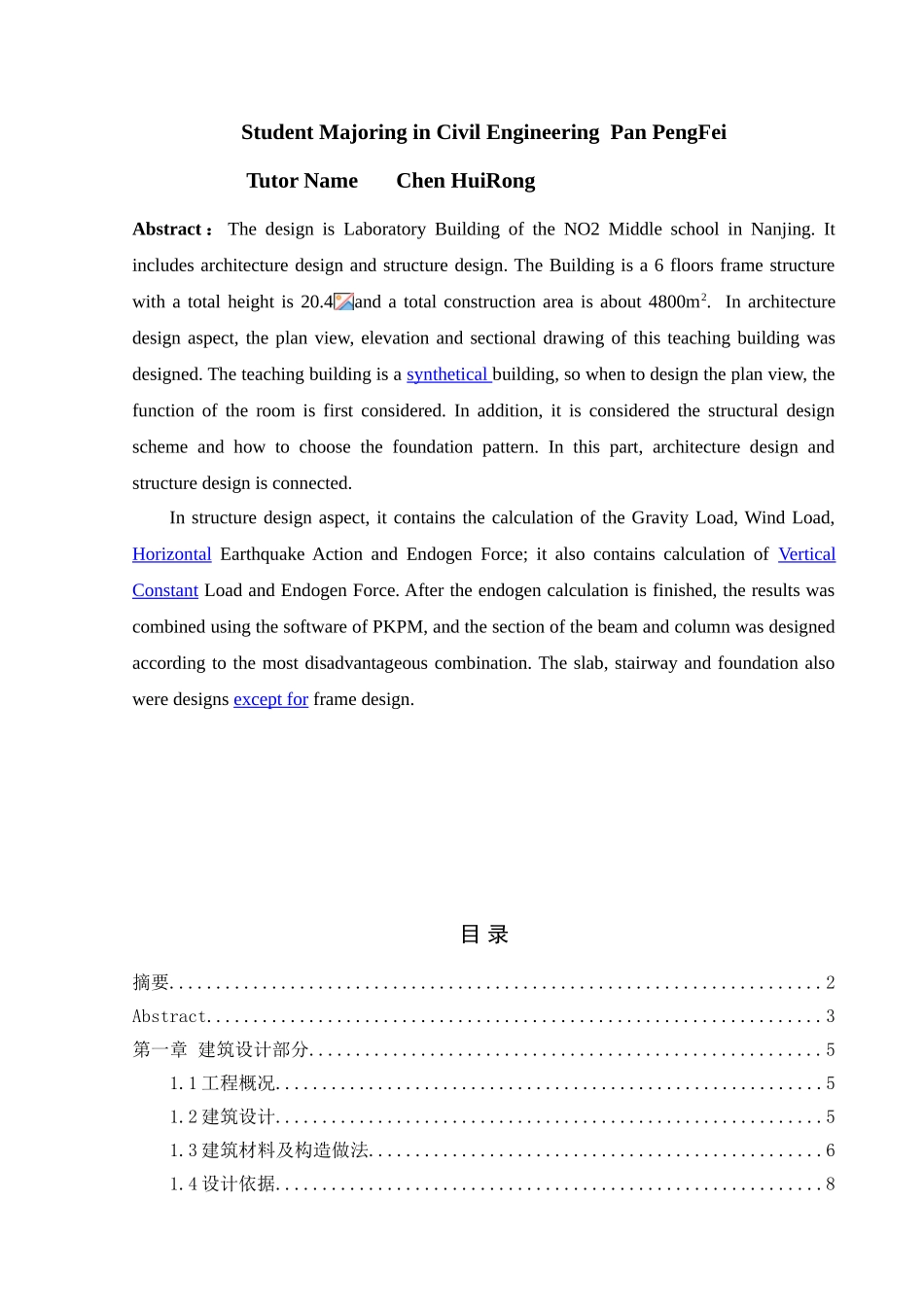

青岛农业大学毕业论文（设计） 题 目： 南京市第二中学实验楼设计 姓 名： 潘鹏飞 学 院： 建筑工程学院 专 业： 土木工程专业 班 级： 2025 级 2 班 学 号： 20254758 指导老师： 陈惠荣 2025 年 6 月 5 日南京市第二中学实验楼设计土木工程专业 潘鹏飞指导老师 陈惠荣摘要：南京市第二中学教学实验楼为六层框架结构，建筑总高度为 20.4m，总建筑面积约为 4800m2。该设计包括建筑设计和结构设计两大部分建筑设计方面，主要完成了建筑物的平面、立面以及剖面设计。该教学楼属于综合教学楼，平面布局时既考虑了房间功能需求，又综合考虑了结构布置方案以及基础选型等。结构设计方面计算了一榀框架的重力荷载、计算了风荷载和横向水平地震作用及其内力、还计算了竖向恒载作用及其内力。内力计算完成后用 PKPM 进行了组合，根据最不利组合进行了梁和柱截面设计。除一榀框架外，还进行了楼板、楼梯及基础的设计。关键词：框架结构；教学楼；建筑设计；结构设计 The Design of the Laboratory Building of the NO2 Middle school in NanjingStudent Majoring in Civil Engineering Pan PengFei Tutor Name Chen HuiRong Abstract ： The design is Laboratory Building of the NO2 Middle school in Nanjing. It includes architecture design and structure design. The Building is a 6 floors frame structure with a total height is 20.4and a total construction area is about 4800m2. In architecture design aspect, the plan view, elevation and sectional drawing of this teaching building was designed. The teaching building is a synthetical building, so when to design the plan view, the function of the room is first considered. In addition, it is considered the structural design scheme and how to choose the foundation pattern. In this part, architecture design and structure design is connected.In structure design aspect, it contains the calculation of the Gravity Load, Wind Load, Horizontal Earthquake Action and Endogen Force; it also contains calculation of Vertical Constant Load a...
