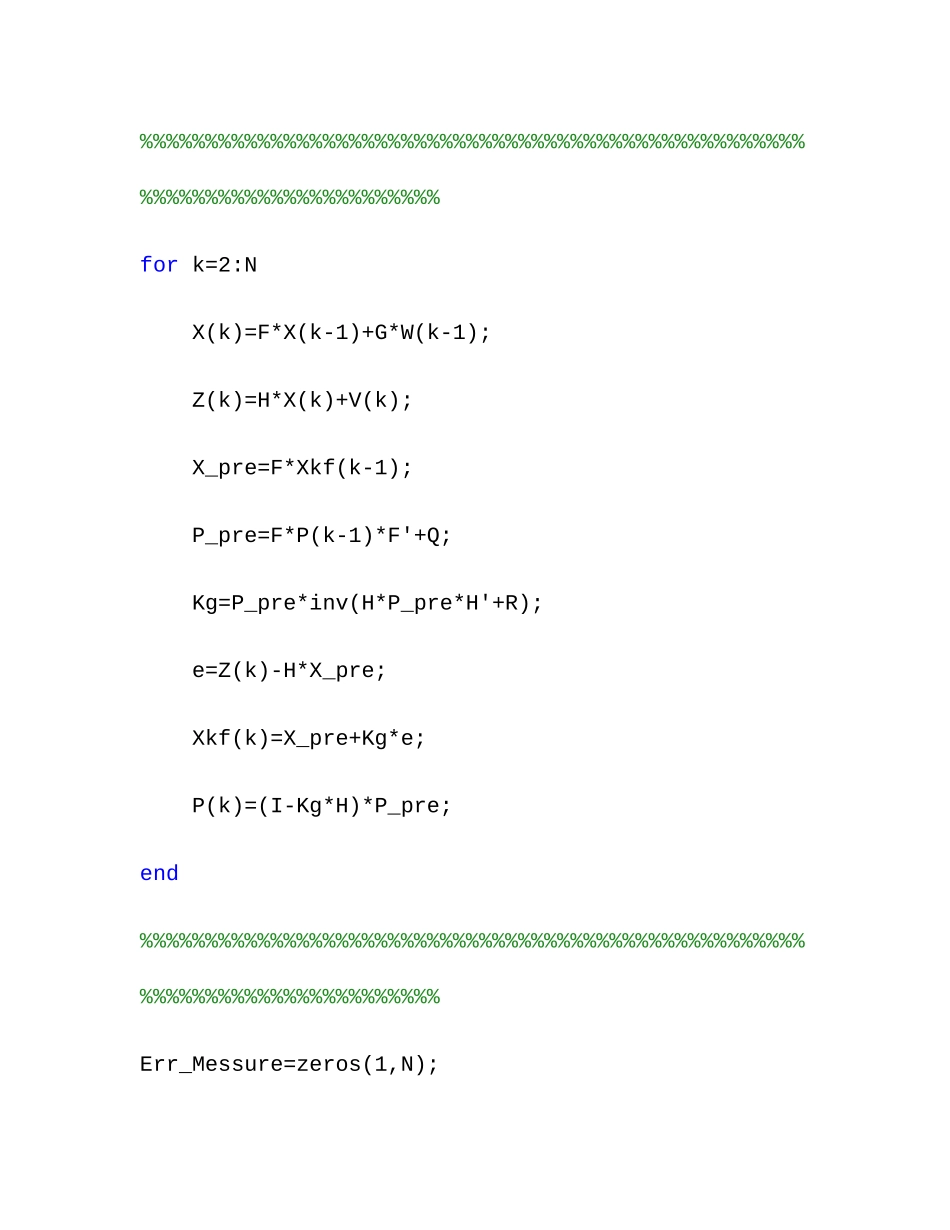

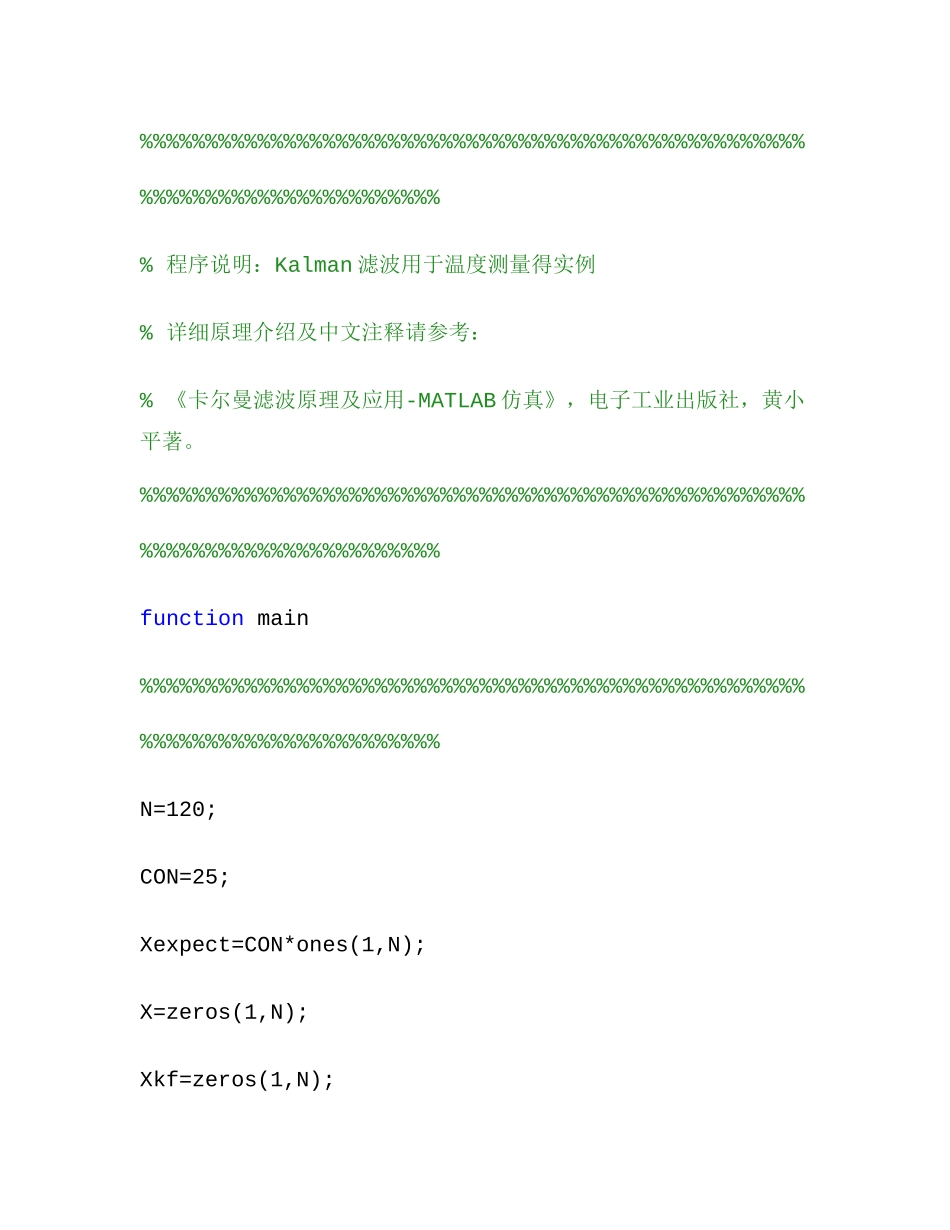

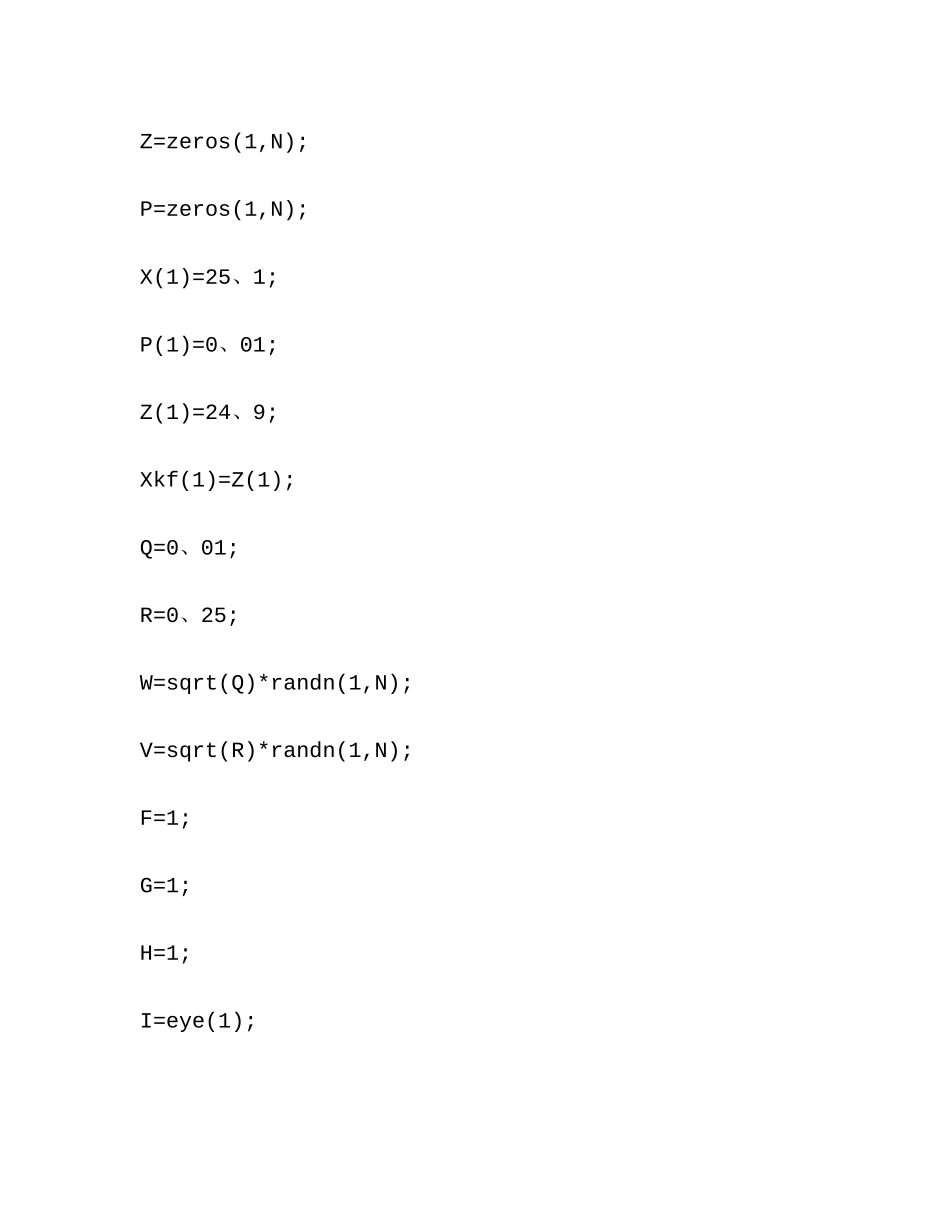

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% 程序说明：Kalman 滤波用于温度测量得实例% 详细原理介绍及中文注释请参考：% 《卡尔曼滤波原理及应用-MATLAB 仿真》，电子工业出版社，黄小平著。%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%function main%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%N=120;CON=25;Xexpect=CON*ones(1,N);X=zeros(1,N); Xkf=zeros(1,N);Z=zeros(1,N);P=zeros(1,N); X(1)=25、1;P(1)=0、01;Z(1)=24、9;Xkf(1)=Z(1);Q=0、01;R=0、25;W=sqrt(Q)*randn(1,N);V=sqrt(R)*randn(1,N);F=1;G=1;H=1;I=eye(1); %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%for k=2:N X(k)=F*X(k-1)+G*W(k-1); Z(k)=H*X(k)+V(k); X_pre=F*Xkf(k-1); P_pre=F*P(k-1)*F'+Q; Kg=P_pre*inv(H*P_pre*H'+R); e=Z(k)-H*X_pre; Xkf(k)=X_pre+Kg*e; P(k)=(I-Kg*H)*P_pre;end%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%Err_Messure=zeros(1,N);Err_Kalman=zeros(1,N);for k=1:N Err_Messure(k)=abs(Z(k)-X(k)); Err_Kalman(k)=abs(Xkf(k)-X(k));endt=1:N;figure('Name','Kalman Filter Simulation','NumberTitle','off');plot(t,Xexpect,'-b',t,X,'-r',t,Z,'-k',t,Xkf,'-g');legend('expected','real','measure','kalman extimate'); xlabel('sample time');ylabel('temperature');title('Kalman Filter Simulation');figure('Name','Error Analysis','NumberTitle','off');plot(t,Err_Messure,'-b',t,Err_Kalman,'-k');legend('messure error','kalman error'); xlabel('sample time');%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
