一种医疗机器人主操作手设计与 VIP免费

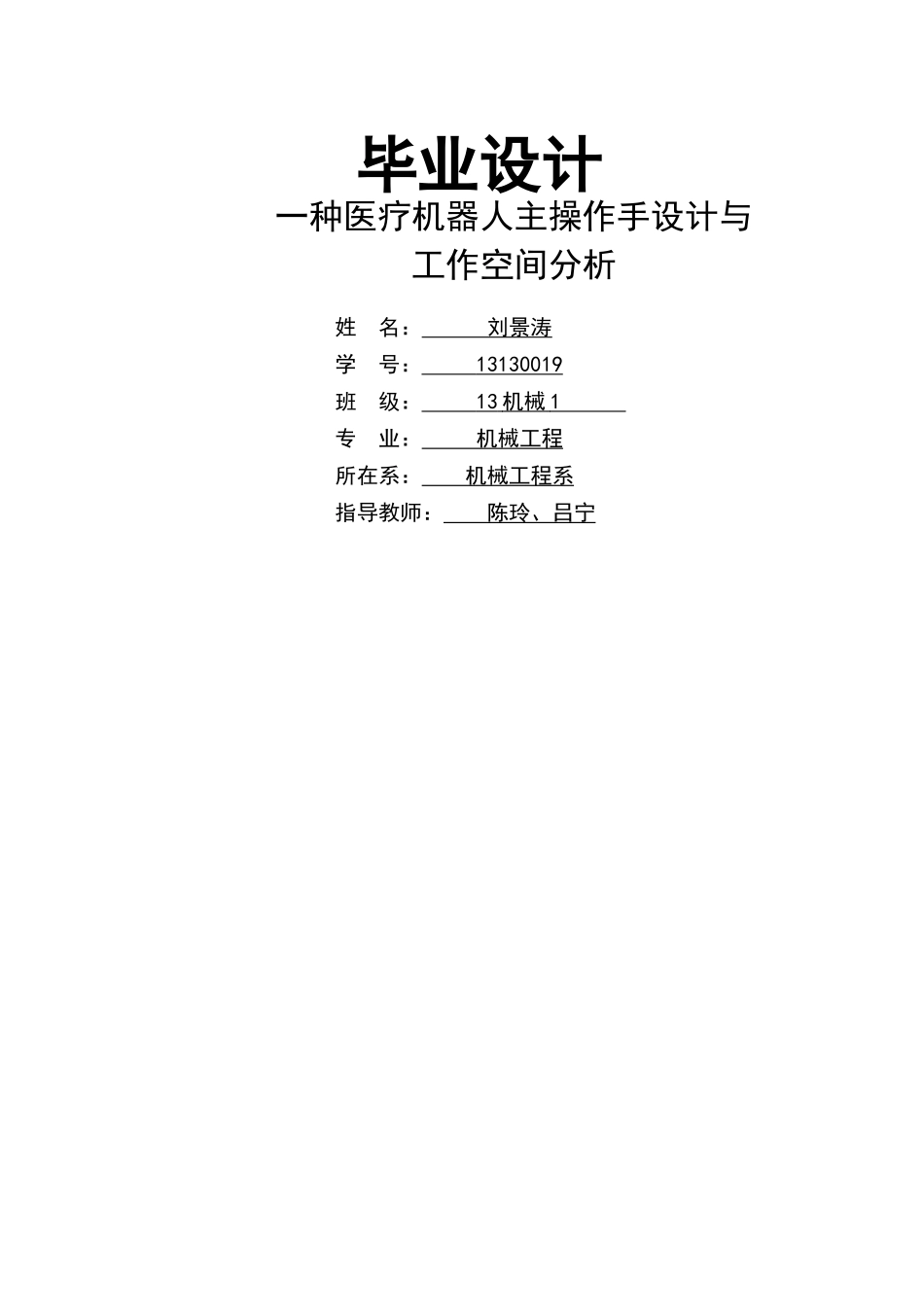

一种医疗机器人主操作手设计与 _第1页
1/28
一种医疗机器人主操作手设计与 _第2页
2/28

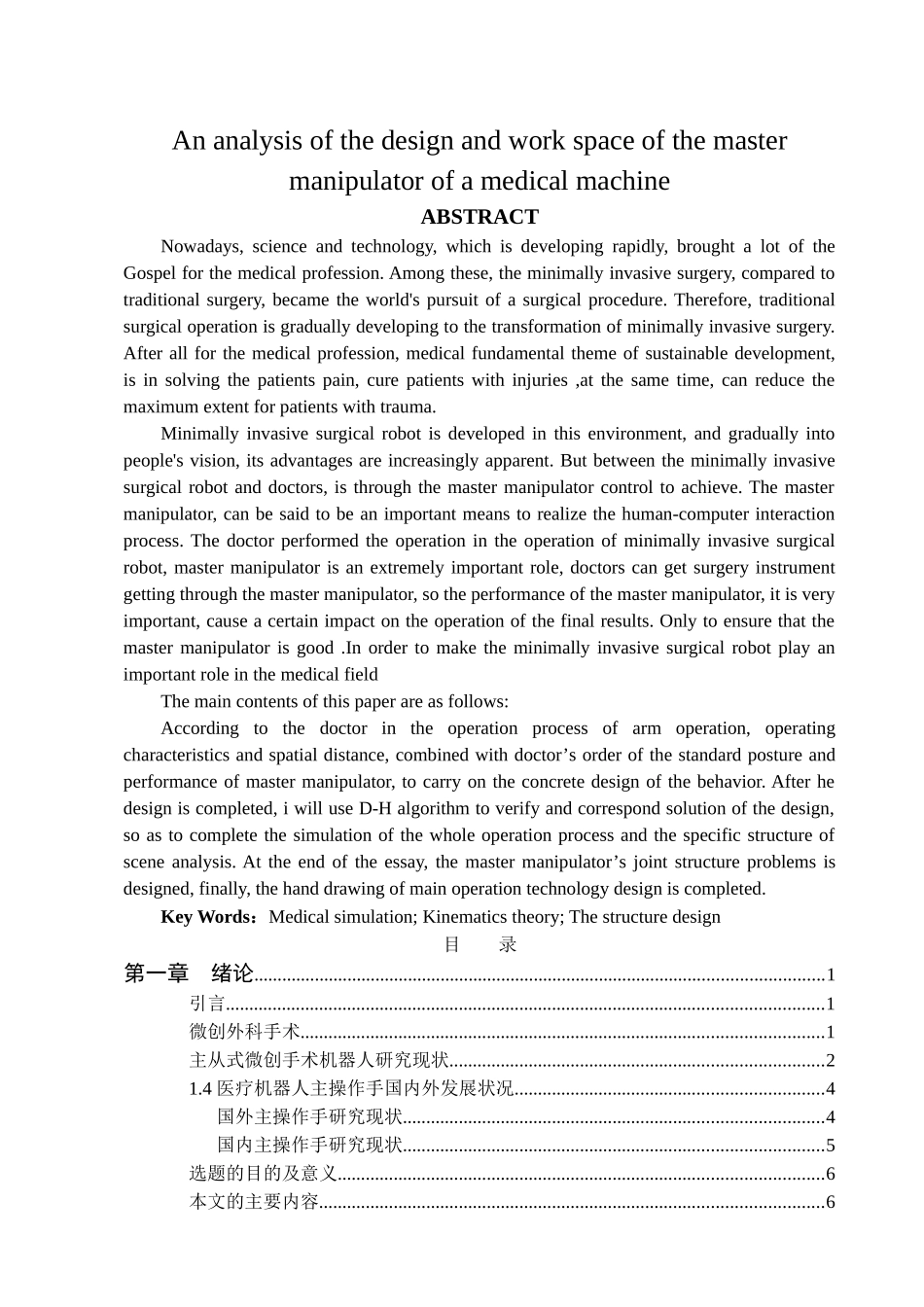

一种医疗机器人主操作手设计与 _第3页
3/28
毕业设计一种医疗机器人主操作手设计与工作空间分析姓名:刘景涛学号:13130019班级:13机械1专业:机械工程所在系:机械工程系指导教师:陈玲、吕宁一种医疗机器人主操作手设计与工作空间分析摘要现如今,在科技大力发展的前提下,也为医学界带了不少福音,这其中,微创手术,相较于传统手术,成为了外科界所追求的一种手术境界。也正因此,外科的传统手术在逐步发展起来,慢慢向微创手术转型。毕竟对医学界而言,医学持续发展的根本主题,就是在解决患者痛苦,治愈患者伤病的同时,能最大程度的减少为患者带来的创伤。而微创手术机器人正是这样的环境下发展起来的,并逐渐步入了人们的视野,应用优势日益显现。而微创手术机器人和医生之间的联系,就是通过主操作手来控制界面实现的,所谓的主操作手,可以说就是实现人机交互的重要手段。医生在操作微创手术机器人进行手术的过程中,主操作手的作用极其重要,可以通过操作来获取到手术需要的器械,因此主操作手的性能指标,就非常重要,会对手术的最终结果造成一定的影响。只有确保主操作手具有良好的性能,才能使微创手术机器人在医疗领域的运用发挥重要作用。本文的主要内容如下:根据医生在手术过程中的手臂操作、动作特点和空间距离,结合医生主操作手的标准姿势及性能要求,来对该行为进行具体的设计。设计完成以后,结合D-H算法对该设计进行相应的验证和求解,从而完成对整个操作流程的仿真模拟、场景分析。文章的末尾对操作手的具体结构组织进行了设计,并对主操作手的各关节结构所遇到的问题进行了方案研究,最终完成了主操作手的技术设计图。关键词:医疗仿真;运动学理论;结构设计AnanalysisofthedesignandworkspaceofthemastermanipulatorofamedicalmachineABSTRACTNowadays,scienceandtechnology,whichisdevelopingrapidly,broughtalotoftheGospelforthemedicalprofession.Amongthese,theminimallyinvasivesurgery,comparedtotraditionalsurgery,becametheworld'spursuitofasurgicalprocedure.Therefore,traditionalsurgicaloperationisgraduallydevelopingtothetransformationofminimallyinvasivesurgery.Afterallforthemedicalprofession,medicalfundamentalthemeofsustainabledevelopment,isinsolvingthepatientspain,curepatientswithinjuries,atthesametime,canreducethemaximumextentforpatientswithtrauma.Minimallyinvasivesurgicalrobotisdevelopedinthisenvironment,andgraduallyintopeople'svision,itsadvantagesareincreasinglyapparent.Butbetweentheminimallyinvasivesurgicalrobotanddoctors,isthroughthemastermanipulatorcontroltoachieve.Themastermanipulator,canbesaidtobeanimportantmeanstorealizethehuman-computerinteractionprocess.Thedoctorperformedtheoperationintheoperationofminimallyinvasivesurgicalrobot,mastermanipulatorisanextremelyimportantrole,doctorscangetsurgeryinstrumentgettingthroughthemastermanipulator,sotheperformanceofthemastermanipulator,itisveryimportant,causeacertainimpactontheoperationofthefinalresults.Onlytoensurethatthemastermanipulatorisgood.InordertomaketheminimallyinvasivesurgicalrobotplayanimportantroleinthemedicalfieldThemaincontentsofthispaperareasfollows:Accordingtothedoctorintheoperationprocessofarmoperation,operatingcharacteristicsandspatialdistance,combinedwithdoctor’sorderofthestandardpostureandperformanceofmastermanipulator,tocarryontheconcretedesignofthebehavior.Afterhedesigniscompleted,iwilluseD-Halgorithmtoverifyandcorrespondsolutionofthedesign,soastocompletethesimulationofthewholeoperationprocessandthespecificstructureofsceneanalysis.Attheendoftheessay,themastermanipulator’sjointstructureproblemsisdesigned,finally,thehanddrawingofmainoperationtechnologydesigniscompleted.KeyWords:Medicalsimulation;Kinematicstheory;Thestructuredesign目录第一章绪论......
