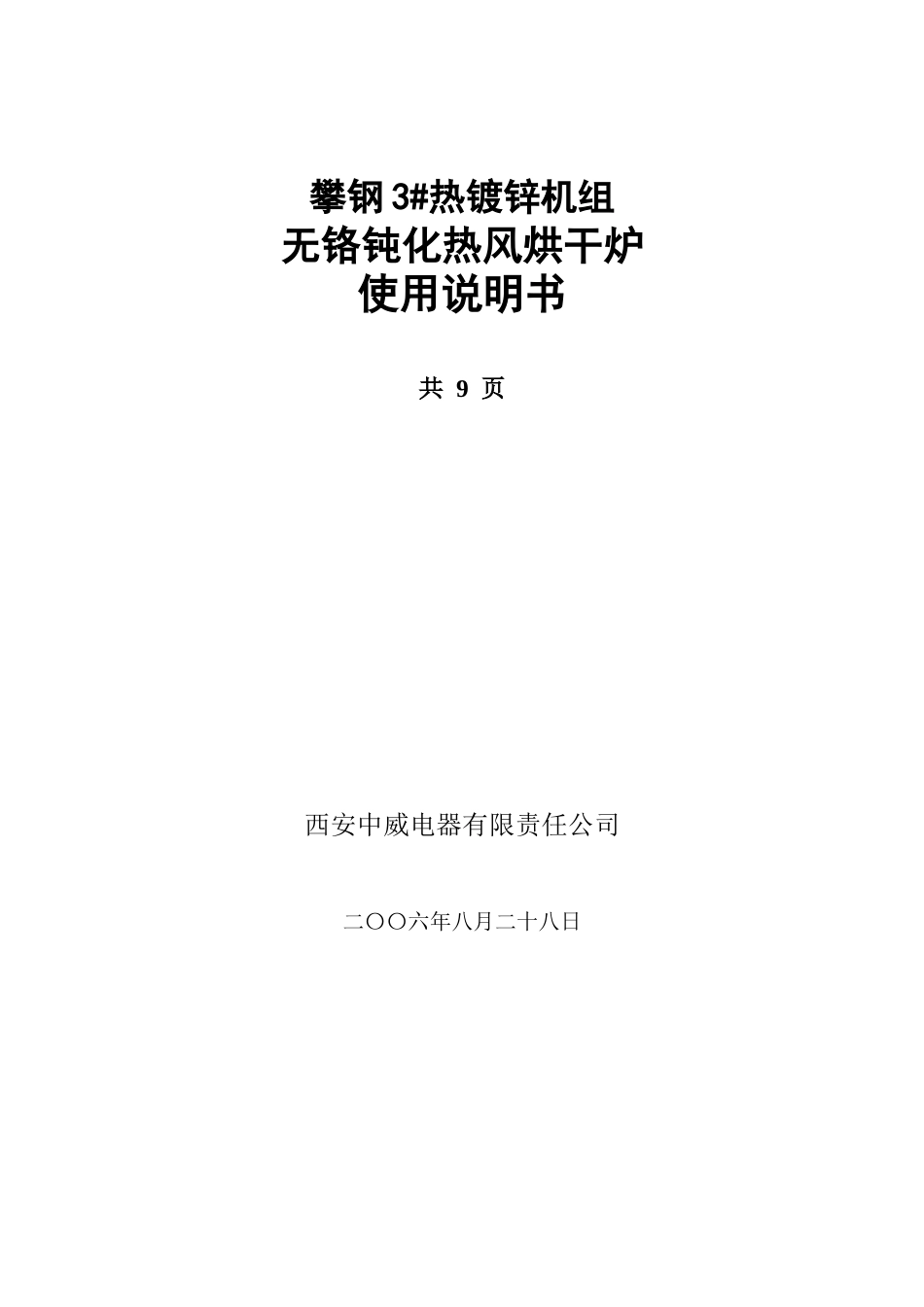

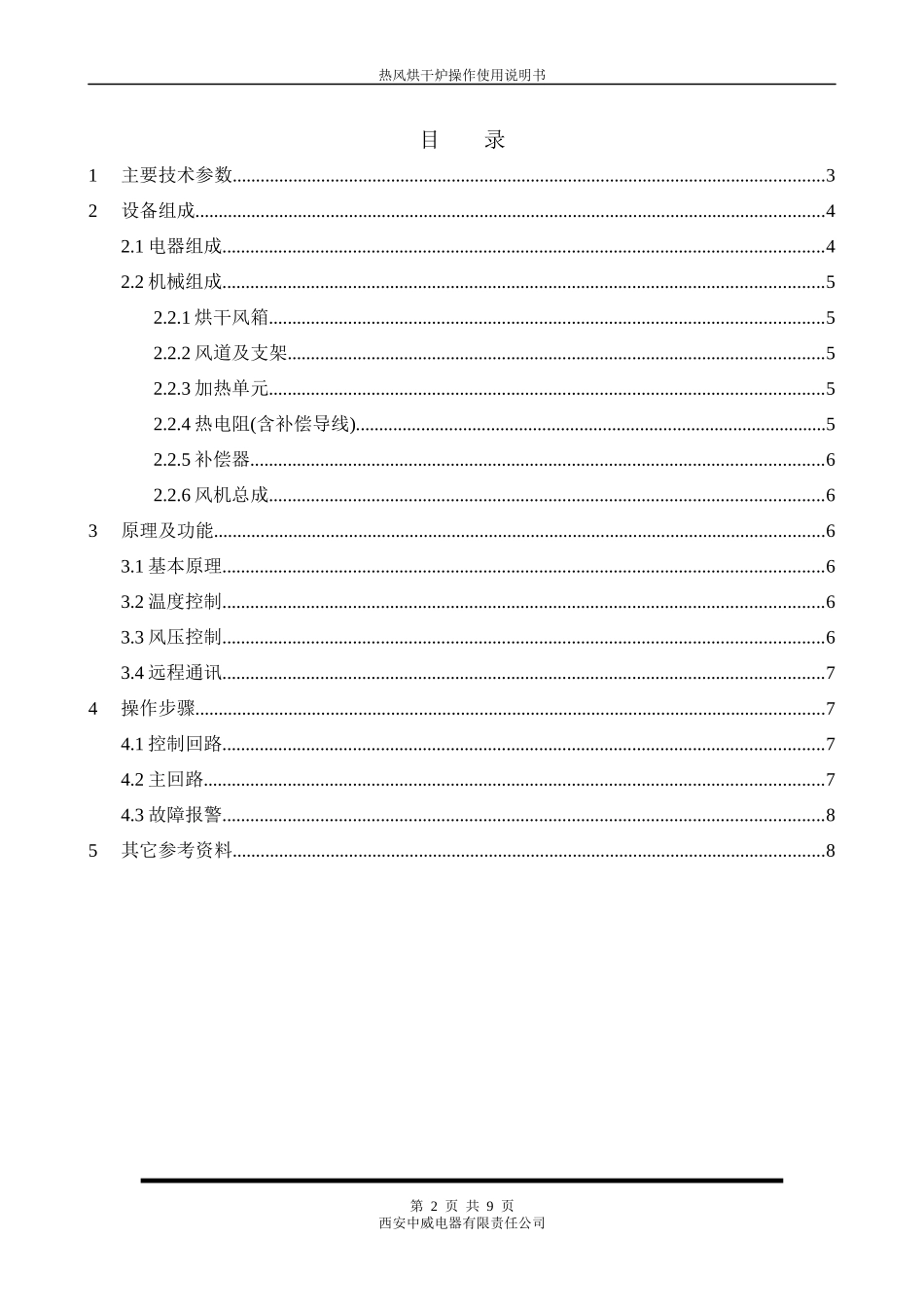

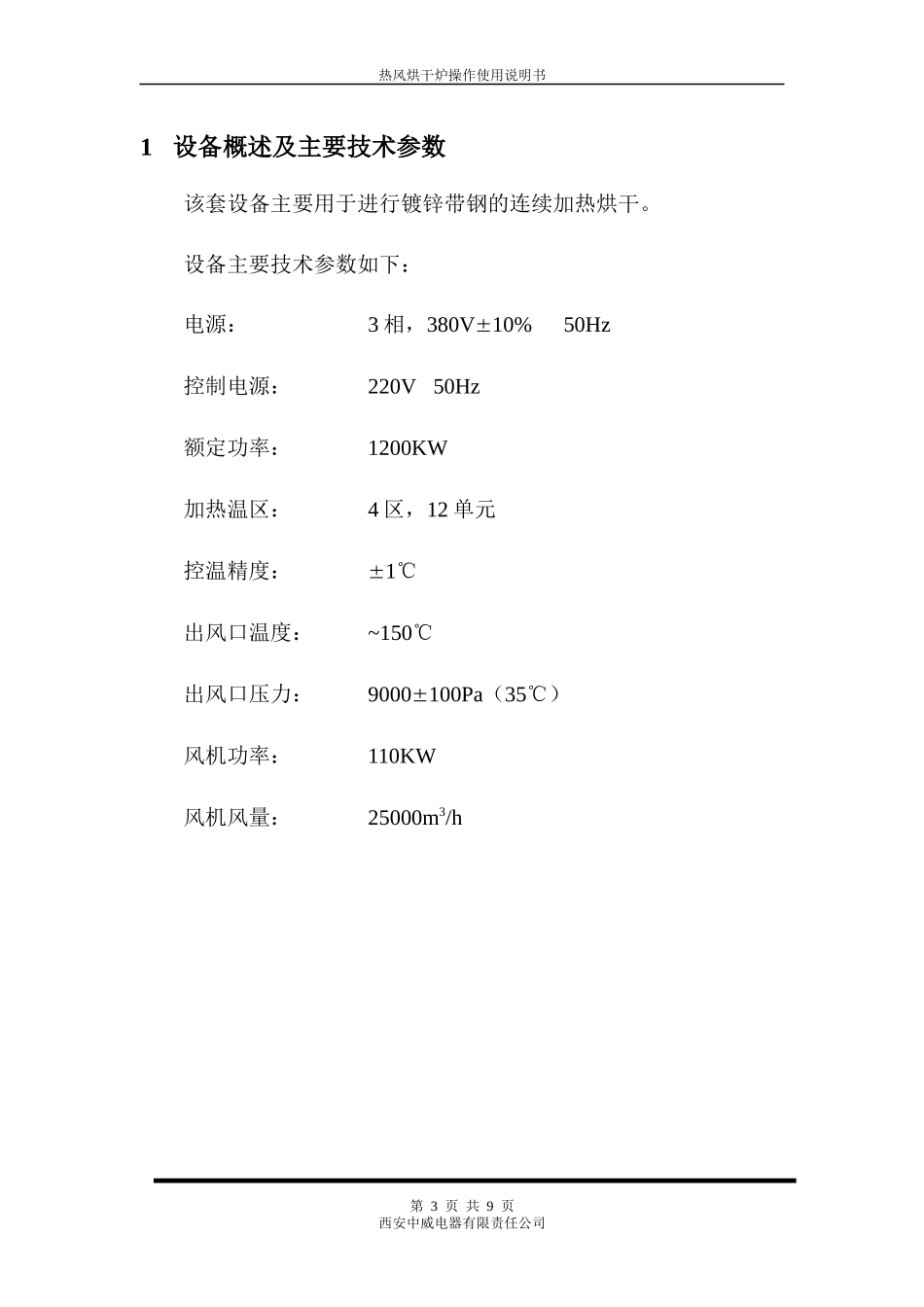

攀钢3#热镀锌机组无铬钝化热风烘干炉使用说明书共9页西安中威电器有限责任公司二〇〇六年八月二十八日热风烘干炉操作使用说明书目录1主要技术参数...............................................................................................................................32设备组成.......................................................................................................................................42.1电器组成.................................................................................................................................42.2机械组成.................................................................................................................................52.2.1烘干风箱.......................................................................................................................52.2.2风道及支架...................................................................................................................52.2.3加热单元.......................................................................................................................52.2.4热电阻(含补偿导线).....................................................................................................52.2.5补偿器...........................................................................................................................62.2.6风机总成.......................................................................................................................63原理及功能...................................................................................................................................63.1基本原理.................................................................................................................................63.2温度控制.................................................................................................................................63.3风压控制.................................................................................................................................63.4远程通讯.................................................................................................................................74操作步骤.......................................................................................................................................74.1控制回路.................................................................................................................................74.2主回路.....................................................................................................................................74.3故障报警.................................................................................................................................85其它参考资料...............................................................................................................................8第2页共9页西安中威电器有限责任公司热风烘干炉操作使用说明书1设备概述及主要技术参数该套设备主要用于进行镀锌带钢的连续加热烘干。设备主要技术参数如下：电源：3相，380V10%50Hz控制电源：220V50Hz额定功率：1200KW加热温区：4区，12单元控温精度：1℃出风口温度：~150℃出风口压力：9000100Pa（35℃）风机功率：110KW风机风量：25000m3/h第3页共9页西安中威电器有限责任公司热风烘干炉操作使用说明书2设备组成2.1电器组成中冶赛迪热风烘干炉电气设备主...
